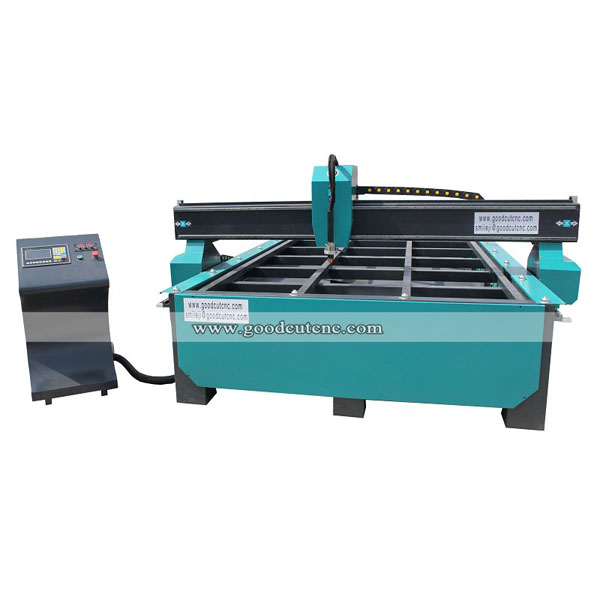

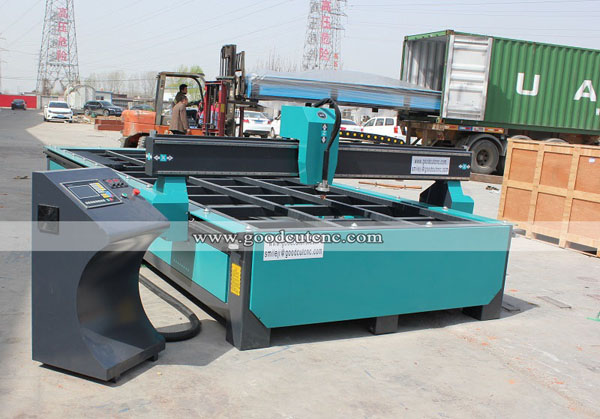

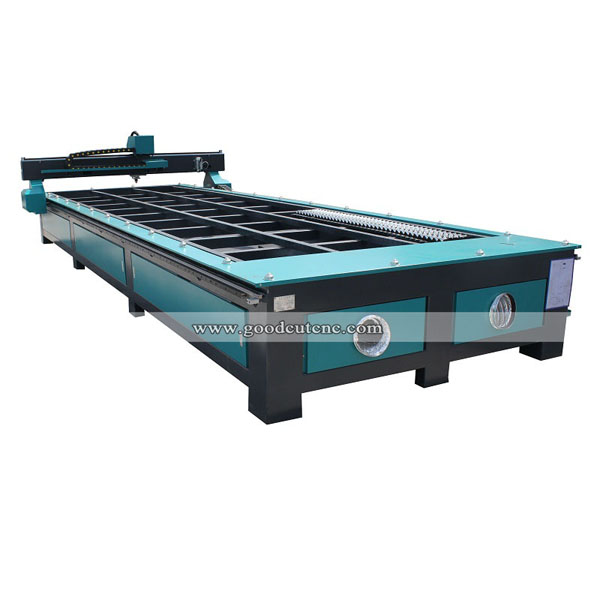

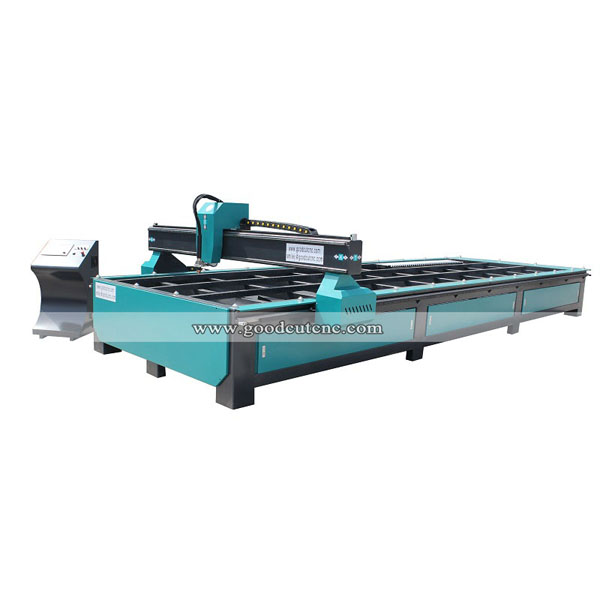

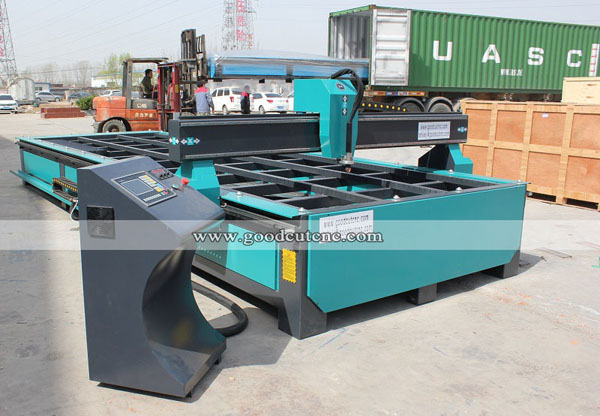

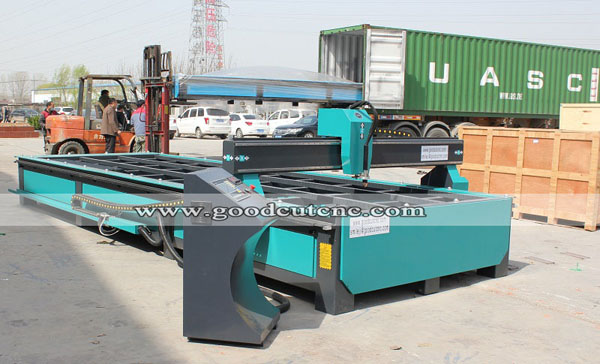

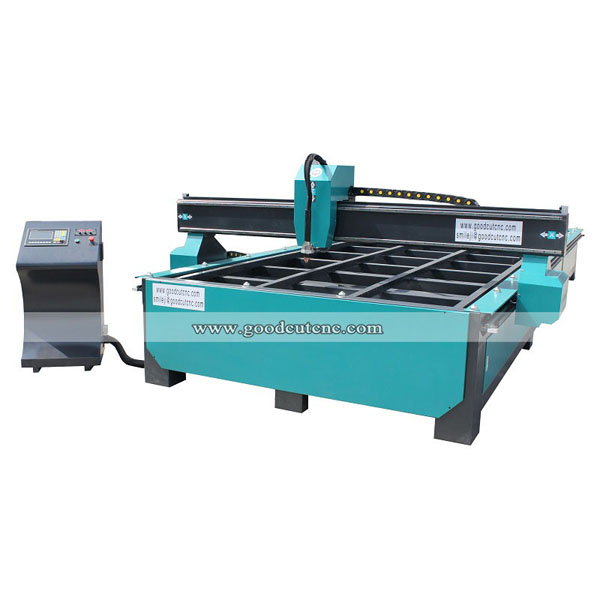

GC2060P 2*6 Meter Plasma Cutting Machine With LGK Huayuan Power Supply Nozzle Electrode Gun

  • 2*6 meter, 2*4 meter

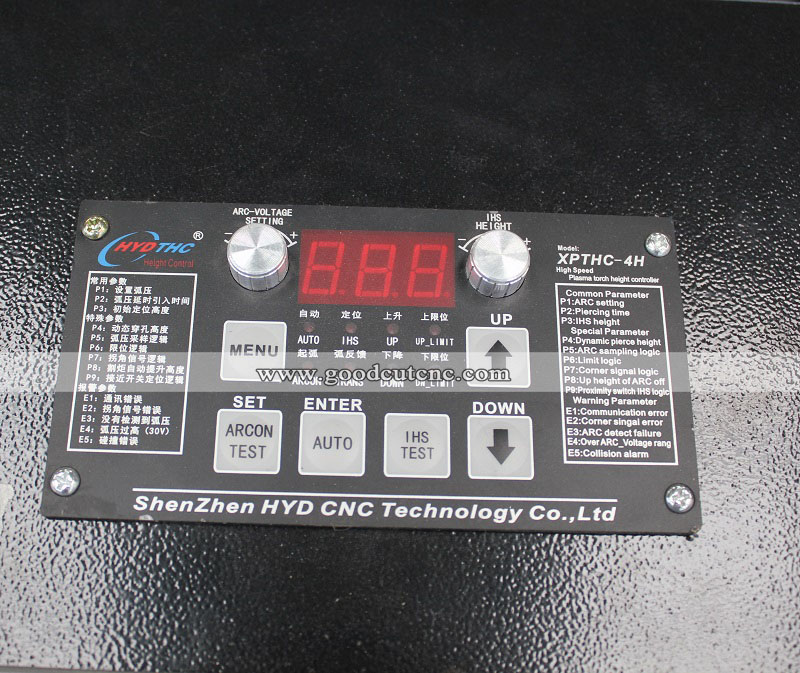

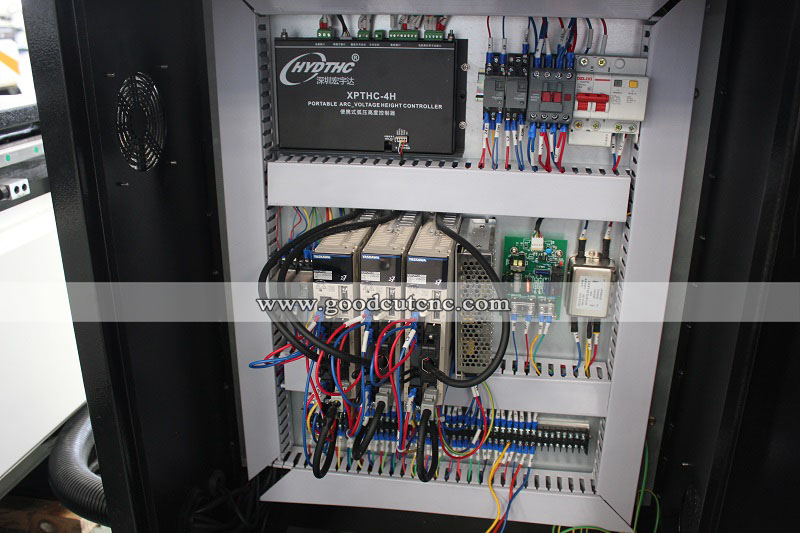

  • HYD THC controller
  • Heavy duty frame
  • Yaskawa servo motor for option

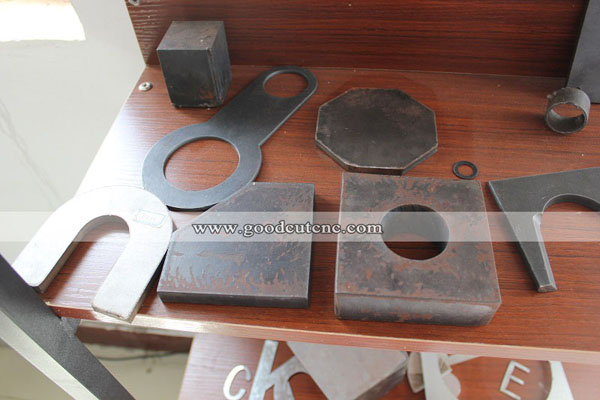

  • Product description: 5*10 feet, 2 meter *6 meter large size plasma cutting machine for cut metal stainless steel, carbon steel, galvanized sheet
  • INQUIRY   EMAIL


According to customer demand computer programming cutting

CNC Cutting Machine is a kind of automatic cutting equipment which is combined CNC system, precise mechanical drive and air cutting technology. It is widely applied to manufacture and cutting steel field, such as, the ship building industry, steel construction, construction machinery, mining machinery, pressure vessel and vehicle, petrochemical, etc.




Product features :
Working stability, high frequency interfere effectively plasma, lightweight portable
Support two cutting ways of flame and plasma
Economic benefits, the structure and design is contracted. it adopts humanistic Positive man-machine conversation and operate easily
Cutting with high quality, high effect level, high precision
Pre-sale will train and after-sale will track service

No.
Description
GC-2040P / GC-2060P
1
Working Size
2000*4000mm / 2000*6000mm
2
Z Axis Clearance
150mm
(200 And Higher Is Optional)
3

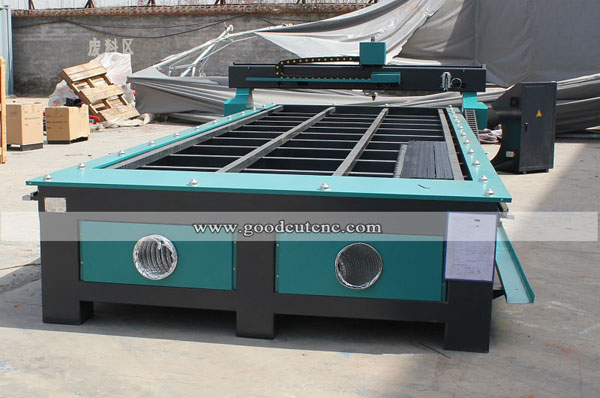

Table Type
Knife table (Teeth table And Water table can be optional)
4
Transmission System
Rack Pinion And Hiwin Linear Rails For X/Y
5
Driving System
Stepper Motor And Drivers(Servp motor is optional)
6
Max. Cutting Speed
12000mm/Min(different configuration and different material and thickness speed is different)
7
Max. Travelling Speed
30000mm/Min(different configuration speed is different)
8
Working Voltage
380V/3ph(220V/3ph is optional)
9
Plasma Generator
Huayuan China and USA power as your requirements
10
Arc Mode
Non-Contact Arc, Arc Pressure Adjuster
11
Output Current
63/100/120A/160A/200A China
(45/65/85/105/125/200A USA)










We appreciated that if you can supply following details, so we can give you more useful suggestion
The cutting size (width*length)?
The minimum and maximum cutting thickness?
Cutting material is mild steel or stainless steel?
The material shape is metal sheet, or metal plate, or proximate matter, or steel pipe?

Power supplier

China Huayuan LGK 63A 100A 120A 160A 200A 300A

US Hypertherm 45A 65A 85A 105A 125A 200A 130A 170A 300A
