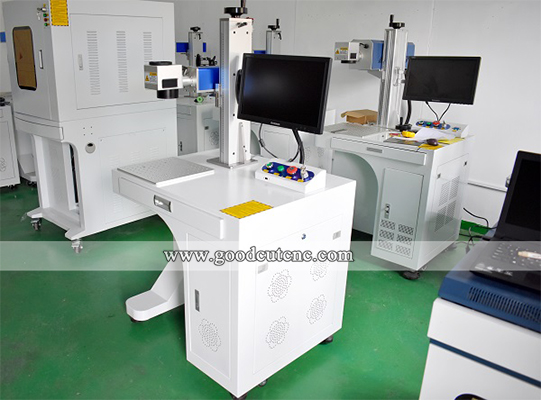

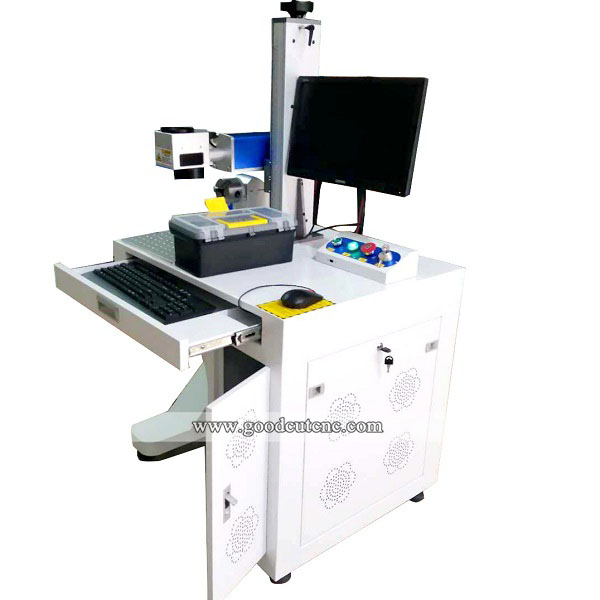

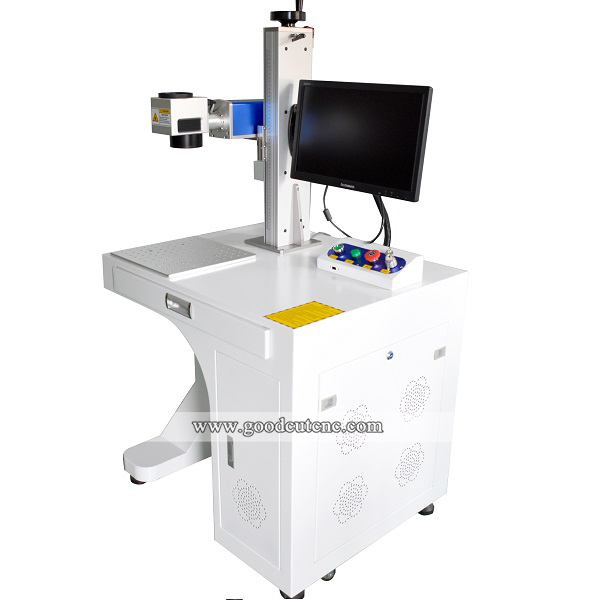

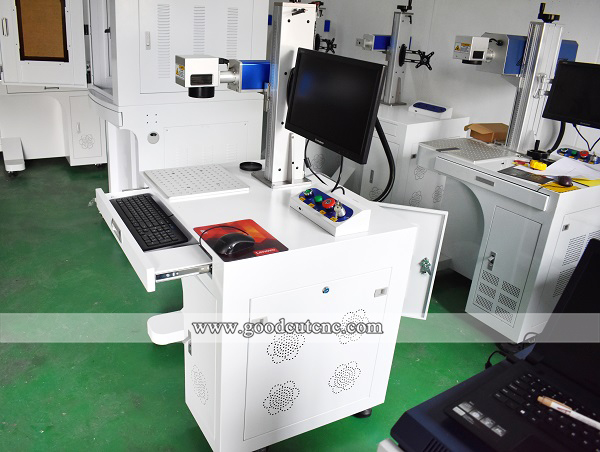

Mopa Fiber Laser Marking Machine With 10W/20W/30W/50W

  • Marking area: 110*110mm/ 200*200mm/300*300mm
  • Laser Power: fiber 10W/20W/30W/50W
  • Laser source: RAYCUS or JPT M1 M6 20 Watt 30 Watt
  • Process material: All Metal, Part of Plastic
  • Product description: color laser marking, RAYCUS or JPT metal mopa fiber laser
  • INQUIRY   EMAIL

Mopa Fiber Laser Marking Machine With 10W/20W/30W/50W

Compared with the Q-switched laser, the MOPA laser has independent pulse width and frequency(1-2000kHZ), and the adjustment parameter range is large. Since the thermal effect of the narrow pulse width is smaller, a more elaborate processing effect can be achieved.

MOPA M1 M6 M7 parameter

Compared with the previous M6 M1series, the M7 series has become the focus of attention with higher pulse power, 46% smaller volume, automatic fan adjustment, and new GUI.    (M7>M6>M1)

Main features of laser marking machine for metal:

1. High speed with galvanometer;
2. Small volume, light weight;
3. Low power, consumption power is less than 500w;
4. Completely air cooling, low energy;
5. No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working;
6. Greatly reduce the depreciation cost, satisfying customers' stable large quality produce.

Parameter of laser marking machine for metal:

Model

GC-M20W

GC-M30W

LXF--M50W

Output power

20W

30W

50W

Repetitive Rate

30K-200KHZ

50K-200KHZ

50K-200KHZ

Wavelength

1064nm

Guide laser

Red light/655nm  wavelength/output1.0mw

Marking range

110mm*110mm

Optional marking range

70mm*70mm/150mm*150mm/170mm*170mm/200mm*200mm/300mm*300mm

Marking model

XYZ axis dynamic focusing

Min line width

0.03mm

Marking speed

≤10000mm/s

Operate system

WIN7/WINXP

Support font

True type,AUTOCAD,Others

1D barcode

CODE39/CODE128/TIF/CODABAR/EAN/UPC

2D barcode

QR/PDF417/DATA Matrix(ECC220)

Support format

PLT/DXF/DWG/SVG/STL/BMP/JPG/PNG/TIF

Working environment

Temperature:10℃-35℃ Humidity 5%/75%

Power consumption

Single phase 110v/220v optional/50-60HZ

Cooling way

Air cooling

Control connector

PCL-Express/USB-2.0 Optional

Whole machine size

580mm*750mm*1532mm

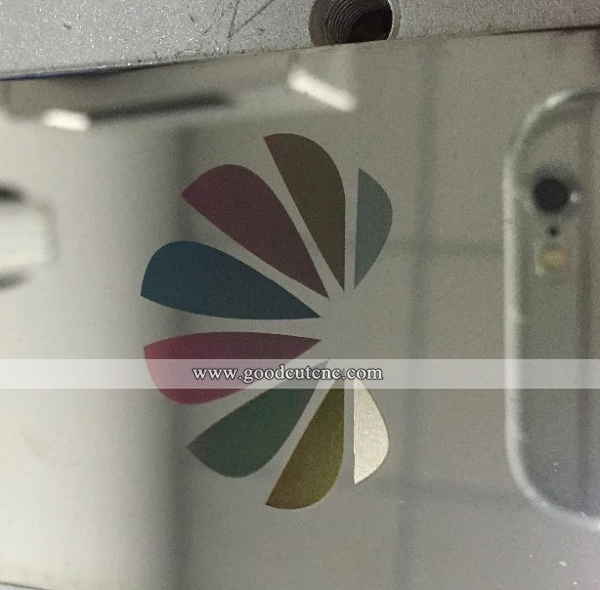

For example, MOPA lasers can achieve the effects that Q-switched lasers cannot achieve in thin-film de-layering, anodized aluminum black marking, stainless steel color marking, and sheet metal soldering.

GoodCut RAYCUS or JPT metal 30w engraver mopa fiber laser with 10W/20W/30W/50W :

#1, The GoodCut MOPA color fiber laser marking machine adopts the most advanced laser technology, which has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy.

2, The MOPA color fiber laser marking machine is environmental friendly, low consumption, fully automatically and leading laser system.

3, The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment.

4, It is widely used in metal materials and some non-metallic materials. In the case of marking on alumina materials with black logo, model or letters, MOPA laser marking machine could meet this requirement.


#According to customer's actual case of production line, we could customize and provide special solutions for non-standard automation marking and identification.


#There are five types for your choice: Standing type, Desktop Type, Portable Type, Full-covered Type, Flying Type

RAYCUS or JPT metal 30w engraver mopa fiber laser with 10W/20W/30W/50W:

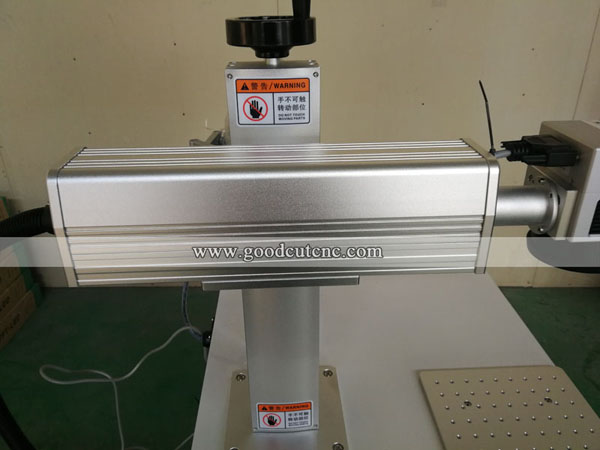

Digitizing GALVO scan head:

Name: Galvo scan head

Double red light looking for focus.

Alarm lights are safer.

High speed, high repeatability.


Singapore Wavelength optical Lens

Name: F-THETA scan lens

Brand: OPEX

Professional for laser use, high light transmission and high hardness. we have 70*70  ,110*110, 175*175 ,220*220 , 300*300 mm

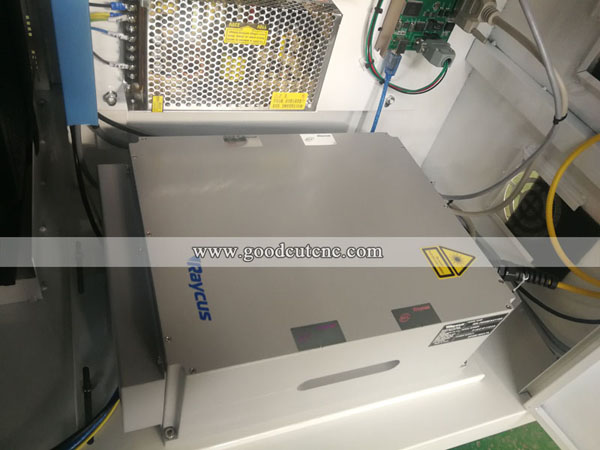

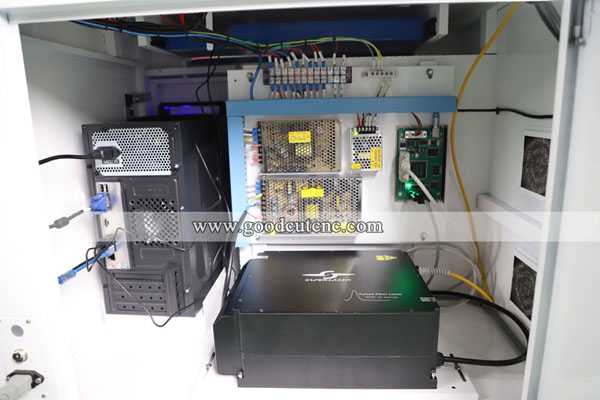

Famous Laser source

Name: MOPA fiber laser source

Brand: JPT

Domestic famous brand laser, maintenance-free, three-year warranty, better laser quality, also very popular in the world

Genuine control card

Name: BJJCZ control card
Brand: JCZ
Original: Beijing city, China
Leading team of laser control card, Original control card, more stable, safer and longer service life

Top quality Electrical components
Name: Power supply
Brand:Taiwan,CHINA
Stable work and durability

Optional Accessories of 20W 30W MOPA JPT Fiber lazer engraving color laser marking machine for metal:

1-Rotating round table: Multiple regular objects can be placed on round table to speed up work efficiency; round table tops can be rotated regularly


2-XY moving table: mainly suitable for large-area marking, motor drive moves in xy direction,through computer software control can achieve splicing marking, can also achieve longer length marking,such like 400*500, 500*500mm,500*600mm area, 50mm length ruler

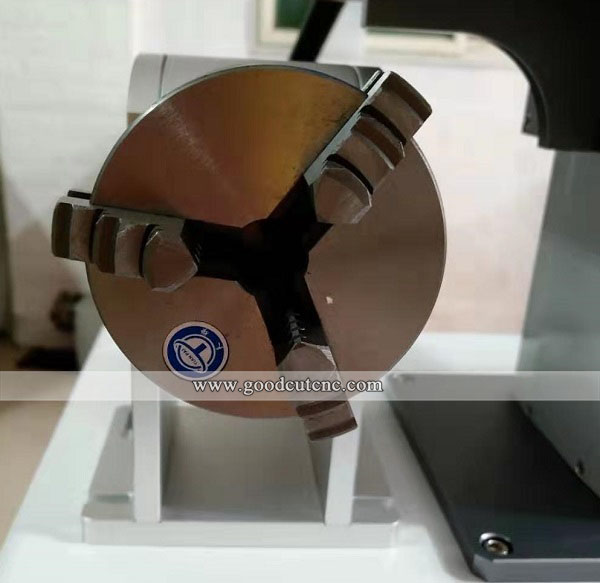

3-Rotary fixture: there are 69/80/100mm ,suit for marking cylinder items, like rings, Yeti cups, pens, etc.

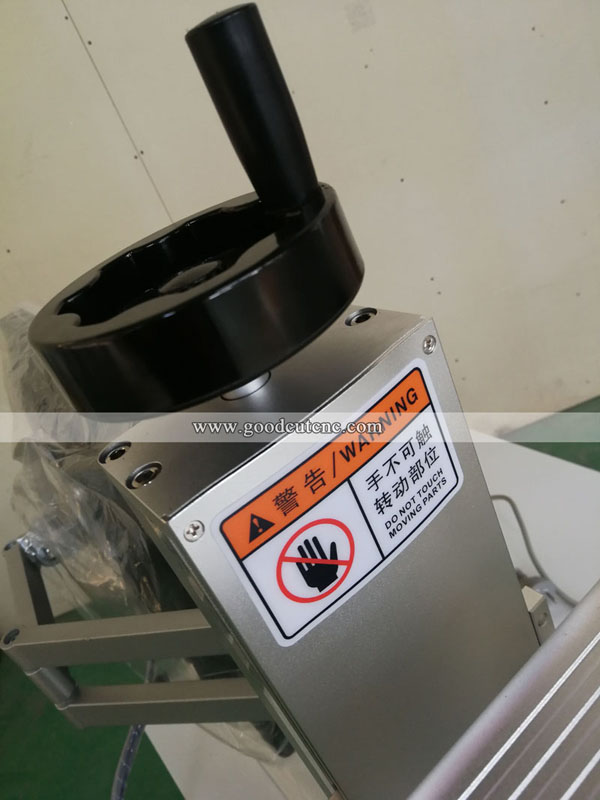

4-XYZ table: we have two kinds XY and XYZ , XYZ axis adjustable worktable can achieve very small position movement of workpiece via adjust the worktable.  So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust  the worktable by X ,Y, Z axis's handle.
5-Spare scan lens: thre are 175*175mm/  220*220mm/ 300*300mm , You can buy one more, different areas, which will help you in your future work.
6-Cyclops camera scanner: add a camera, and the processed parts can be seen through the control software, which is more suitable for high-precision marking and positioning.
Accurate: The camera image is calculated and processed in proportion to the actual size.
Safety: Marking/engraving effect achieves dynamic display to avoid laser damage
Easy: Edit screen and background view support mouse zoom at the same time
7-Autofocus device: Autofocus saves time in finding the focal length of different heights objects

Application of laser marking machine for metal:

GoodCut MOPA color laser marking machine is known for the high quality of the marks we produce, and these samples from GoodCut MOPA color Fiber Lasers showcase some of the common applications that highlight its capabilities. Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass
