Laser Marking Machine

  • Fiber Laser Marking Machine GC1010
  • Fiber Laser Marking Machine GC1010
  • Fiber Laser Marking Machine GC1010
  • Fiber Laser Marking Machine GC1010
  • Fiber Laser Marking Machine GC1010
  • Fiber Laser Marking Machine GC1010
Fiber Laser Marking Machine GC1010Fiber Laser Marking Machine GC1010Fiber Laser Marking Machine GC1010Fiber Laser Marking Machine GC1010Fiber Laser Marking Machine GC1010Fiber Laser Marking Machine GC1010

Fiber Laser Marking Machine GC1010

  • Marking size: 110mm*110mm
  • Laser power: 20W/ 30W/ 50W
  • Laser sources: Raycus, Germany IPG
  • Process material: metal and part of nonmetal
  • Product description: fiber laser marking machine, Raycus or IPG 20w/ 30w/ 50w laser power marking machine Original EZCAD USB board
  • INQUIRY   EMAIL

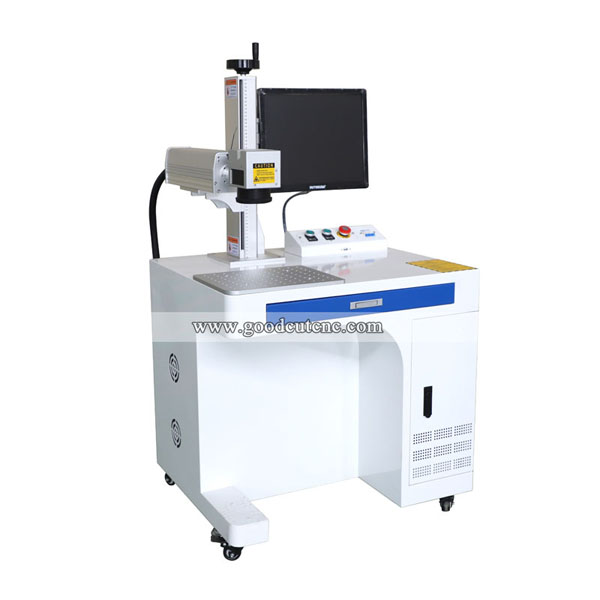

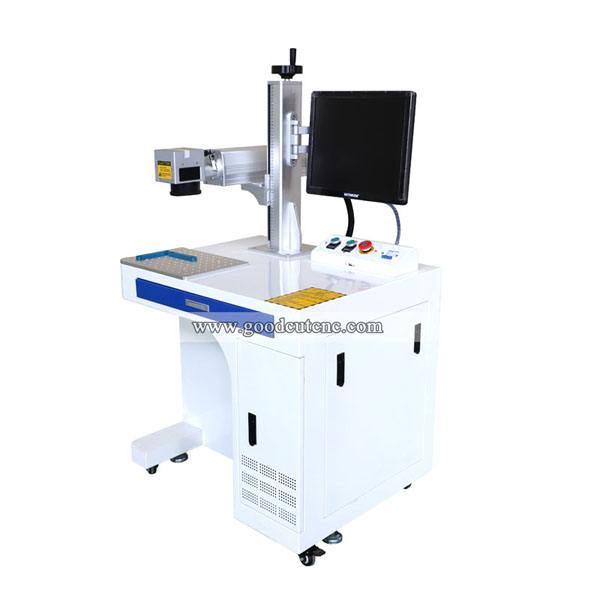

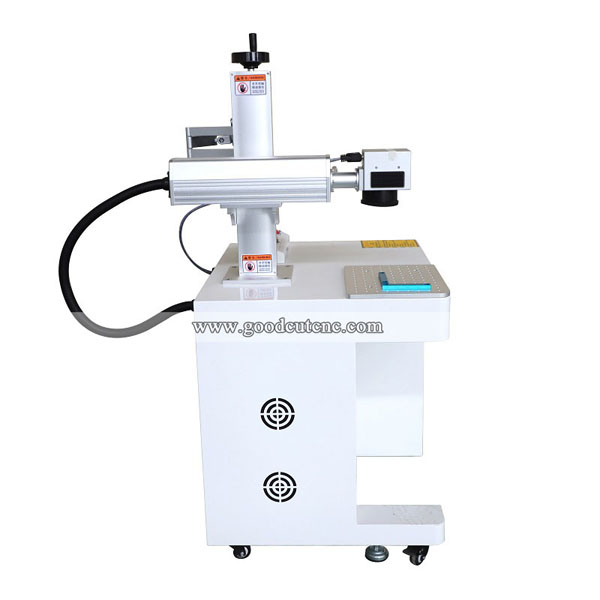

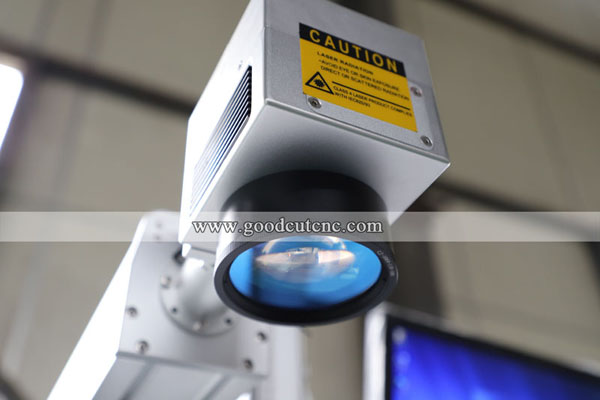

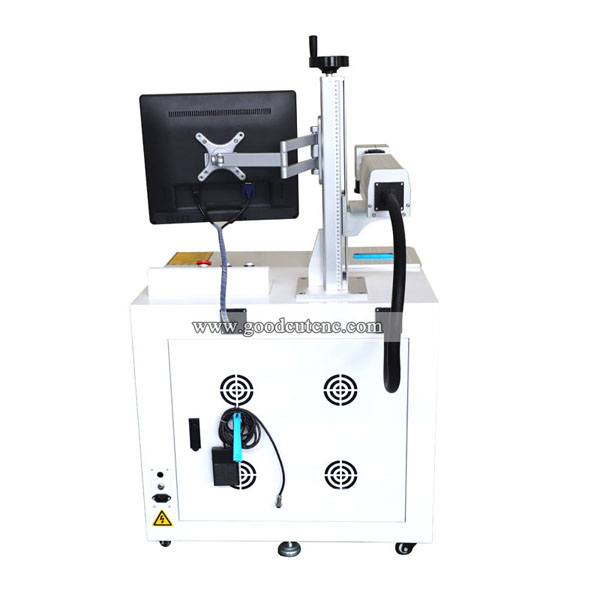

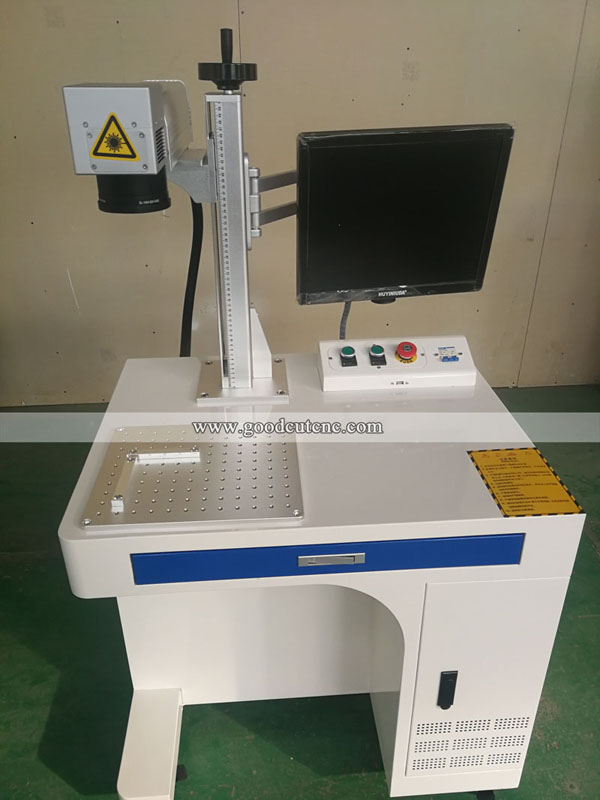

Fiber Laser Marking Machine GC1010





The fiber laser marking machine From GoodCut allow manufacturers to mark or engrave barcodes, serial numbers, 2D Data Matix and graphics on the widest variety of materials including metals, plastics and ceramics and leave permanent marking.


Main Features of Fiber laser marking machine

1)Low consumption,non-toxic,no pollution,high performance price ratio.
2)Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.


 Parameter of fiber laser marking machine :


Product Name Fiber Marking Laser Machine For Metal
Laser Type Fiber
Modol GC-FMD
Certificatons CE
Power 20W 30w 50w 100w
Brand GoodCut
Country of Origin CHINA
Work Precision ±0.01mm
Support Format PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX
Software EZCAD
Cooling Way AIR COOLING
NC YES
Condition NEW
Work Area (mm) 110x110-500x500mm
Min Line Width 0.017mm
Min Character 0.15mmx0.15mm
Wavelength 1064nm
After-Service Engineers available to service machinery overseas
Laser Repetition Frequency: 20KHz-80KHz(adjustable)
Power Demand AC220V/50HZ/2A
Optimum Working Temperature 10-35 °C
Marking Depth 0.01-1.0mm(subjejct to material)


3)Laser beam quality is much better than the traditional laser marking machine.

4)Free from maintance, long working life, small size, suitable for any working environment


Main features of fiber laser marking machine:

1. Fiber laser(German IPG brand or China fiber laser optional)

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview: show the marking position before laser


Raycus sources:

7. Notebook with Powerful software

8. User friendly interface, easy operation




Jinan GoodCut CNC Machinery Co.,Ltd.



GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.

We can offer highest quality machine, and competitive price.



Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine,
wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.







Jinan GoodCut CNC Machinery Co., Ltd.

The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service



Good Quality

1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;

2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;

3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.





Good Price

1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have  long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;

2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.


Good Service

1. English manual and video for machine using and maintaining, explaining the operation steps in detail;

2. Professional after-sales service staffs, providing 24-hour online service;

3. Provide free technical training and factory field operation teaching to eliminate customer worries.
