Laser Marking Machine

  • Belt Conveyor Flying Marking Machine
  • Belt Conveyor Flying Marking Machine
  • Belt Conveyor Flying Marking Machine
  • Belt Conveyor Flying Marking Machine
  • Belt Conveyor Flying Marking Machine
  • Belt Conveyor Flying Marking Machine
Belt Conveyor Flying Marking MachineBelt Conveyor Flying Marking MachineBelt Conveyor Flying Marking MachineBelt Conveyor Flying Marking MachineBelt Conveyor Flying Marking MachineBelt Conveyor Flying Marking Machine

Belt Conveyor Flying Marking Machine

  • Marking area: 110*110mm/ 200*200mm/300*300mm
  • Laser Power: fiber 10W/20W/30W/50W, co2 80w 100w
  • Laser source: IPG/RAYCUS/Chuangxin/MAX
  • Process material: All Metal, Part of Plastic
  • Product description: flying online belt conveyor laser marking machine, fiber or co2 fly marking machine.
  • INQUIRY   EMAIL

Belt Conveyor Flying Marking Machine


Belt transmission and Fly marking for production line plastic metal

Tell us your requirement, we offer customized Fiber laser marking machine conveyor belt for high-efficiency mass production


Easy to operation and mark for metal , stainless steel for series number , production date

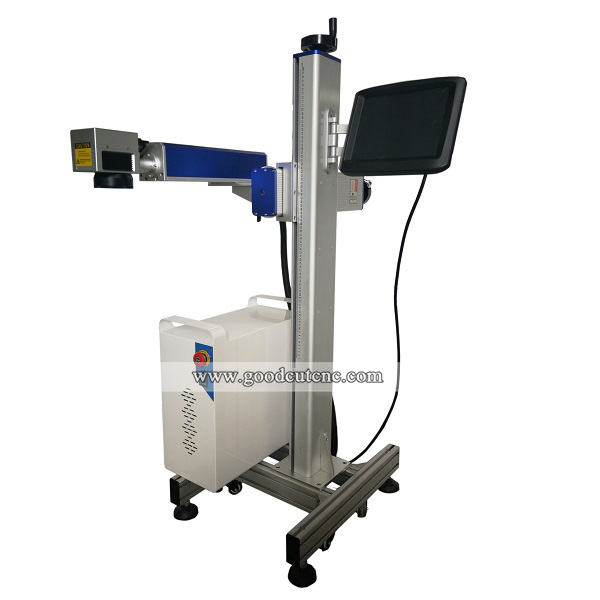

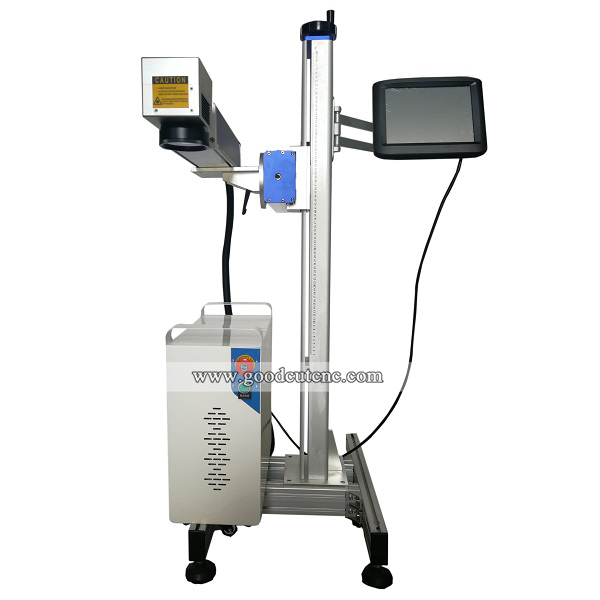

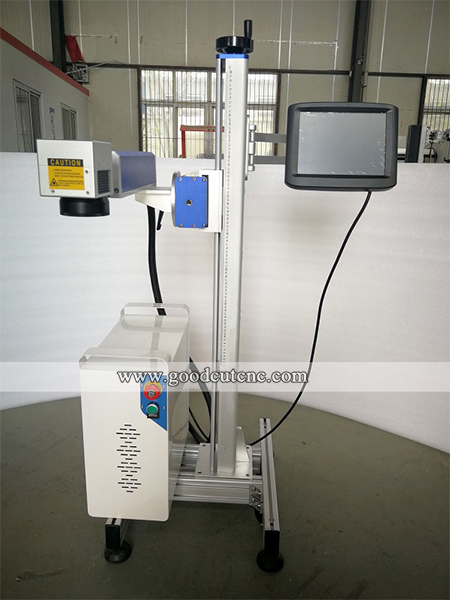

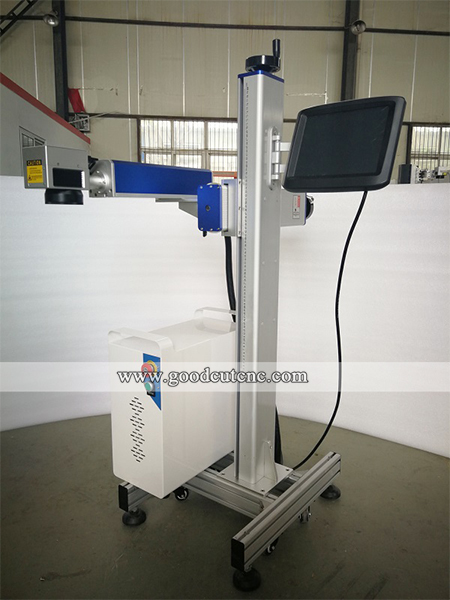

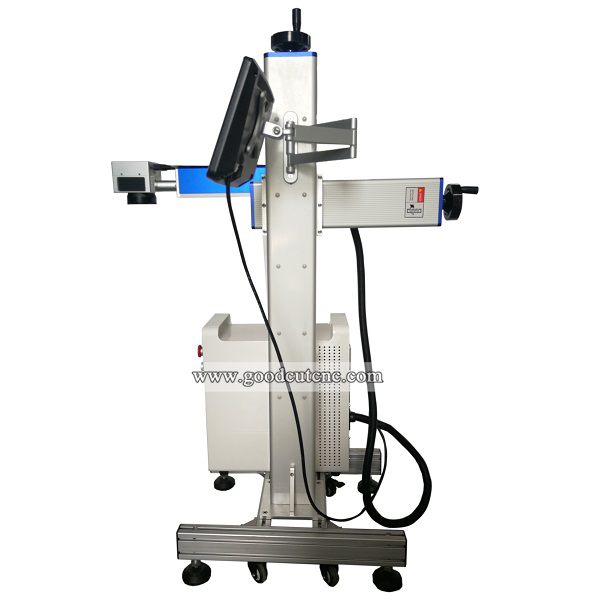

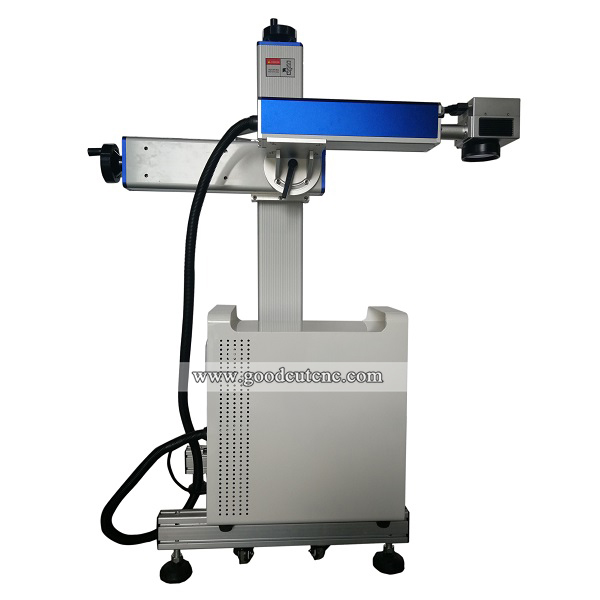

GoodCut Flying Laser Marking Printing Machine 30W is laser marking printer especially matched for the automatic production line for flying printing & marking for the date codes or barcodes.


Compared to the traditional inkjet printer, Flying Laser marking printer has zero consumption of any materials, no need ink, no pollution, no noise, energy saving and environmental protective.
GoodCut Flying Laser Marking Printer can be equipped with different kinds of laser sources (fiber, co2, or UV) and printer system. It can be widely used in food and beverage, pharmaceutical, tobacco, leather industry.



This is the 30W fiber source flying laser marking printer, it could be used for metal and nonmetal flying marking combined with various kinds of the production line. There is another co2 laser source online laser marking printer available especially for nonmetal materials' online marking.

Main features of fiber laser marking machine 20w:

1. Fiber laser(German IPG brand or China fiber laser optional)

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before laser

7. Notebook with Powerful software

8. User friendly interface, easy operation












Item Name

Technical Parameter

Model

GC-FM 20W

GC-FM 30W

GC-FM 50W

Laser power

20W

30W

50W

Laser wavelength

1064nm

Laser type

IPG/Raycus/MAX laser source

Max Pulse Energy

0.5m J

Repeat frequency

1KHz-1000KHz

Pulse width

6-250 ns

Marking depth

0.01-0.5mm

Marking area

70*70mm/110*110mm/175*175mm/200*200mm

Rated power consumption

500W

800W

1200W

Operating voltage

110V- 240V/50-60 Hz/15A

Cooling

Air Cooling

Packing size

890*430*860 mm (L*W*H)

Gross weight

80 KG

Package

Standard export wooden case



Fiber Laser Marking Machine is used for marking Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.




Jinan GoodCut CNC Machinery Co.,Ltd.

GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.

We can offer highest quality machine, and competitive price.

Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine,
wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.

Jinan GoodCut CNC Machinery Co., Ltd.

The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service

Good Quality

1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;

2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;

3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.


Good Price

1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have  long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;

2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.

Good Service

1. English manual and video for machine using and maintaining, explaining the operation steps in detail;

2. Professional after-sales service staffs, providing 24-hour online service;

3. Provide free technical training and factory field operation teaching to eliminate customer worries.
