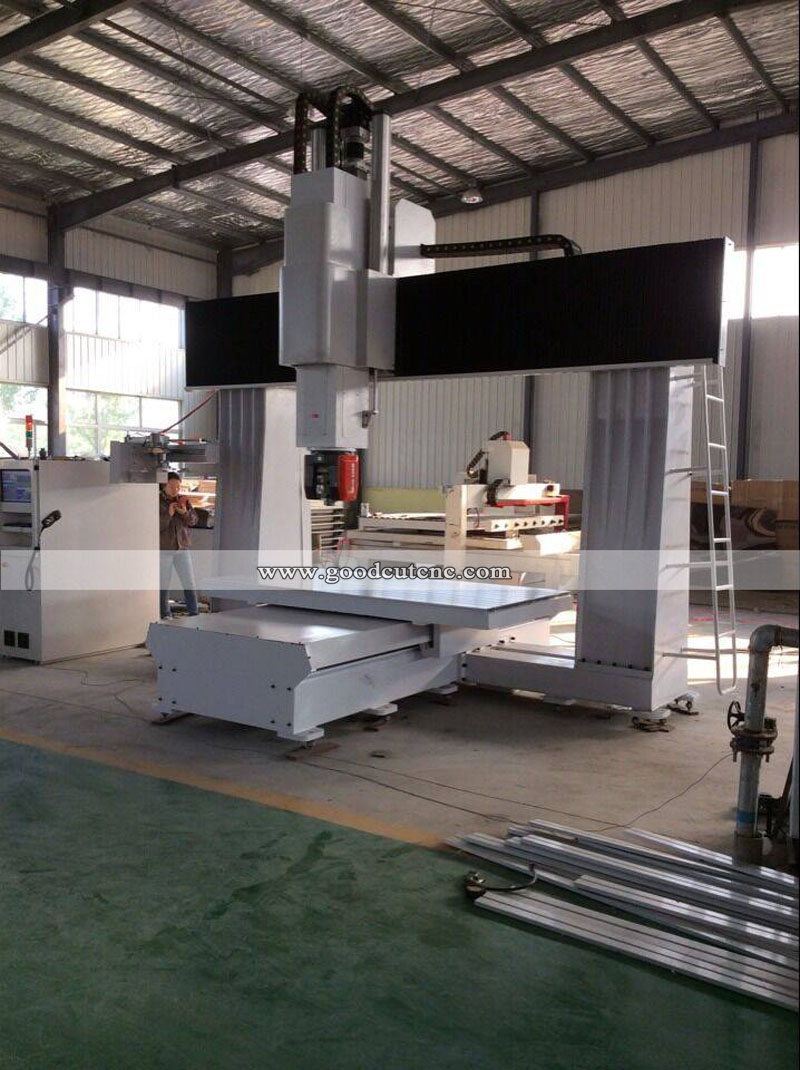

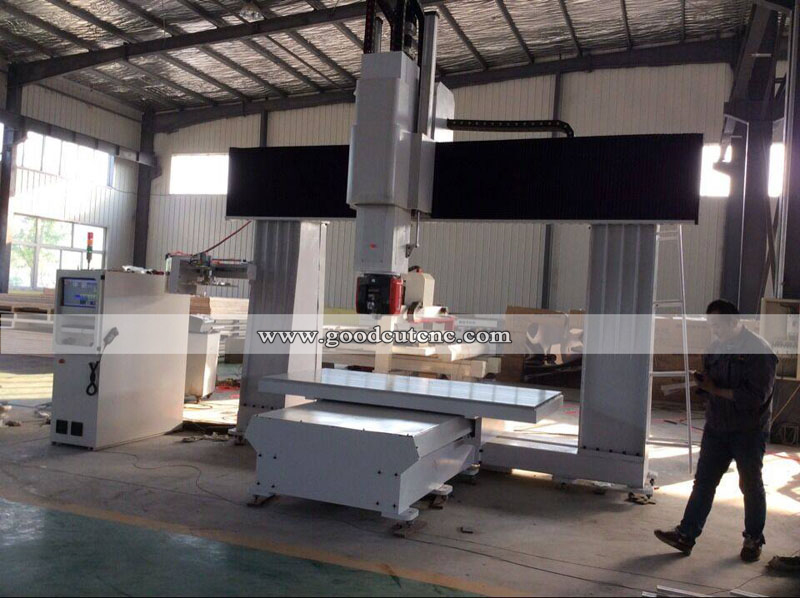

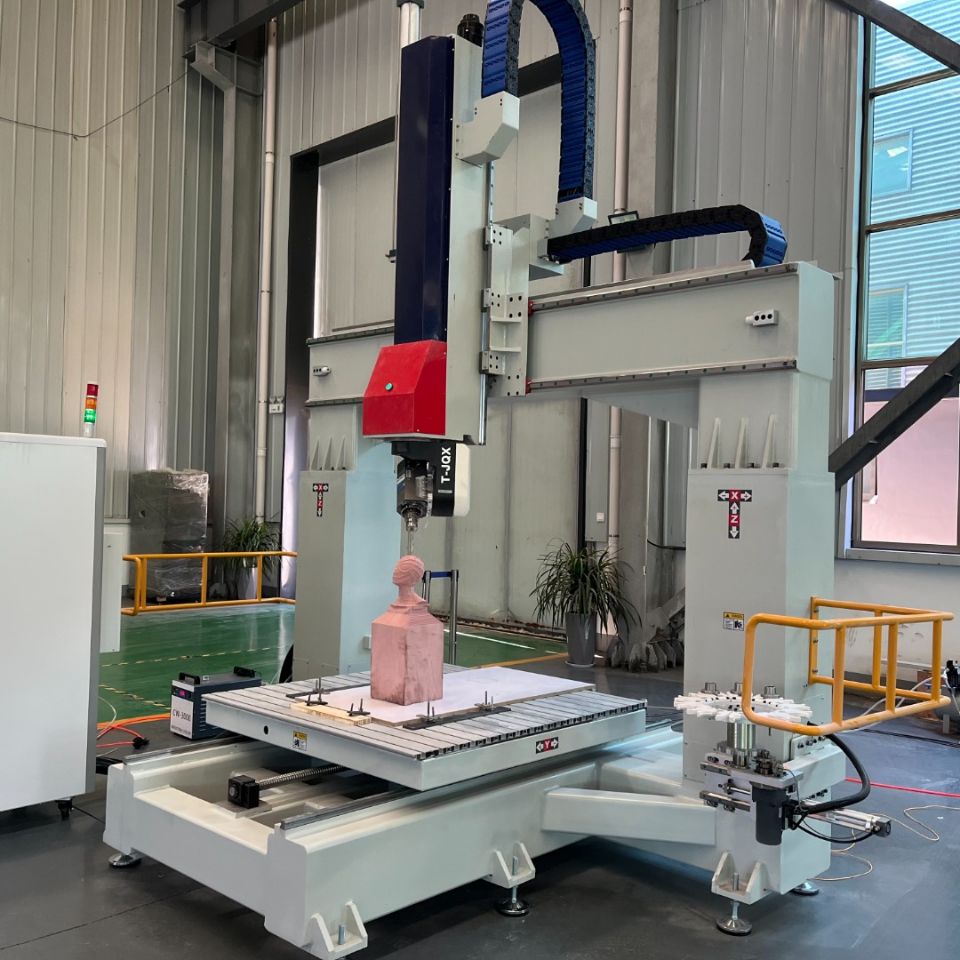

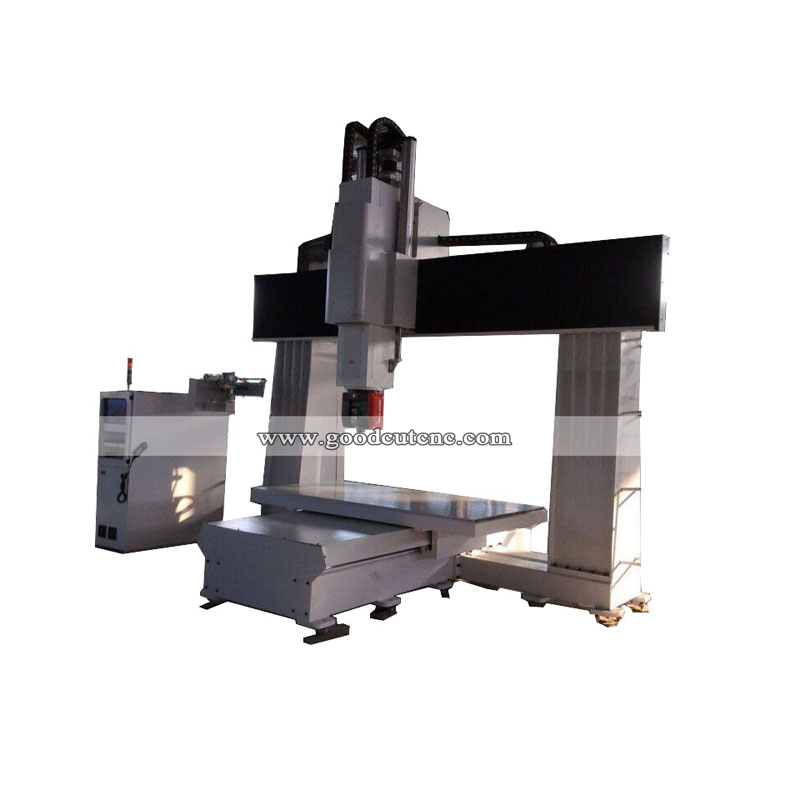

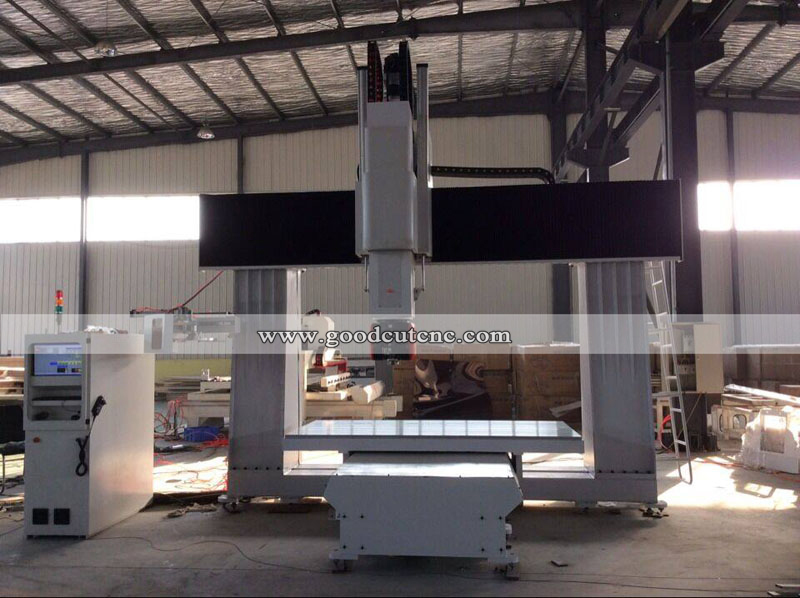

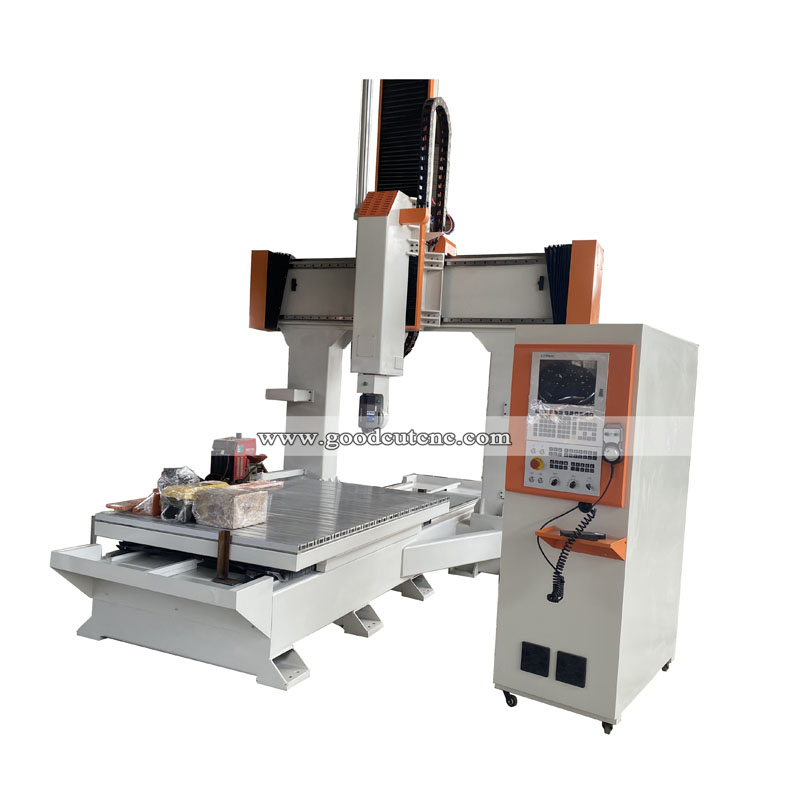

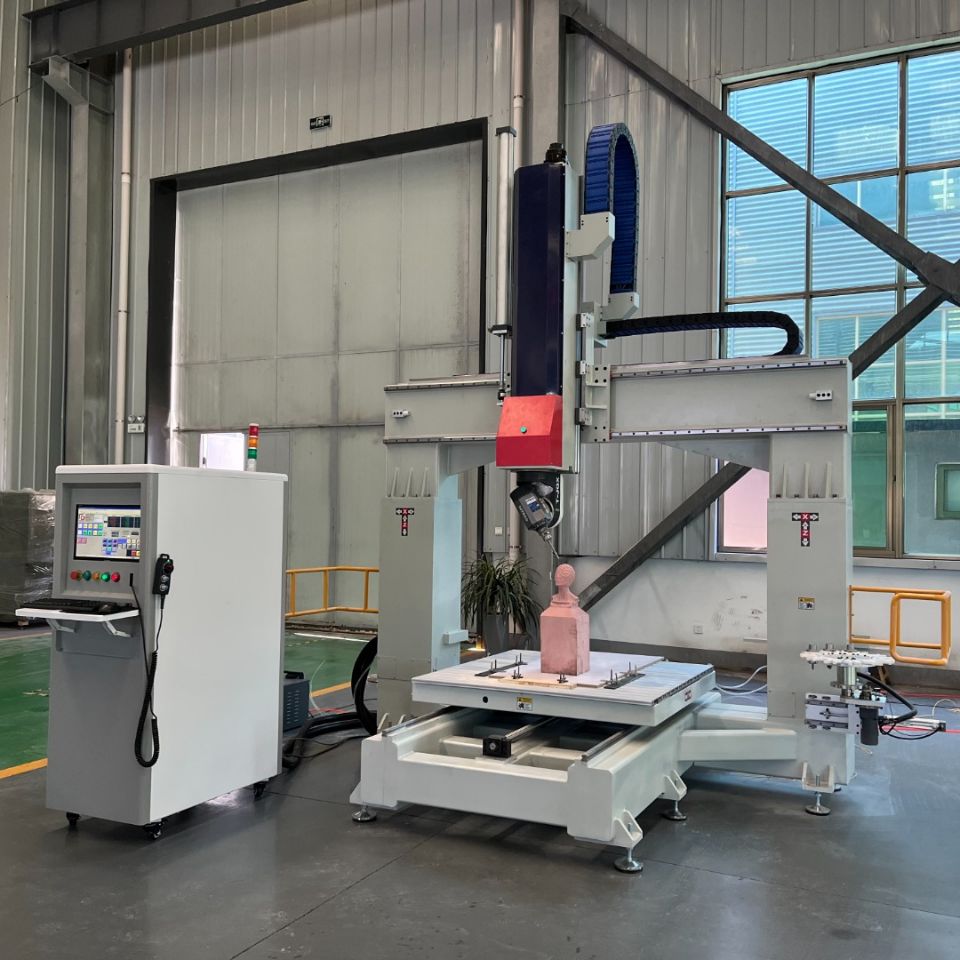

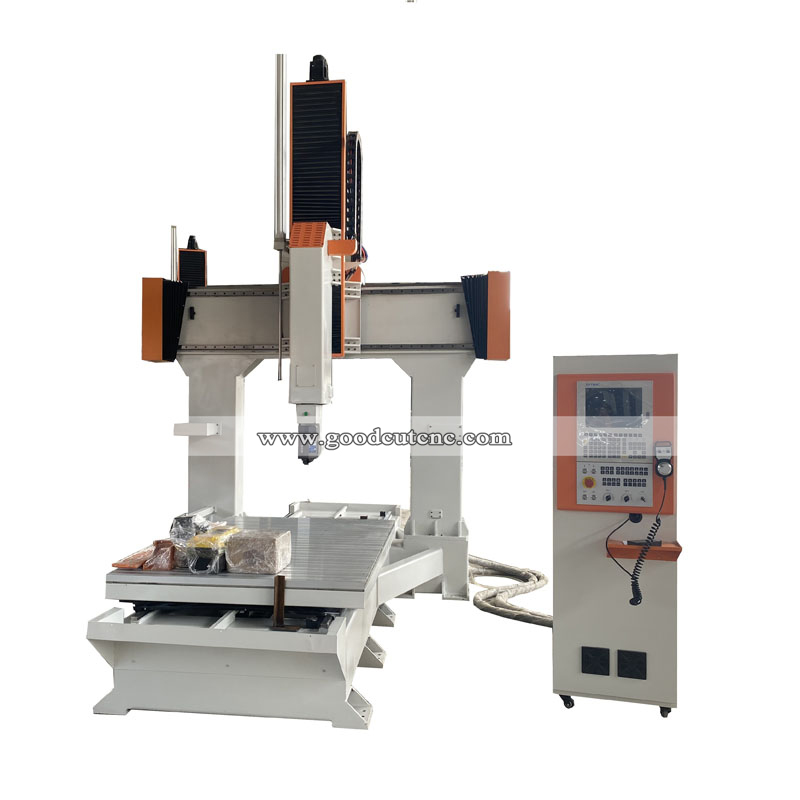

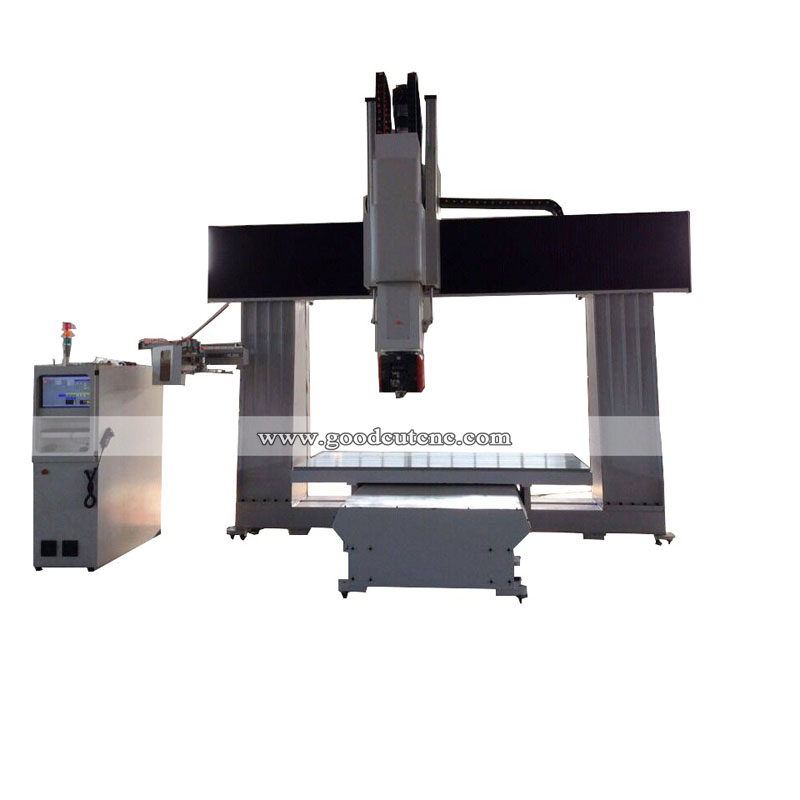

GC1325-5 Axis CNC Router ATC Machine for Wood Stone Foam Sculpture Mould with 5 Axis Spindle



Description:

This is a 5 axis CNC router specially designed for engraving complex three-dimensional workpieces. This 5-axis CNC router has the characteristics of integrated casting, good rigidity, good stability, high processing accuracy, stable operation, convenient operation, and powerful functions.



Parameters:

NO.
Description
Parameter
1
Model
GC1325-5 Axis
2
Table Size
1300×2500*600mm
3
ATC

Linear / Disk auto tool changer, 12pcs Tool Magazine

4
Head
5 Axis Chinese DEMAS head
5
Spindle

HQD 12kw air cooling spindle

6
controller
Taiwan LNC controller / Taiwan Syntec controller
7
Motor

Leadshine servo motor 1500w / Japan Yaskawa servo motor

with Japan Shimpo reducer

8
XYZ transmission

  Taiwan HIWIN 30mm rail and ball screw

YYC Rack

9
Inverter
Fuling inverter
10
Table
Aluminum table with T-slot
11
Bed
Heavy duty frame and bed
12
Oil system
Auto oil system
13
Sensor
Auto sensor


Features:

1) Thickened steel structure designed as enhanced structure and annealed for destressing guarantees machine inflexibility in long term and then keep high precision & durability.

2) All steel structure will undertake sand blasting to clear the steel surface.

3) All steel structures machined by CNC machining center, body structure machined by large-scale CNC machining center, guarantees high base precision of machines.

4) Adopting advanced world famous brand components in driving parts, pneumatic parts ,electric parts and operation parts.

5) HIGH QUALITY, HIGH STABILATITY, SIMPLE OPERATION and GOOD SERVICE.


Machine details:

Japan Yaskawa servo motor and driver, powerful and high precision.

Control system: Taiwan Syntec controller

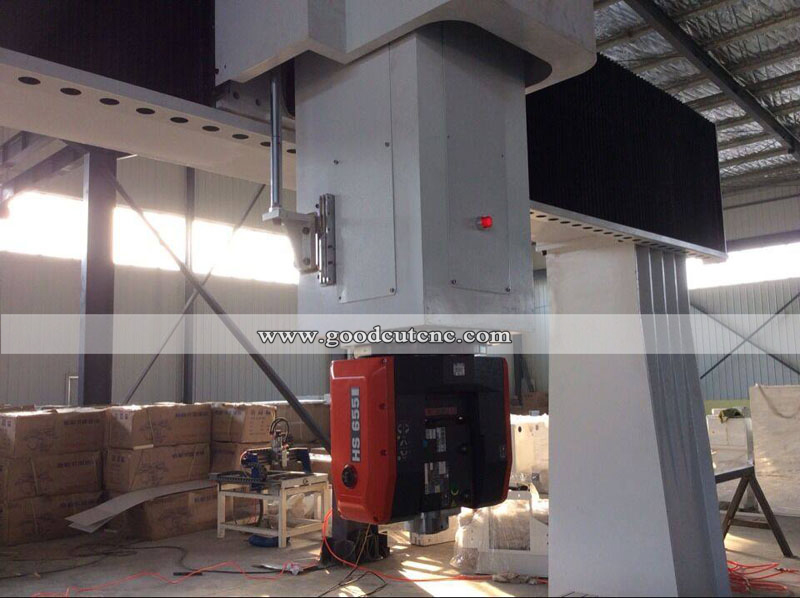

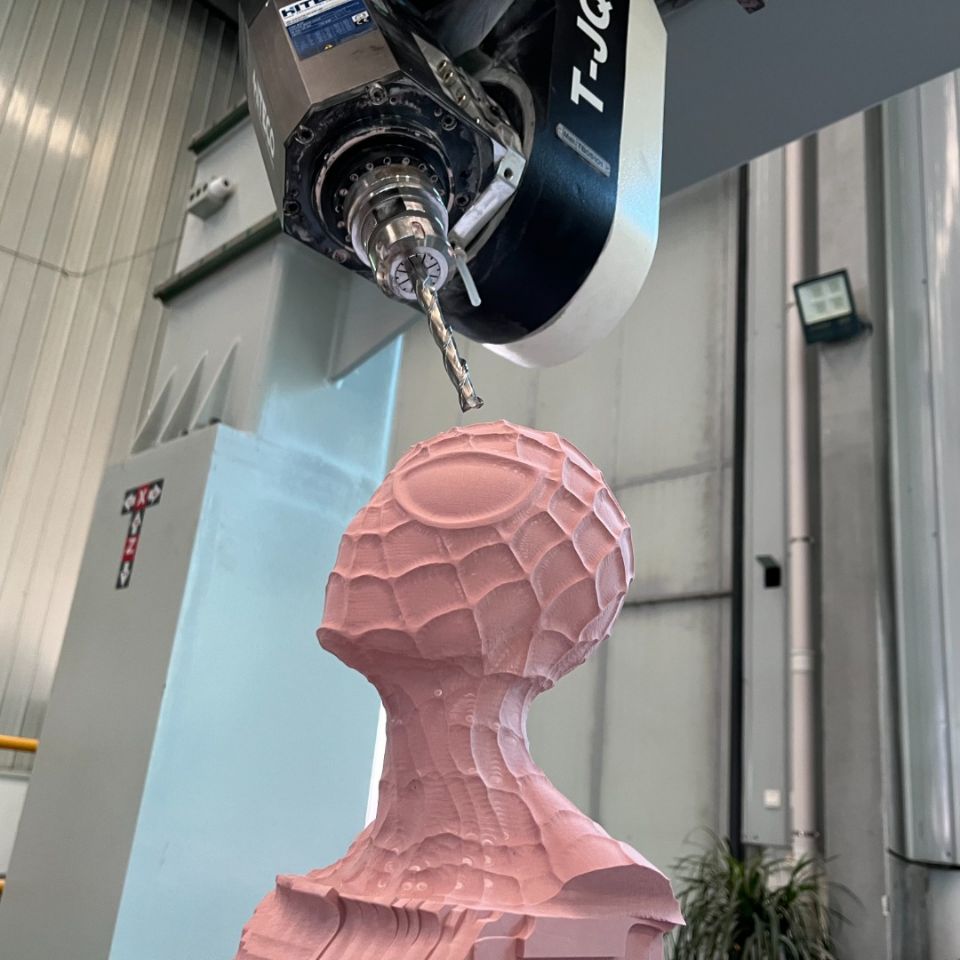

5 Axis head

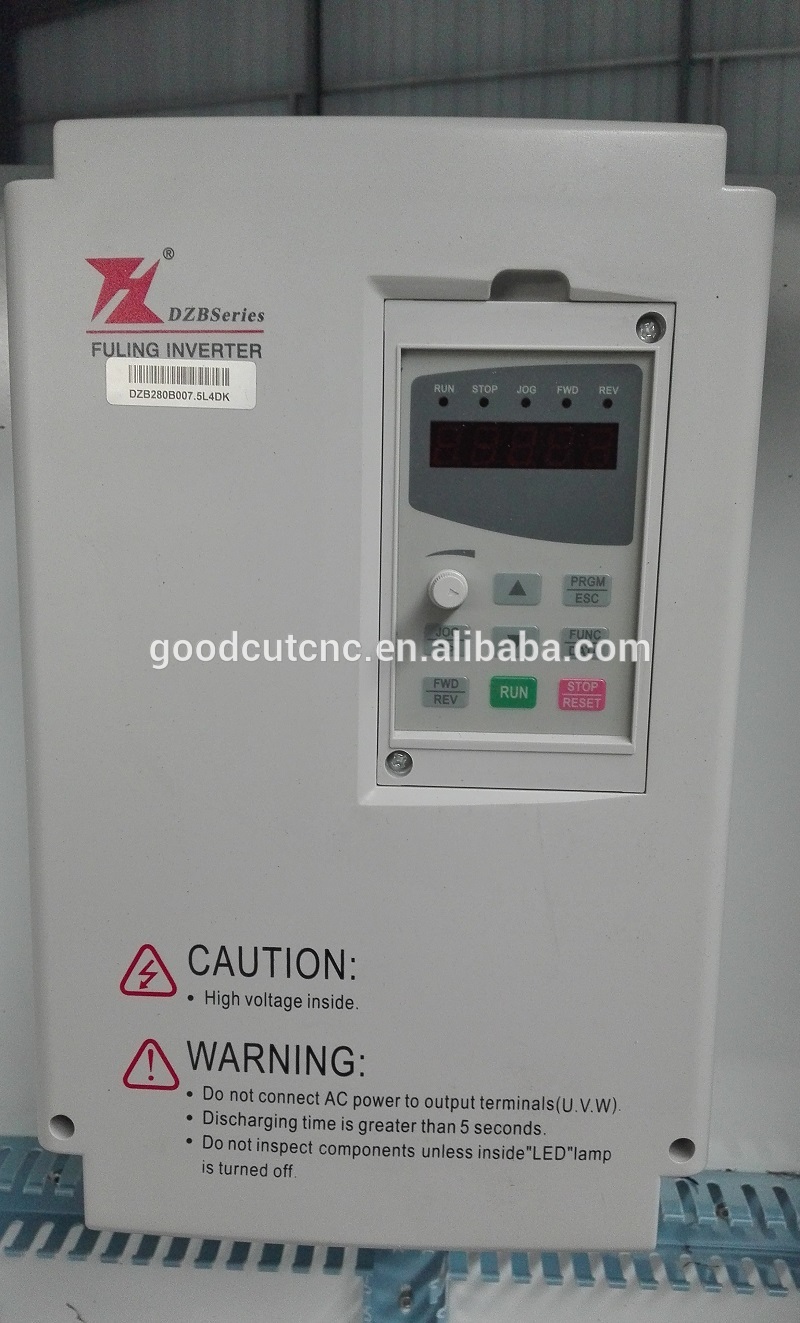

Fuling inverter


Samples:
