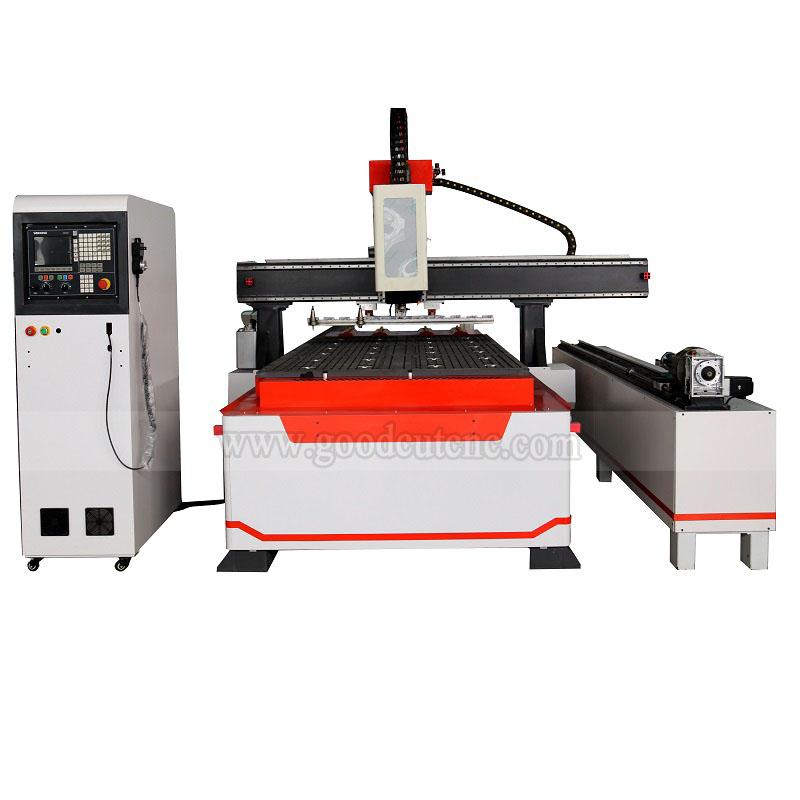

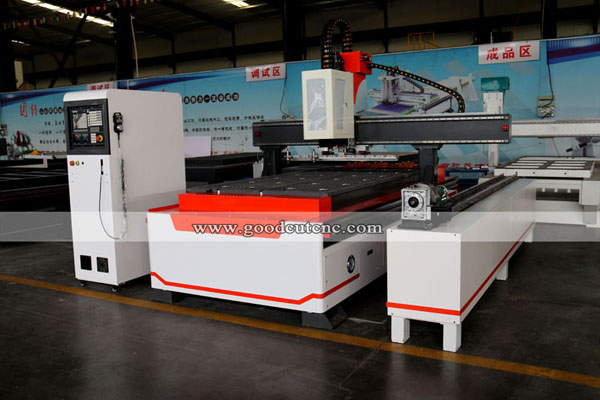

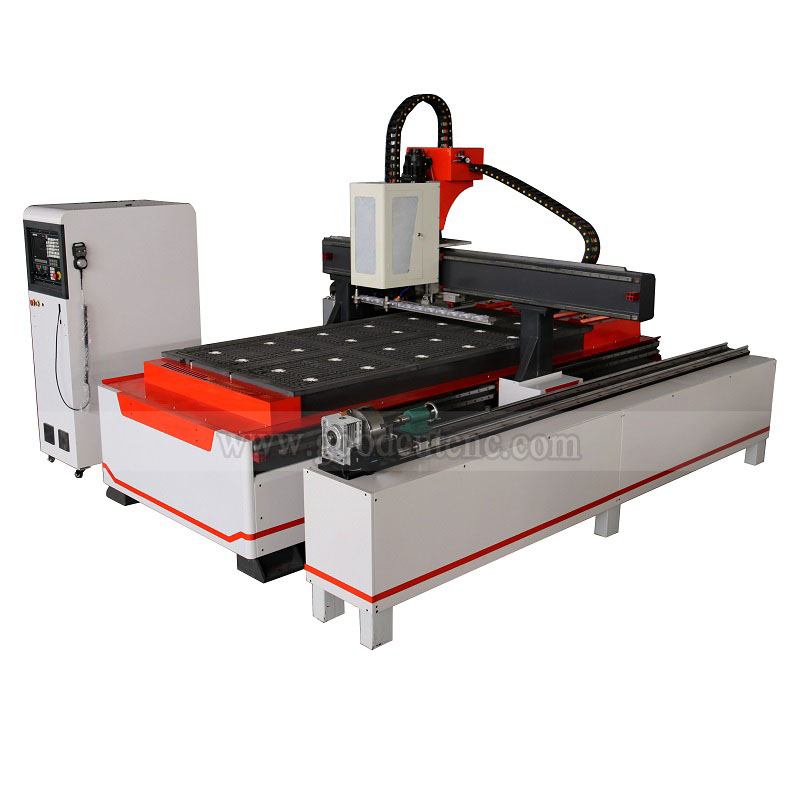

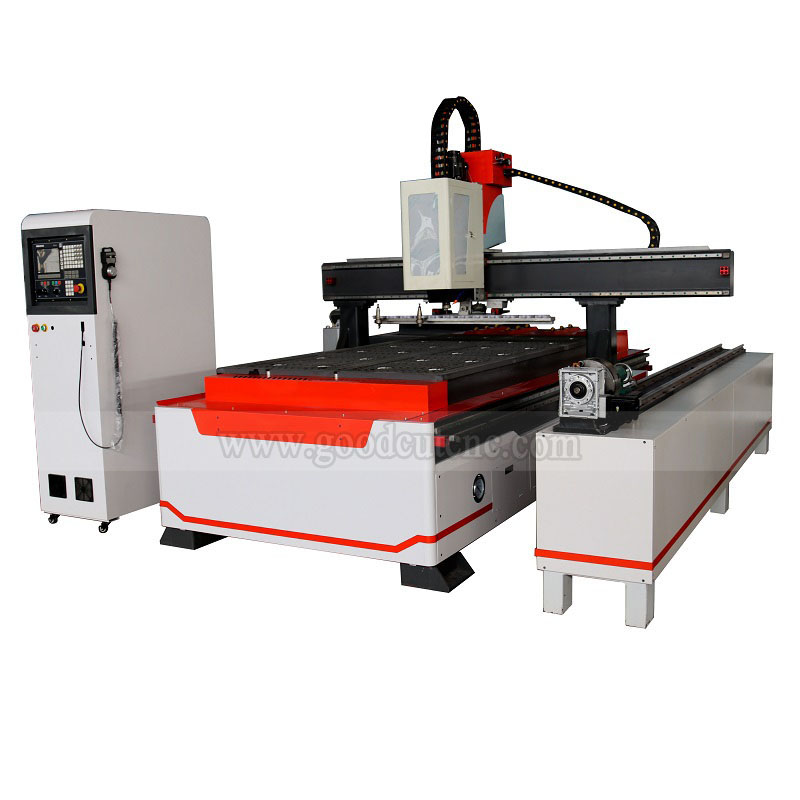

GC1325ATC-R GoodCut Linear Automatic Tool Change CNC Router with Rotary GC1325A-LR

  • Product description: 12 sets magazine automatic change tool wood cnc machine, High quality Japan Yaskawa Servo motor driver, Jinan GoodCut CNC Machinery Co.,Ltd.
  • INQUIRY   EMAIL

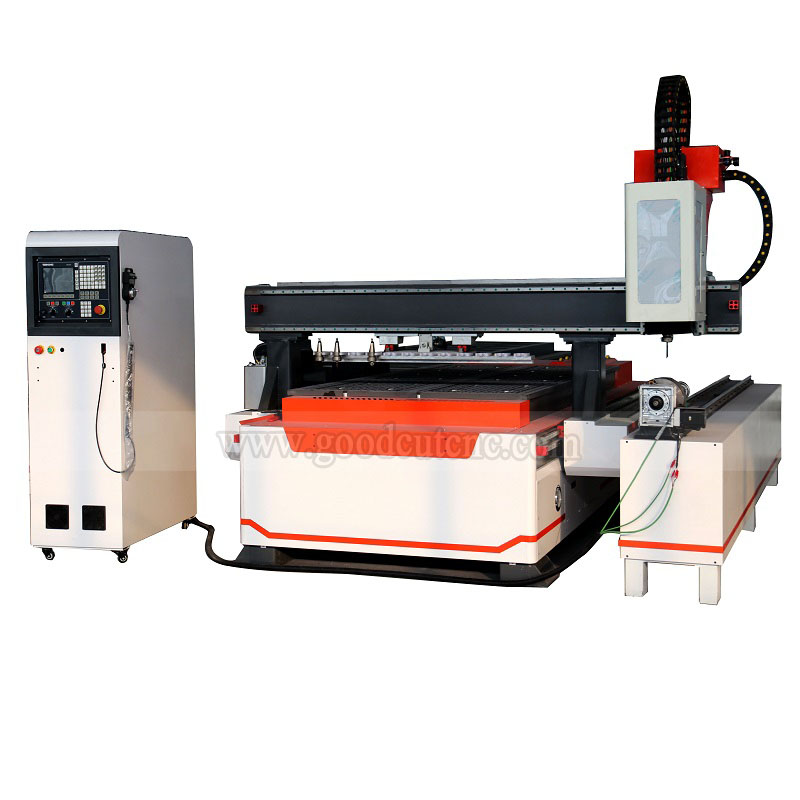

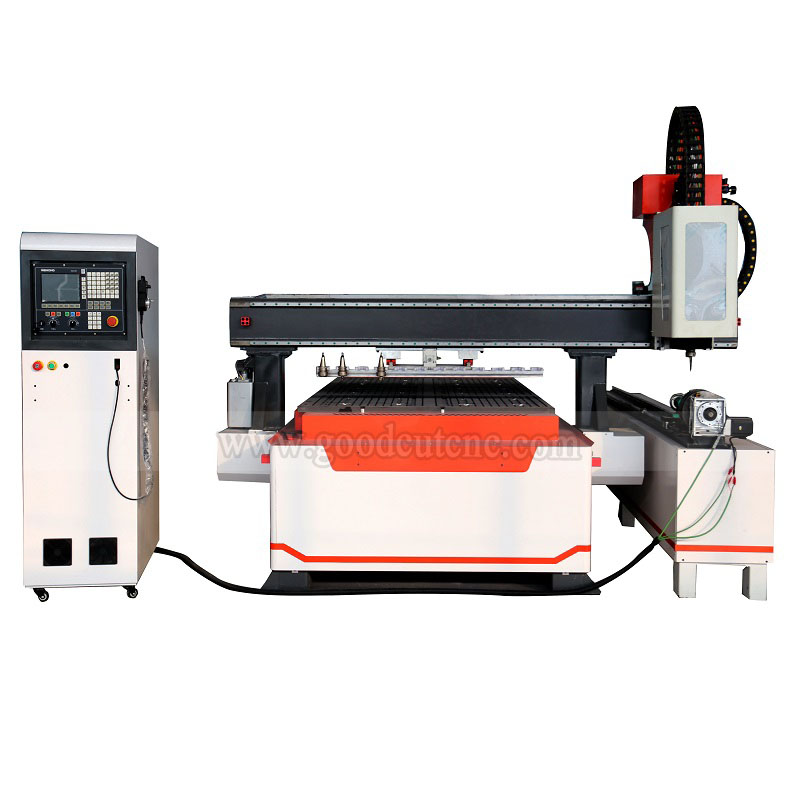

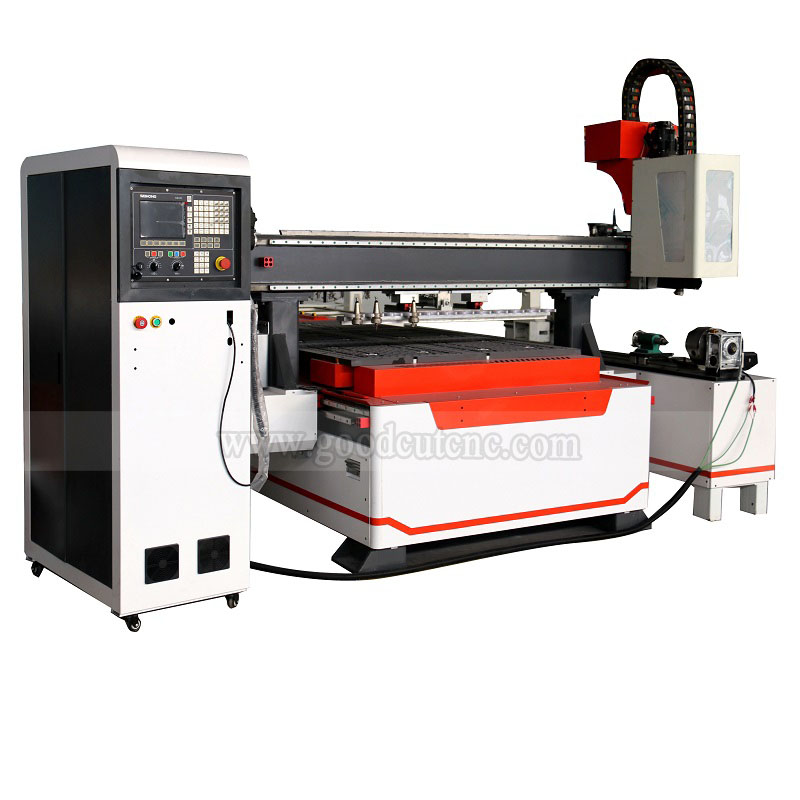

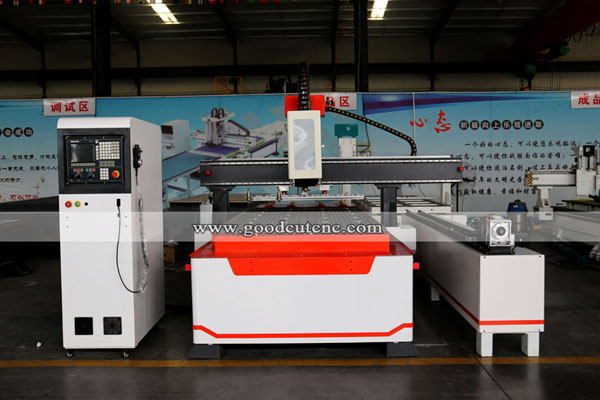

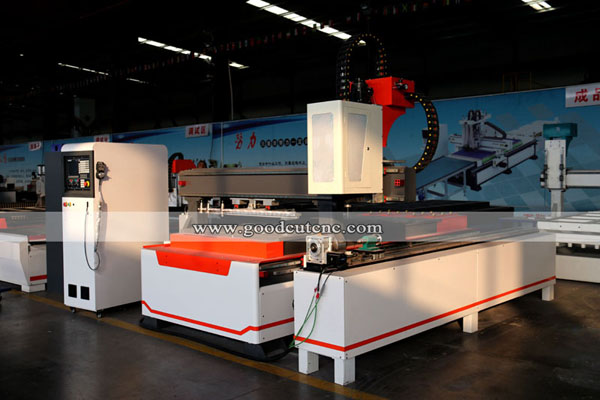

GC1325ATC-R GoodCut Linear Automatic Tool Change CNC Router with Rotary


X, Y, Z effective working area

1300*2500mm / 1500*3000mm / 2000*3000mm (optional)

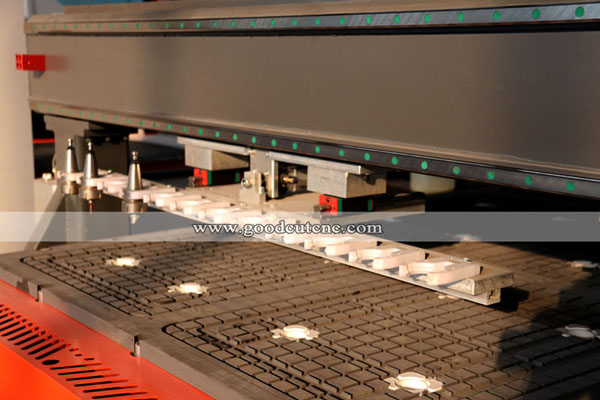

Tool magazine

12pcs linear tool change magazine

Rotary diameter

200mm / 300mm / 400mm diameter

Spindle

HQD / Italy HSD 9kw air cooling spindle

Inverter

Fuling / Delta

Motor and driver

Leadshine / Taiwan Delta / Japan Yaskawa servo motor

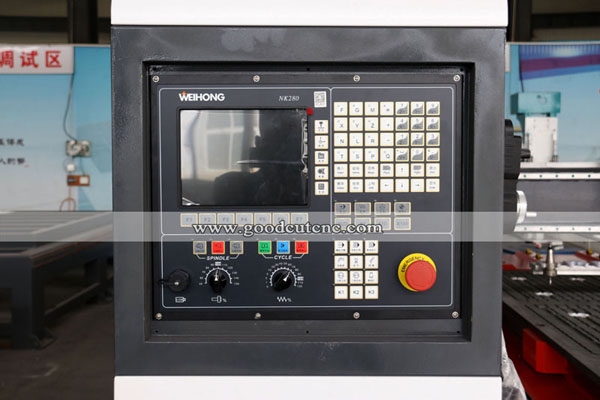

Control system

Weihong / Taiwan Syntec / Siemens (optional)

Table

Vacuum adsorb table with T-slot+7.5kw vacuum pump

Frame

Heavy duty frame

Transmission

X Y Rack gear, Z Taiwan TBI ball screw, Taiwan HINWIN 20mm guide rails

Software

Artcam type3






9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.

HSD or HQD 9KW(12 HP )

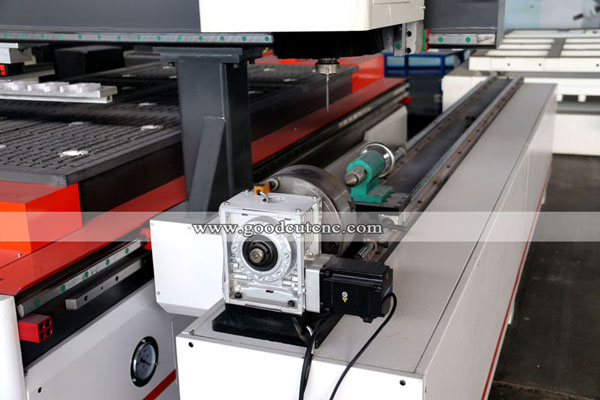

 rotary axis with 100-500mm diameter, can process legs.

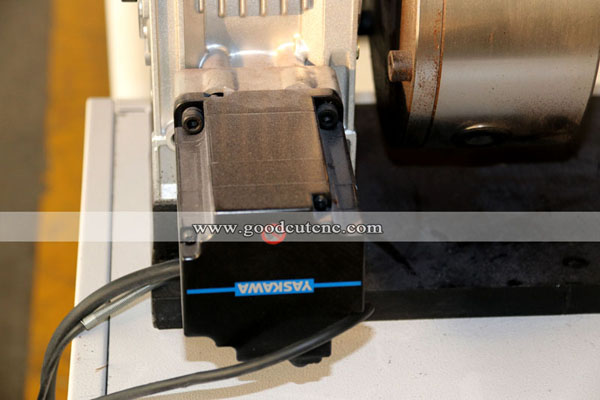

Maintenance free brushless Japan Yaskawa AC servo motors and drives
