GC1325LS Laser Engraver Machine For Stone

  • Model: GC1325LS
  • Laser tube power: 60W/80W/100W/130W/150W
  • Laser tube brand: Beijing Reci EFR
  • Control system: Ruida controller
  • Product description: laser machine for stone for photograph engraving shadow laser engraving machine for marble granite glass
  • INQUIRY   EMAIL

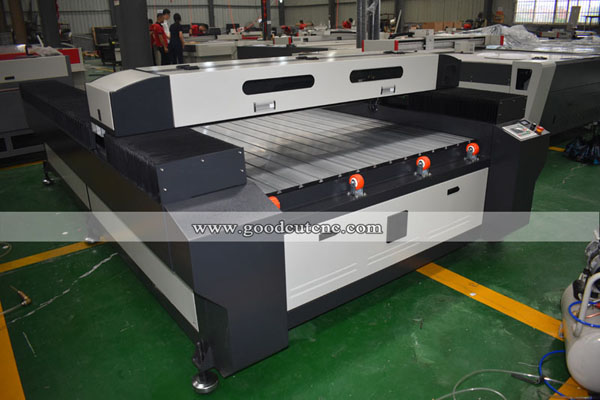

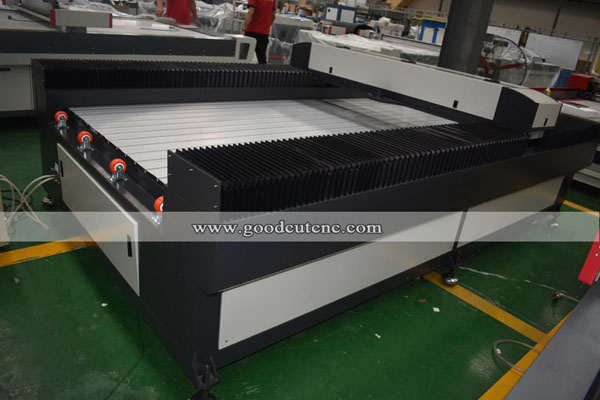

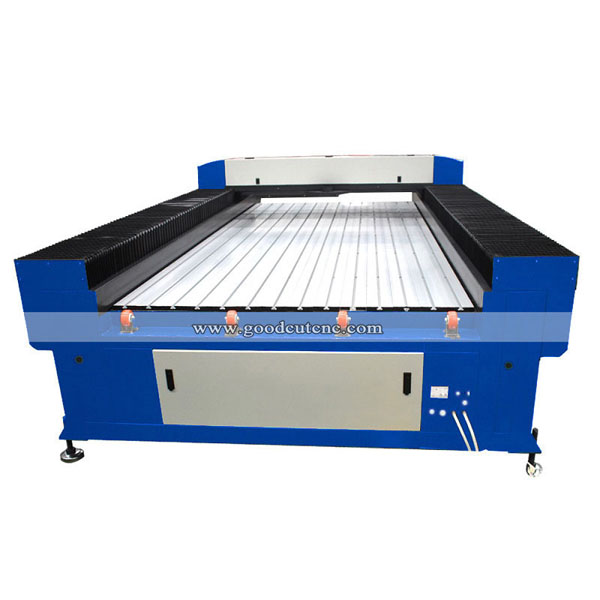

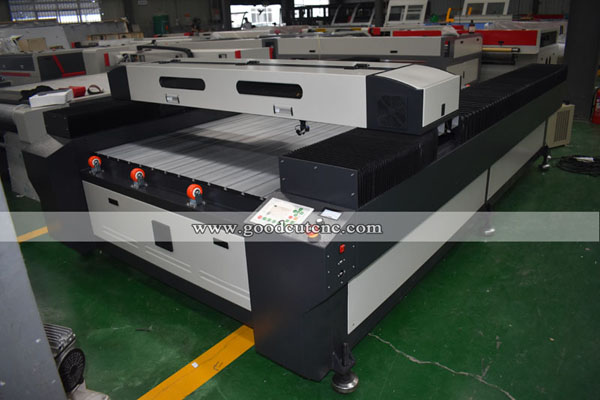

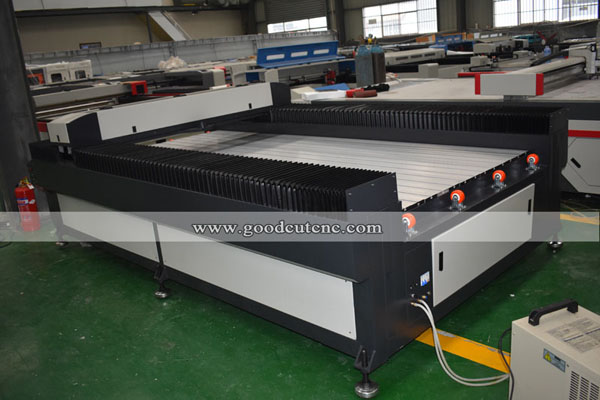

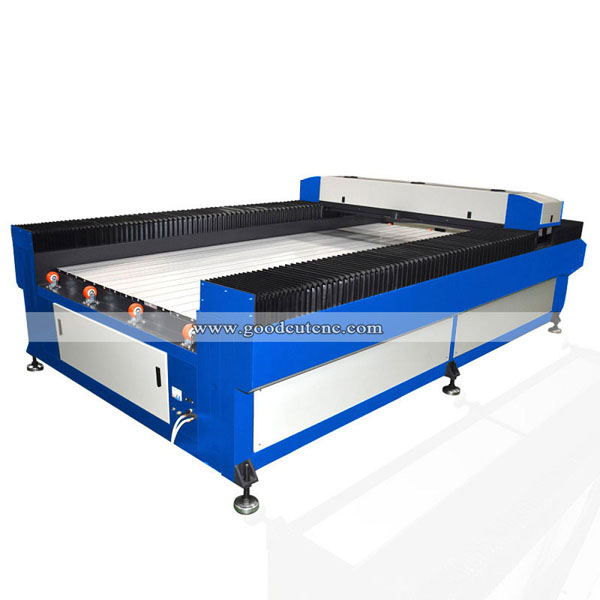

GC1325LS Laser Engraver Machine For Stone


In order to meet the demands of deep materials processing, Laserman laser at bed adopts the hardened stable underpan made of reinforced material, Linear guides and precise gear driving system are used to assure the stability abs precision, to save time and cost reduction.


Lower flat worktable with back door, the distance between laser head and worktable is up to 25cm(optional), it is very convenient for thick and long materials processing.


It is developed for heavy materials. It brings great convenience to customers.
The design changes the traditional engraving method.
For some heavy materials we can put easily, so that avoiding the difficulty of moving heavy material. Meanwhile, it solves the problem that platform has a limited bearing ability. It is much easier to process.

Granite stone laser engraver

Item  /  Model GC-1325S
Cutting area 1300*2500mm
Laser power 60W/80W/100w
Laser type CO2 sealed laser tube,water-cooled,10.6um
Engraving speed 0-60000mm/min
Cutting speed 0-40000mm/min
Laser Output 1-100% software setting
Resetting positioning accuracy ≤±0.01mm
Power supply 220V/50HZ (Optional 110V/60HZ)
Operating temperature 0 - 45°C
Operating humidity 5 - 95%
Min. shaping character English 1.0 x 1.0mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported TAJIMA, CorelDraw, Photoshop, AutoCAD
Driving system stepper motor
Cooling mode Water-cooling and protection system
Equipment Dimensions 3670x1920x1250mm
Net Weight: 1600kg
Shipping Dimensions 3770 x 2020 x 1350mm
Optional Spare Parts Up-down clump, Rotary System, Honeycomb table
Recommended Spare Parts Laser Tube and Lens

Special wheels for easy moving stone marble heavy materials


Special aluminum table for stone images photos shadow engraving


Dust cover for protecting guide rails, long lifespan


High quality Taiwan PMI or HIWIN guide rails transmission, high accurancy


Laser tube:




Ruida control system


Water chiller CW3000 CW5000 CW5200 for water cool laser tube


Laser Cutting Machine's Application:

1.artcrafts: laser machine for wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.

2.advertisement: double color board,acrylic engraving and cutting,label engraving,crystal etc.

3. model industry: sand table construction model,plane model etc.

4. packing:rubber engraving,plastic,doubling plate,die board cutting etc.

5. leather and cloth process:compound leather,man-made leather,fabric,fur ,toy etc.

6. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.
