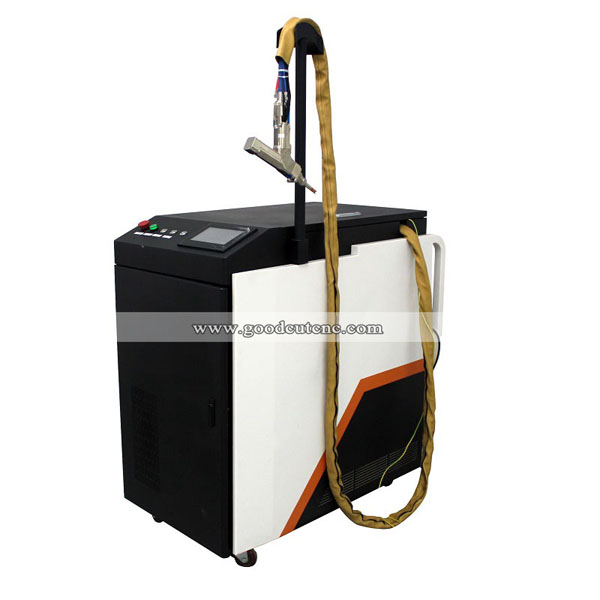

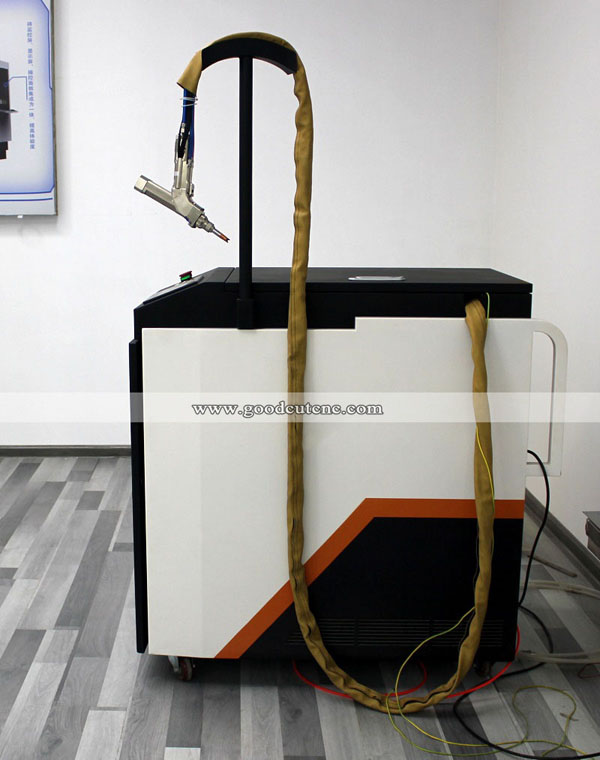

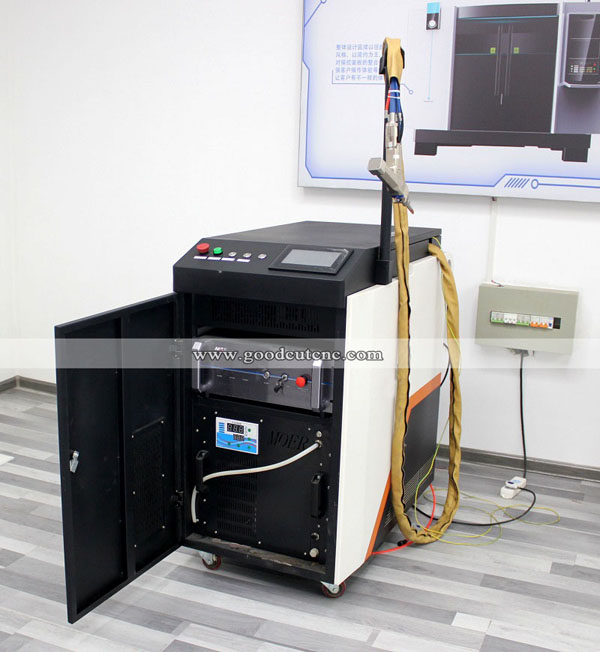

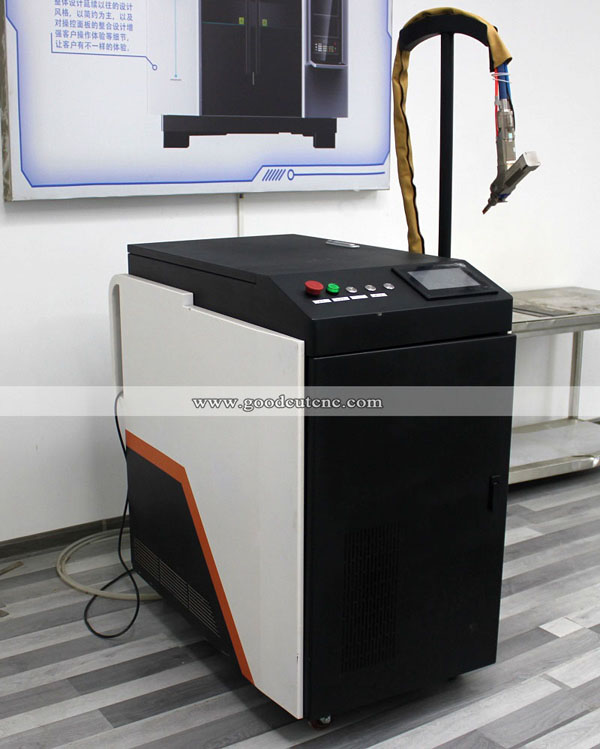

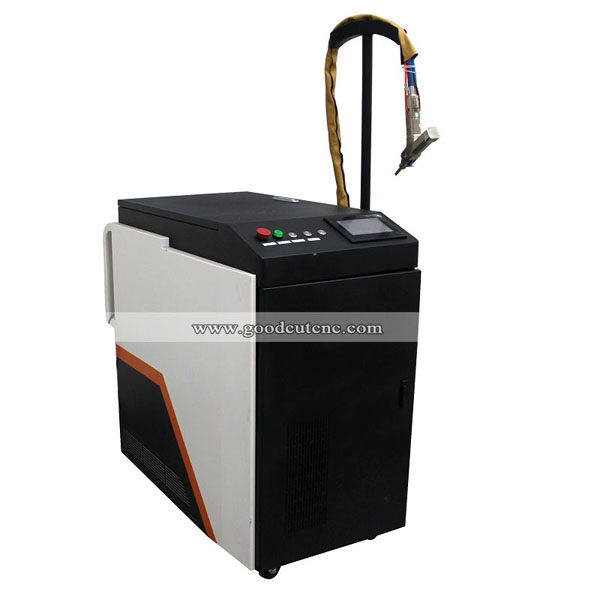

GC-WL Hand Held Laser Beam Welding Machine Price with 1000W 1500W Laser Source

  • Handheld welding
  • 1000W 1500W laser source
  • Water cooling
  • Red light positioning
  • Product description: Fiber laser source Raycus 1000w 1500w; Water cooling method; WSX laser head.
  • INQUIRY   EMAIL

GC-WL Hand Held Laser Beam Welding Machine Price with 1000W 1500W Laser Source

Feature:

1.Adpot integrated structure ,that's its control system,laser system and cooling system are all bulit-in and intergrated

2.Hand-held holding welding head is easily operated ,pciking and moving.

3.Using the fiber laser source,the laser beam quality is quite good,and its output power is stable which can assure the high welding performance.

4.The machine is with the safety control box ,which can contril the laser beam only comes out when welding starts.

5.Using special welding software .it has function of continuous laser beam ,and the adjustable output waveform,which can assure the precious and high-speed welding

6.It costs very low working consumption,Using laser machine one hour only consume 1-1.5 degree electrictiy,and weld all kinds of thin metal plates.

7.It can weld a wide range of metal ,includes the stainless steel,carbon steel,cooper,aluminum alloy,Zinc plated board.

8. Very nice welding performance.No deformation,small thermal effect.


Parameter:

Model

GC-W1000

GC-W1500

Laser type

Continuous impulse

Laser wavelength

1070nm

Max. laser power

1000W

1500W

Range of adjustable power

1-100%

Repeat frequency

5-10KHz(adjustable)

Pulse width

Continuous light

Welding depth

≤1.2mm

Repeat precision

±0.01mm

Power stability

±2%

Service medium

Rare earth doped fiber

Length of fiber-optical

10m(standard)

Beam quality

Single mode/multi mode

Interface of fiber-optical

QBH

Module life

>100000hrs

Cooling style

Water cooling

Power consumption

6KW

Power supply

220V±10%/50HZ/30A 380V±10%/50HZ/30A

Advantage:

1.This machine adopts 300, 500, 750, 1000, 2000 watt fiber laser, which has high elector-optical conversion efficiency and long laser life;

2.The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional optical fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, and the welding is firm. Smooth and flat;

3.The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;

4.It can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.

1.The weld seam is smooth and beautiful, the welding workpiece has no deformation, the welding is firm, and no subsequent grinding process is required, which saves time and cost.

Fast welding speed, 2~10 times faster than traditional welding.

2.Easy operating need no training welding seam beautiful smooth and beautiful, don’t need polish, save your time. No deformation or welding scar, firm welding of the workpiece.

3.Easy Maintance

Laser welding has less consumables and long service life.Safer, more environmentally friendly.

Application:

1. Material

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.

2. Welding

Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
