Laser Welding Cleaning Machine

  • GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal
  • GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal
  • GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal
  • GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal
GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust RemovalGC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust RemovalGC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust RemovalGC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal

GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal

  • Raycus laser source
  • 1000w 1500w 2000w
  • Rust removal
  • Good price
  • Product description: 1000w 1500w 2000w Raycus laser source Fiber laser rust removal cleaning machine
  • INQUIRY   EMAIL

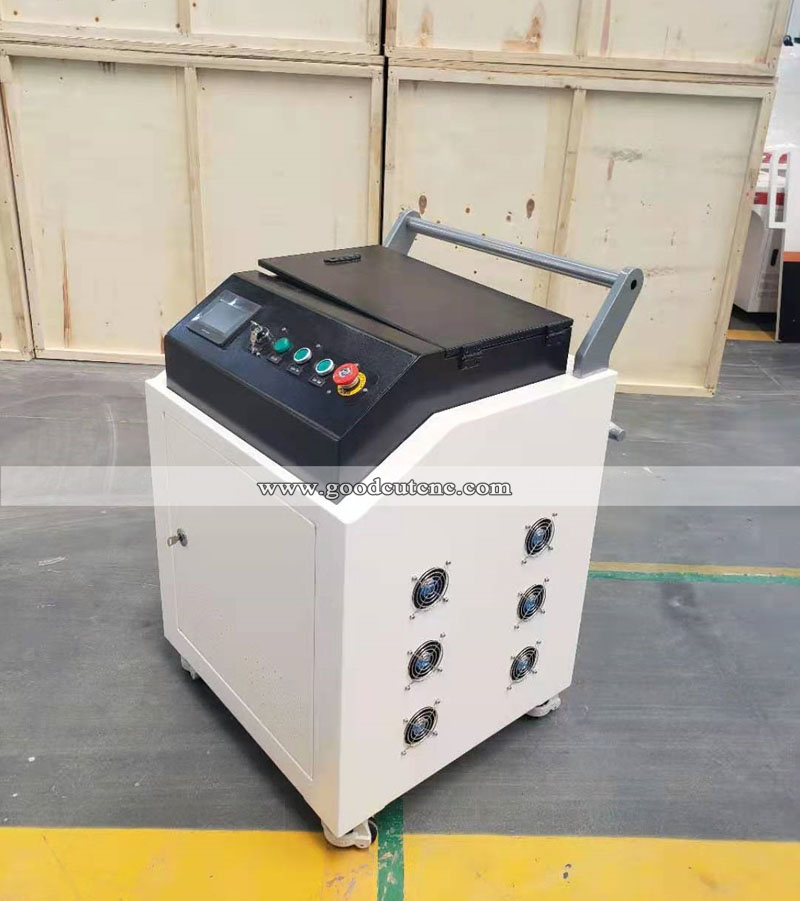

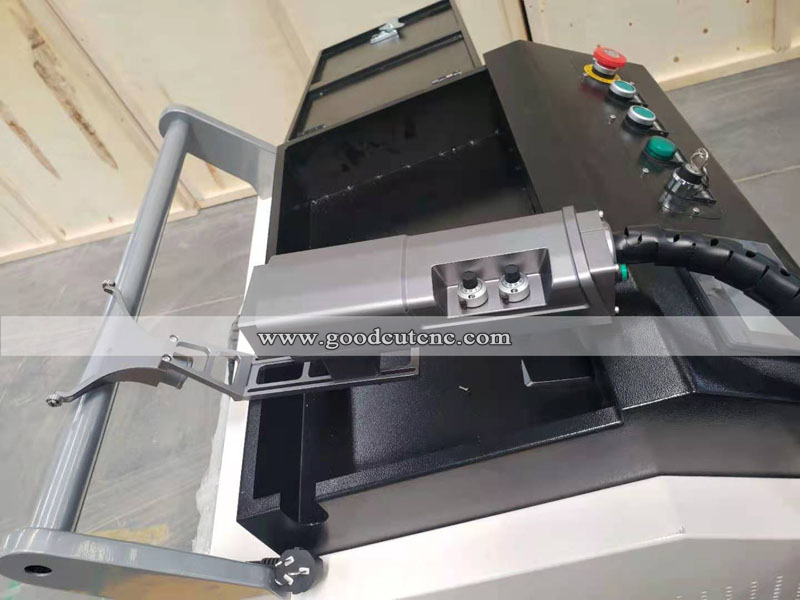

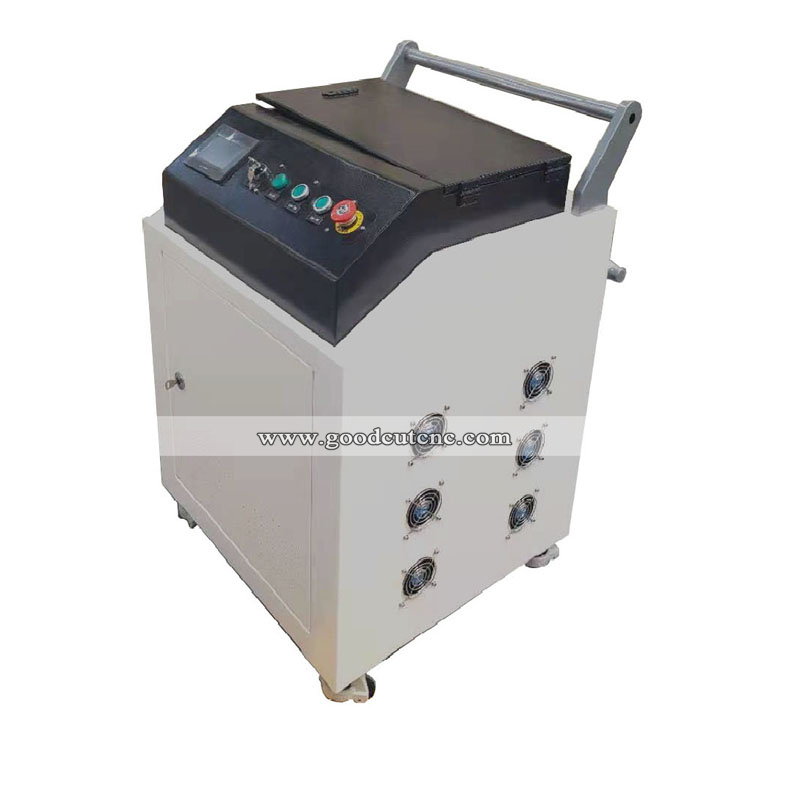

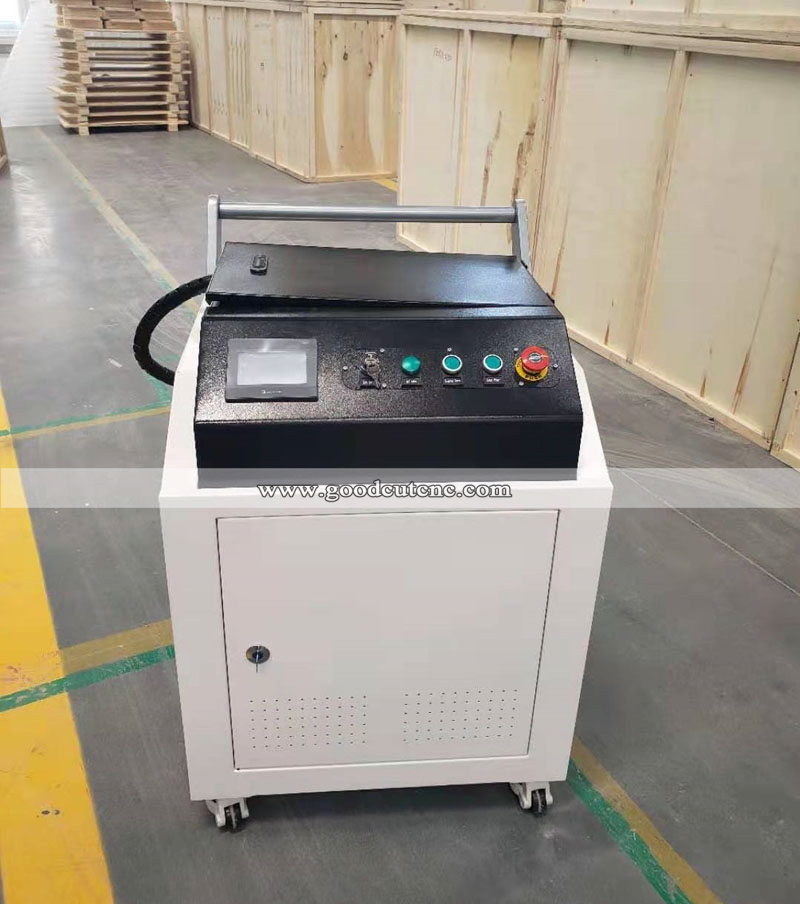

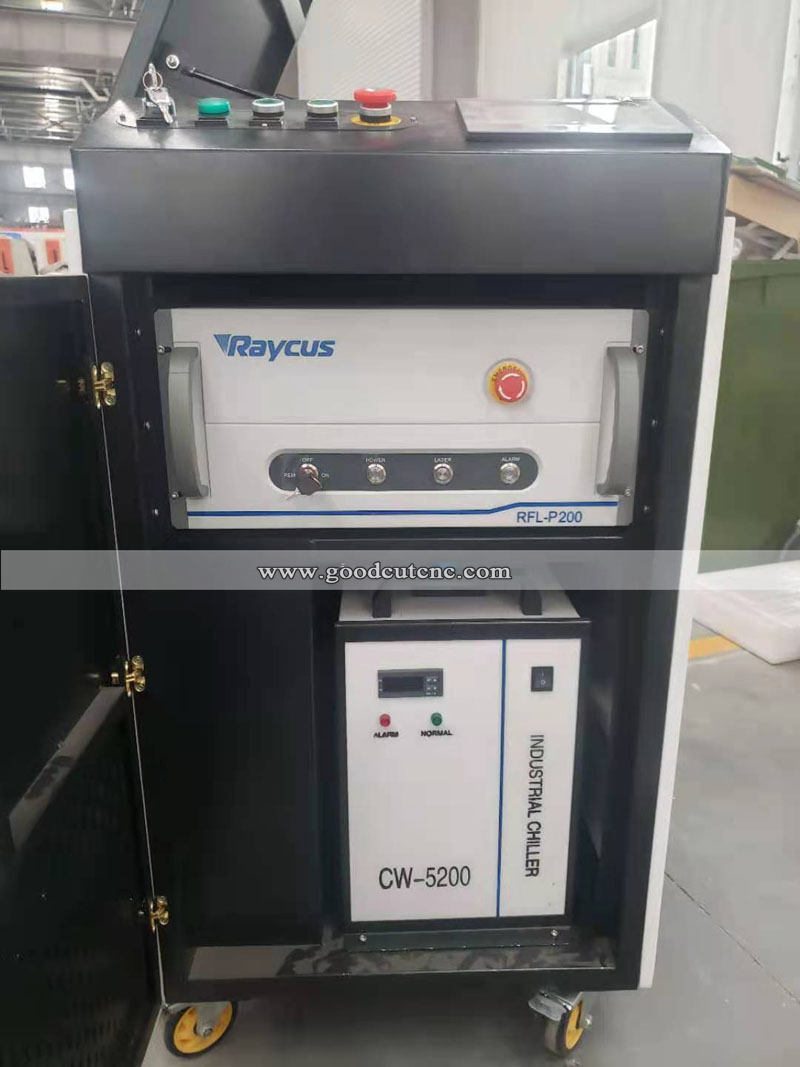

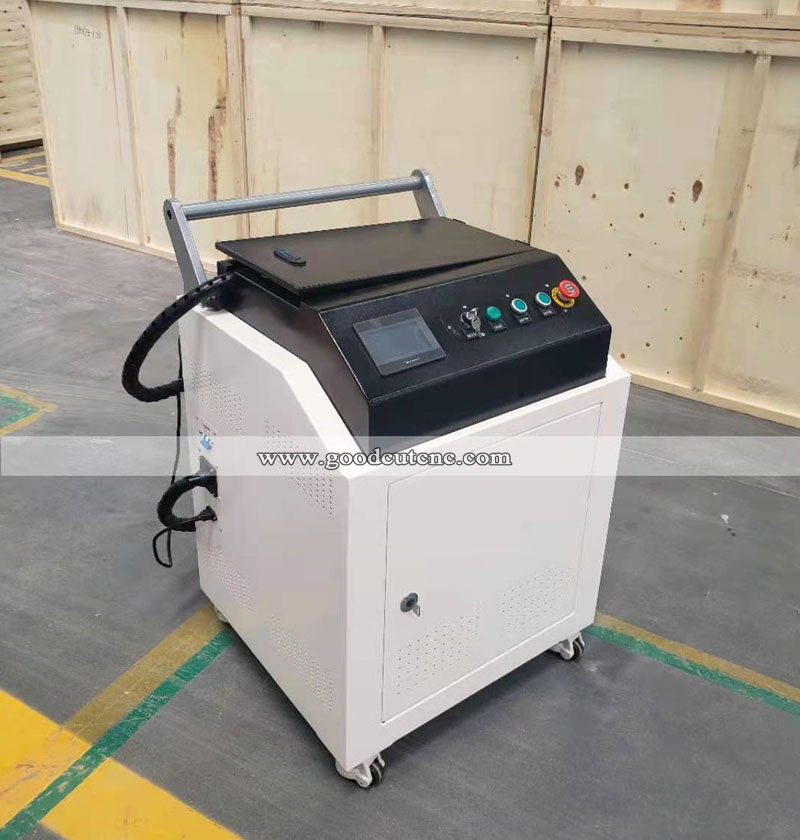

GC-CL Fiber Laser Cleaning Machine with 1000w 1500w 2000w Raycus for Metal Rust Removal

Parameter:

Item
Specifications
Power
Raycus 1000W 1500W 2000W
Laser head
Yes
Weight of the laser head
2KG
Scanning width
10-100mm
Average laser power
≥100W
Output power instability
<5%
Power adjustment range(%)
10-100(Gradient adjustable)
Pulse width(ns)
130-160
Central wavelength(nm)
1064±5
Repeat frequency(kHz)
10-50 (Gradient adjustable
Maximum single pulse energy(mJ)
1
Peak power(kW)
90
Core(μm)
30
Standard cable length
5M
Cleaning thickness(mm)
1
Cleaning efficiency(m2/h)
10
Focal length(mm)
160/210 Replaceable
Cooling method
Air cooling
Consumption
1000W
Laser Source Optional
IPG MAX Raycus
Laser Power Optional
1000w 1500w 2000w



Advantage:

1. Advantages of environmental protection: laser cleaning is a "green" cleaning method. It does not need to use any chemical agent and cleaning solution. The cleaned waste is basically solid powder. It is small, easy to store and recyclable. It can easily solve the problem of environmental pollution caused by chemical cleaning.
2. Effect advantages: the traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium is attached to the surface of the cleaned object,which cannot be removed and produces secondary pollution. The non grinding and non-contact of laser cleaning can solve these problems; Laser cleaning can remove various types of pollutants on the surface of various materials and achieve cleanliness that conventional cleaning cannot achieve. It can also selectively clean the pollutants on the material surface without damaging the material surface.
3. Control advantages: the laser can be transmitted through optical fiber, cooperate with manipulator and robot, conveniently realize long-distance operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places.
4. Cost advantage: laser cleaning has high efficiency and saves time; Although the one-time investment in the purchase of laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time and has low operation cost.

More importantly, it can easily realize automatic operation.
