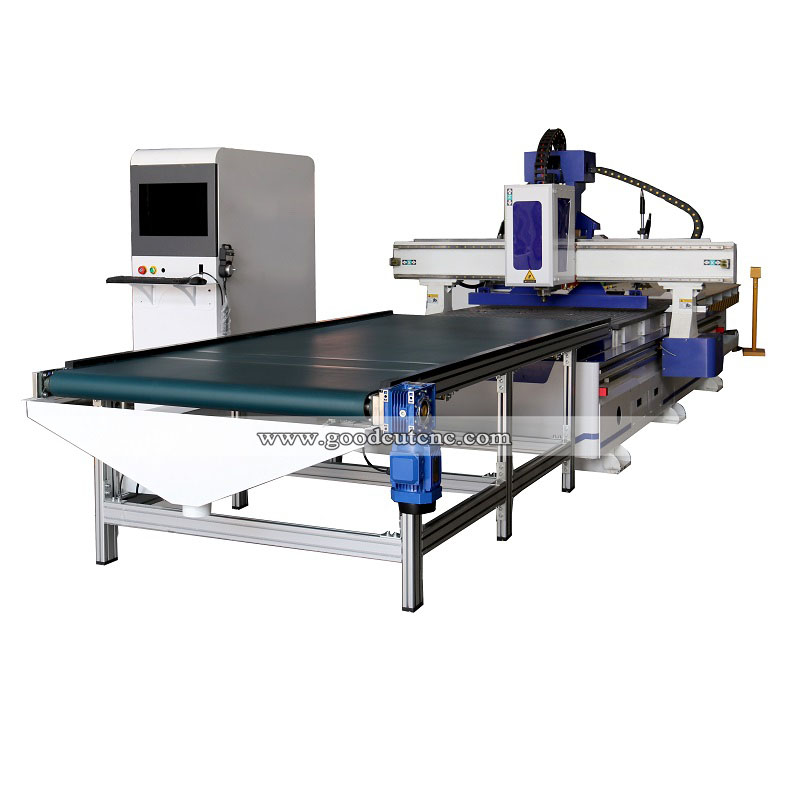

GC1325AF CNC Router Machine with Auto Load and Unload Device for Woodworking

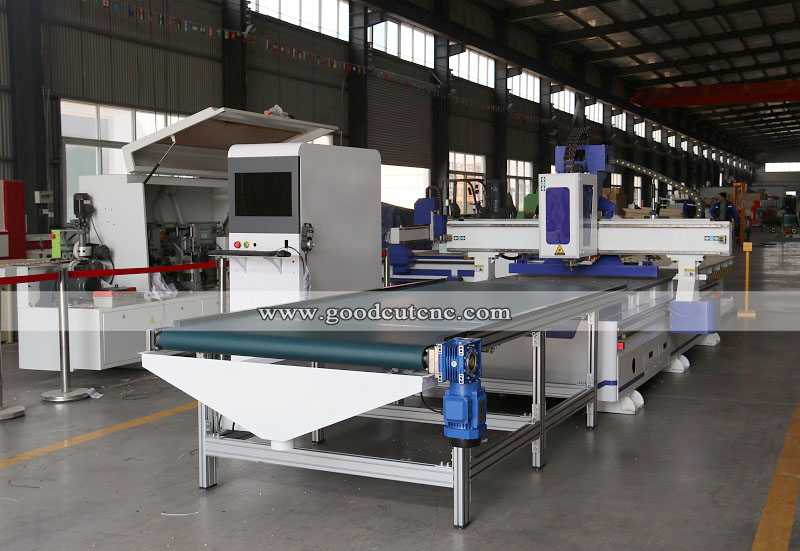

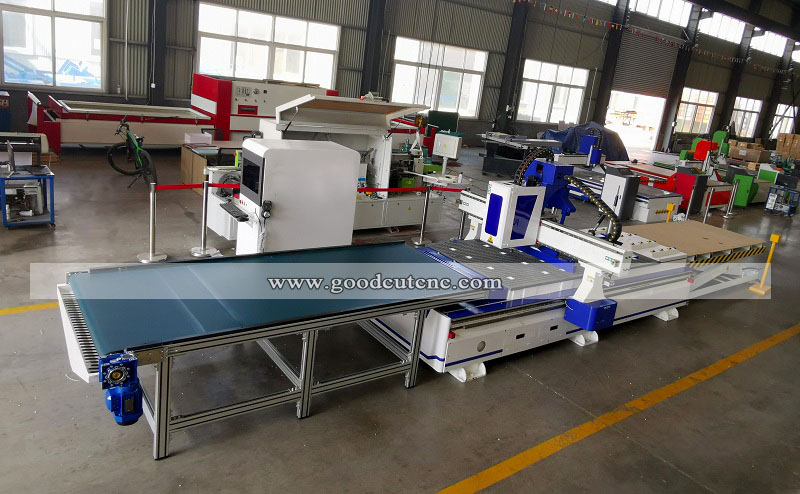

  • Auto load and unload device
  • Heavy duty frame
  • Vacuum absorbed table
  • 1300*2500mm working size
  • Product description: Auto loading and unloading device, improve working efficiency Servo motor and driver Vacuum table
  • INQUIRY   EMAIL

GC1325AF CNC Router Machine with Auto Load and Unload Device for Woodworking

Parameter:

Machine Model
GC1325AF
Working Area(X, Y, Z)
1300mm*2500mm*200mm
Machine Structure
Heavy duty frame
Table Structure
Vacuum table with 7.5kw vacuum pump
X, Y, Z Guides
Taiwan imported HIWIN rail guides
Z Transmission
Ball screw
Spindle Power
9.0KW air cooling
Collet
ER32
Spindle Speed
18000R/min
Max.Traveling Speed
75000mm/min
Max.Working Speed
25000mm/min
Control System
Taiwan LNC
Tool Change Stores
12 pcs automatic tool change in line
Positioning Accuracy
≤0.02mm
Processing Accuracy
±0.02mm
Motor
Servo Motor + Japanese Shimpo Gearbox
Driver
Servo driver
Auto Lubrication System
Yes
Tool Sensor
Yes
Dust Collector
Yes
Cylinder
Yes
Working Voltage
AC380V, 50HZ(220v for optional)
Warranty
24 months


Advantage:

1. Heavy duty Strong machine frame, adopt high temperature quenching handle, high stability

2. Taiwan high precision helical gear rack and square linear rails

3. High density Vacuum table with vacuum pump for fix materials

4. Leadshine servo motor. Optional: Japanese YASKAWA servo motor

5. Whole  Auto feeding and auto unloading work for save labor and time

6. Optional device: Automatic tool change device, double bags dust collector, etc.





Application:

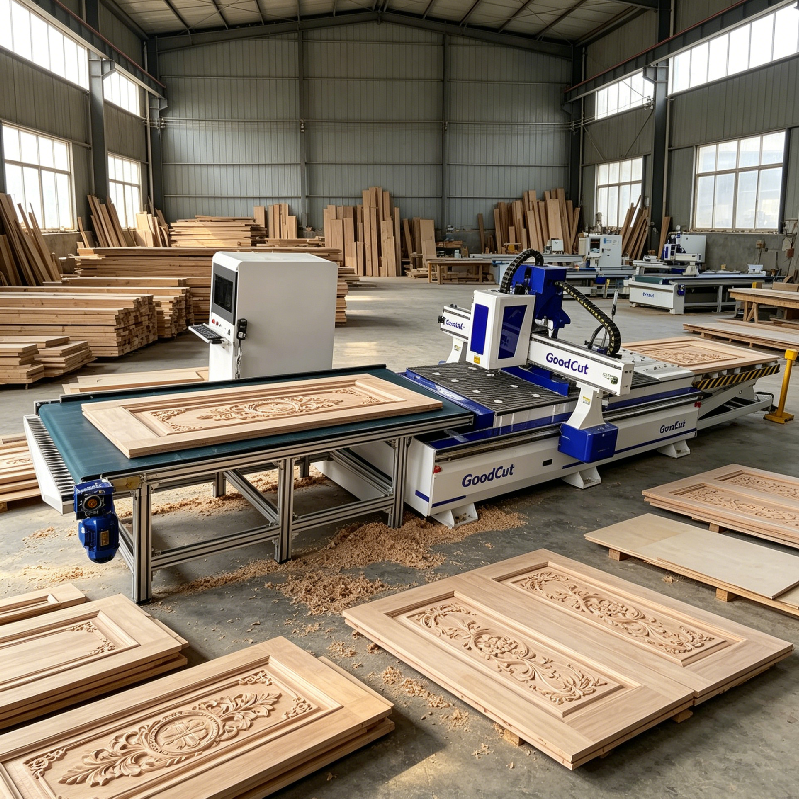

1) Furniture: Wooden door and furniture, window, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments etc.

2)Advertising: Billboard, logo, sign,3D characters cutting, acrylic, LED neon channel, literal-hole cut, light-box mold, stamp, mound, etc.

3)Board processing: Insulation, plastic chemical components, PCB, car boady,bowling tracks, ABS, PP, PE etc.

4)Decoration: Acrylic, PVC, MDF, Glass, plastic and soft metal such as copper, aluminum etc.
