Fiber Laser Cutting Machine

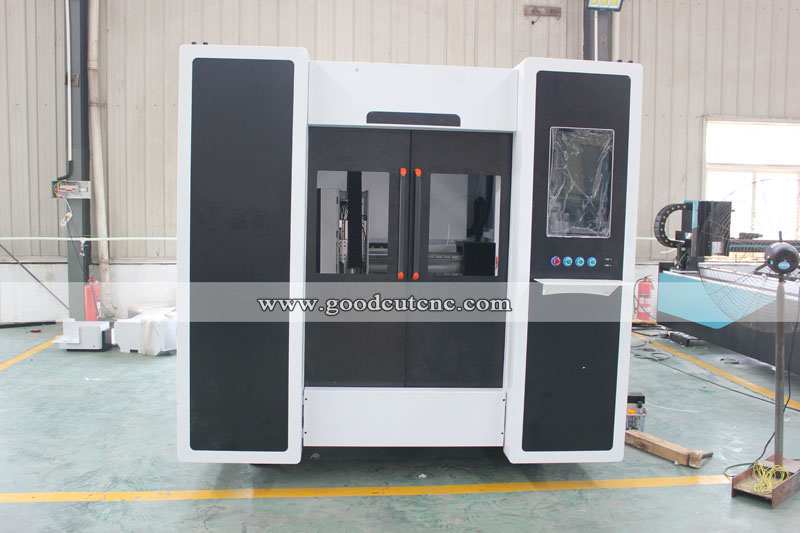

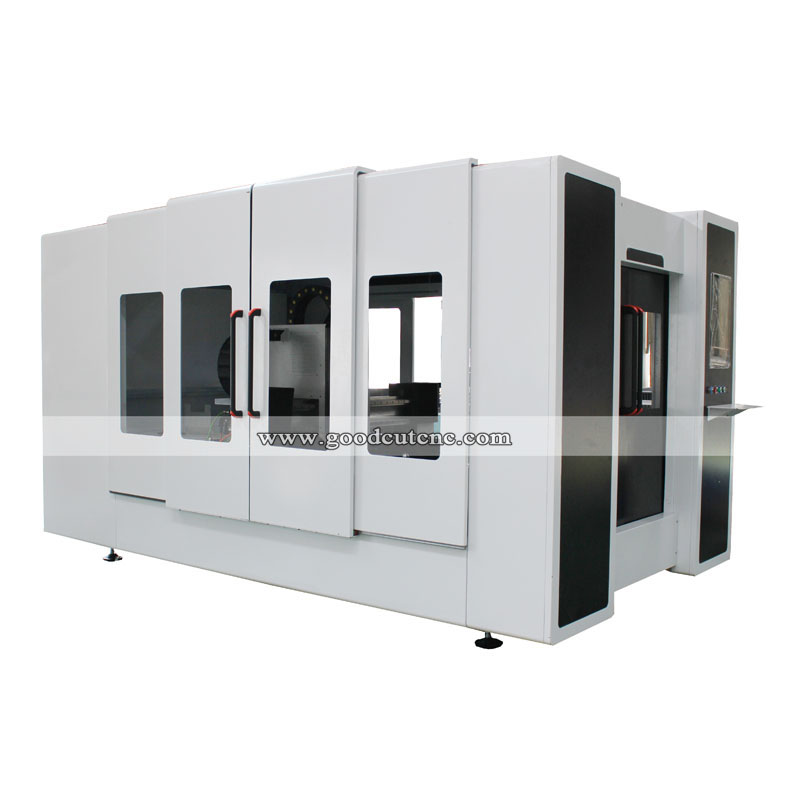

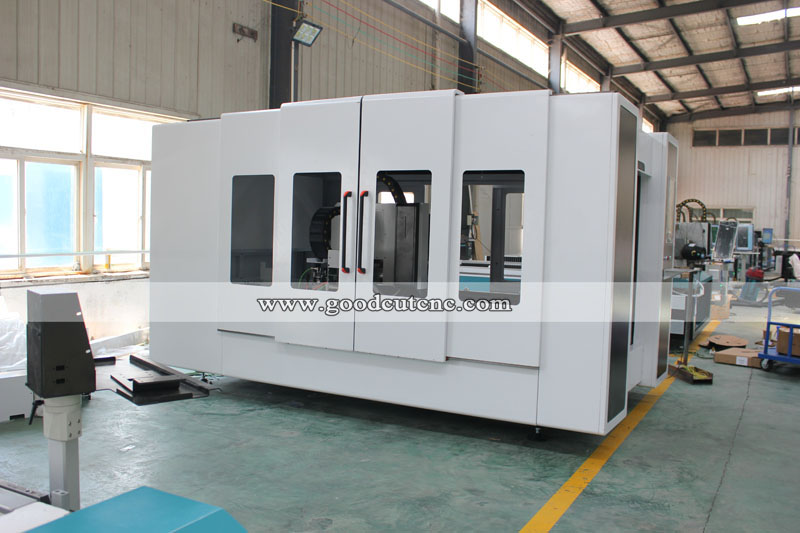

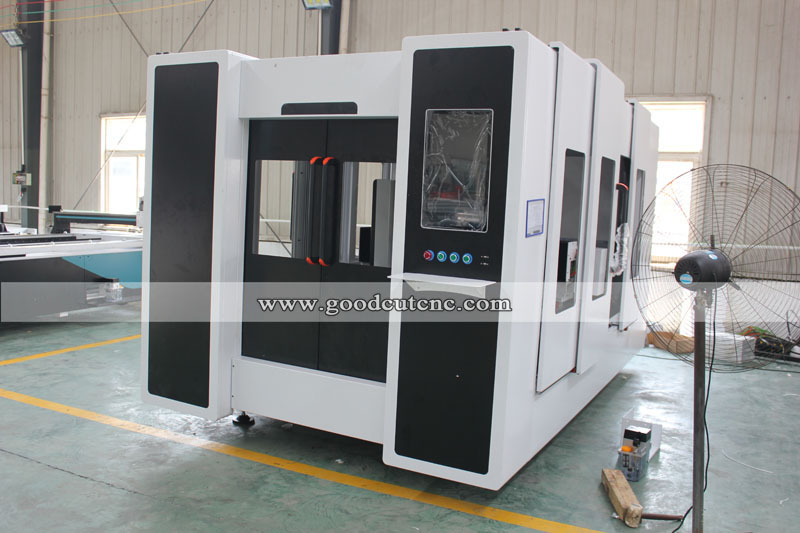

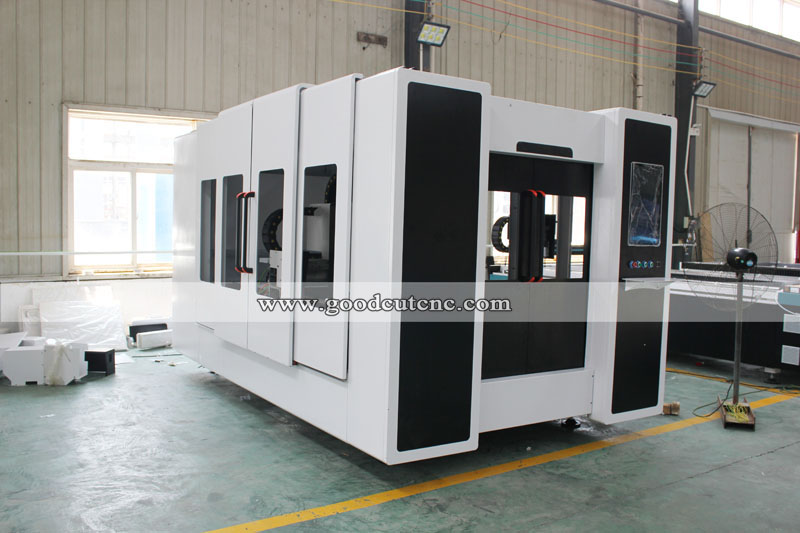

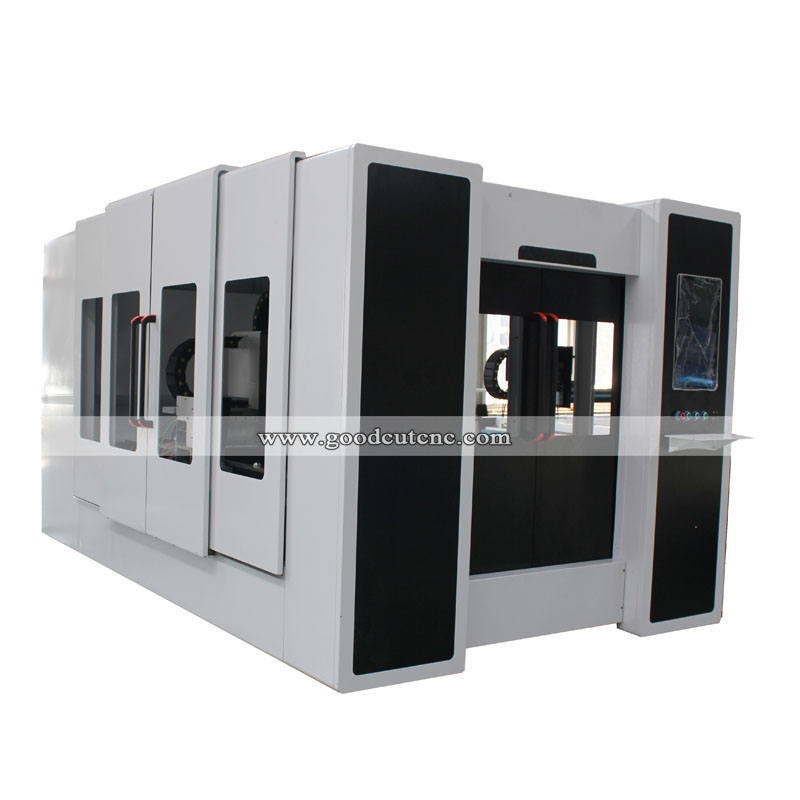

GC1530FC 3000w 4000w Raycus/IPG Fiber Laser Cutting Machine with Protection Cover

Big power for optional
Whole cover
Raycus/IPG laser source
High precision
Product description: Whole protcetion cover Big power laser source for optional Raycus or IPG laser source
INQUIRY EMAIL

GC1530FC 3000w 4000w Raycus/IPG Fiber Laser Cutting Machine with Protection Cover

Parameter:

Items		Parameters
Model		GC1530FC
Laser Source		IPG / Raycus
Power		1000w 1500w 2000w 3000w~20000w(can be customized)
Linear Rial		THK
Servo Motor		France Schneider Servo System
Reducer		Japanese Shimpo Reducer
Cutting Head		WSX / Raytools
Control System		Cypcut
Wave Lenth		1080nm
Cutting Width(X&Y)		13002500mm 15003000mm (can be customized)
Laser Media		Fiber Laser
Voltage Requirements		220v or 380v/50Hz~60Hz
Min.Route Width		0.1mm
Reposition Accuracy		±0.05mm
Aiming Positioning		Red Dot
Pipe Material Diameter		10~300mm(Optional)
PS.All the working area and specifications can be customized according to your requests

Feature:

1. Exchanged working table, improve production efficiency.

2. Excellent Path Quality: Smaller laser dot and high work efficiency,
high quality.
3. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
4. Stable Running: adopt top world fiber lasers generator, stable performance, key parts can reach 100,000 hours.
5. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
6. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
7. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
8. Easy Operations: fiber line transmission, no adjustment of optical path.

Appication:

Metal Material :
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Metal Industries :
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
