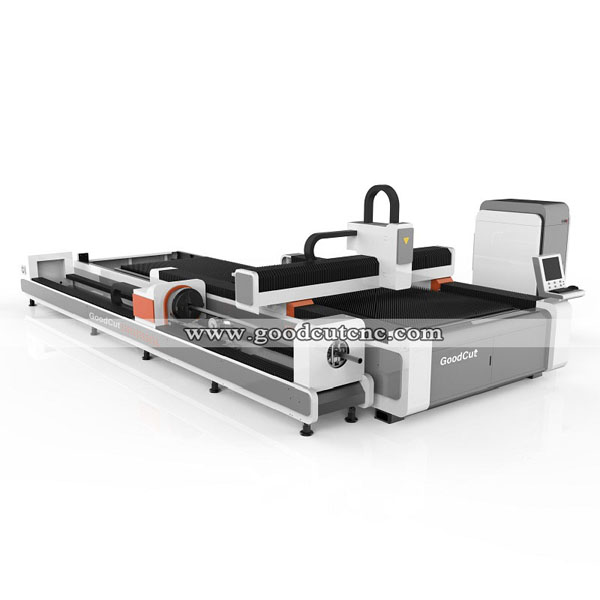

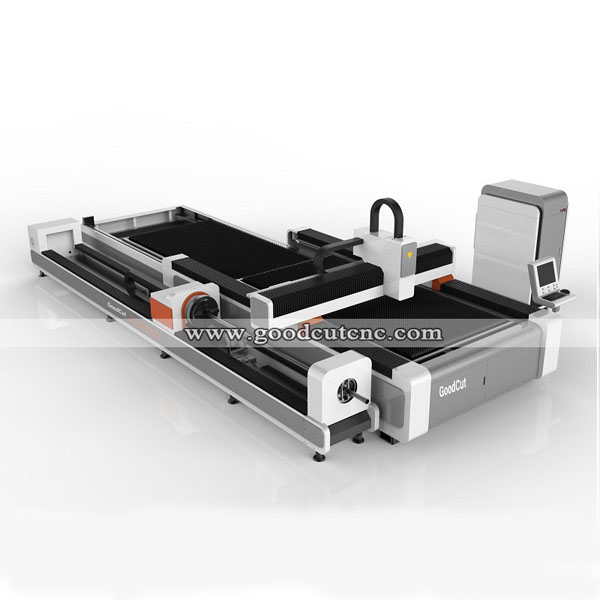

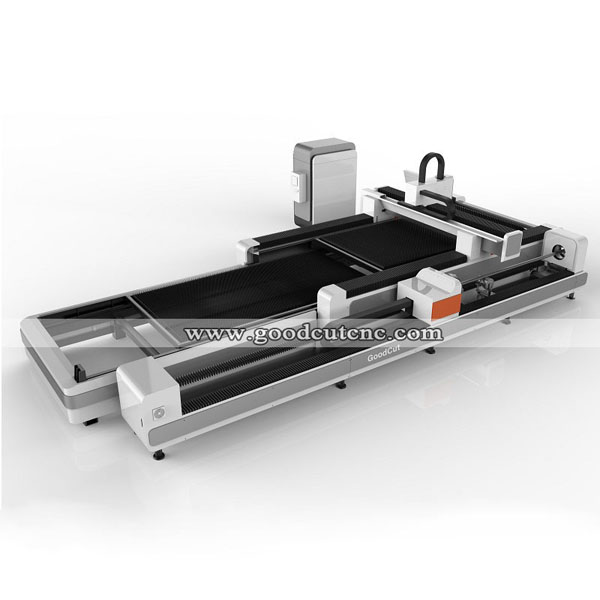

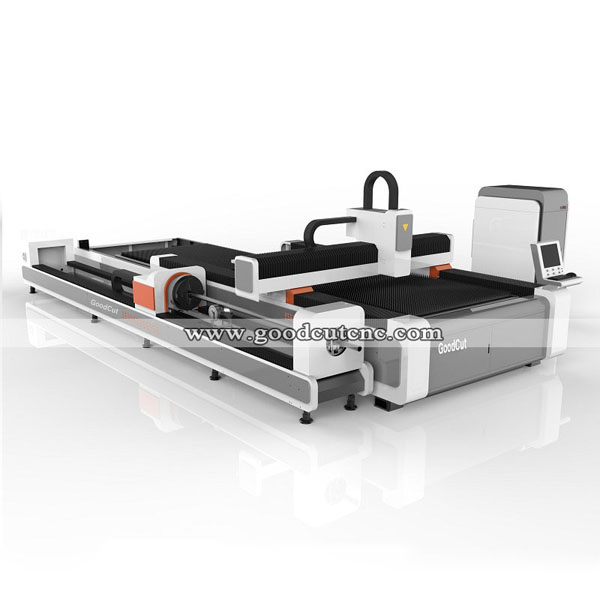

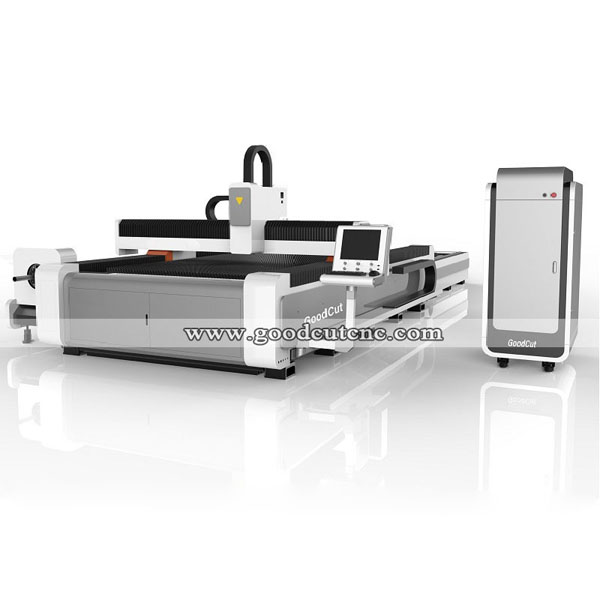

Fiber Laser Cutting Machine with Rotary for Metal Round and Square Pipe Tube Cutting

  • Raycus IPG laser source
  • Economic cutting thin metal sheet and round square pipe
  • Cypcut control system
  • S&A water chiller
  • Product description: This machine has rotary device, can cut metal sheet and round pipe square pipe. Raytools laser head, manual foucsing and auto foucsing for optional. 500w-2500w Raycus and IPG laser source. Yaskawa
  • INQUIRY   EMAIL

Fiber Laser Cutting Machine with Rotary for Metal Round and Square Pipe Tube Cutting


Description:

1. This model integrates square tube, circular tube, oblate tube, and plane cutting in one, with multifunction and high practicality.

2. Gantry structure and dual drive, Germany imported rack & pinion drive system. Excellint cutting performance and stability.

3. Selt-centering jig system ensures stable process of conveying pipes, so that it can ensure high accuracy and high quality of products.

4. The machine, with high accuracy of machining dimension, can take the place of traditional processing equipment, such as sawing and punching.

5. Saddle-shaped pipe type support beam is with high precision calibration, no derformation during 6m pipe cutting.

Details:

1. Machine Bed: exchange platform, save time and improve efficiency.
High compressive Strength and high hardness, will not deformation in a life cycle and maintain accuracy for a long time


2. Transmission:

Taiwan HIWIN square guide rails; Taiwan TBI ball screw

Strong and durable, small friction running resistance is small can effectively improve the working speed


3. Laser Cutting Head: Raytools and WSX for optional.

Single and double configuration flying light path design Unique optical structure design light path deviation is small stability direction regulation


4. Laser source: Raycus and IPG for optional.

1). Direct control of all the fiber laser functions;
2).  control of the laser source;
3). High speed perforation

4). More than 100,000 hours work-life of pumped diode,almost free maintenance.


5. Control system: Cypcut control system.


Main Parameter:

Model GC-1530FR
Working area 3000*1500mm
Miximum length of pipe(Options) 3000mm(or)6000mm
Limits of pipe(Customized)
Round tube:Φ20mm~Φ120mm;
Square tube :Φ20mm~80mm;
Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type Fiber laser generator
Laser power(optional) 500~2000W
Transmission system Double serve motor &gantry&rack&pinion
Maximum speed ±0.03mm/1000mm
Pipe cutting system(optional) yes
Maximum speed 60m/min
Maximum accelerated speed 0.6G
Position accuracy ±0.15mm/1000mm
Reposition accuracy ±0.02mm/1000mm
Graphic format supported CAD,DXF(etc)
Total power 10KW
Power supply 380V/50Hz/60Hz
Overall dimension(include cutting machine in 3 meters long) 4350mm×3200mm×1740mm
Overall dimension(include cutting machine in 6 meters long) 7650mm×3200mm×1740mm
Gross weight 5000kg

Application Industries:

Application Materials:

RECI Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.ensure that it can operate ng possible during the laser cutting process.

Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
