Fiber Cutting Machine

  • 1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet
  • 1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet
  • 1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet
1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet

1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet

  • Raycus OR IPG laser source 1000w 1500w 2000w
  • Cypcut control system
  • Raytools laser head
  • Yaskawa servo motors and drives
  • Product description: 1500*3000mm working size. China Raycus and German IPG laser source 1000w 1500w 2000w. Ray tools laser head. Cypcut control system. Shimpo or Motovario reducer.
  • INQUIRY   EMAIL

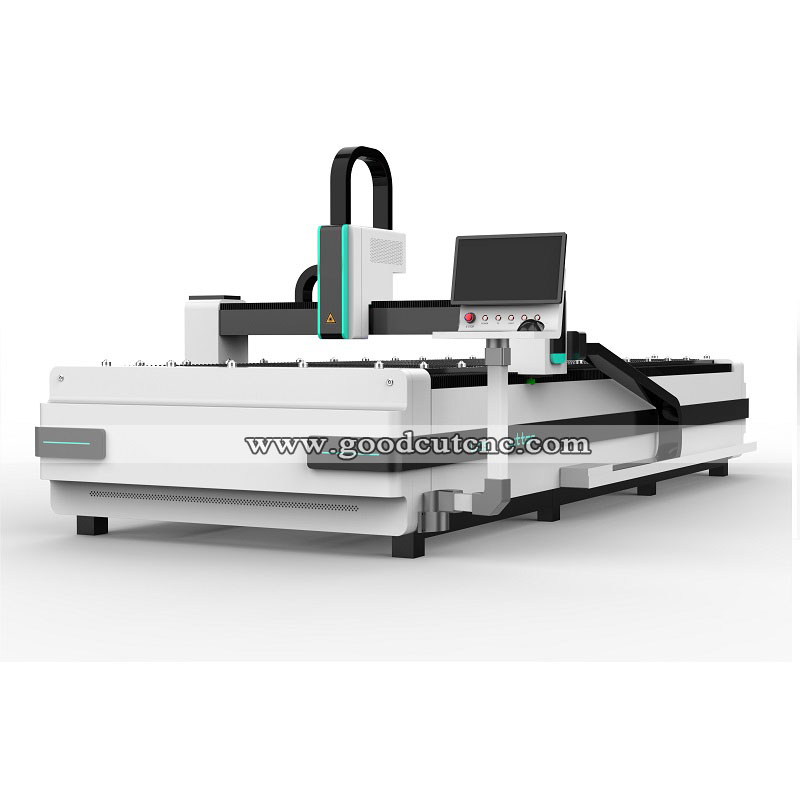

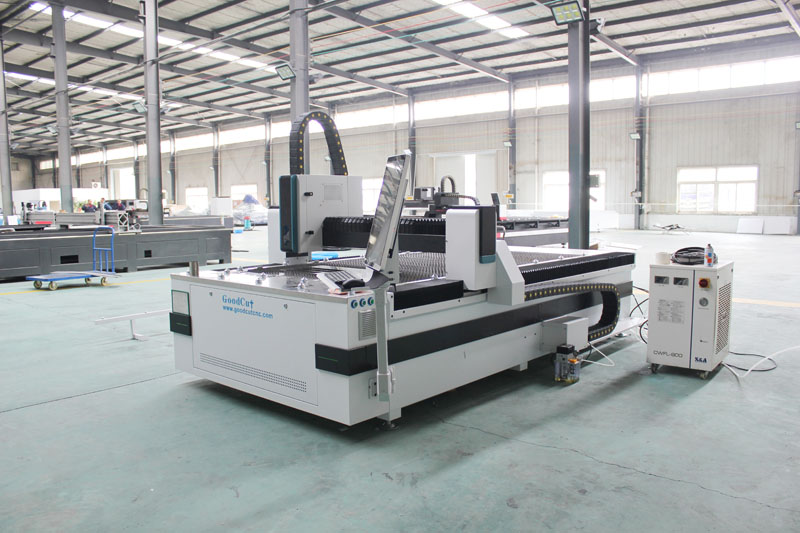

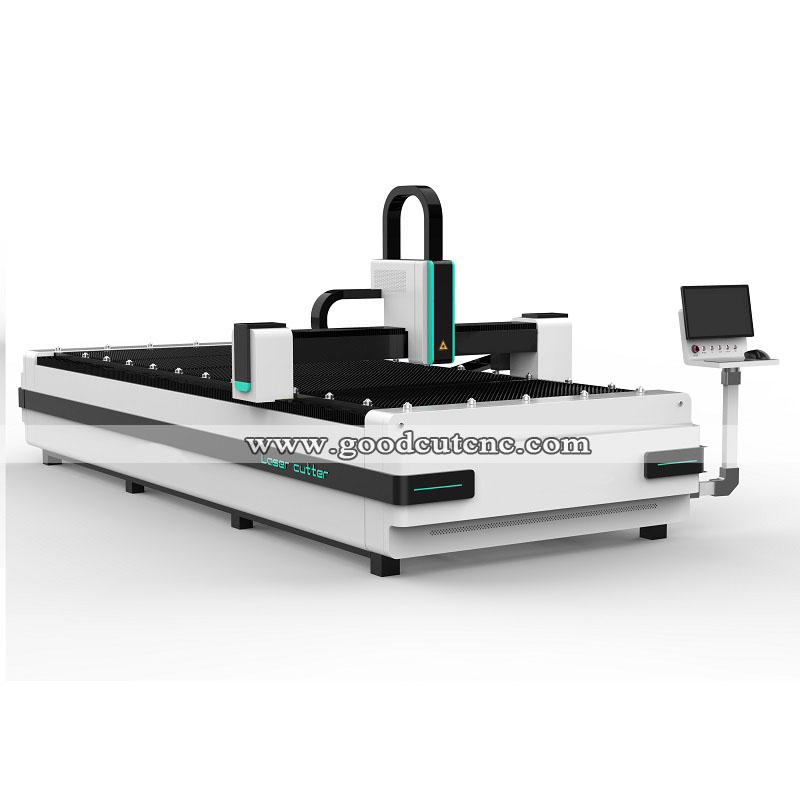

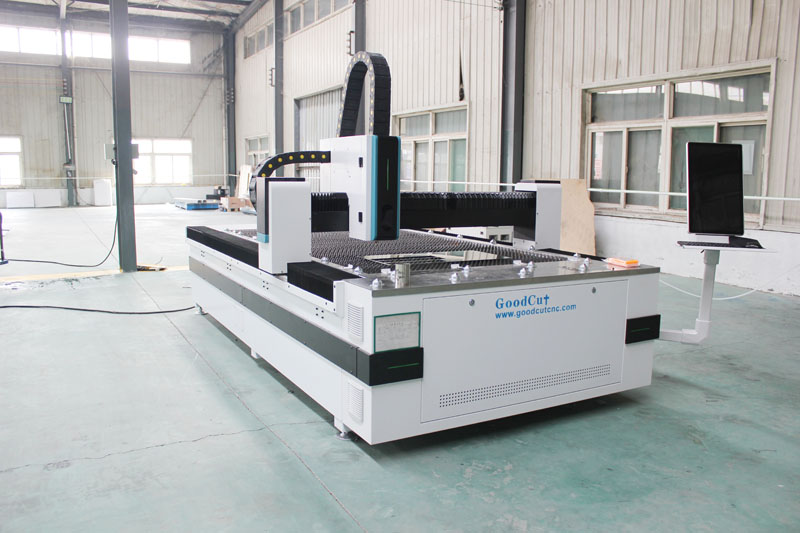

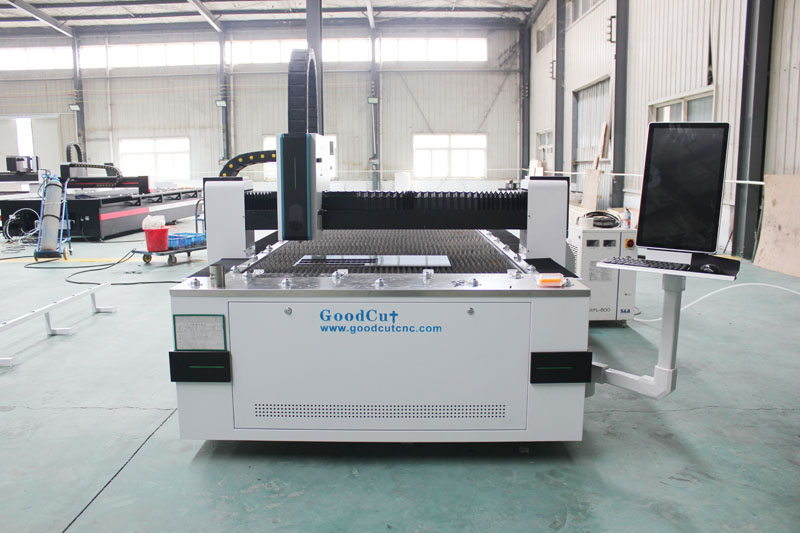

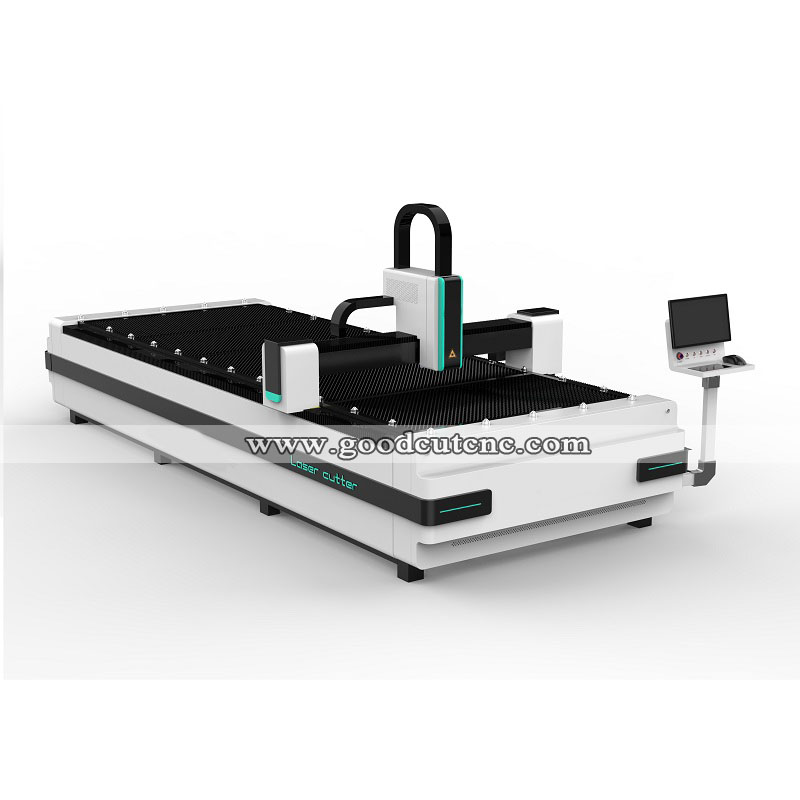

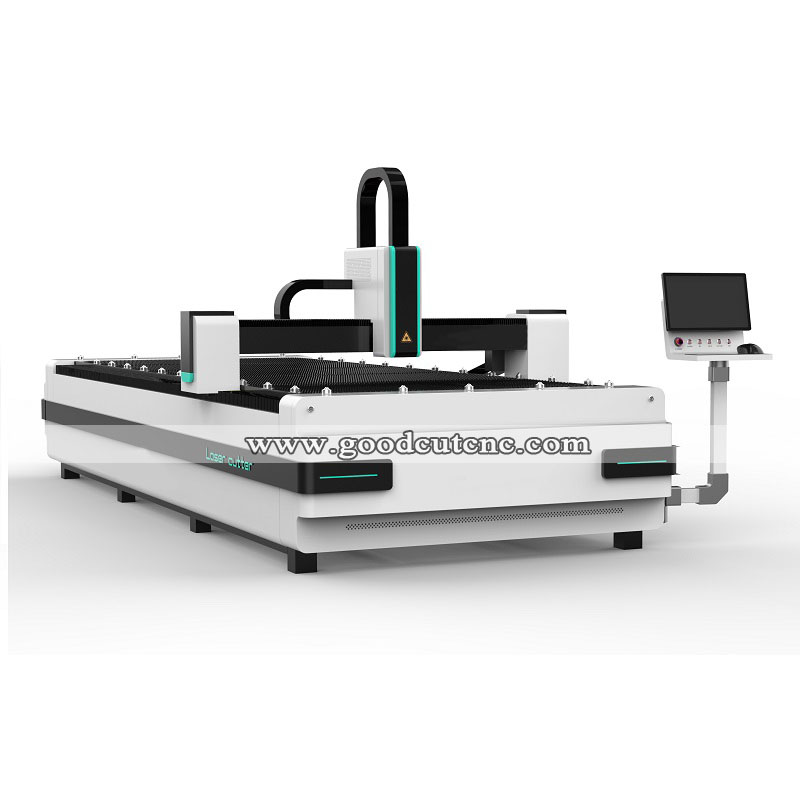

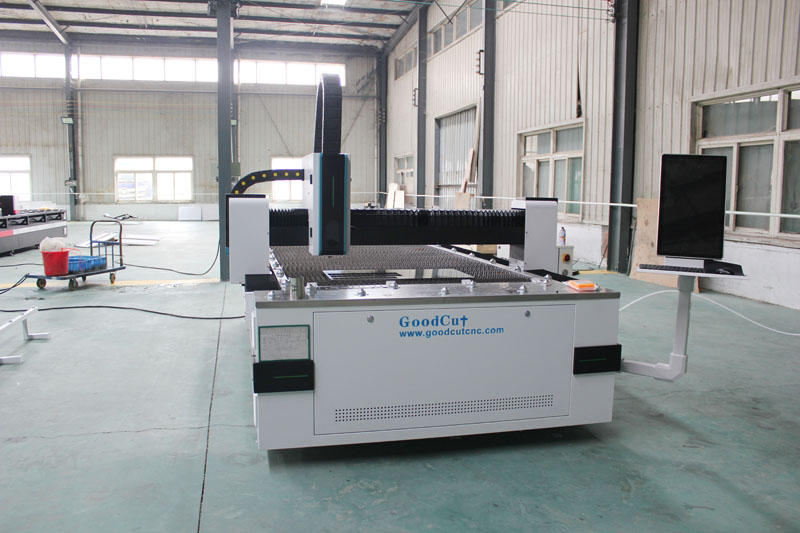

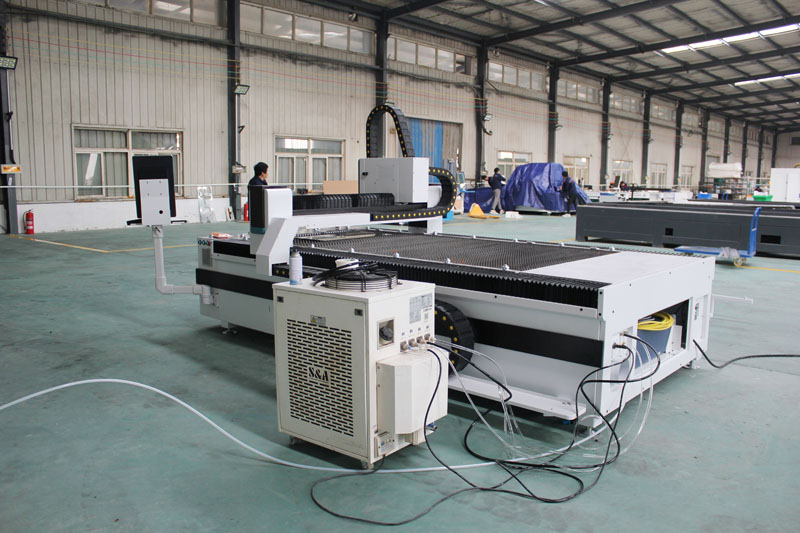

1000W 1500W 2000W Fiber Laser Machine for Cutting 5mm Stainless Steel Metal Sheet



Configuration

* 1500*3000mm working size, other size can be customized,


* According to material thickness, choose different laser source: 500w 1000w 1500w 2000w 2500w.

Domestic Raycus and imported German IPG laser source for optional.

* Imported Switerland Raytools and domestic WSX laser head, manual focusing and automatic focusing for optional.

* Cypcut contol system. Cypcut 1000 and Cypcut 2000 controller for optional.

* Japan Shimpo and France Motovario reducer for optional.

* S&A water chiller, dual temperature,dual control.

* Yackawa srevo motor and driver.(Delta motor for optional.)

*Taiwan APEX rack and pinion; Taiwan HIWIN guide rails; Taiwan TBI ball screw
PS: We can customize the machine according to your requirement.


Parameter:

Items Parameters
Laser Source IPG/Raycus
Power 500w 1000w 1500w 2000w 3000w(can be customized)
Linear Rails THK, HIWIN
Servo Motor France Schneider Servo System
Reducer Japanese Shimpo Reducer
Cutting Head WSH /Raytools
Control System CYPCUT
Wave Lenth 1080nm
Cutting Width 1300*2500mm 1500*3000mm 1500*4000mm (can be customized)
Laser Media Fiber Laser
Voltage Requirements 220v or 380v/50Hz-60Hz
Min.Route Width 0.1mm
Reposition Accuracy
±0.05mm
Aiming Positioning Red Dot
Cutting Thickness Depend On the Materials



Main Features:

1. Heavy duty steel welded machine frame


The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.

2. Heavy duty steel welded machine frame


Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.

3. CypCut Controller


Support flight cutting, leapfrog, electric focusing, double exchange workbench
Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min
Maximum air movement speed 80m/min
Maximum acceleration 0.8G

4. Control Cabinet


All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

5. XY Axis Taiwan HIWIN Square Rail &Taiwan YYC Rack Transmission system


The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant.

6. Taiwan TBI ball screw on Z axis


As the top brand of the ball screw, TBI ballscrew is famous for the high precision, and long service life.

7. Feeding roll


The machine comes with the feeding roll. The feeding roll will help the worker feed the material easily.

8. Serrate working platform


The steel serrated table can withstand heavier work pieces and has only a small area to touch the workpiece when cutting, maximizing the melting of the table surface by the heat of the laser.
Each piece is independent for easy replacement and maintenance.

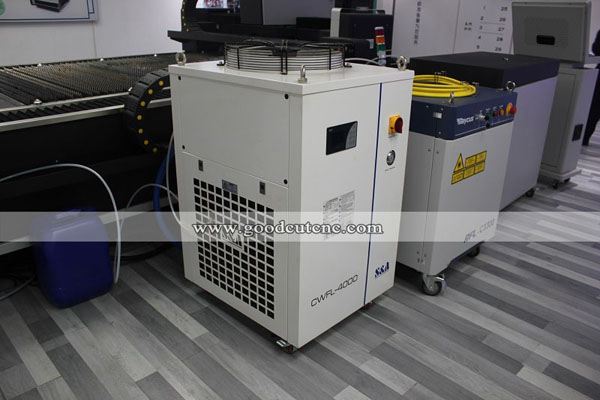

9. S&A Water chiller

The function of the water cooler is to reduce the temperature of the laser generator and prevent the laser from being burned out. We only use brand-name water coolers with reliable quality.

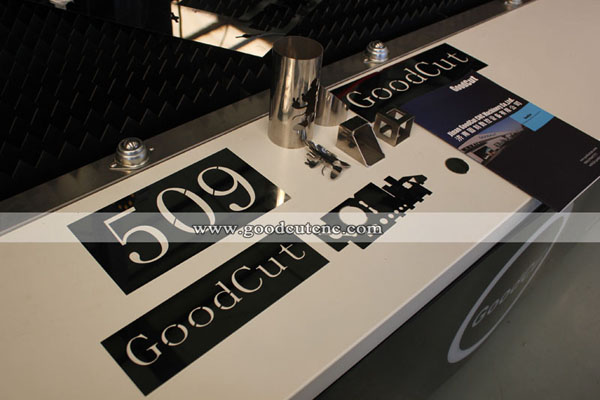

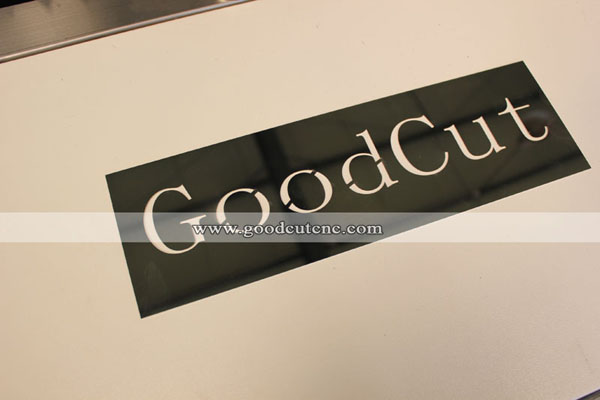

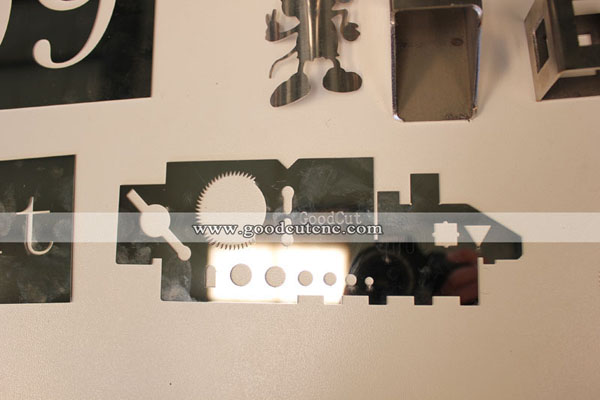

Application:



Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industry:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
