Laser Marking Machine

  • Desktop Fiber Marking Machine GC1010

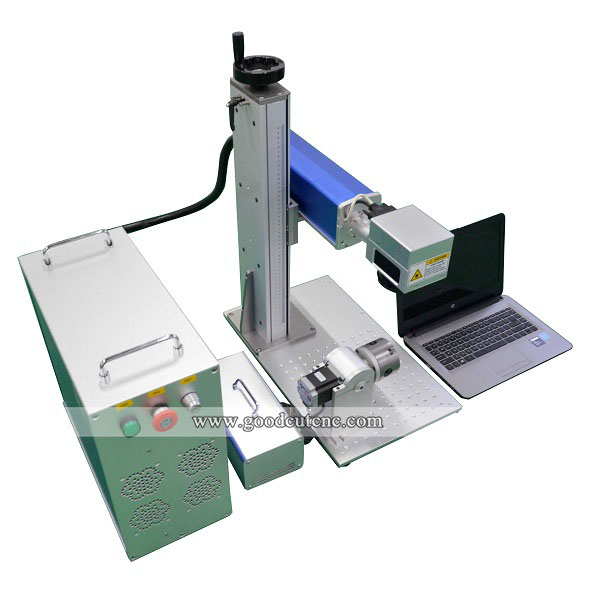

Desktop Fiber Marking Machine GC1010

Desktop Fiber Marking Machine GC1010

  • Mahing size: 110mm*110mm
  • Laser power: 20W/ 30W/ 50W
  • Laser sources: Raycus, Germany IPG
  • Process material: metal and part of nonmetal
  • Product description: metal marking machine Raycus/ IPG 20w/ 30w/ 50w marking machine
  • INQUIRY   EMAIL

Desktop Fiber Marking Machine GC1010

The fiber laser marking machine From GoodCut allow manufacturers to mark or engrave barcodes, serial numbers, 2D Data Matix and graphics on the widest variety of materials including metals, plastics and ceramics and leave permanent marking.

They provide an industrial solution for Product identification and traceability and are often chosen by customers because of the product's capabilities and quality,as well as the quality of mark it produces.

Main Features

1)Low consumption,non-toxic,no pollution,high performance price ratio.
2)Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.

Parameter of fiber laser marking machine :

Model

GC-FD20

GC-FD30

GC-FD50

GC-FD100

Laser power

20W

30W

50W

100W

Wave length of laser

1064nm

Marking scope

110*110mm 150*150mm 175*175mm 200*200mm 300*300mm  Optional

Laser repetition frequency

20kHz~100kHz

Laser sources

Fiber module

Marking Line width

0.01-0.1mm

Laser Head

Scanning head

Repeated accuracy

0.0025mm

Process Material

All kinds of metal and part of Non-metal Materials

Marking Depth

0.01-0.2mm(adjustable depending on materials)

Marking Speed

≤7ooomm/s

Power supply

220V/50Hz/500W

Cooling ways

Force-air Cooling

Support format

PLT, BMP, DXF, JPG, TIF, AI etc

Package size

0.58*0.93*0.85 m

Gross Weight

80KGS

3)Laser beam quality is much better than the traditional laser marking machine.

4)Free from maintance, long working life, small size, suitable for any working environment






Main features of fiber laser marking machine:

1. Fiber laser(German IPG brand or China fiber laser optional)

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before laser

7. Notebook with Powerful software

8. User friendly interface, easy operation










Application of fiber laser marking machine :

GoodCut is known for the high quality of the marks we produce, and these samples from GoodCut Fiber Lasers showcase some of the common applications that highlight its capabilities. Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass.





Jinan GoodCut CNC Machinery Co.,Ltd.

GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.

We can offer highest quality machine, and competitive price.

Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine,
wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.

Jinan GoodCut CNC Machinery Co., Ltd.

The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service

Good Quality

1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;

2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;

3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
