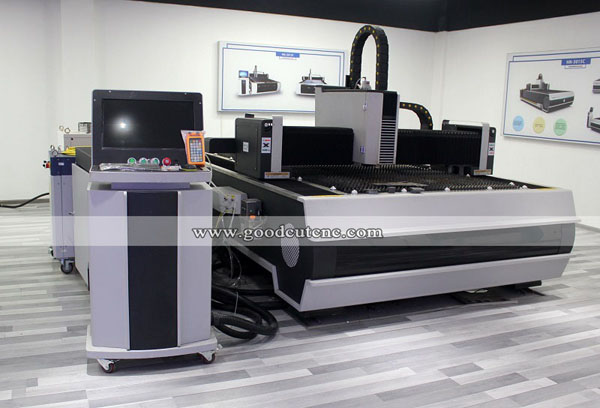

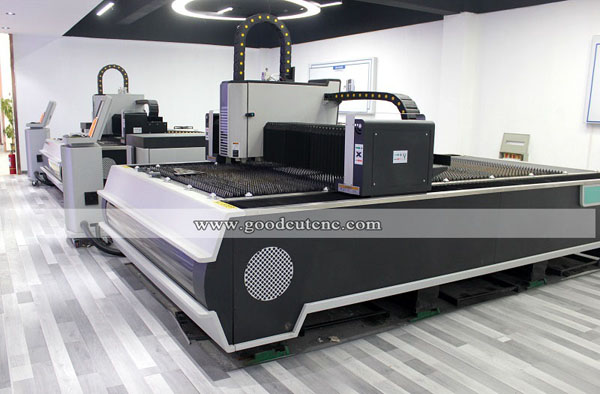

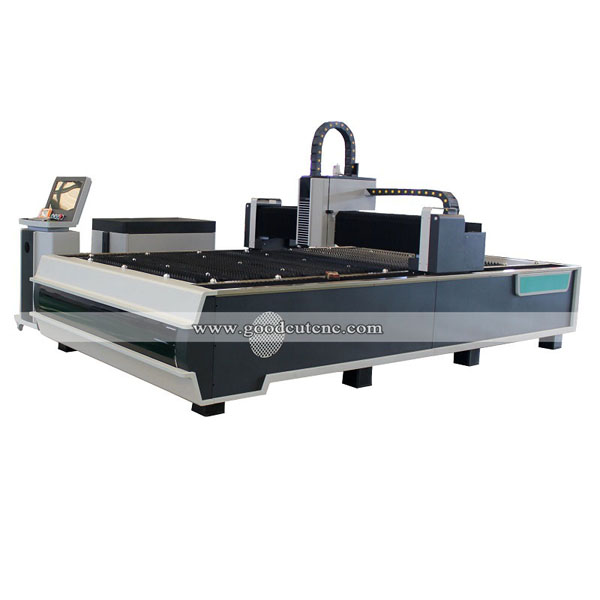

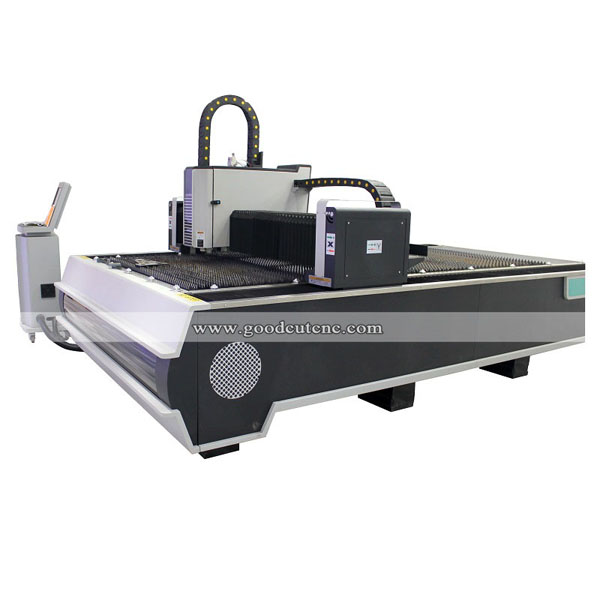

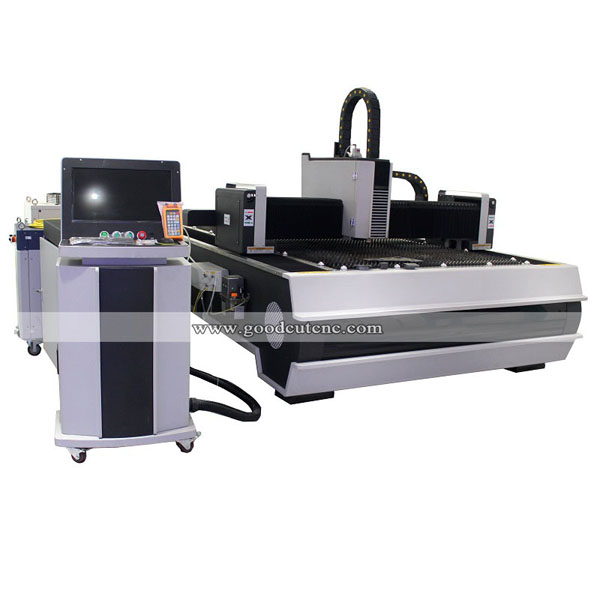

GC1530F 500W 750W 1000W 1500W 2000W Fiber Laser Cutting Machine Price for Cutting Steel Aluminum

  • high speed industry cutting metal machine
  • 500w 750w 1000w 1500w Raycus/IPG laser source
  • Cypcut control system
  • Yaskawa servo motors and drives
  • Product description: Fiber laser cutting machine can cut stainless steel carbon steel etc metal materials. Different power laser source. 1500*3000mm, the working size can be customized. Cycut control system.
  • INQUIRY   EMAIL

GC1530F 500W 750W 1000W 1500W 2000W Fiber Laser Welding Machine Price for Cutting Steel Aluminum



Technical parameter:

Model GC1325F
GC1530F
Laser Power 500W750W/1000W/1500W/2000W
Laser Source Raycus or IPG Laser Fiber Laser Source
Laser Type Imported Fiber Laser or Top Brand China Fiber Laser
Laser Technology Germany Technology
XYZ Working area 1300*2500*150mm 1500*3000*150mm
Max. Cutting Thickness (CS) 1mm - 15mm
Max. Cutting Speed 5-15 Meters / Min (up to materials)
Max. Location speed 60m/min
Laser wavelength 1070nm
Minimum line width ≤0.1mm
Location precision ≤±0.05mm
Re-location precision ±0.02mm
Max. moving speed 100m/min
Supporting Format PLT, DXF, BMP, AI
Power demand 380V/50Hz
Cooling Way Water Cooling
Worktable max. load 1000KGS
Transmission Method Ball Screw Transmission
Table-driven system Japanese Imported  Servo Motor & Driving System
Focus Method Following and Automatic Adjust Focus
Control software Perfect Laser Professional Laser Cutting Software
 Key word  Fiber Laser Cutting Machine

Detailed Image:

1. Body

Heavy duty machine tool design,Welding bed. The two annealing can effectively eliminate the stress. Weight≥3.5Ton



2. Fiber laser



Raycus 500w/1000W1500w/2000w


3. Rack

Grinding rack of Atlanta, Germany

4. Industrial Personal Computer

Independent control cabinet, equipped with industrial control computer.

5. Laser head

WSX/Raytools Auto focus laser head

6. Reducer

Japan Xinbao Reducer, France MOTOVARIO for optional.

7. Chiller

S&A chiller


Main Feature:

1.Cast iron Bed: We use cast iron bed which have a good shock-absorbing function , so cutting precision is better.

2. Excellent path quality: Smaller laser dot and high work efficiency, high quality.

3. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

4. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

5. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.cutter machine

6. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

7. Low maintenance:fiber line transmission no need reflect lens, save maintenance cost.


Application materials:

Stainless Steel Sheet & Hollow Pipe ,Carbon Steel Sheet& Hollow Pipe, Stainless Iron Sheet & Hollow Pipe, Galvanized Sheet & Hollow Pipe, Manganese steel, Electrolytic plate, Aluminum Alloy, Titanium Alloy, Aluminum, Brass , Rare metal ,etc

Application Industry:

Mechanical & Electrical Equipment, Stainless Steel Products, Construction & Decoration Industries, Billboard ,Sheet Metal Structure, High-low Voltage Electric Cabinet, Kitchenware,Car Accessories, Saw bits, Precision Metal Parts,Metal Artware, etc.
