GC1390L CO2 Laser Metal Nonmetal Cutting Machine

GC1390L CO2 Laser Metal Nonmetal Cutting Machine

Model: GC1290L, GC1390L, GC1610L
Laser tube power: 130W/150W/ 180W/ 280W/ 300W
Laser tube brand: Beijing Reci EFR
Control system: Ruida controller
Product description: laser metal cutting machine, metal nonmetal laser cutting machine, mix/hybrid co2 laser cutting machine
INQUIRY EMAIL

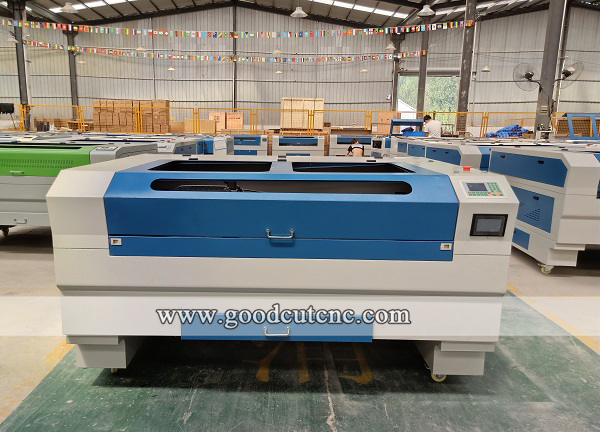

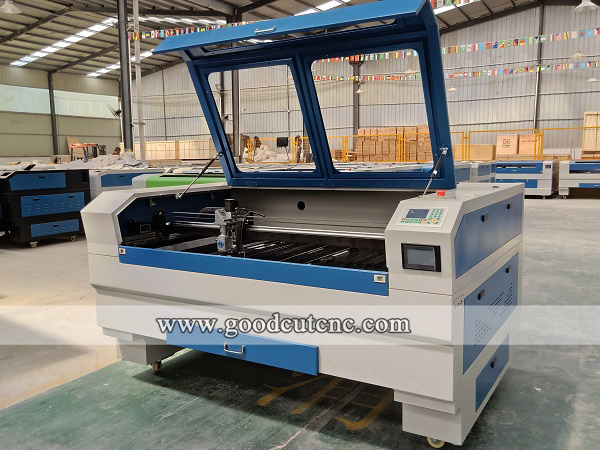

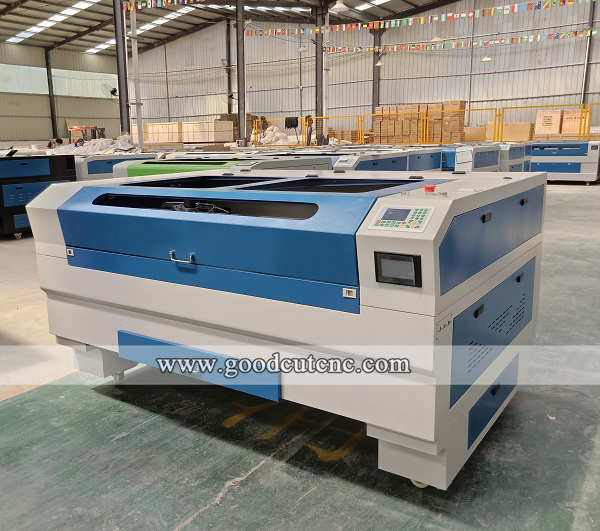

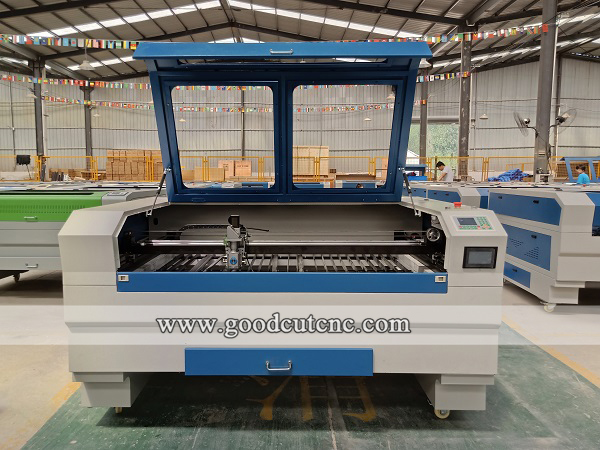

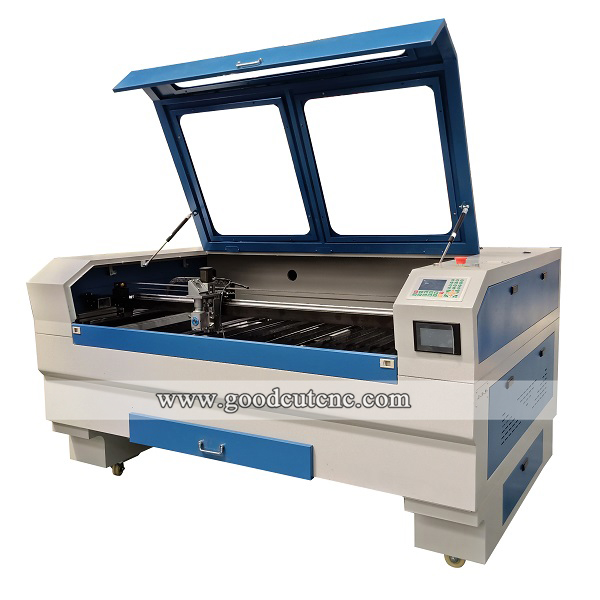

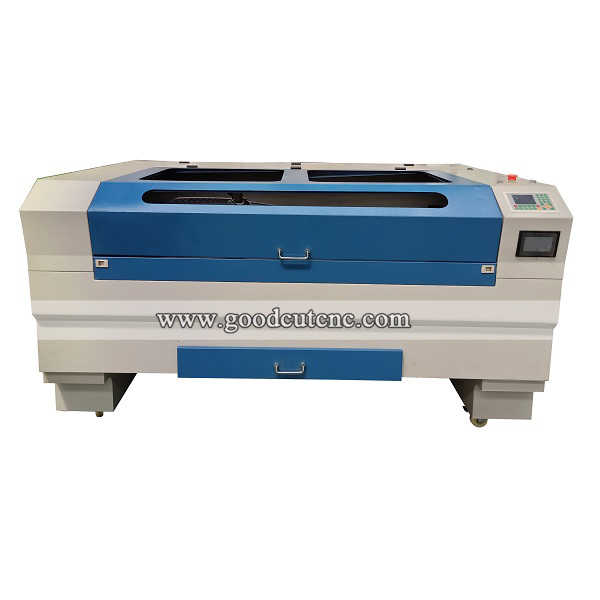

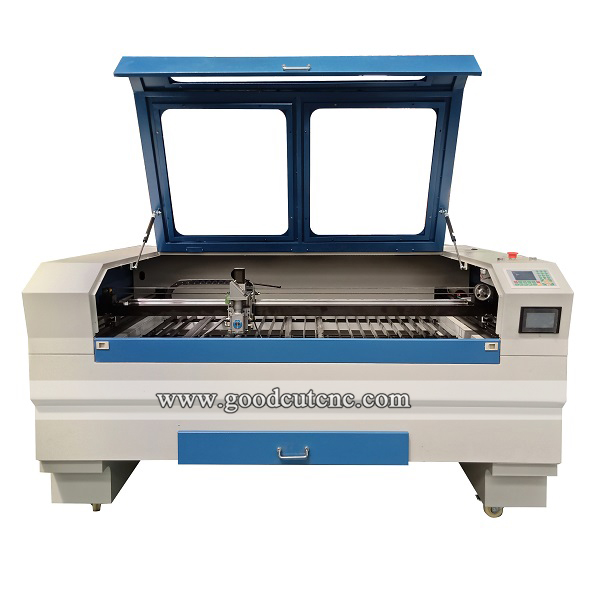

GC1390L CO2 Laser Metal Nonmetal Cutting Machine

1, Mixed-cut: metal steel such as stainless steel, carbon steel, and nonmetal such as acrylic, wood, etc.
2, High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission, improve the response speed and cutting precision, extend service life.
3, Good stability: optimized the nc system control, it can meet the precision parts processing, stable dynamic performance, also can work for long hours.
4, The cutting section with good quality: mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point locaation unchanged, which insures smooth cutting section without processing again. It can adopt to flat or curved surface sheet cutting.
5, Adopt sealed co2 laser tube, main consumable items are electric energy, water cooling, auxiliary gas and laser light.
6, Simple structure, easy operation, stable laser device and low maintenance cost.

Model	GC1390
Laser medium	CO2
Working area	1300*900mm
Working table	Blade table
Laser power	130W/150W/260W
Power Supply	380v/ 220V/50Hz, 110V/60Hz
Min line width	≤0.15mm
Positon accuracy	0.01mm
Repetition accuracy	0.02mm
Cutting speed	150 mm/s
Guide rail	Hiwin from Taiwan
Transmission method	TBI Ball screw from Taiwan
Drive system	Stepper motor and driving system
Cooling system	Water-cooling
Control system	Ruida
Control software	Coreldraw, Photoshop, AutoCAD, Tajima
Graphic format support	PLT, DXF, BMP, JPG ,AI ,ect

Parameter of CO2 Laser Metal Nonmetal Cutting Machine GC1390 :

Main configurations:

#Working size 2500*1300mm

#YONGLI 260W laser tube

#RD control system,USB offline

#Live focus system

#Taiwan PMI guide rail

#Blade table

#Taiwan TBI ball screw transmission

#USA lens and mirrors

#Heavy duty body

#Water protection switch

#Industrial wather chiller CW3000

#Yaskawa servo motors and drivers

Thicken machine frame

Adopt Thicken machine bed, heavy loading,

Not easy to get distort

Adopt Advanced Germany Mix Cutting Technology
It supports both Metal and Non-Metal Cutting, can cut stainless steel, carbon steel, mild steel, also can cut acrylic, wood, MDF engraving and cutting.

Thicken Strip Working Table Specially Used for Cutting

Meets the need of diversified laser procession
Heavy Loading
Suitable for cutting heavy and hard products

High precision linear guide rail

Dust-proof and auto lubricate with lower noise volume
High accuracy and long life span

Optional Configuration:
Taiwan Imported Ball Screw Transmission Rod
Adopt 50mm diameter ball screw rod
Japan Imported Yawasaka Servo Motor
Extreme Precise Positioning

Water Cooler

Model: CW3000/CW5000/CW5200

Original: China
Installation requirements:
Install in strict accordance with CW-3000 water tank schematic.

Plug in the signal line and fail to install as required.
Use pure water, change water better every 10-15 days.
Environment: temperature 2-40 degrees, humidity 10-60%

RECI laser tube W6 model:

Auto-focus Laser Cutting Head

When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically. Realize the accuracy of cutting effect.

Pre-view and pre-run function
Simulate the laser cutting path
Pre-run the cutting path in advance
Ensure finding the accurate cutting position

Unique Mirrors and Lens Cooling Technology

All mirrors and lens is cooled by water
Takes the mirror heat during working
USA "II-IV" Brand Imported Mirrors & Lens
Equipped with luxury consumables
Imported reflect mirror and focus lens,
Makes high efficiency and steady.

Control Panel

Model: 708C2
Original: China
Input format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.

Standard Parts

Moterized up/down worktable + Auto-Focus device + Red Light pointer
1× CW-3000/5000/5200 Water Chiller/Water Pump
1× Honeycomb table/Blade Table
1× Air compressor + 1×Exhaust blower + 1×Smoke pipe.
1× USB cable (Connecting pc and machine)
1× CD (Including PHCAD operating software, user-friendly instruction manual, guiding videos.)
1× Power cable
1× Tool box
