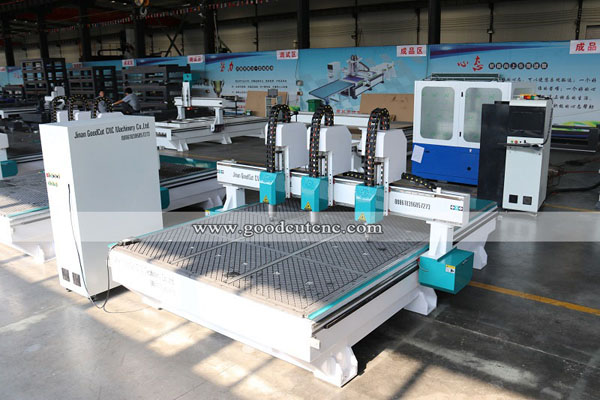

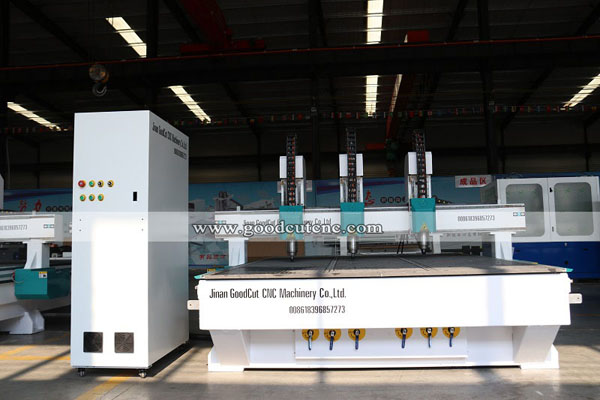

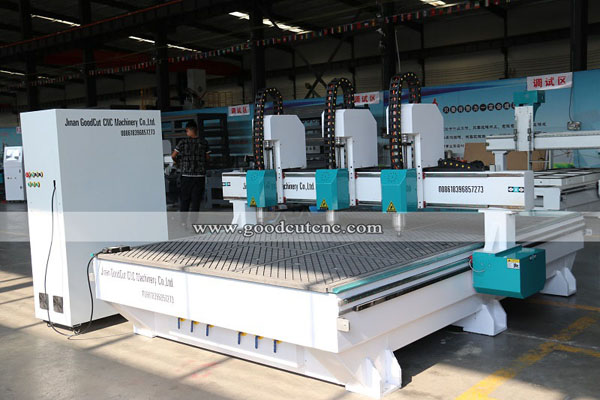

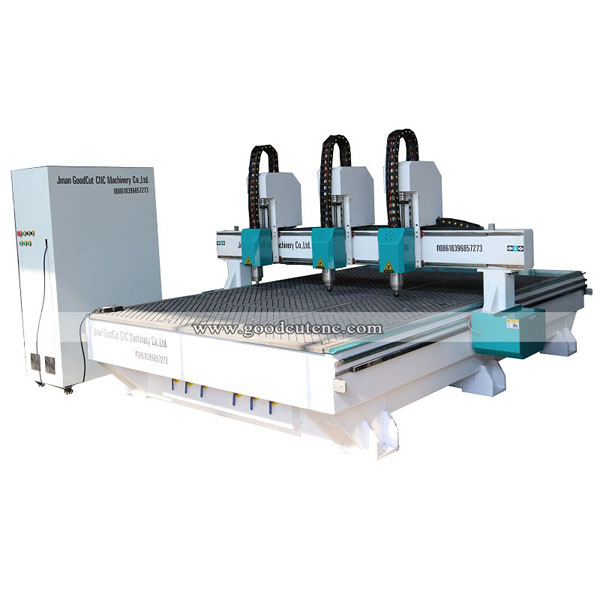

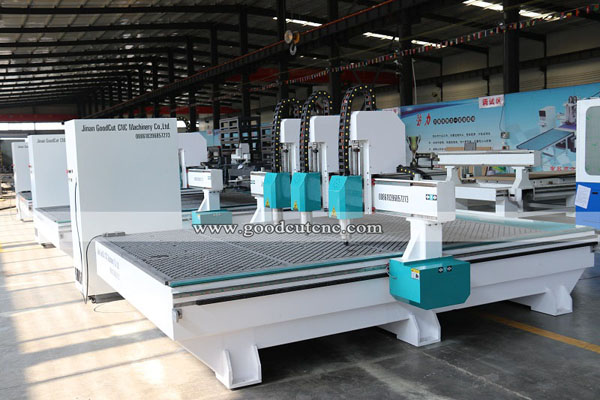

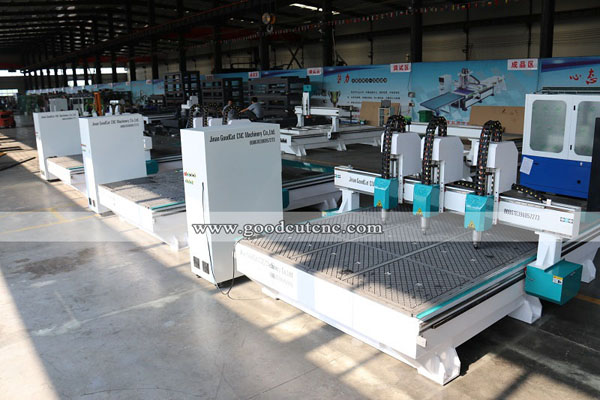

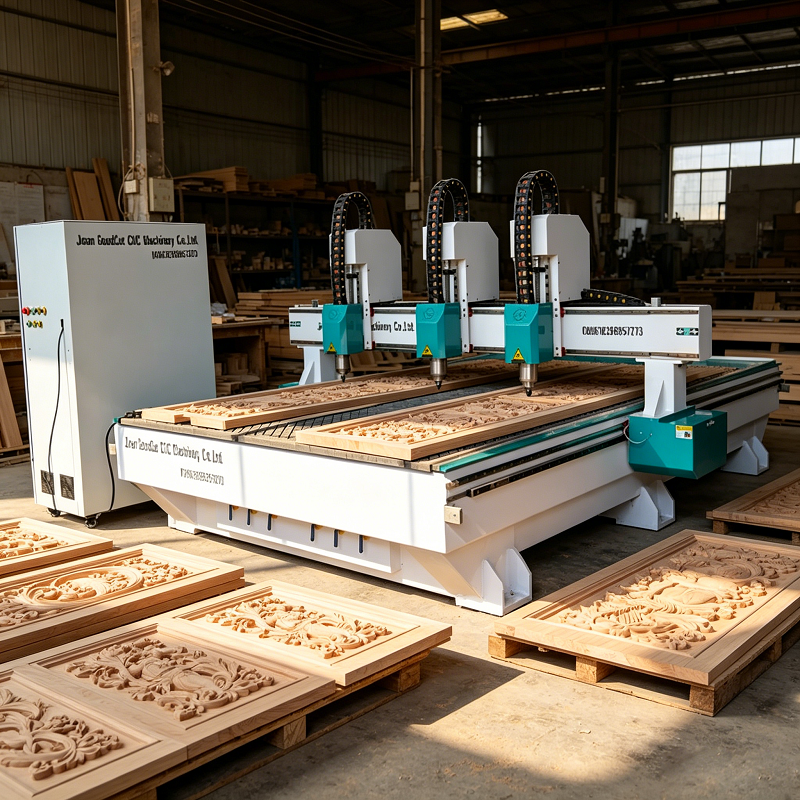

Independent Multi Heads CNC Router GC2130-H3
1. Top Brand Square Linear Rail, high accuracy, heavy burthen.
2. High accuracy Rack Rail travel method with high speed.
3. Lathe bed adopts strong welded steel tube to avoid distortion.
4. Advanced international technology vacuum with double cavity.
5. Y axis adopts double motors to keep stable moving.
6. Intelligent protecting working fable.
7. Humanization design of lathe bed vacuum and easy to work.
8. Two, three or four spindles change automatically with higher performance
|X,Y,Z Working Area||2100*3000*200mm|
|X,Y,Z Traveling Positioning Accuracy||±0.05mm|
|X,Y,Z Repositioning Accuracy||±0.05mm|
|Table Surface||T-slot Aluminum +PVC|
|Frame||By welded steel|
|X, Y Structure||Transmission by gear and rack|
|Z Structure||HIWIN Rail Linear Guide and TBI Ball Screw|
|Max. Power Consumption||(Without Spindle) 3Kw|
|Max. Rapid Travel Rate||60000mm/min|
|Max. Working Speed||25000mm/min|
|Spindle Power||2.2kw/ 3.2kw/ 4.5kw/ 5.5kw/6kw water/air cooling spindle *3|
|Drive Motors||Leadshine stepper motor and driver|
|Working Voltage||AC220/380V, 50/60Hz|
|Command Language||G Code|
|Operating System||Nc studio / Mach3 /DSP A11 Software|
|Flash Memory||128M(U Disk)|
|Software Compatibility||Type3/Ucancame V9 Software, (Option: Artcam Software)|
|Running Environment Temperature||0 - 45 Centigrade|
|Relative Humidity||30% - 75%|
1, Structure: Machine heavy duty frame . Rugged aluminum machine construction. The material is stress relieved and annealed without distortion, so the machine is always accurate.
2, Table: It adopts a vacuum table and T-slot design, dual-use: vacuum table can absorb large materials such as a wood board with large suction, which is very convenient; a T-shaped groove table can help fix small materials through the fixture.
3, Transmission: The three-axis adopts Taiwan imported large square guide rail; the X-axis and Y-axis adopt gear rack and pinion transmission, which has fast working speed, high efficiency, and low cost. Z-axis adopts Taiwan TBI ball screw, which has high precision and long service life.
4, Spindle: With 4.5 KW water cooled spindle *3pc, each spindle motor must pass the polishing process to improve the spindle concentricity and increase the service life of the motor.
5, Motor and driver: China's famous large Leadshine stepper motor and driver, high torque, low vibration, low heat, high reliability.
6, Control system: DSP control system with USB interface, handle operation, easy to operate.
7, Interver: China famous fulling interver. Guarantee the variety working speed and protect the spindle very well.
8, Compatible Softwares: open software ports, compatible with processing codes created by many CAD/CAM software including Type3/Artcam /Castmate/ Ucan to pave the way for designs.
Jinan GoodCut CNC Machinery Co.,Ltd.
GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.We can offer highest quality machine, and competitive price.
Jinan GoodCut CNC Machinery Co., Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;
2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.
1. English manual and video for machine using and maintaining, explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. Provide free technical training and factory field operation teaching to eliminate customer worries.
