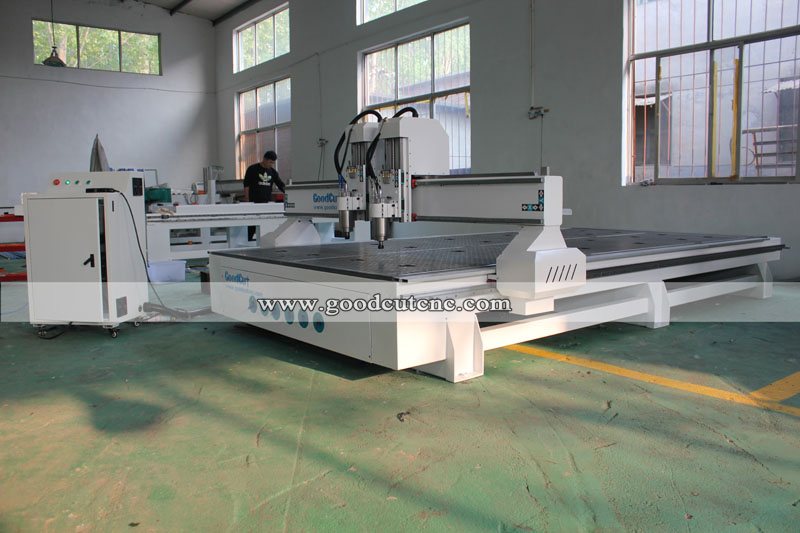

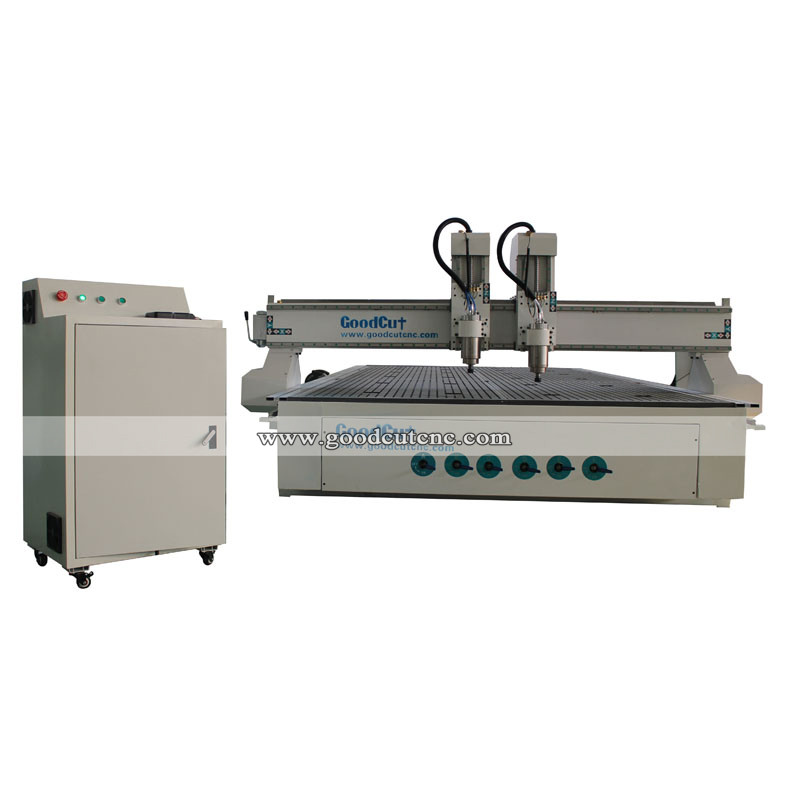

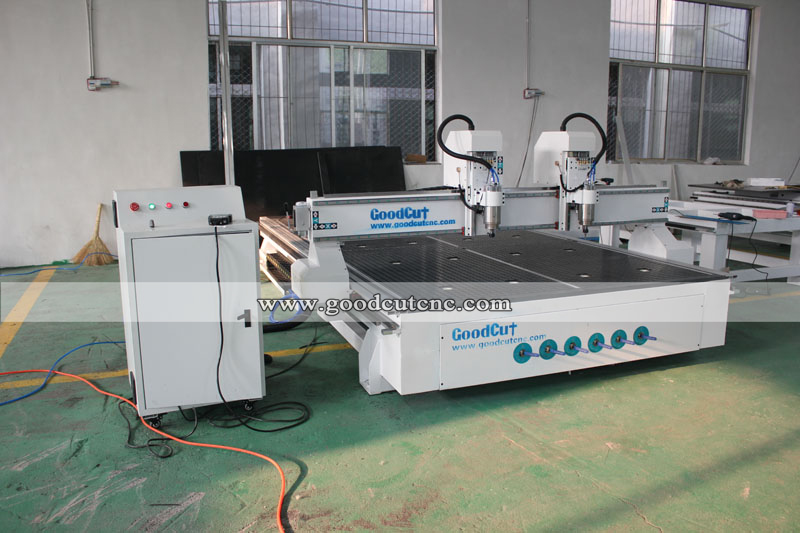

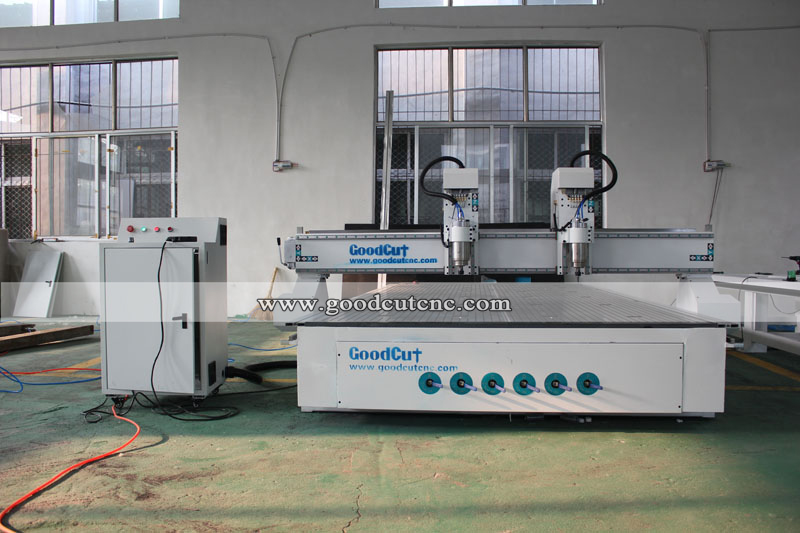

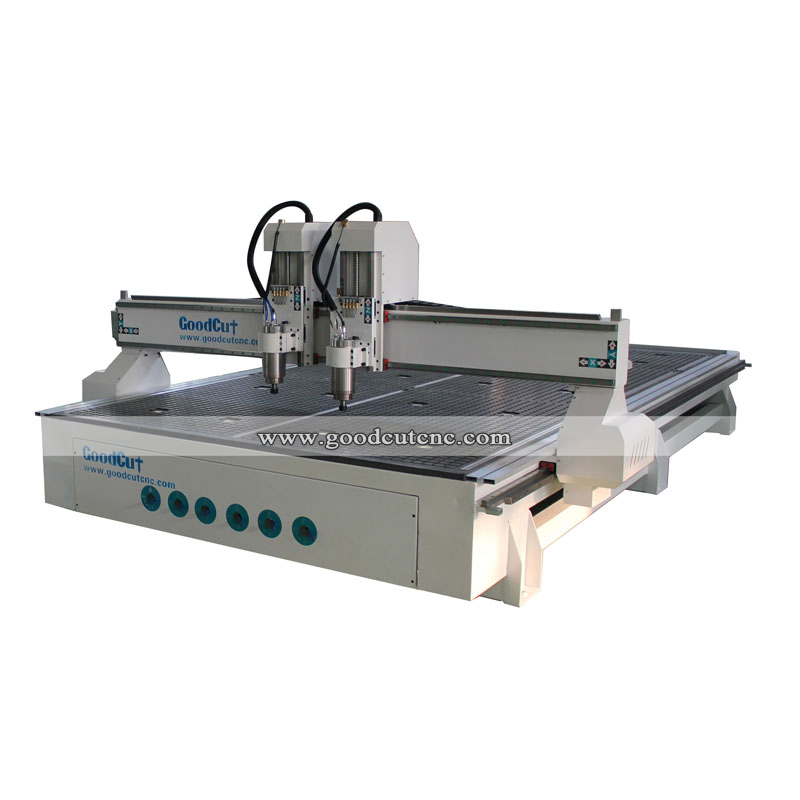

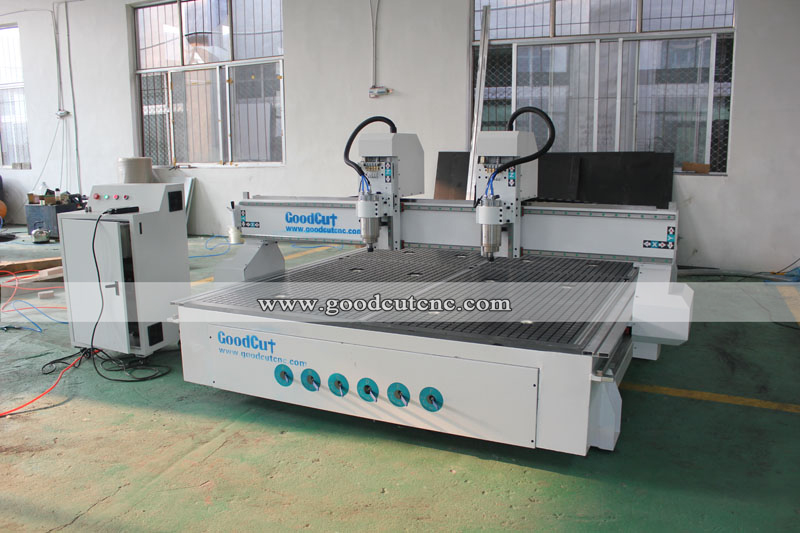

Jinan GoodCut Independent Multi Head CNC Router Machines with 2/3 Independent Heads for Woodworking

  • Multi independent spindle
  • Heavy duty frame
  • DSP controller
  • Vacuum Adsorption + T-slot
  • Product description: Independent multi spindles, 2/3/4 spindles for optional, to improve working efficiency. DSP controller, easy to operate. Heacy duty frame
  • INQUIRY   EMAIL

Jinan GoodCut Independent Multi Head CNC Router Machines with 2/3 Independent Heads for Woodworking


Specifications:

   ♥ 2000x3000mm working size, size is for optional

   ♥ DSP control system

   ♥ 2sets 3.2kw water cooling spndle with independent heads

   ♥ Vacuum absorbed table and pvc combined working table

   ♥ Big power stepper motor and drive

   ♥ Artcam software

   ♥ Taiwan high precision linear guide rail

   ♥ Double motors and drivers of Y axis ensure steady movement.

   ♥ Rack gear transmission ensures fast speed and high accuracy.

   ♥ Imported square rail ensures high accuracy and heavy workload.

   ♥ Intelligent protection of working table can avoid damage resulted from the wrong            operation.

   ♥ Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.


Model GC2030-3
Application Wood engrave
Max Working Size 2000*3000mm
Max. Rapid Travel Rate 33000mm/min
Max. Working Speed 25000mm/min
Table Surface Vacuum Worktable
Transmission Protect System T-slot Aero-Aluminum profiles+Black PVC
Control System NC Studio 5.560 English Vision
Spindle Type Water cooled type
Spindle Power 5.5kw inside sealing waterproof spindle for stone work
Max. Rapid Travel Rate 33000mm/min
Max. Working Speed 25000mm/min
Spindle Speed 0-2400rpm
Linear Guide-way Original Taiwan HIWIN 25mm sliders
Transmission Mode XY Rack Gear Z Ball Screw
Transducer Leadtry
Operating System DSP System
Computer Interface USB
X,Y Resolution <>
Electricity 3P 380V/50HZ
Drive Motors Stepper System
Speed of Spindle 0-24000rpm
Total Power 15kw




Main Feature:


1. Hi-Tech spindle.Water cooled heavy-duty electro-spindle with dramatically reduced maintenance.
2. The worktable is made of rectified monolithic welded steel frame with humanized design.
3. Water-proof and dust-proof on three axis, protect the whole transmission system.
4. Double motors drive Y axis, making the machine move more steadily.
5. Adopting imported square guide way, making the machine move steadily and have longer lifetime.
6. Water cooling spindle with the imported bearing, high power and low noise.
7. Well compatibility: compatible with Type3, Artcam, Castmate, Wentai and other softwares that can generate files of G-code, u00, mmg, plt, etc.
8. Adopting full shielded, high flex and uneasy distorted cable.
9. Double-nut automatic disappear gap ball-screw.
10. Break point and break knife continue engraving function, can engrave at any place as you need.
11. With imported rack and gear transport system, largely improve the speed of the machine.

12. Imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.



Application:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
