  • GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin
  • GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin
  • GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin
  • GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin
  • GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin
GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making CoffinGC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making CoffinGC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making CoffinGC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making CoffinGC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin

GC2025-2H Independent Double Heads CNC Wood Carving Router Machine for Making Coffin

  • Independent double heads
  • High Z axis
  • For making coffin
  • Woodworking
  • Product description: Independent double heads for making same workpieces. High Z axis for making coffin. 2000*2500mm working size, for optional
  • INQUIRY   EMAIL

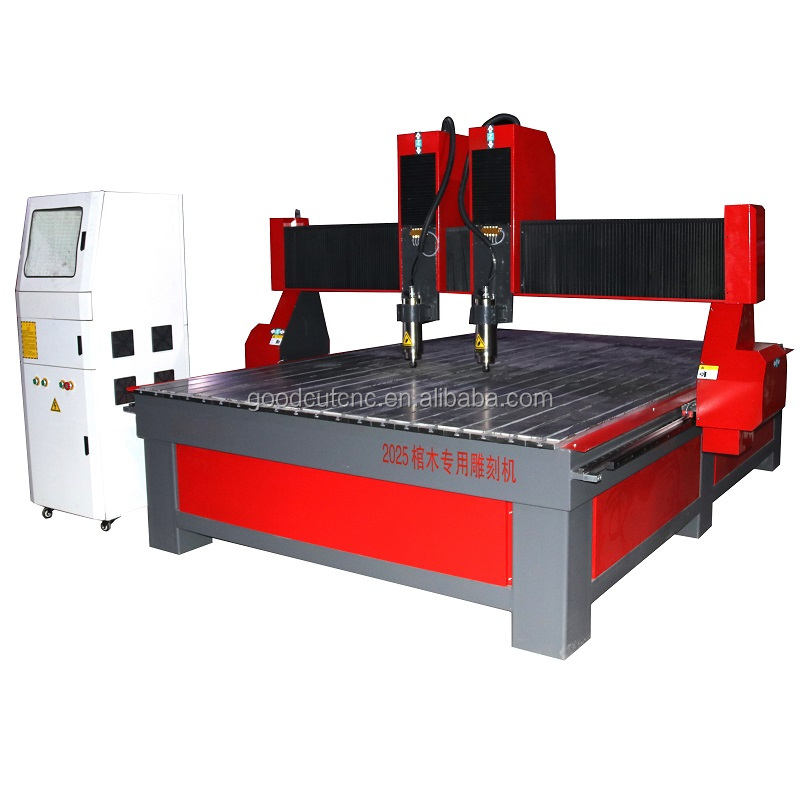

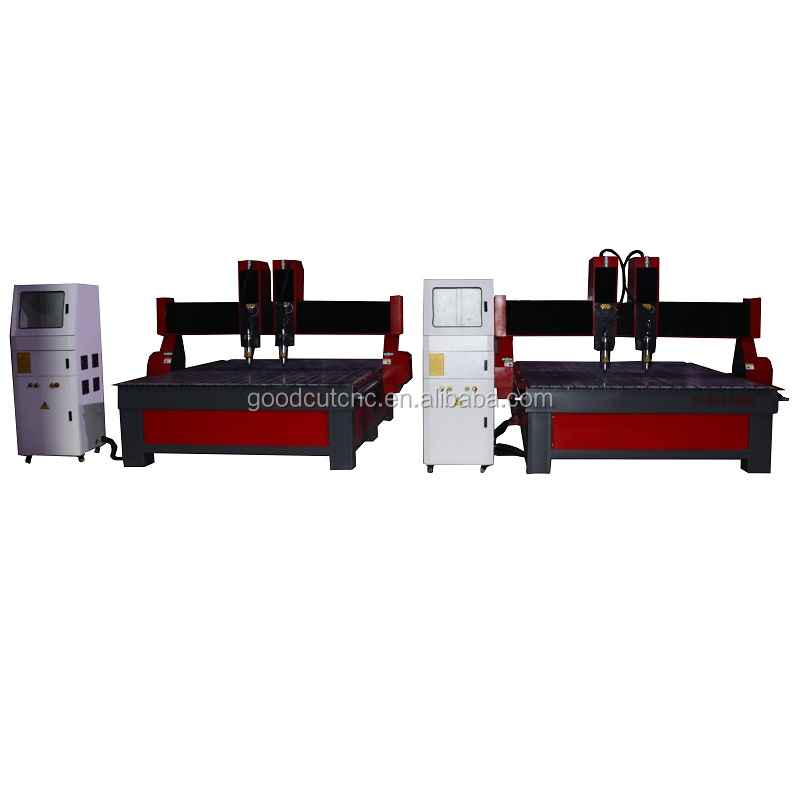

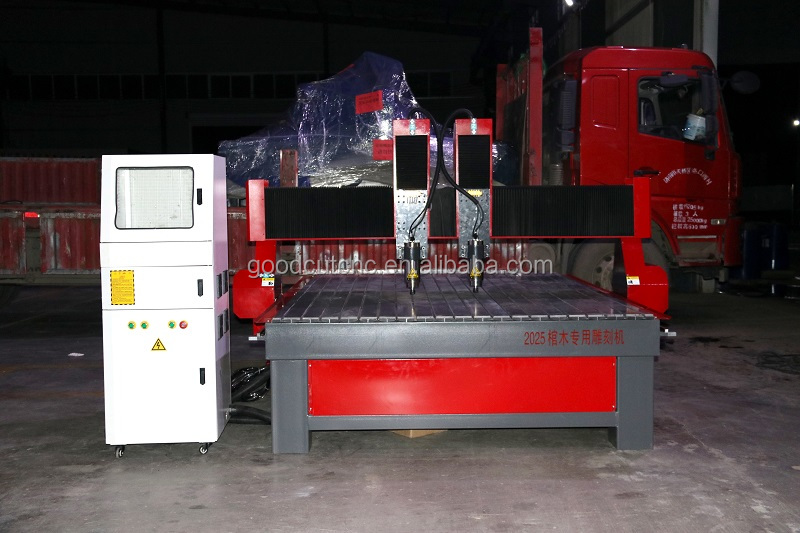

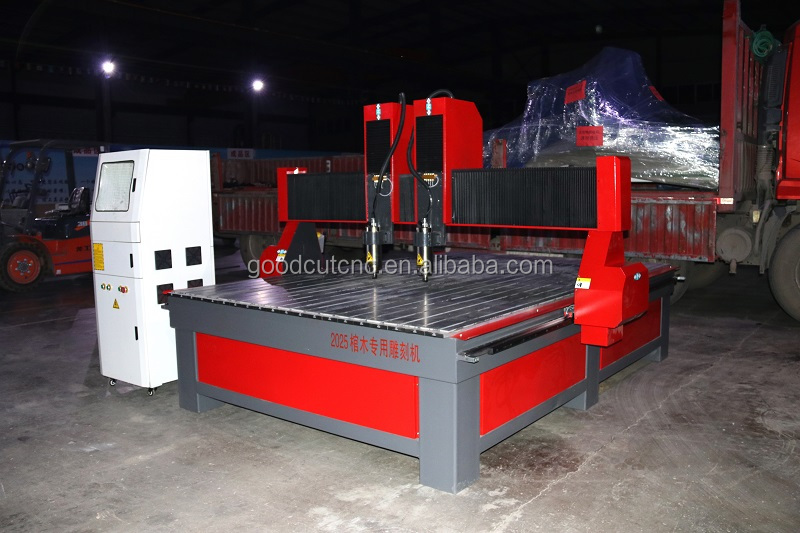

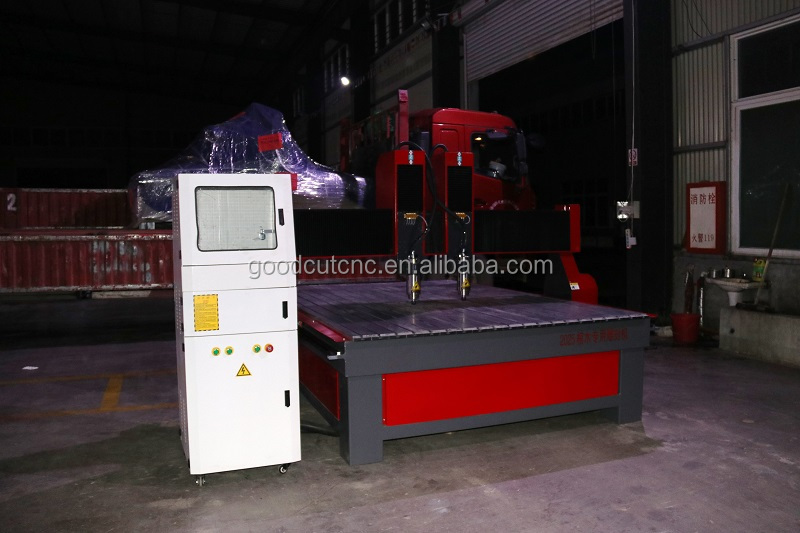

2025 Independent Double Heads CNC Wood Carving Router Machine for Making Coffin


Parameter:

Description

Parameter

Models

GC2025-2H

Working Area (X*Y*Z)

2000*2500*300mm

Max Moving Speed

25m/min

Max Engraving Speed

20m/min

Positioning Accuracy

0.05mm

Hold mode

T-SLOT & Clamp table

Spindle Speed

0-24000rpm/min

Spindle Power

 4.5kw / 5.5kw air cooling spindle

Tool Diameter

2--12.7

Transmission

X,Y Axis High Precision Rack Gears, Z Axis Ball Screw

X,Y,Z Guide rail

Linear Square Rail from Taiwan

Control System

DSP controller

Driving

Stepper motor

Software

Ucancam / ArtCam/TYPE3/ powermill

Command

G Code (plt, mmg, uoo, bmp)

Voltage

AC380V/50-60Hz

Gross Weight

2000KG

Net Weight

1800KG

Certificate

CE , CE test report

Feature:


1. Whole machine is welded with seamless steel structure, with aging treatment.

2. Adopt Taiwan HIWIN high precision linear orbit.

X and Y axes adopt rack and pinion transmission, fast working, high efficiency .

Z axis adopts Germany and Taiwan ball screw,with high precision and long life time.

3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

4. With the function of re-carving after break point and power failure. Has the function of forecasting process time.

5. DSP or Original Nc Studio computer control system.

6. Perfect oil-inject system makes maintenance much easier.

7. Good duct-collect function and Considerate Oil plate to keep the table always clean.

8. We provide the DSP operating instruction in English.



Application:


* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

wood coffin, aluminum EPS carving and cutting, door cabinet making, Cylindrical engraving.
