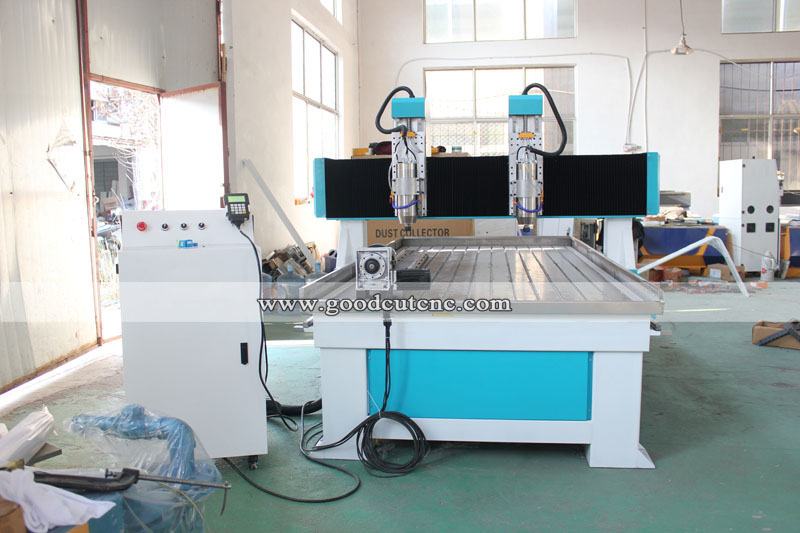

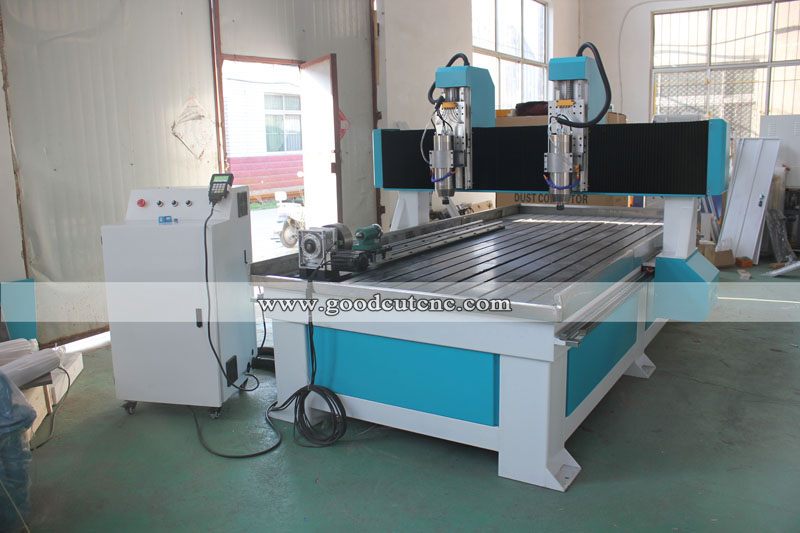

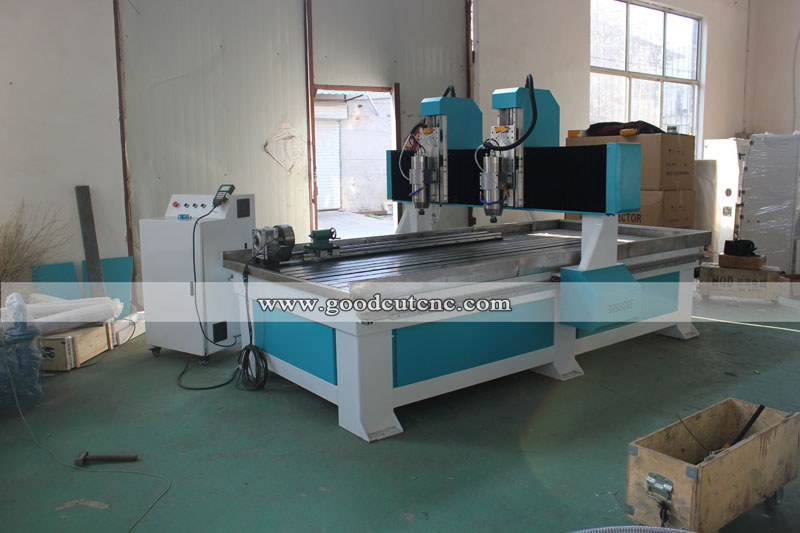

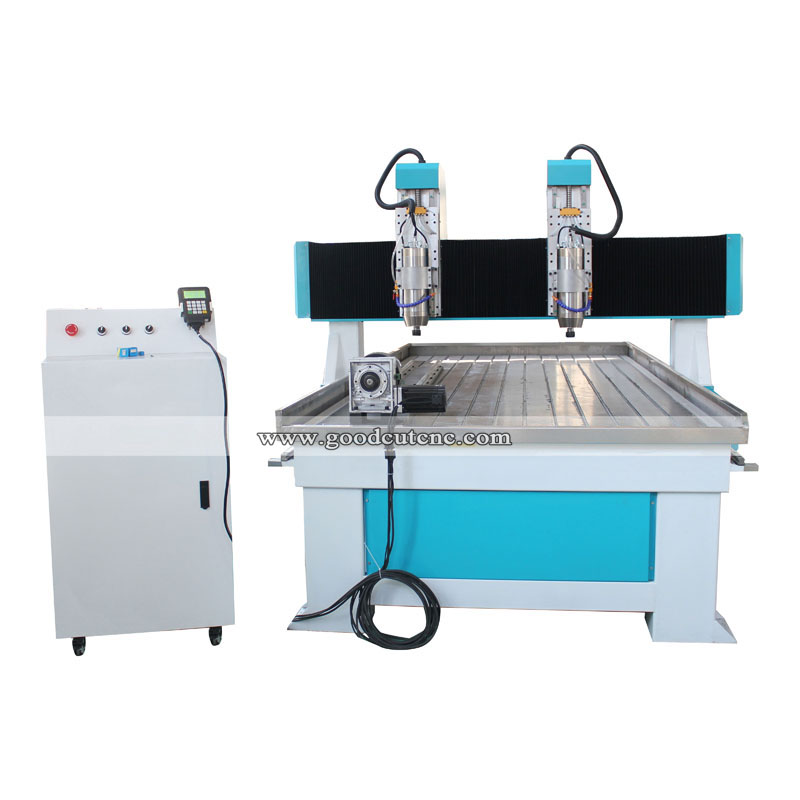

GC1325-H2 Independent Double Spindles 1325 Wood CNC Router with 4 Axis Rotary Device

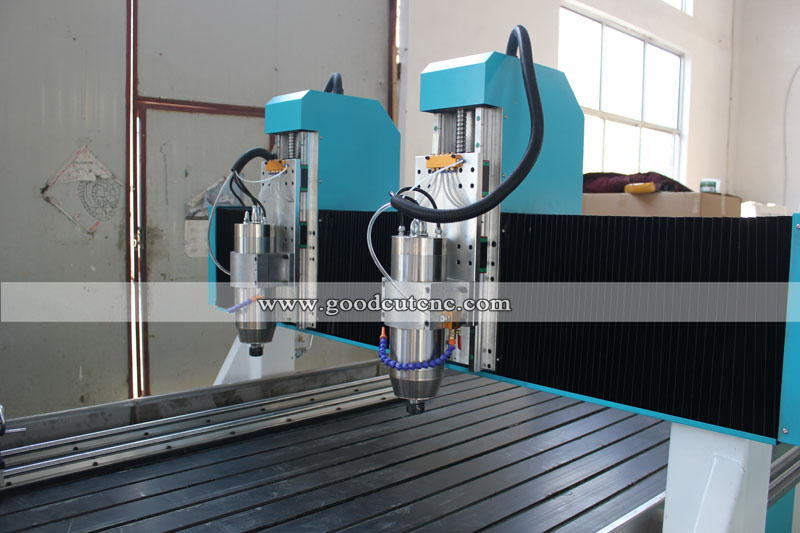

  • Independent double spindles
  • T solt table
  • 4 axis rotary
  • Good price
  • Product description: Independent 2 spindles, multi spindle for optional. 4 axis rotary device for making cylinder materials Aluminum T solt table
  • INQUIRY   EMAIL

GC1325-H2 Independent Double Spindles 1325 Wood CNC Router with 4 Axis Rotary Device

Parameter:

Model
GC1325-H2
X, Y Working size
1300*2500mm
Z feed Height
200mm
Table Surface
T-slot (Option: Vacuum table)
X, Y Structure
Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Spindle Power
3.2 KW water cooling spindle *2
Spindle Speed
0-24000RPM
Drive Motors
Stepper motor and driver
Working Voltage:
AC220V/50/60Hz
Command Language
G code
Control System
Mach3 (option: DSP)
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Optional Parts
Air cooling spindle
Rotary system,
Vacuum table
Servo motors

Feature:


►The worktable is made of rectified monolithic welded steel framewith humanized design.

Water-proof and dust-proofprotect the whole transmission system.

Double motors drive Y axis, making the machine move more steadily.

Adopting imported Taiwan HIWIN square guide way, making the machine move steadily and have longer lifetime.

Water cooling and constant torque spindle with the imported bearing, high power and low noise.

►Well compatibility: compatible with Type3, Artcam, Castmate, Wentai and other softwares that can generate files of G-code, u00, mmg, plt, etc.

►Adopting full shielded, high flex and uneasy distorted cable.

Break point and break knife continue engraving function, can engrave at any place as you need.

With imported rack and gear transport system, largely improve the speed of the machine.

Imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.

4th axis rotary device for making cylinder materials, such as table legs.




Application:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving
