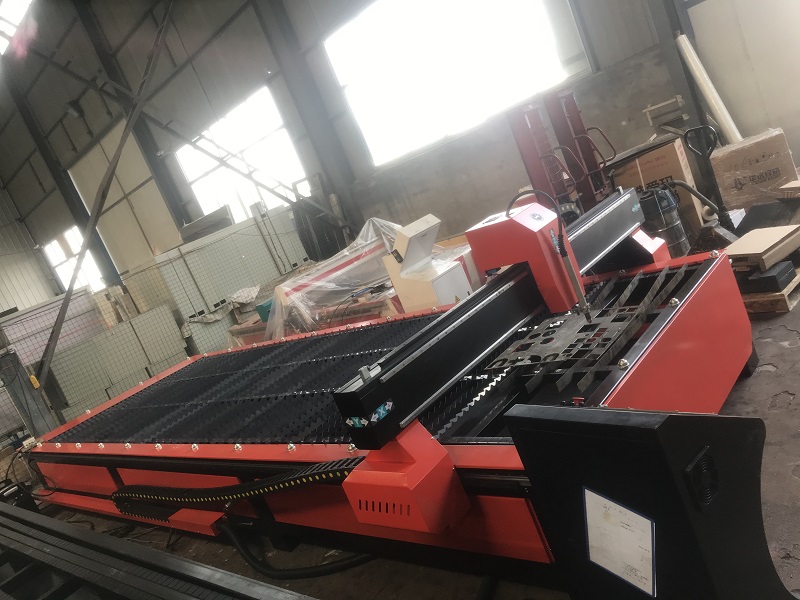

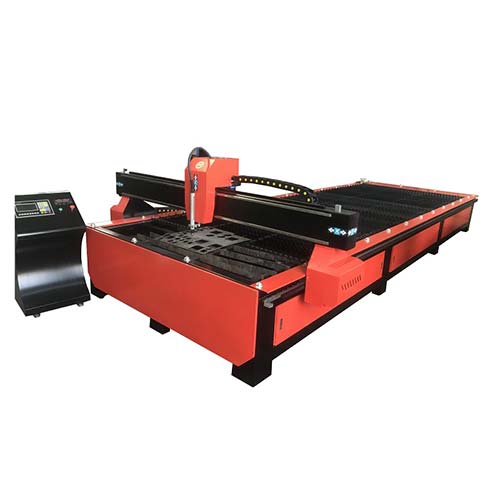

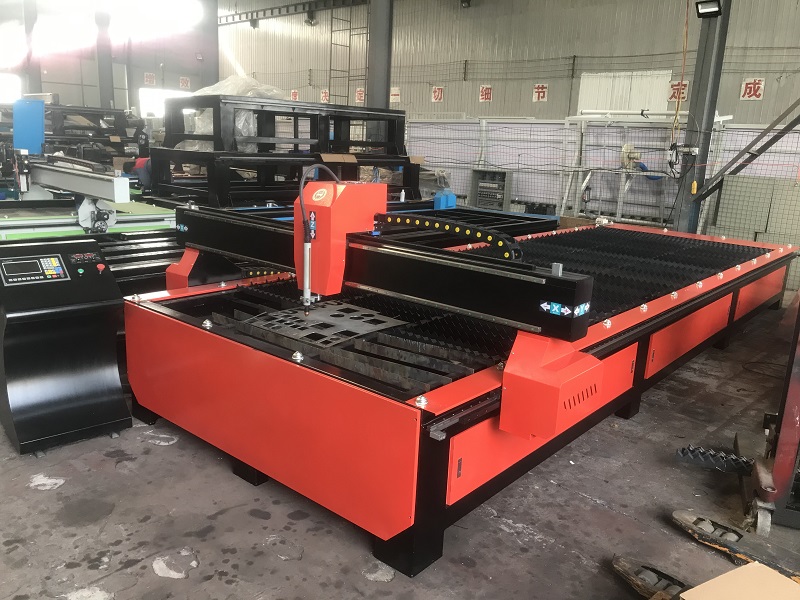

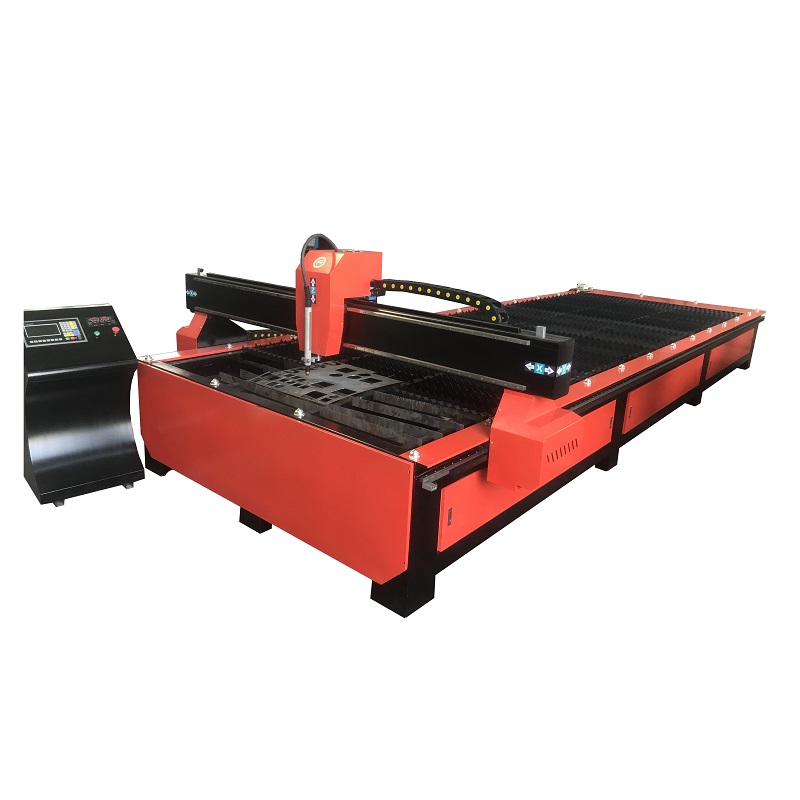

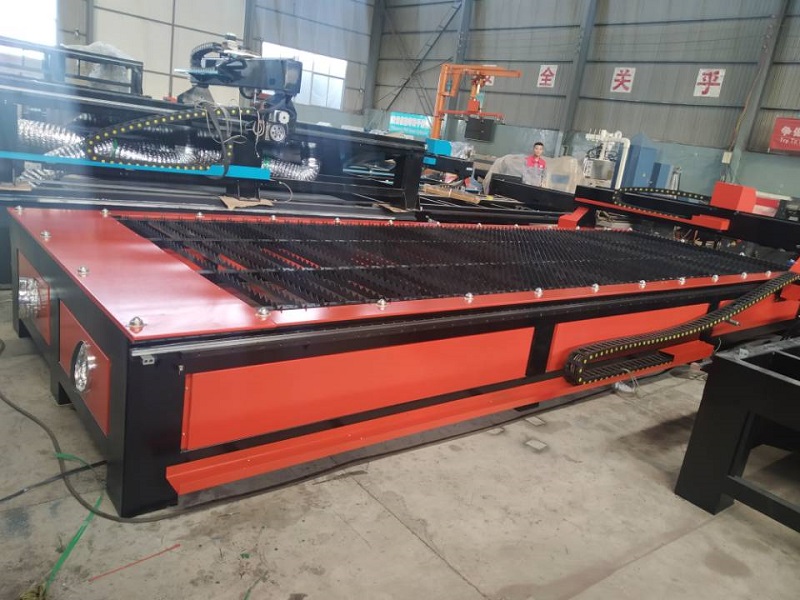

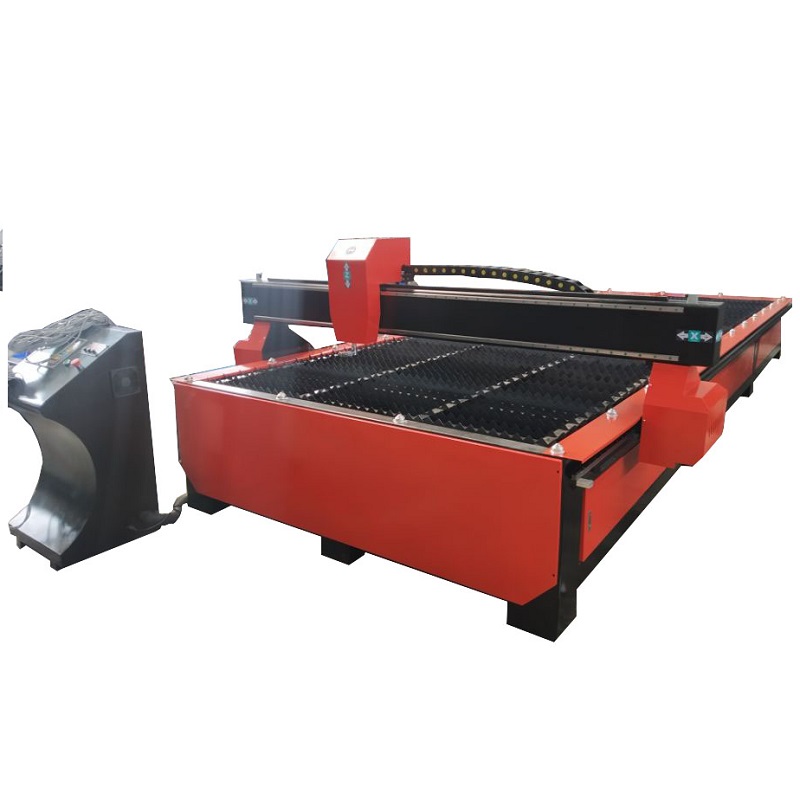

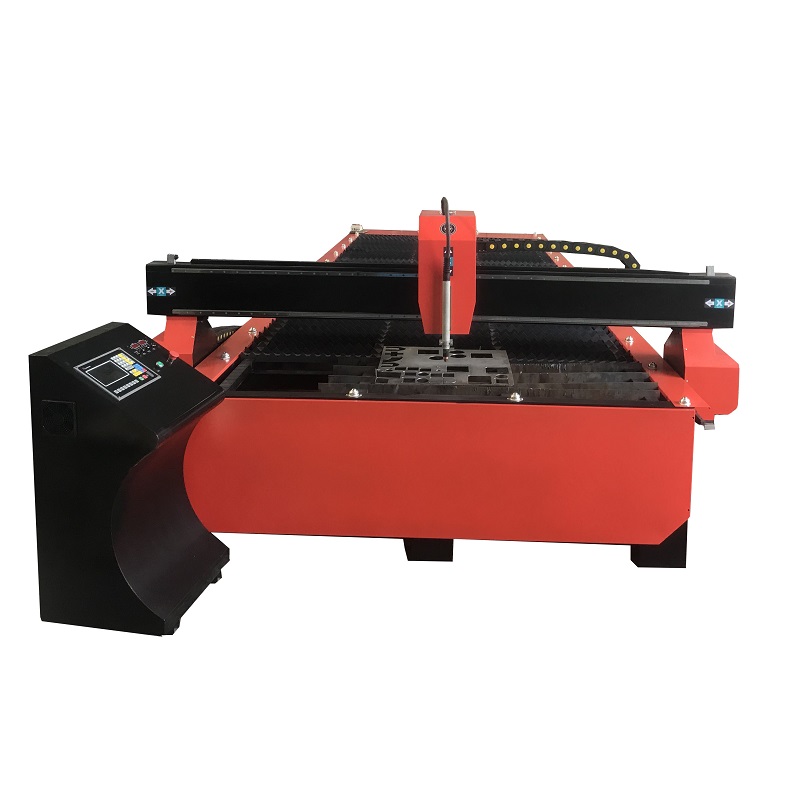

1500*6000mm 2000*6000mm Large Format CNC Plasma Cutting Machine

  • Power Supply: 63A 120A 160A 200A
  • Voltage: 380V 3 Phase 50/60HZ
  • Water Chiller Included
  • Air Compressor
  • Product description: GC2040P GC2060P Plasma CNC Sheet Metal Cutting Machine has a firm and reasonable structure, and it is easy to operate and use. The cutting incision is thin and tidily, and always no need the second pr
  • INQUIRY   EMAIL

Model Plasma cutting machine GC2040 GC2060
Working  area (X-Y) 2000mm*4000mm 2000*6000mm
Control system Starfire+THC
Working table Sawtooth table
Working  material Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates
Working  Thickness 0.3-50 mm
Cutting Speed 0-6000mm/min
Power

Huayuan power supply: 40A/63A/100A/160A/200A

Hypertherm power supply: 45A/65A/85A/105A/125A/200A/400A

Input Voltage 380V 50HZ
Connecting Way USB/PC
Working Mode Untouched arc striking
Cooling method With water pump and tank provide
circulating water cooling
Z axis travel 0-70mm
The automatic elastic raise 0-5mm
Rail Taiwan Hiwin rail
Command G code, *uoo, *mmg, *plt


1.Light crossbeam design, good rigidity, light weight and tiny moving inertia.

2.Y axis adopts double motors with double drivers. all axis adopt square rail,double four ball slider,

moving smoothly, with high accuracy.

3.excellent performance on cutting illuminated letters for advertising and channel letters on metal board

4.Working together with other advertising machines, such as CNC Router, improving working efficiency

5.small cutting gap, no residua

6.High cutting speed, high accuracy and low cost

7.Advanced CNC control system, Auto Arc, arcing success rate over 98%

8.Support G code files of ARTCAM, Type3 software.also support DXF files of Autocad by transfer software.

Control system supports U disk file transfer, easy operation

9.Adopt well know plasma power supply and cutting torch


Plasma Cutting Machine Application:


Advertising industry:

Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.



Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.
