Plasma Cutting Machine

  • GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine
  • GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine
  • GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine
  • GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine
  • GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine
  • GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine
GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting MachineGC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting MachineGC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting MachineGC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting MachineGC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting MachineGC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine

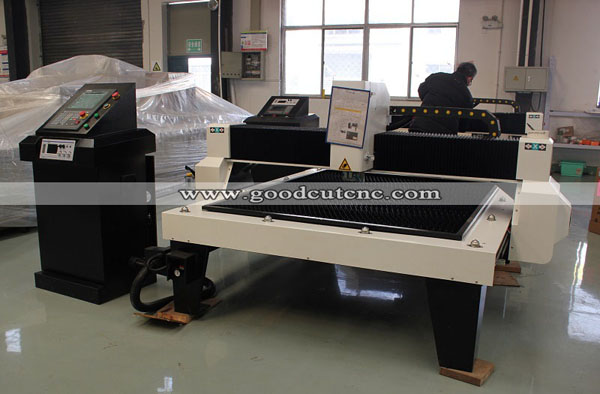

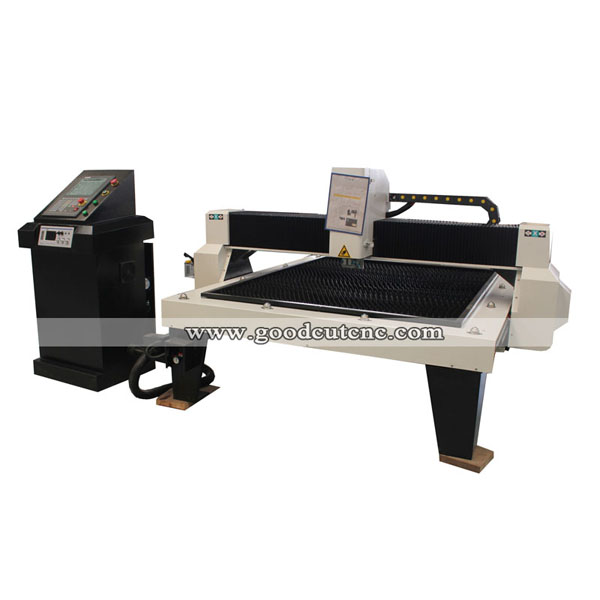

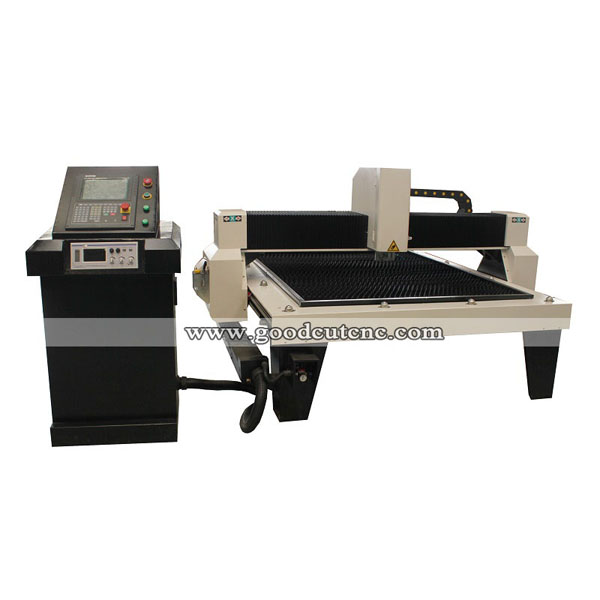

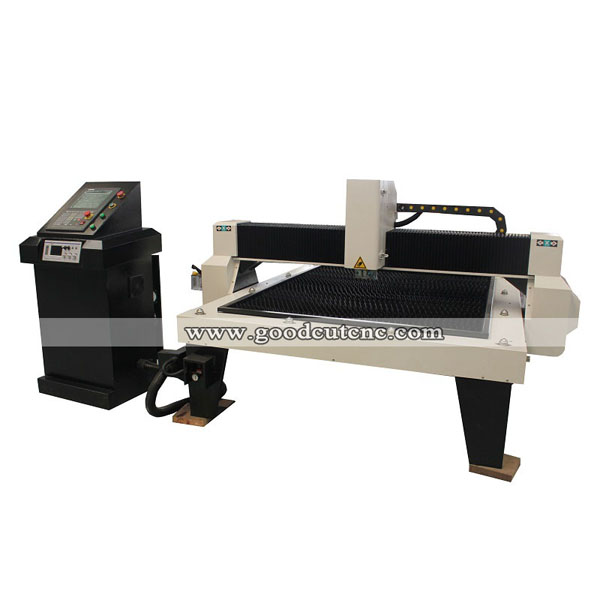

GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine

  • Huayuan LGK, US hypertherm generator

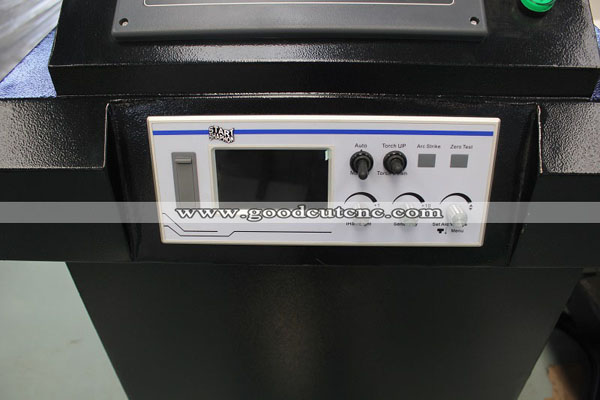

  • Start,Startfire controller with THC
  • High Speed Plasma Cutter
  • metal sheet cutting
  • Product description: High speed plasma cutting machine, adopt Huayuan LGK 60A 120A 160A 200A power supply, or US Hypertherm generator, to cut stainless steel, carbon steel etc metal sheet, small working size, working size
  • INQUIRY   EMAIL

GC1313P Hobby Small Size 1300*1300mm 60A 100A 160A Cutter CNC Plasma Cutting Machine


No.
Description
GC1313P other size can be customized
1
Working Size
1300*1300MM
2
Z Axis Clearance
150mm
(200 And Higher Is Optional)
3
Table Type
Knife table (Teeth table And Water table can be optional)
4
Transmission System
Rack Pinion And Hiwin Linear Rails For X/Y
5
Driving System
Stepper Motor And Drivers(Servp motor is optional)
6
Max. Cutting Speed
12000mm/Min(different configuration and different material and thickness speed is different)
7
Max. Travelling Speed
30000mm/Min(different configuration speed is different)
8
Working Voltage
380V/3ph(220V/3ph is optional)
9
Plasma Generator
Huayuan China and USA power as your requirements
10
Arc Mode
Non-Contact Arc, Arc Pressure Adjuster
11
Output Current
63/100/120A/160A/200A
12
Max. Cutting Thickness
6/15/18/20/30mm
13

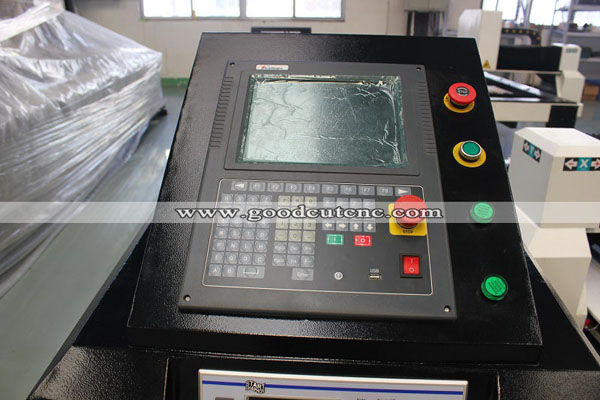

Operating System
Starfire Controller/Start Controller/JiaoDa fangling controller
14
Working Material
Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate
and almost all of the metal



1. 1300*1300mm, 1500*3000mm, 1500*4000mm, 2000*4000mm working area

2. START control system

3. USA Hypertherm plasma generator, or China Huayuan LGK generator

4. Cutting Material Collection Box with wheels,for easy take out products

5. High Quality cut performance,Fast cutting speed,high precision and low cost.

6. With firm and reasonable structure,the machine is easy to operate and durable for use.

7. The cutting incision is thin and tidily and can avoid the second processing.

8. High configurated CNC system,auto arc-striking and stable performance.

9. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)

10. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)
