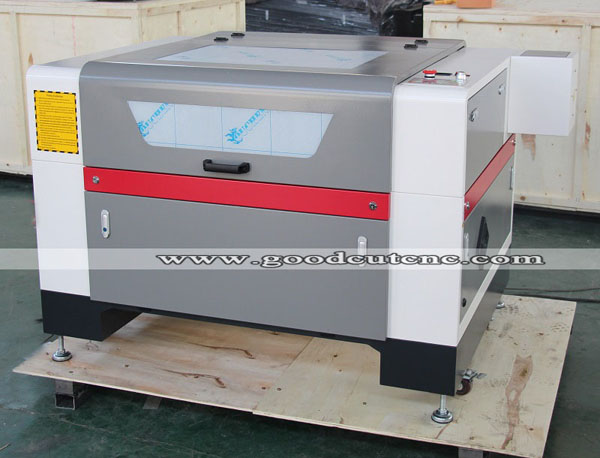

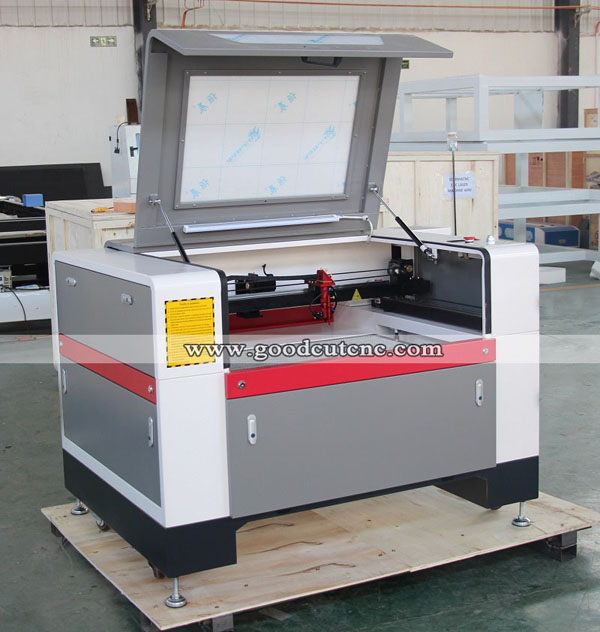

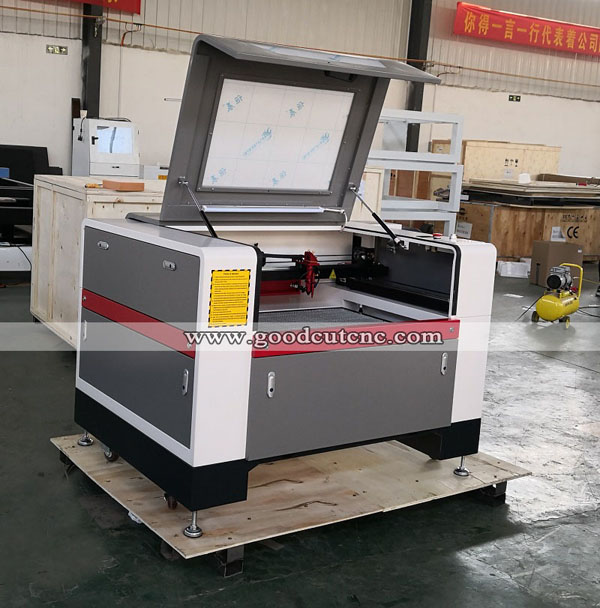

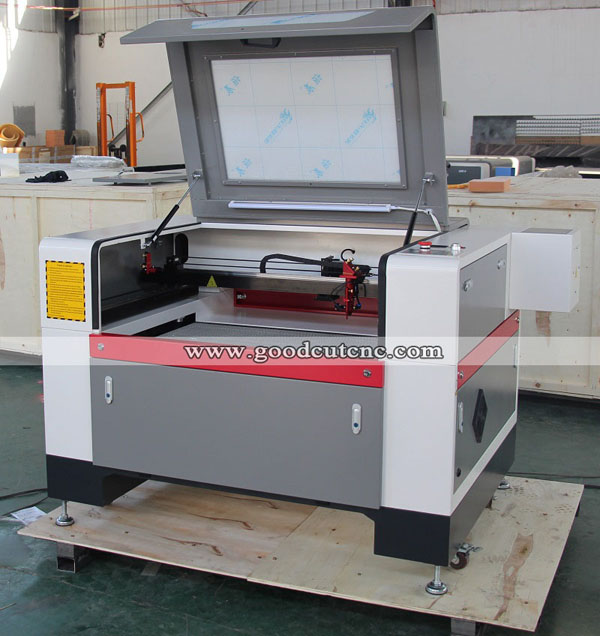

GC6090L CO2 Laser Machine for Cutting and Engraving Acrylic MDF Plastic Fabric Wood

  • 60w 80w 100w 130w 150w 180w 280w laser tube
  • RECI/EFR laser tube
  • 600*900mm working size
  • Ruida Control System
  • Product description: Cutting Engraving Non-metal Materials Leadshine stepper motor,Yako drive Belt/rack and pinion, PMI guide rails Different power can cut different thickness material.
  • INQUIRY   EMAIL

GC6090L CO2 Laser Machine for Cutting and Engraving Acrylic MDF Plastic Fabric Wood




Main Feature:


1. Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, Software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (80 Watts), Machine operation Manual, USB Communication cable.


2. Easy to Use LCD Control Panel


User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.


3. Dedicated Micro Processor Controller for great performance

The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.

4. Transmission system


The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed.


5. Laser Head


GoodCut supply short and long laser head for your choice. short laser head usually for cutting, long laser head usually for engraving.



6. Table

GoodCut supplies blade and honeycomb table for your choice, you can choose according to your requirement.




Parameter:


Product
GC6090L Laser Engraving Cutting Machine
Laser Type
Sealed-off CO2 Laser Tube
Laser Power
60W 80W 100W 130W 150W
Engraving Area (L*W)
600*900mm
Engraving Speed
0-75000mm/min
Engraving Thickness
0-20mm
Cutting Area
600*900mm
Cutting Speed
0-60000mm/min
Cutting Thickness
0-30mm
Repeated Positioning Accuracy
±0.01mm
Working Voltage
AC 110-220V ± 10%, 50-60HZ
Working Temperature
0-45°C
Working Humidity
5-95%
Minimum Character
1mm
Lifting Working Table Type
Standard: blade
Optional: honeycomb
Lifting Range
0-300mm
Guideway
Linear Guideway
Motor
57 Stepper Motor
Drive Mode
Digital Subdivision Stepper Drive
Positioning Mode
Red Light
Compatible Software
CorelDraw, AutoCAD, Photoshop, Laser CAD, etc
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglas, Plywood, Rubber, Wood, etc
Cooling Mode
Water Cooling
Auxiliary Device
Exhaust Fan and Exhaust Pipe
Control Software
DSP
CNC Yes or Not
Yes
Interface
USB 2.0
Size (L*W*H)
1820*1310*1100mm
Weight
240KG
Optional Device
Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine


Advantage:

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2.USB Interface, U-Flash Disk Supported, Can work without a PC

3. Air Assist, Remove heat and combustible gases from the cutting surface

4. External high-power exhaust fan, simple installation and convenient transportation

5. Rotary Axis, Engrave any cylindrical object

6. Aluminum alloy knife platform and honeycomb platform are optional

7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser

8. Water Cooling and Protection System

9. Lengthened laser head, adjustable position

10.Emergency Stop Button

11. Larger Size,1300*900 mm working area

12. Design of Large Storage Box

13. Drag - and - chain transmission line

14. Laser focal length: 5CM


Applicable Industries:

Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.

Cutting and Engraving materials:

Bamboo, jade, marble, glass, crystal, plastic, garments, paper, leather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and other non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
