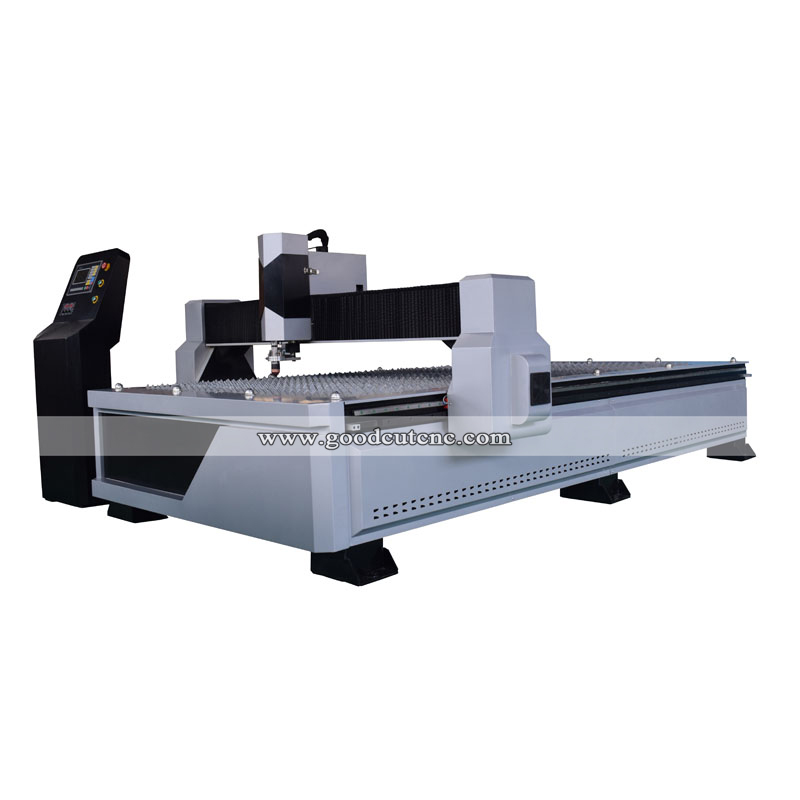

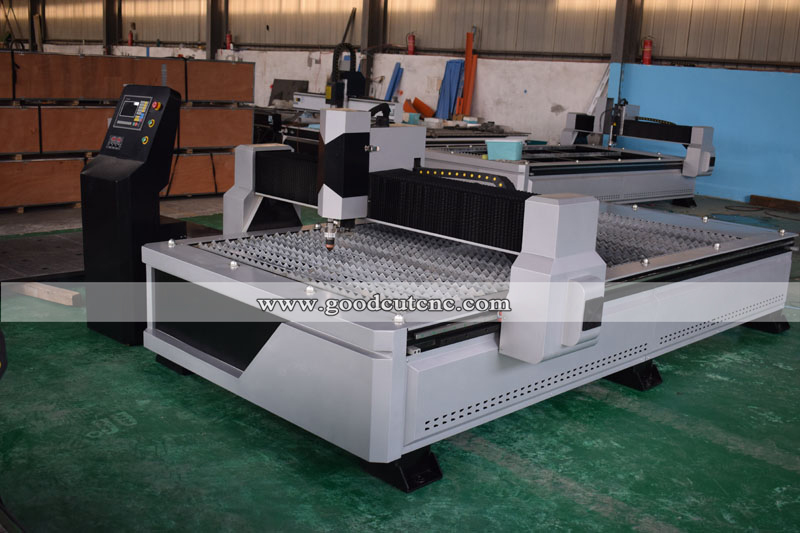

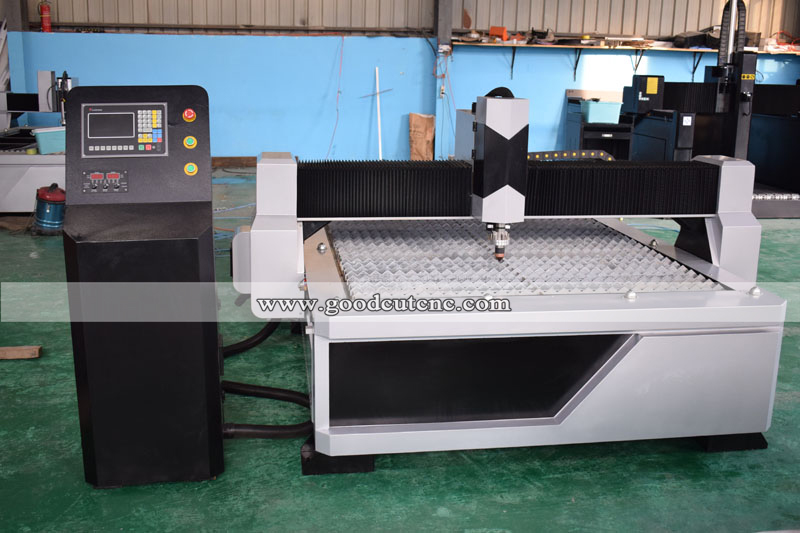

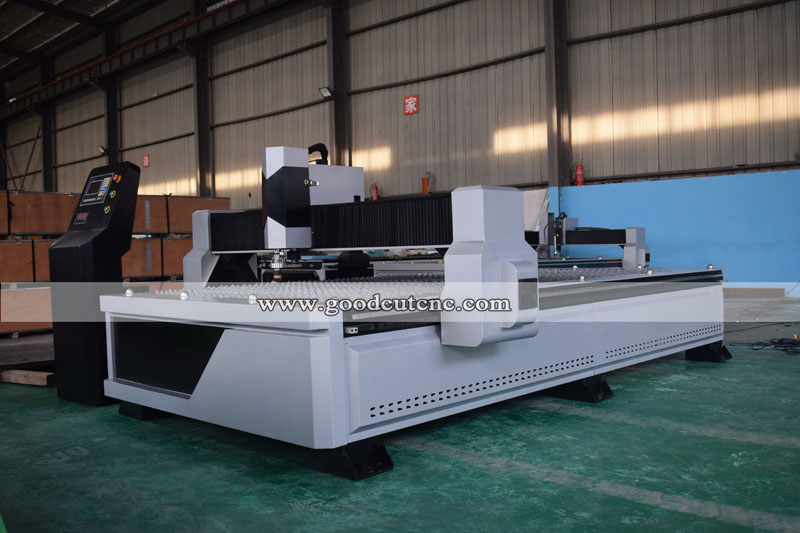

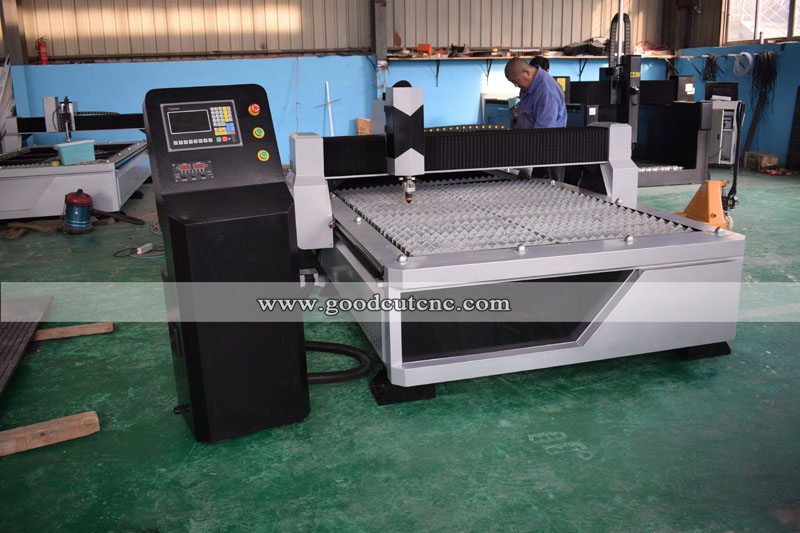

GC1530P New Design CNC Plasma Cutting Machine with Dust Cover for Cutting Metal Materials

  • New design plasma cutting machine
  • Gantry with dust cover
  • Huayuan power supply
  • Metal cutting
  • Product description: New desigh gantry with dust cover. 63A 100A 120A 160A 200A Huayuan Power supply For cutting metal materials
  • INQUIRY   EMAIL

GC1530P New Design CNC Plasma Cutting Machine with Dust Cover for Cutting Metal Materials


Parameter:

No. Description

GC1530P



1 Working Size

1500*3000mm

(Optional:other size can be customized)

2 Z Axis Clearance 150mm
3 Table Type Knife table (Teeth table And Water table can be optional)
4 Transmission System Rack Pinion And Hiwin Linear Rails For X/Y
5 Driving System Stepper Motor And Drivers(Servo motor is optional)
6 Max. Cutting Speed 12000mm/Min(different configuration and different material and thickness speed is different)
8 Working Voltage 380V/3ph 60Hz
9 Plasma Generator Huayuan China and USA power as your requirements
10 Arc Mode Non-Contact Arc, Arc   Pressure Adjuster
11 Output Current 63/100/120A/160A/200A China(45/65/85/105/125/200A USA)
12 Max. Cutting  Thickness 6/15/18/20/40mm
13 Operating System Starfire Controller
14 Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate and almost all of the metal


Feature:

1.  Seamless welding machine body
2.  Independent control cabinet
3.  Automatic Torch height controller
4.  2GB processing file
5.  High precision square guide rail
6.  Huyaun LGK160A power supplier
7.  China high precision stepper motor
8.  Multi-function tool box
9.  Efficiency exhaust smoke system
10.Easy feeding slide material system
11.High quality soft electricity cable can be bend for 1.5 million times
12.15 sets of nozzle electrodes

Appilcation :

Mold Industry:

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge

Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

Metal industry: for steel, copper, iron, aluminum, galvanized plate, titanium plate and other metal sheet cutting.
