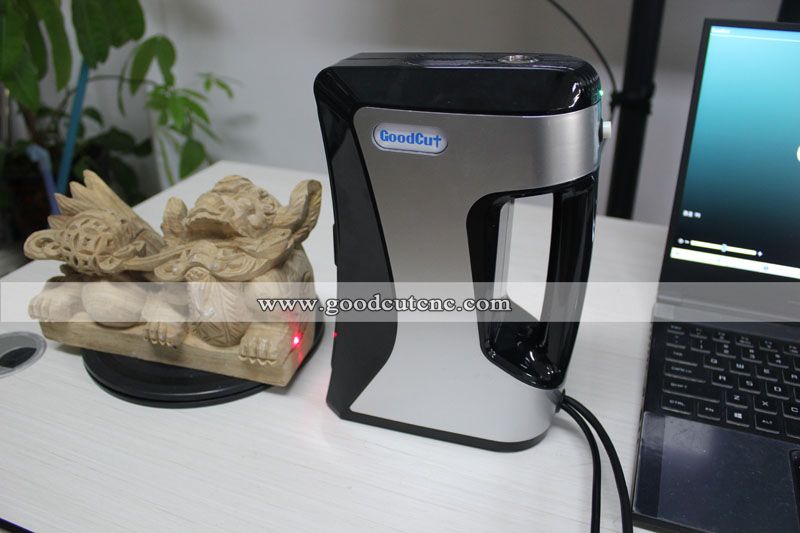

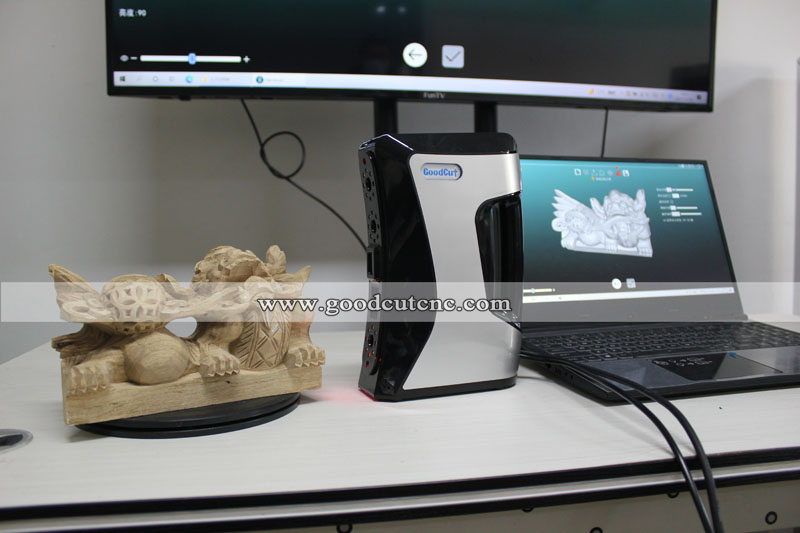

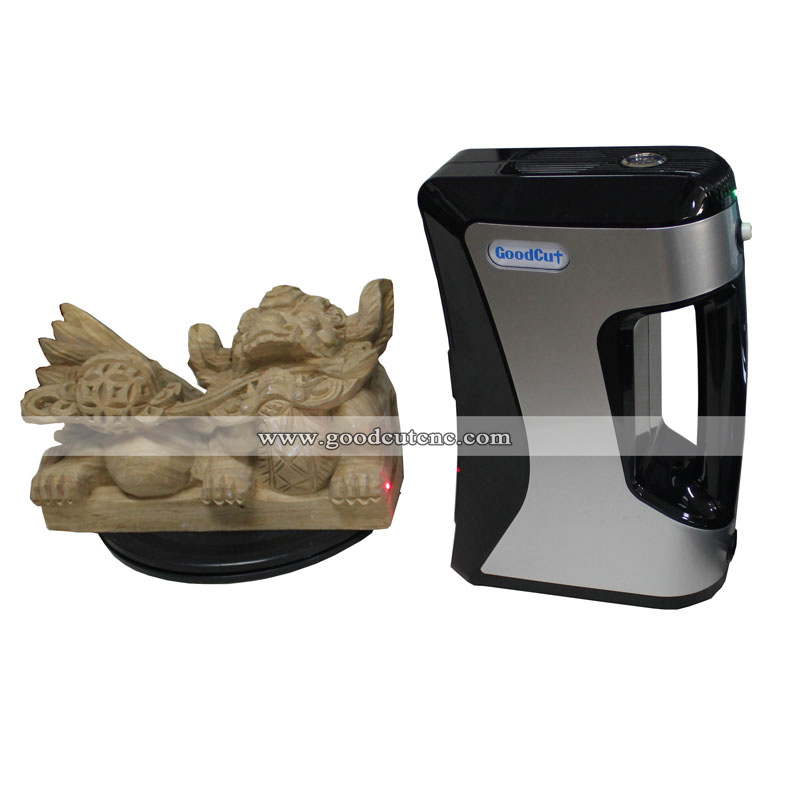

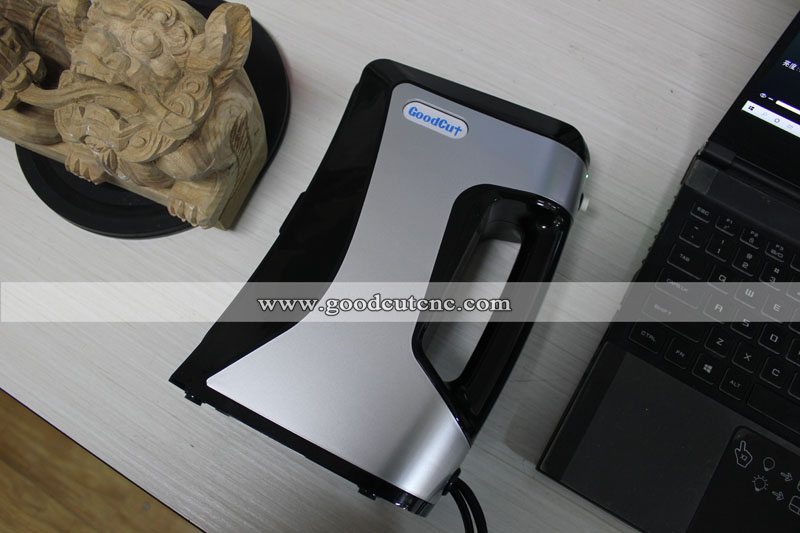

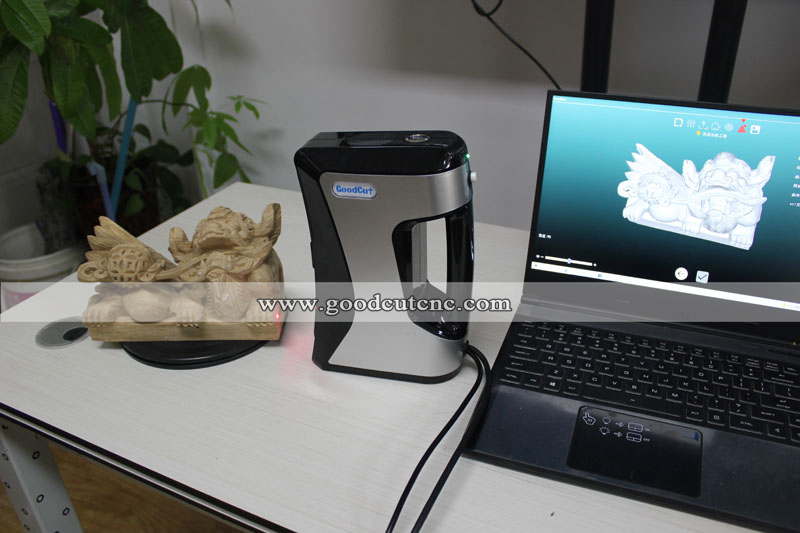

GC-HS GC-HW Portable Handheld 3D Scanner with Good Price for Engine

Model

GC-HS

GC-HW

Standard Mode

Fine Mode

Standard Mode

Fine Mode

Range of view

250mm

100mm

400mm

150mm

Point Distance

0.25mm

0.12mm

0.5mm

0.15mm

Accuracy

0.1mm

0.04mm

0.15mm

0.05mm

Scan Volume

100~2500mm

Working Distance

500mm±30%

Hardware

ONSEMI 1310000pixel 600fps, 8mm Len, TI 1280*800Led

Interface/Voltage

USB 3.0  5A/100~240V 60Hz

Scanning Speed

Non-contact, 1,000,000 points/s, 0.3S/Image

Alignment

Mark align, Feature align, Frame align

Color texture

Support(Optional)

Software

Global register, Wrap, Fill holes, Decimate, Smoothen

PC Require

RAM>16GB; Nvidia GM>4GB;System>Win7 (64bit)

Certification

CE/ FCC / WEEE / CNAS
