Plasma Cutting Machine

  • GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel
  • GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel
  • GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel
  • GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel
  • GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel
GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless SteelGC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless SteelGC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless SteelGC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless SteelGC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel

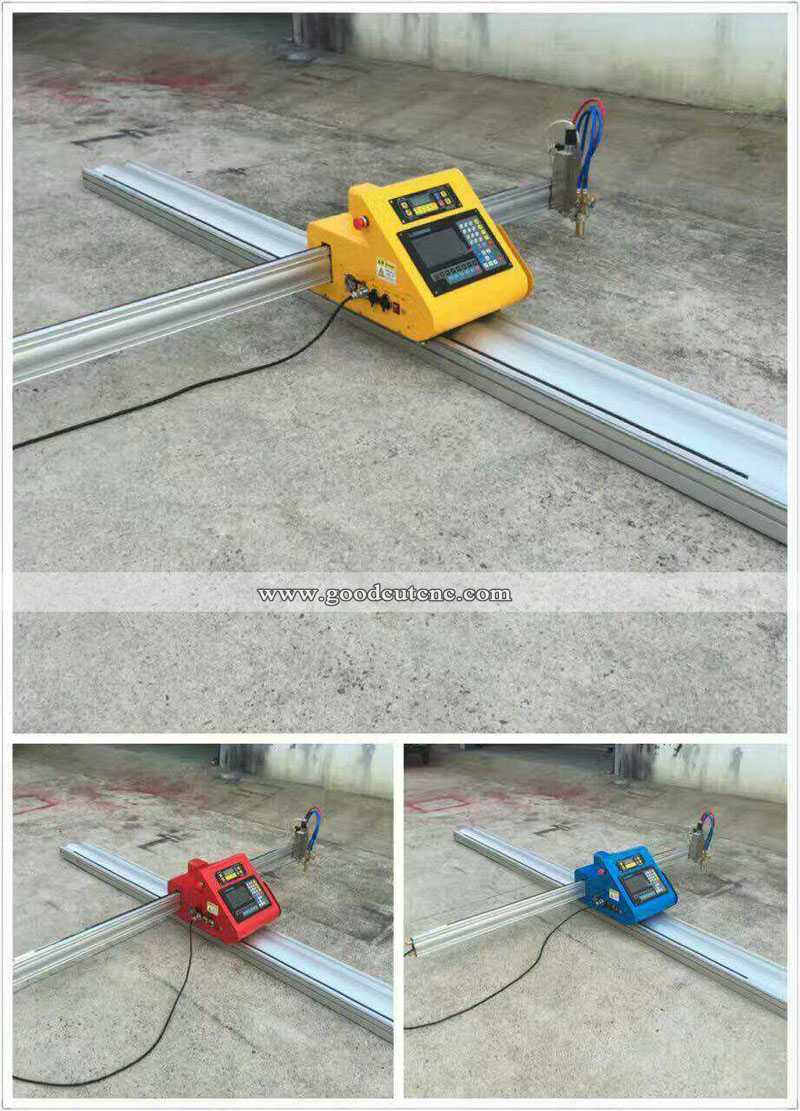

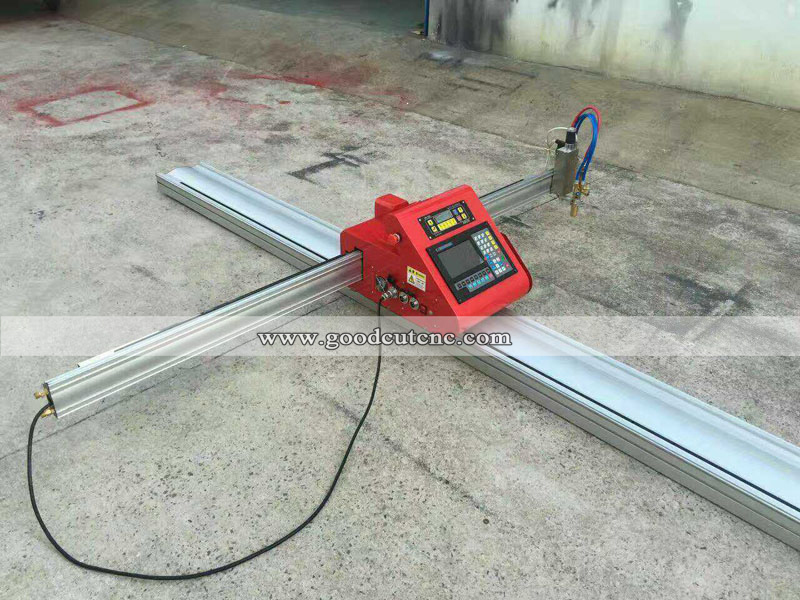

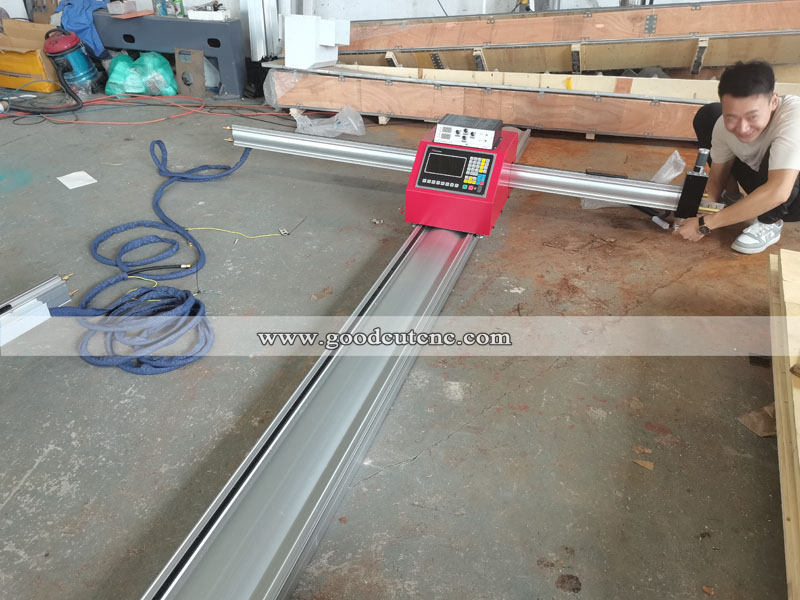

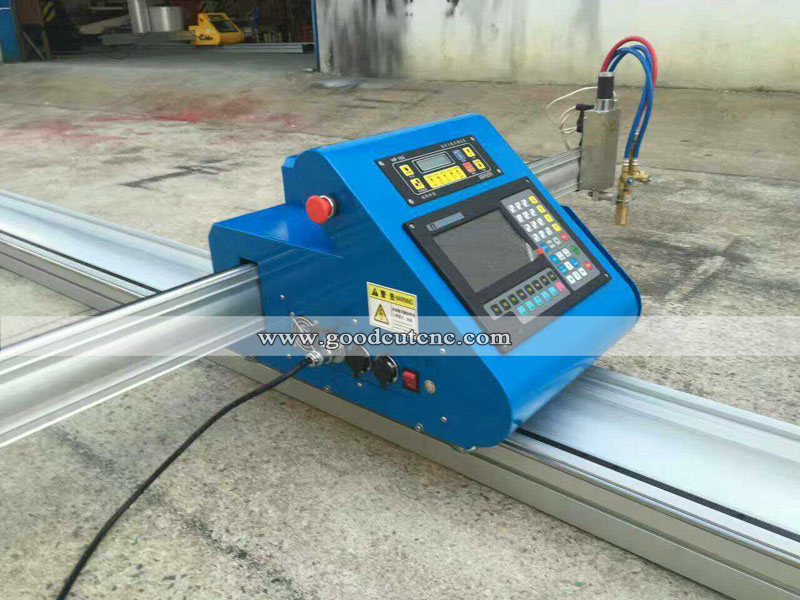

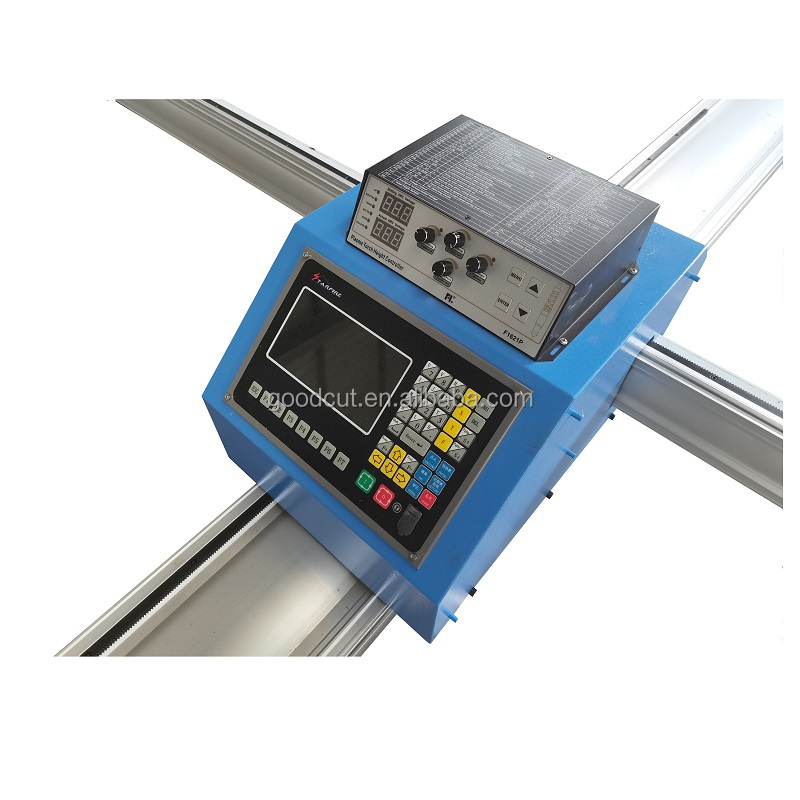

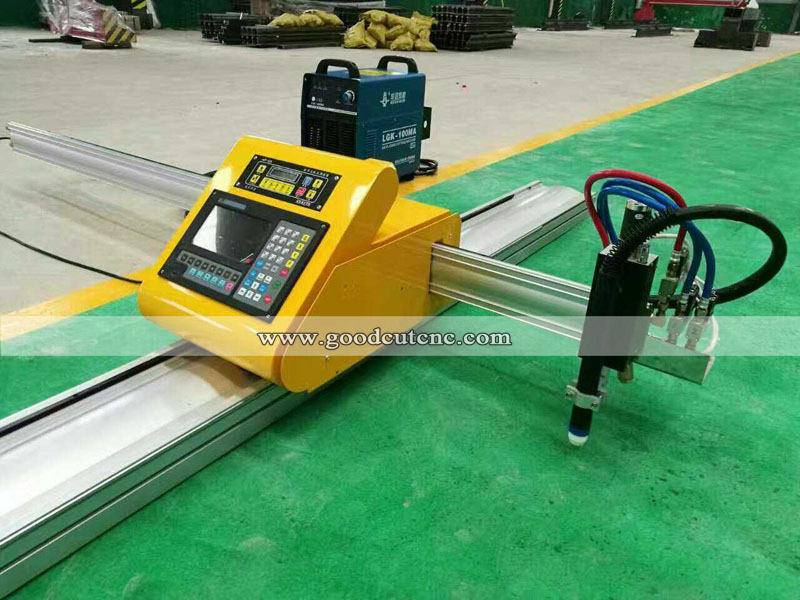

GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel

  • Portable plasma cutting machine
  • Small cheap metal plasma cutter
  • For cutting metal material
  • Esay to operate
  • Product description: Portable plasma cutting machine Size for optional, small package cheap freight Huayuan power supply, 63A 120A 160A 200A for optional
  • INQUIRY   EMAIL

GC-PP Portable CNC Plasma Cutting Machine for Carbon Steel Stainless Steel


Parameter:

Model
GC-1530P
Cutting Mode
Both Flame & Plasma
Arc Voltage THC for plasma
Honeybee Auto Torch Height Control
Torch Height Control for flame
Electric control
Cutting System
Fangling/Starfire
Rated Power Supply
180W
LCD Dimension
7.0 Inches
Emergency Stop Button
Have
Effective Cutting Range(mm)
1500mmx3000mm
Cross Beam Length
2000mm
Longitudinal Rail Length
3500mm
Speed Adjusting Range
0-3000mm/min
Flame cutting Speed
0-800mm
Plasma Cutting Speed
0—3000mm/min
Flame cutting Thickness
2-150mm
Plasma Cutting Thickness
Depends on plasma capacity
Plasma Power Source
63A/100A/120A/160A/200A(Option)
Gas Pressure
Max.0.1Mpa
Oxy Pressure
Max.1.0Mpa
Driving Mode
Step motor
Power Supply Voltage
380V-50HZ/60HZ

Feature:


1.Cross beam driving model, enables a more stable balance movement, avoid the head declining due to gravity

2.Reasonable cutting area: effective 1.5m*3.0m, suitable most common sheet 4ft*8ft

3.Light and smart, no fixed place occupation, sustain cutting on sheet directly

4.Simple structure, easy for packing, delivery, installation and disassemble

5.Overall processing alloy base, assure light and precise, no base shape deformation

6.Cross beam and rail both with linear guide, high accuracy good stability moving

7.With motor enable/disable button, ensure operator and machine safety and start position random select, save material save time

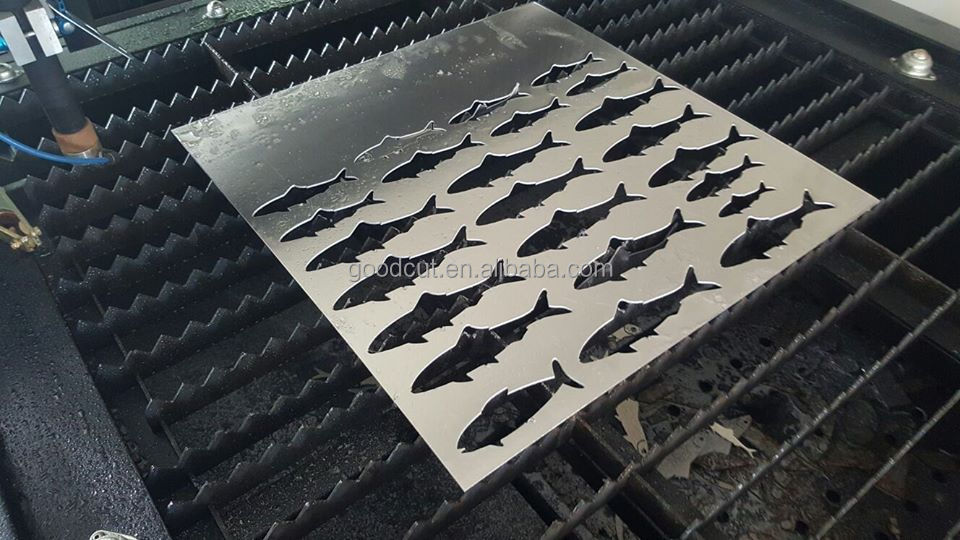

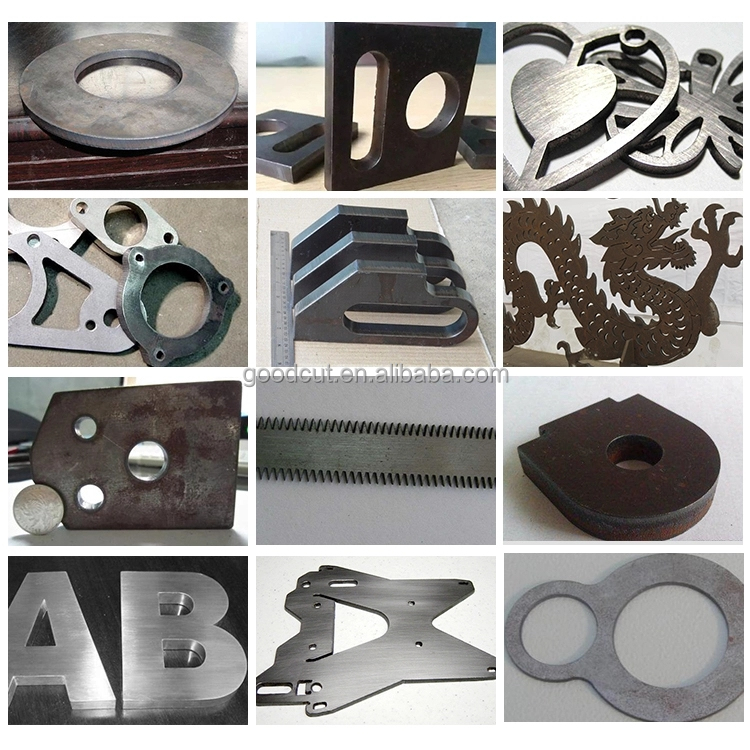

Application:

It is suitable for all kinds of metal materials such as steel, copper,aluminum and stainless steel can be processed. Applies for aluminum plate, stainless steel, galvanized sheet, White Steel plate,Titanium plates, and so on like the sheet metal.
