GoodCut EinScan Pro 2X Portable and Versatile Handheld 3D Scanner for high-precision results

  • Scan Accuracy Up to 0.04mm
  • Scan Speed 30 fps 1,500,000 points/s
  • A great option for scanning small to medium size objects
  • Ideal for high-quality 3D modeling
  • Product description: Scan Modes: Handheld Rapid Scan, Handheld HD Scan, Fixed Scan. Align Modes: Feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.
  • INQUIRY   EMAIL

GoodCut EinScan Pro 2X Handheld Scanner portable and versatile handheld 3D scanner for high-precision results

Model

EinScan Pro 2X

Scan Mode

Handheld HD Scan

Handheld Rapid Scan

Scan Accuracy

maximum0.05mm

maximum0.1mm

Volume accuracy

0.3mm/m*Positioning with marker points

Point Distance

0.2mm ~2mm

Single Scan Range

135*100mm~225*170mm

Depth of field

±100mm

Scan Speed

20Frame/sec100,000points/sec

30Frame/sec1500,000points/sec

Light Source

Tricolor LED

Align Mode

Markers

Markers or Features

Texture Scan

No

Yes (Available with Color Pack)

Work center distance

400mm

Special Scan Object

For transparent and reflective objects, please spray powder before scanning.

Outdoor Operation

Need to increase the obstruction to avoid strong light interference

Data Format

OBJSTLASC PLYP3

Printable data output

Support output can directly print 3D models

Scan head weight (including transmission line)

1.13kg

OS System Support

Win7,Win8,Win10,64

PC Requirements

Graphics card: NVIDIA GTX770 and above, memory: >4G, processor: I7 and above, memory: 16G and above, port: high-speed USB3.0

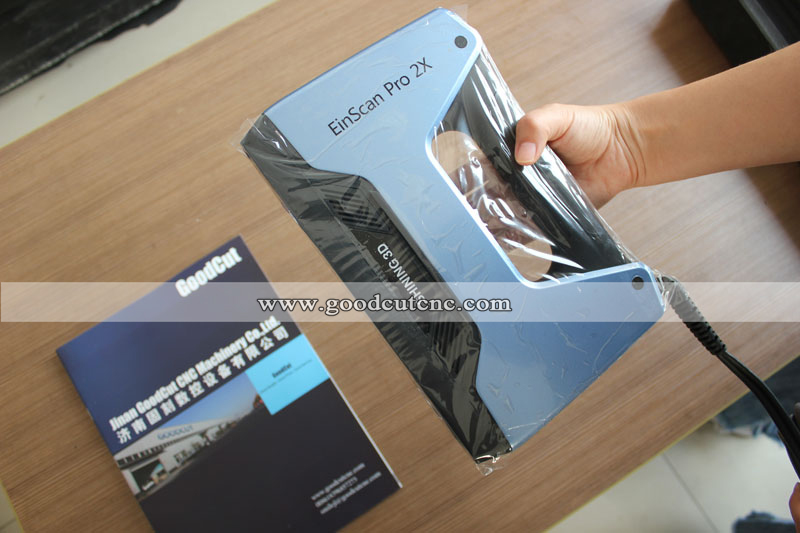

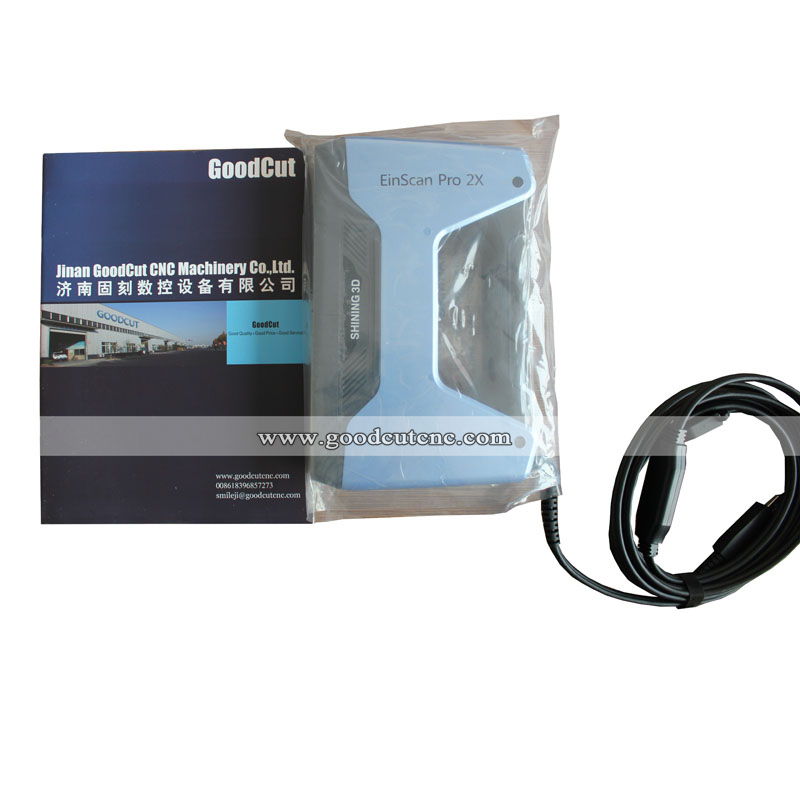

EinScan Pro 2X Handheld Scanner
The truly portable and versatile handheld 3D scanner for high-precision results
A great option for scanning small to medium size objects
Scan faster and more accurate
Ideal for high-quality 3D modeling

Accuracy of
EinScan Pro Series Scanners
Factory tested accuracy according to VDI/VDE 2634 standards.

3D Scanning for Reverse Engineering


Versatile Scan Modes & Align Modes
Scan Modes:
Handheld Rapid Scan, Handheld HD Scan, Fixed Scan.

Align Modes:
Feature alignment, markers alignment, turntable coded targets alignment,
and manual alignment.

Full-Color Scan
Get the full-color texture with geometry by adding the Color Pack.

New Scanning Software EXSCAN PRO
Brand-new UI and Workflow
New Operation Mode Option

Allows users a faster scanning experience during operation and set the resolution
option afterwards during the data processing, which improves scanning efficiency.
High Compatibility
Outputs standard file formats including STL, OBJ, PLY, 3MF, ASC and P3

Solid Edge SHINING 3D Edition
Design Tool From SIEMENS PLM Software
Convergent Modeling
Synchronous Modeling
Reverse Engineering
Generative Design
Simulation
Additive Manufacturing

Portable & User-friendly Design
With a lightweight and compact size, you can easily take the
EinScan Pro 2X anywhere like a laptop, enjoy plug-and-play installation
and unlimited scanning experience.

Package Size
37 X 36.5 X 13.5 mm

Lightweight
1.13 KG
