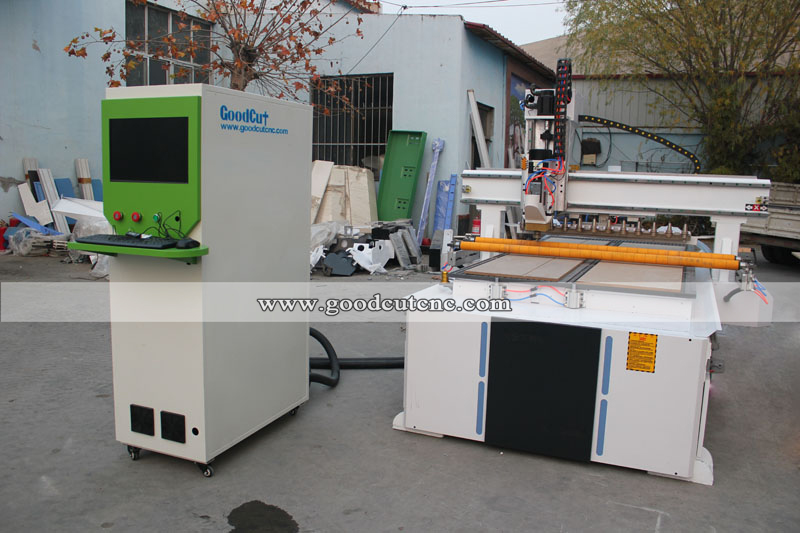

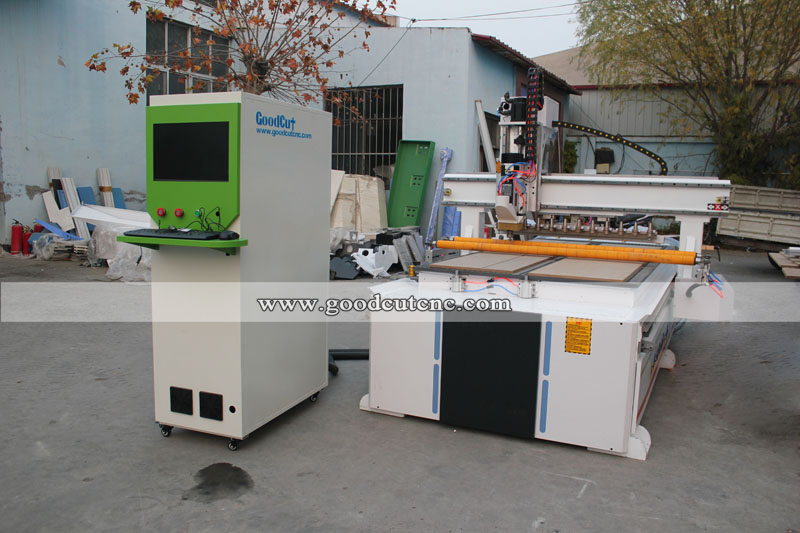

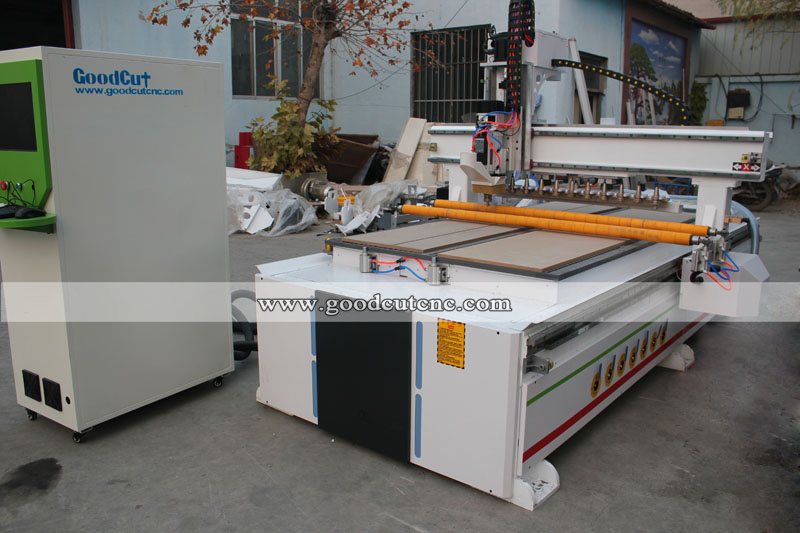

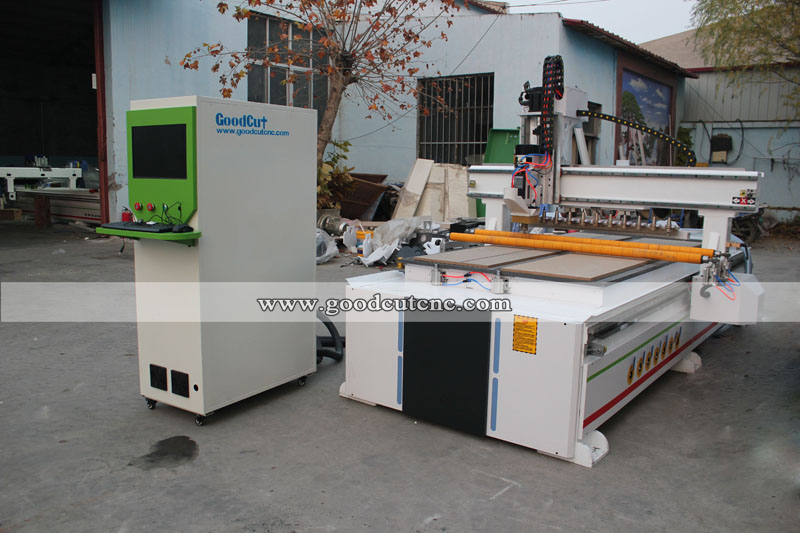

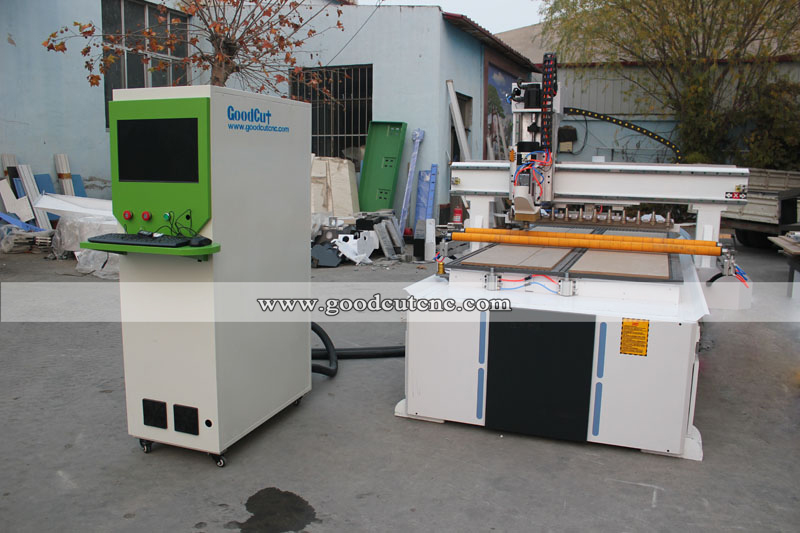

GoodCut Linnear Atc Cnc Router with Tool Changer for Kitchen Cabinet Door Making


Feature:


1) Ncstudio control system: Popular and easy operation, with USB port to transfer program;


2) China Local Brands HQD air-cooling ATC spindle: Long working life, easy maintenance;


3) Taiwan Delta Servo Driving System: With highly control precision and high speed, reliable and stable;


4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality,realizing smooth movement;


5) Taiwan TBI ball screw: linear motion with high precision and and in high speed


6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.


 7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;


8) Linear tool magazine, with Tool holders x 6pcs and Toolholder fork x 8 pcs, effectively improve working efficiency.



Description
Parameters
X,Y,Z Working Area
1300*2500*300mm
Table Surface
Vacuum with T-slot Table , 7.5kw big power vacuum pump
Frame
Welded Structure
X, Y Structure
25mm 30mmHIWIN linear guide, helical rack
Z Structure
Hiwin Rail Linear guide and TBI Ball Screw
Max. Power Consumption
(Without Spindle)2.5kw~3kw
Spindle Power
9kw HQD or Italy HSD air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
850w Leadshine servo motor driver
Working Voltage
AC380V/50-60Hz,3PH (Option: 220V/1phase)
Command Language
G Code
Operating System
Weihong NK260 system
Inverter
11kw DELTA inverter or Fuling
Computer Interface
USB
X,Y,Z repositioning Accuracy
±0.02mm
X,Y Resolution
±0.01mm
Software Compatibility
Type3/UcancameV9 Software, (Option: Artcam Software)
Lubrication system
Auto
Tool sensor
Auto
Dust collector
5.5kw double packages dust collector
Reducer
Japanese Shimpo reducer
Optional parts
Japanese YASKAWA servo motor,
Syntec 6MB controller
Rotary device

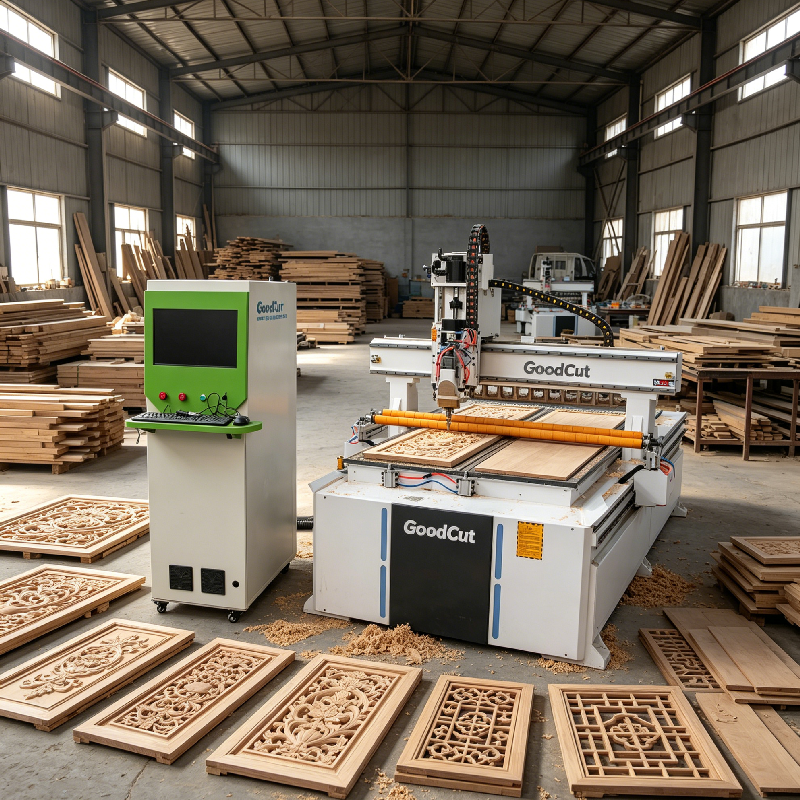

1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.

2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.

3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.

4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.

5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.
