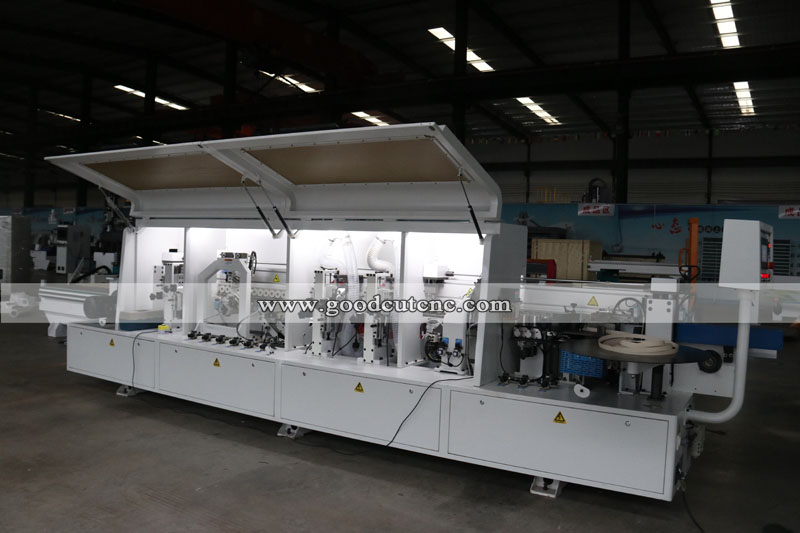

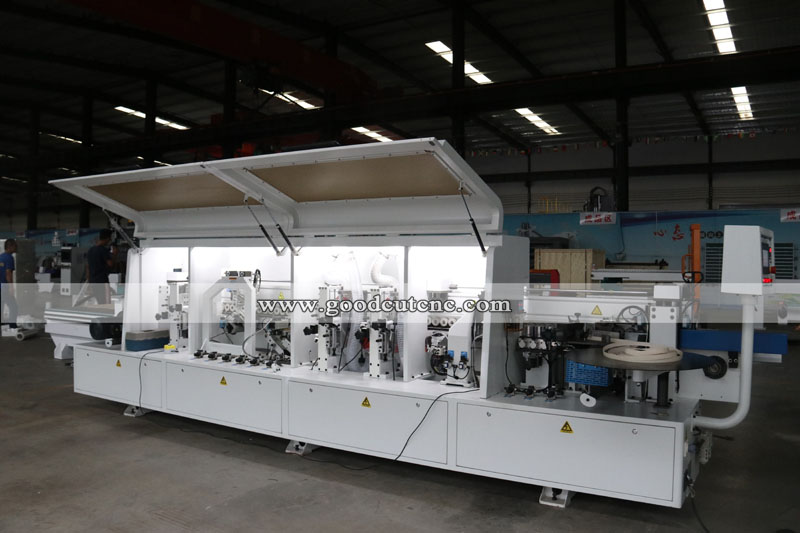

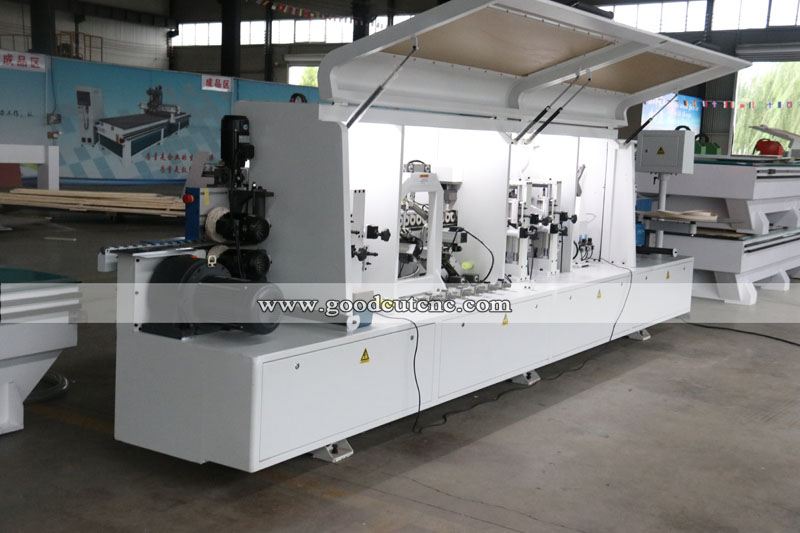

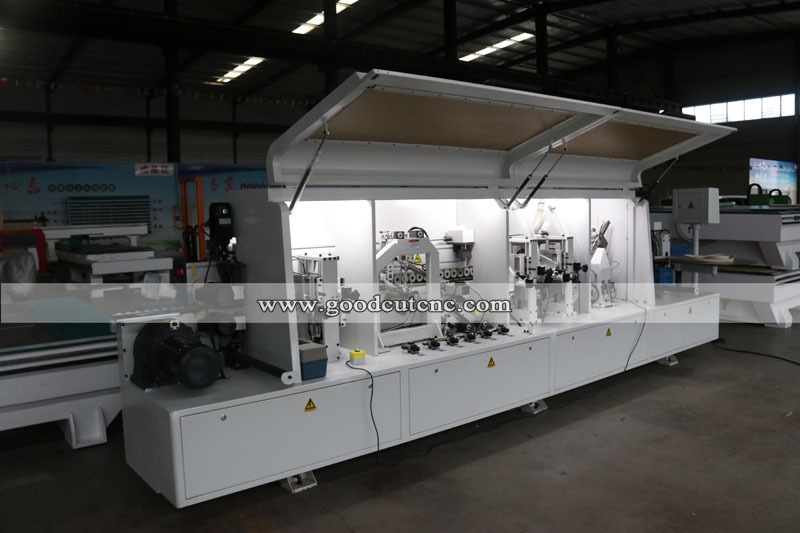

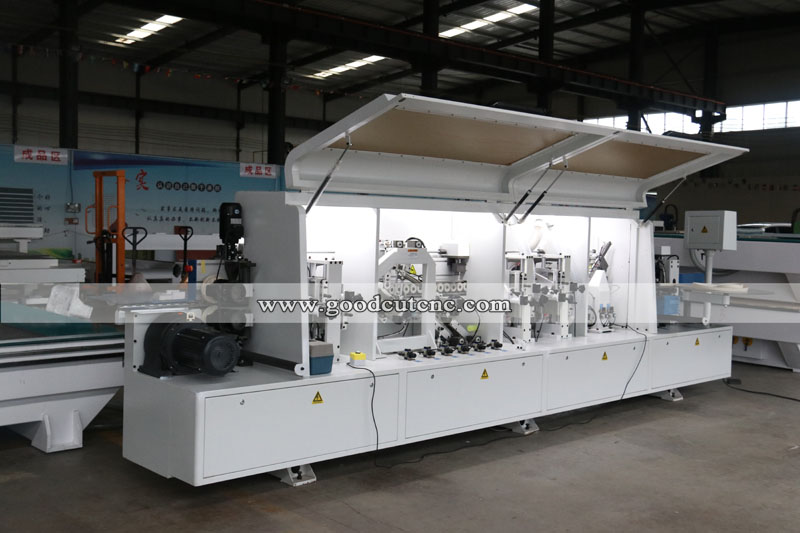

GoodCut Factory Automatic Veneer Wood Board Edging Machine Pvc Edge Banding

  • Mode: Full automatic
  • Material: PVC, Acrylic, Veneer
  • 2.2kw pre-milling power
  • one year warranty
  • Product description: Standard function: Gluing, End cutting, Fine trimming, Scraping, Buffing Optional Functions: Premilling,Grooving,Rough trimming Application: Kitchen cabinet, wardrobe, office table One year warrant
  • INQUIRY   EMAIL

GoodCut Factory Automatic Veneer Wood Board Edging Machine Pvc Edge Banding


Introductions of GoodCut Factory Automatic Veneer Wood Board Edging Machine Pvc Edge Banding:

1: New design for the band clamping device,perfectly preventing the band from losing its track.

2:Four irregular cylindrical pinch roller can entirely press the band firmly to the board.

3:Non adjustment of the cutters of fine trimming & scraping units, pneumaticaly position,higher precison and higher productivity.


Parameters of GoodCut Factory Automatic Veneer Wood Board Edging Machine Pvc Edge Banding:

Description
Parameter
Thickness of panel
10-50mm
Width of panel
≥60mm
Length of panel
≥70mm(pvc)
PVC
0.4-3mm
Max thickness of timber
10mm
Panel feed speed
≤15.3/min
Air pressure
0.7Mpa
Total power
8.73kw
Outline size
4100*1000*1500mm
Net weight
1600kg

Operation panel shows


Applications of GoodCut Factory Automatic Veneer Wood Board Edging Machine Pvc Edge Banding:

1/ Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc

2/ Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.

3/  Imported quanlity engines and electric components.

4/ Serialized products,a wide range of selection for customers.

5/ High precision&efficiency.


Delivery and Package:

We will take care of your machinery packages well like picture show.

· Our workers will make sure your machine clean before package.

·We will add stretchy film for the whole machine and spare parts for delicate protection.

·We will make export standard strong Wooden box case package as your request.
