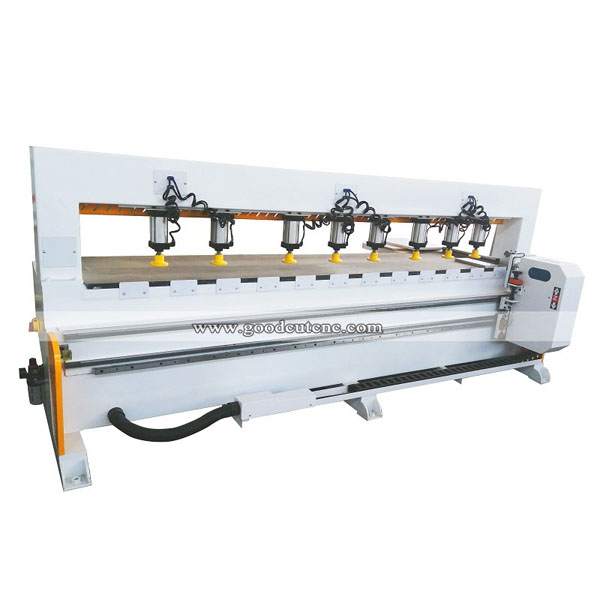

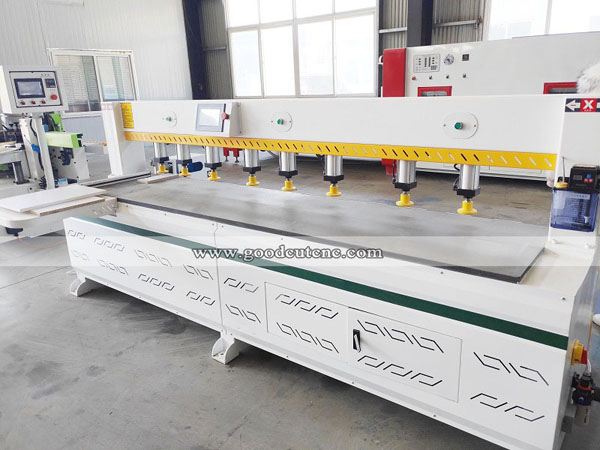

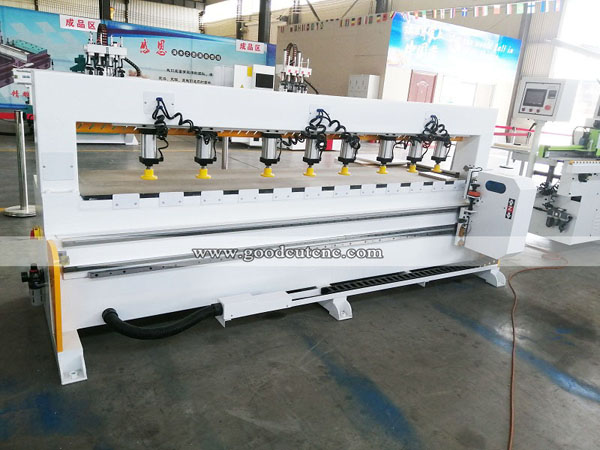

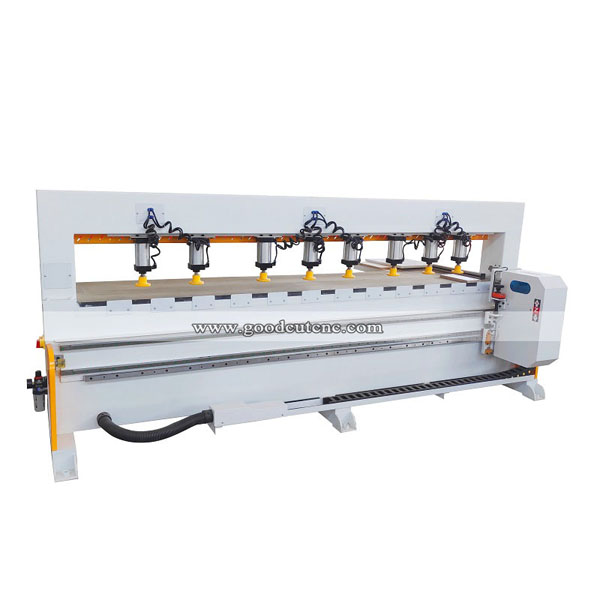

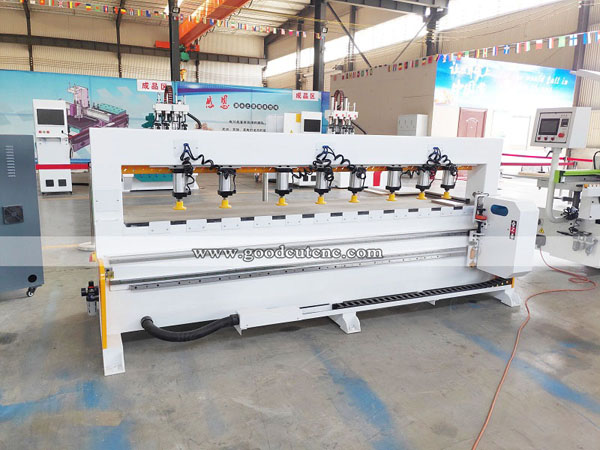

GC-SD CNC Deep Horizontal Side Hole Drilling Machine for Woodworking Furniture

  • Furniture kitchen cabinet, wardrobe, office table
  • Motion control system( superior to PLC)
  • Fast side horizontal hole drilling
  • Ball screw, square rail
  • Product description: High-srength PVC worktable Fast side horizontal hole drilling Spindle speed:0-18000rmp
  • INQUIRY   EMAIL

GC-SD CNC Deep Horizontal Side Hole Drilling Machine for Woodworking Furniture

Features:

1. Production can be completed with automatic functions, no need for professional drilling technicians, zero-based operator after one hour training can set to work at once, significant savings in labor costs.

2. Infrared scanning, precise and fast data import, rapid positioning of sheet material, hole position processing on the side of the sheet material, wide compatibility, supporting docking all kinds of furniture design production software.

3. Intelligent punching, no need to pay attention to the placement of the plate ruler, laser scanning accurate positioning, intelligent judgment of empty position,high precision, high speed.

4. Using the newest control system, fastest machine operation speed.

Parameters:

Brand

GoodCut GC-SD

Working size

2400*600*50mm

Working Voltage

380V, 3Ph, 50Hz

Control system

Chinese famous brand COTRUST system

Spindle

3.5kw air cooling spindle

Inverter

4kw BEST Inverter

Motor and Driver

Chinese famous brand COTRUST servo motor and driver

Table surface

T-slots working table

Lubrication system

Manually

Machine Frame

White and blue machine structure with yellow guardrail

Structure

Gantry structure gantry fixation

X, Y, Z Rail

Taiwan HIWIN Linear Guide 20#


Description:

The side hole machine production process can be completed by automatic function without professional drilling Technicians, zero-based operators can start working immediately after one hour of training, which greatly saves labor costs.

At the same time, it also has the function of infrared scanning, the data is imported accurately and quickly, the plate is quickly positioned, the hole on the side of the plate is processed, the compatibility is wide, and all kinds of furniture design and production software are matched.

The whole punching process is intelligent, no need to pay attention to the placement of the ruler, laser scanning can be accurately positioned, intelligently judge the vacancy, high precision and fast speed.

The combination of various fully automatic functions makes this side hole machine play an important role in the panel furniture production line.

Advantage:

1.A professional special machines used for horizontal perforated plate custom furniture.It can completely replace the traditional drill, to get rid of the traditional punching mode,dependence on skilled workers, scan code processing directly through the production with special design software.

2.High quality,automatic design,automatic typesetting,auto labeling.No human intervention,minimizing error rate,ensure the quality of the order for the PTP CNC router.

3. Good parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer.

4. Reasonable design: independent computer control, operation and maintenance more convenient.

5. Perfect automatic oil lubrication system, prolong the service life of the machine.


Application:

This product is mainly applicable to wood furniture industry, for example: Cabinets, Tables,Chairs,fine pattern, antique furniture, wooden door, screen, composite gates, cupboard doors, interior doors,headboards and so on.


Guarantee and After-sale service:
1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.
