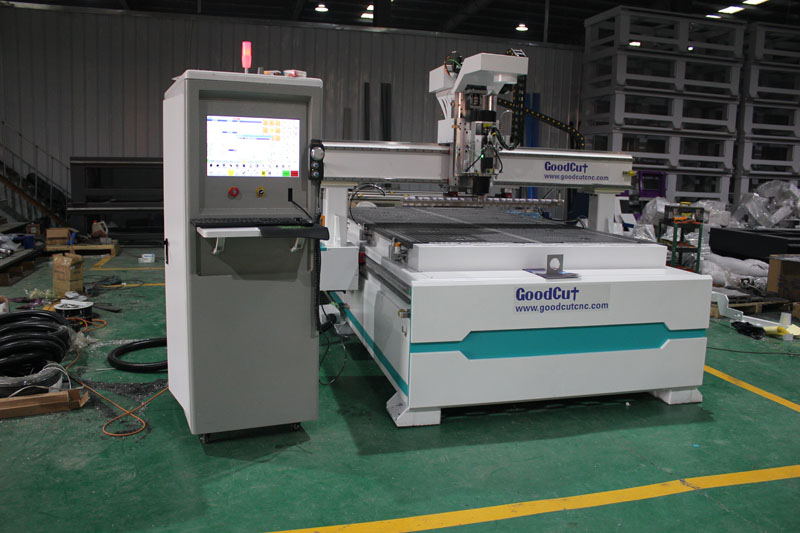

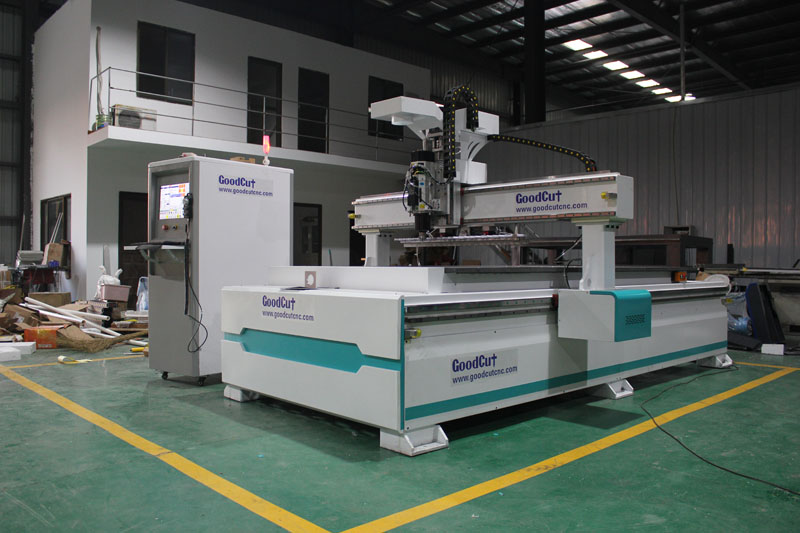

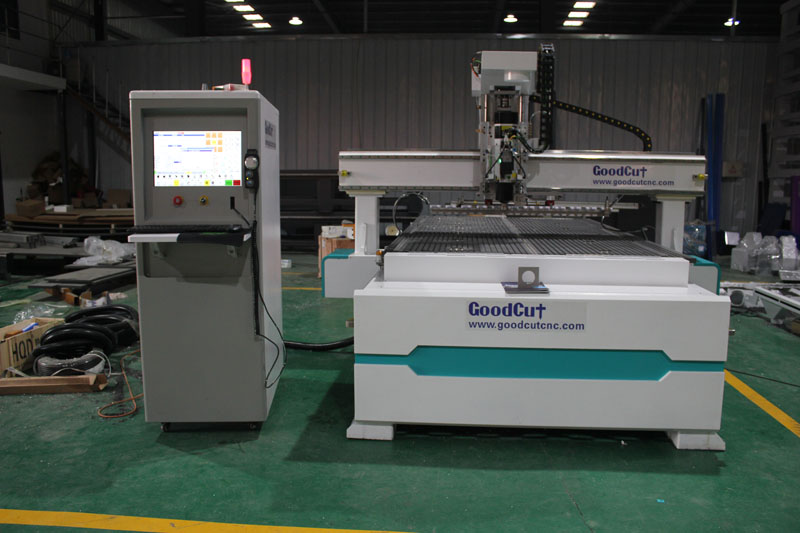

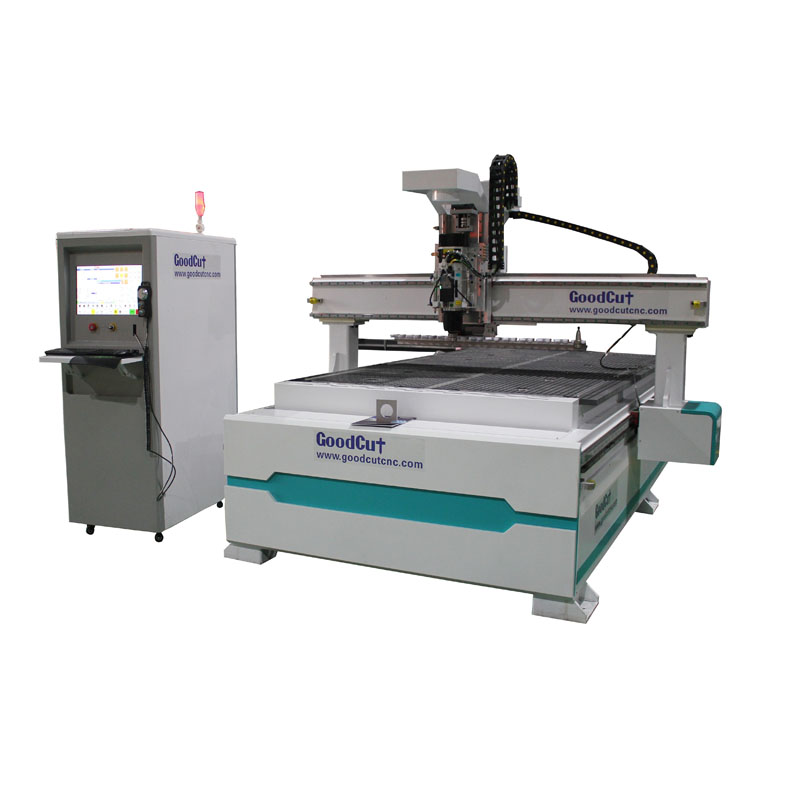

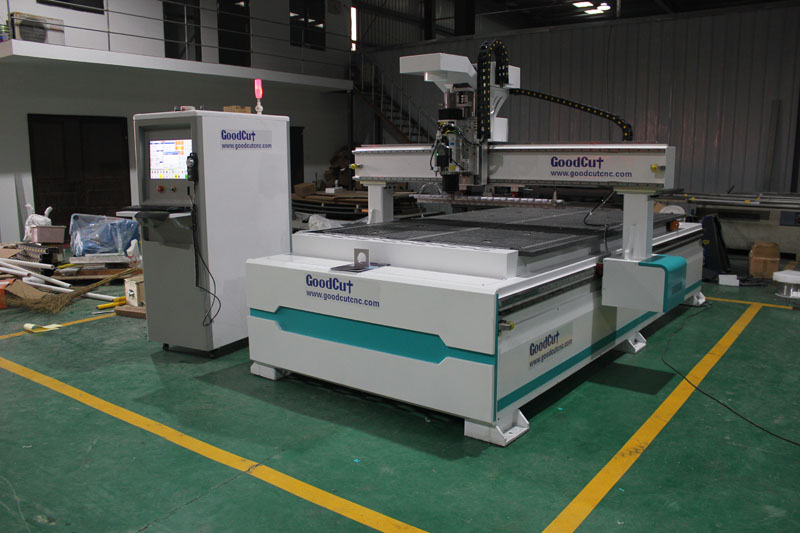

GC1325ATC ATC European Quality CNC Machine Router with 12pcs Linear Tools Magazine

GC1325ATC ATC European Quality CNC Machine Router with 12pcs Linear Tools Magazine

New design
12pcs linear tool magazine
Automatic too changer
9kw ATC spindle
Product description: Automatic tool changer 12pcs tools magazine Servo motor and driver 9kw ATC air cooling spindle
INQUIRY EMAIL

GC1325ATC ATC European Quality CNC Machine Router with 12pcs Linear Tools Magazine

Parameter:

Description	Parameter
X,Y,Z Working Area	13002500200mm 20003000200mm(customizable)
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Table Surface	Vacuum Working Table
Frame	New type thicker and bigger heavy duty welded frame and gantry
X, Y Structure	Helical Rack gear, Taiwan PMI Rail Linear Rail
Z Structure	Taiwan TBI Ball Screw, Taiwan PMI Rail Linear Rail
Spindle	9kw air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Leadshine 750w servo motor and driver
Inverter	Fuling
Lubrication system	Automatic lubrication system
Working Voltage	AC380V, 3Ph, 50Hz (Option: 220V)
Operating System	Shanlong/LNC
Control box	Single-sided indenpended control box
Dust collector	3kw Double Bags + Pump + Pipe

Feature:

1. ATC function: Linear automatic changing tools ,12 tools, saving time of changing tools.
2. Bed structure :Whole bed is steel structure welding , strong rigidity, no deformation.
3. Servo motor and driver:Taiwan LNC servo motor and driver, high speed and precision.
4. Guide rail:Taiwan square guide rail, running smoothly . high precision .long lifespan.
5. Vacuum table : With powerful absorbing power ,ensure the flatness of material surface.
6. Control system:Easy operation, help correct errors in processing files in advance .
7. Automatic oil filling system:Lubricate transmission part,Improve working life of machine

Application:

1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.

2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.

3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.

4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.

5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.
