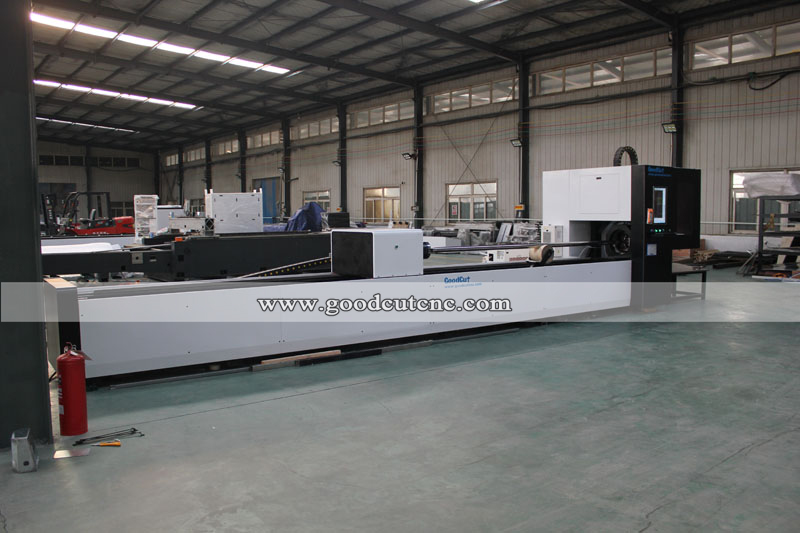

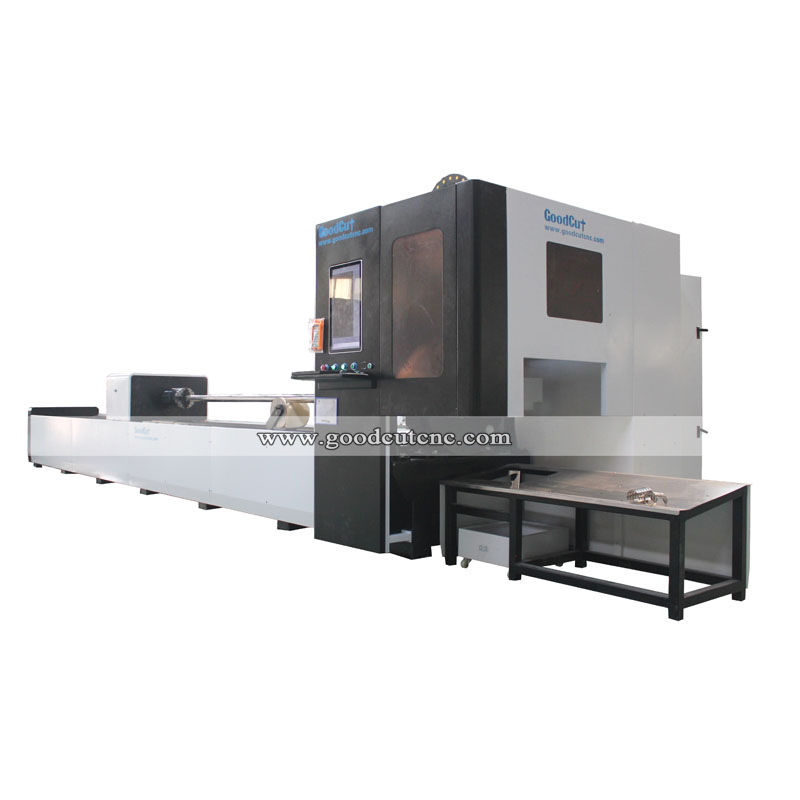

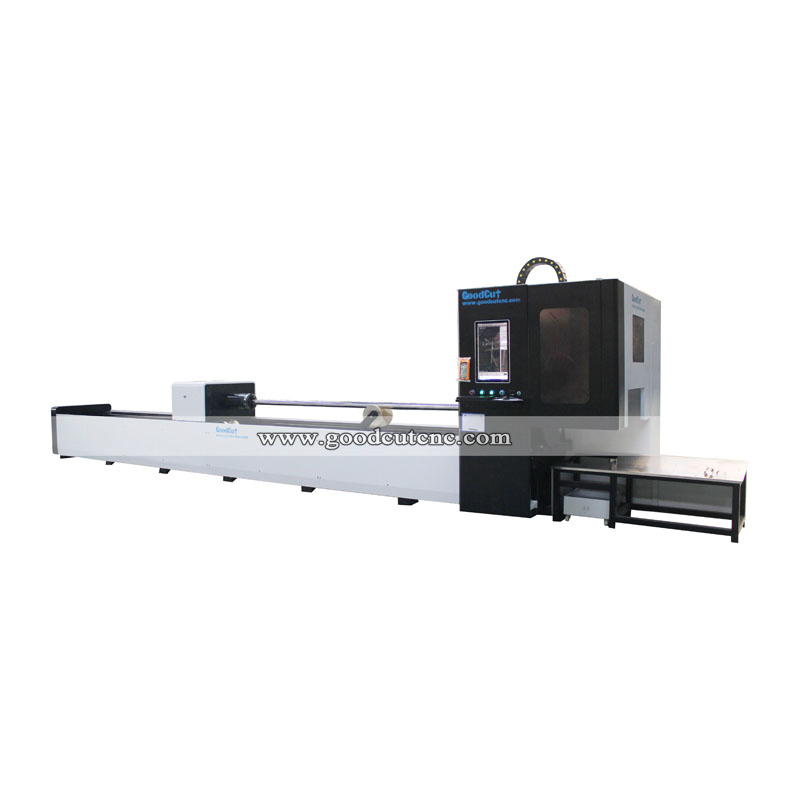

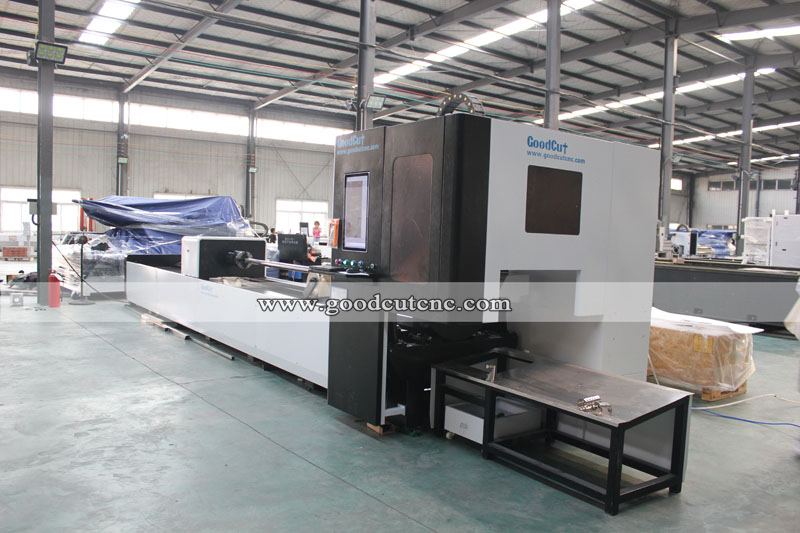

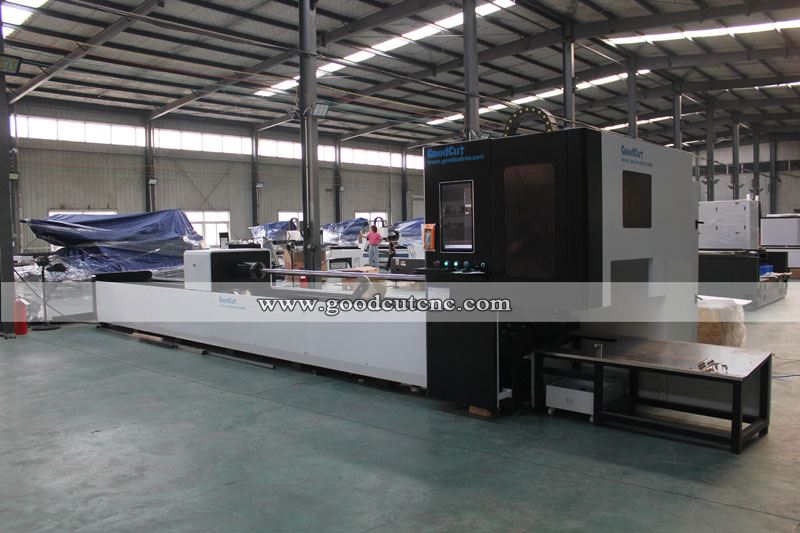

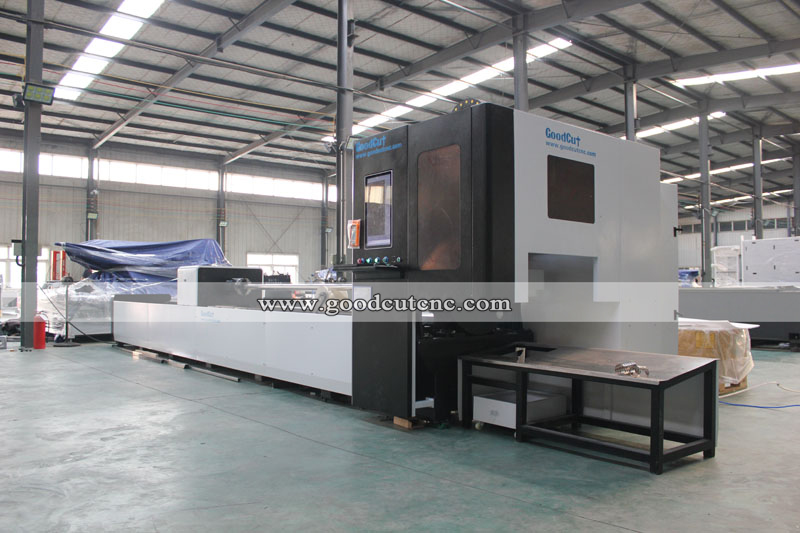

GC-FR Fiber Laser Cutting Machine for 6-12m H L C Round Square Type Pipe Tube

  • Cutting 6-12m pipe
  • All kind of pipe, H L C round square tube
  • Cypcut controller
  • Raycus laser source
  • Product description: 6-12m length, 220mm diameter tube cutting. H L C round square all kind of type tube. Cypcut controller with handle Raycus/IPG laser source
  • INQUIRY   EMAIL

GC-FR Fiber Laser Cutting Machine for 6-12m H L C Round Square Type Pipe Tube


Parameter:

Model
GC-FR
Max.outside diameter of round tubes(mm)
20-220mm
Pipe thickness
Depends on the power
Cutting speed
Cutting speed: Max 0.8s/cut(Depending on material thickness)
Y axis single feeding length
1200mm
Z axis adjustment range
65mm
W axis adjustment range
360°
Machine repeat positioning accuracy
±0.05mm/1000mm
Machine positioning accuracy
±0.1mm
Machine idle speed
120m/min
Maximum acceleration
1.0G
Electricity demand
380V 50Hz(customizable)
Cutting accuracy
±0.1mm
Machine size
9340*1560*1615MM
Machine weight
8T
Power
500-8000w(Optional)
Accuracy
±0.1mm
Max . raw material length (mm)
≤6200
Max. finished part length (mm)
1200
Pipe remain length (mm)
180
Multi-funtional cutting
Mitre cut, rectangular, slot, square, circular, cold mouth, special profiles


Feature:

1. This pipe/ tube laser cutting machine has the function of automatic positioning: only need to feed manually to complete the cutting, it is an ideal, efficient and convenient cutting machine for metal pipe laser cutting.
2. The pipe/ tube laser cutting machine covers a small area, the structure of the pipe/ tube laser cutting machine is precise and beautiful, and the work is solid and firm.
3. High precision: Adopt imported IPG laser source to ensure good laser beam quality. The cutting square/ round tube length of the pipe/ tube laser cutting machine can reach 6/8 meters, cutting pipe diameter of 20-200mm /20-300mm. Adjustable with scale and good cutting quality.
4. Suitable for thin pipe laser cutting, coat hanger tube, mop pipe, mosquito net pipe, curtain tube and so on.
5. Fast speed: no deformation and burr of incision, the speed of the square tube laser cutting machine is up to 1 second spent on each cutting.
6. The pipe/ tube laser cutting machine has better effect in cutting thin circular pipes, with super low cost, no noise and no dust.
7. High flexibility: There are many types of cutting pipes, such as round pipe, square tube, flat tube and so on. The square tube laser cutting machine can also support three dimensional machining such as pipe laser cutting, punching, hollow carving and bevel cutting.
8. Equipped with multiple different auxiliary gas inputs, automatic conversion of high and low pressures and different gases.


Application:

1. Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper and other metal material.

2. Ultra-high type, special metal material cutting.

3. Used for metal round, square tube, L shaped metal, H Shaped metal, etc
