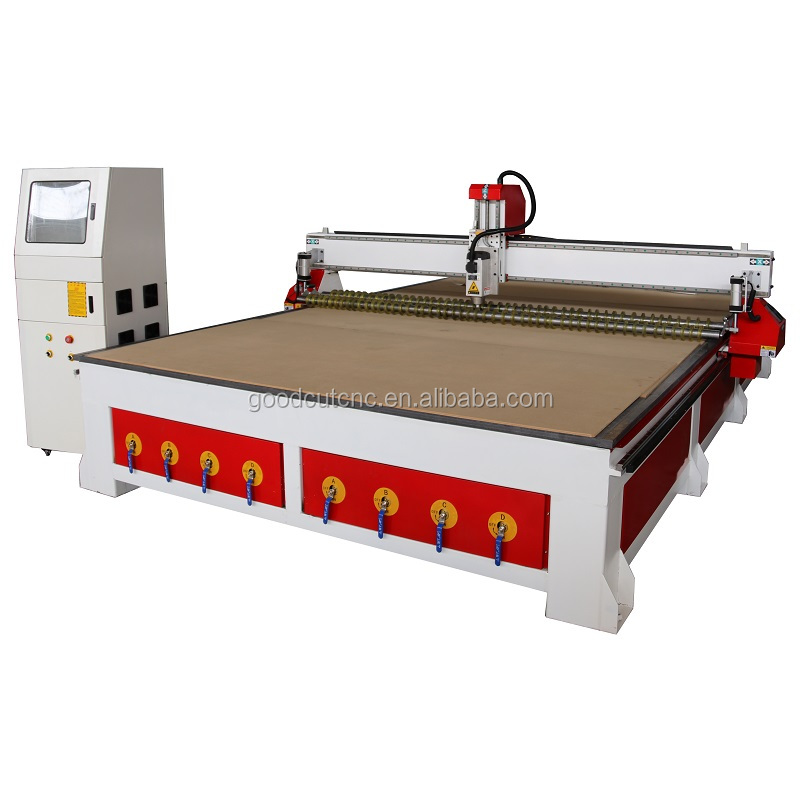

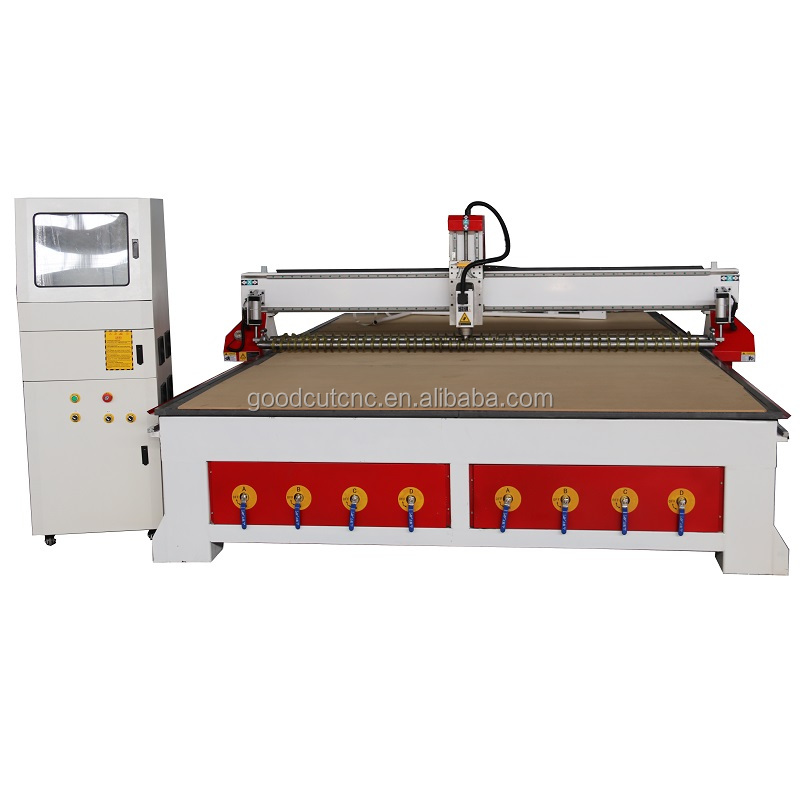

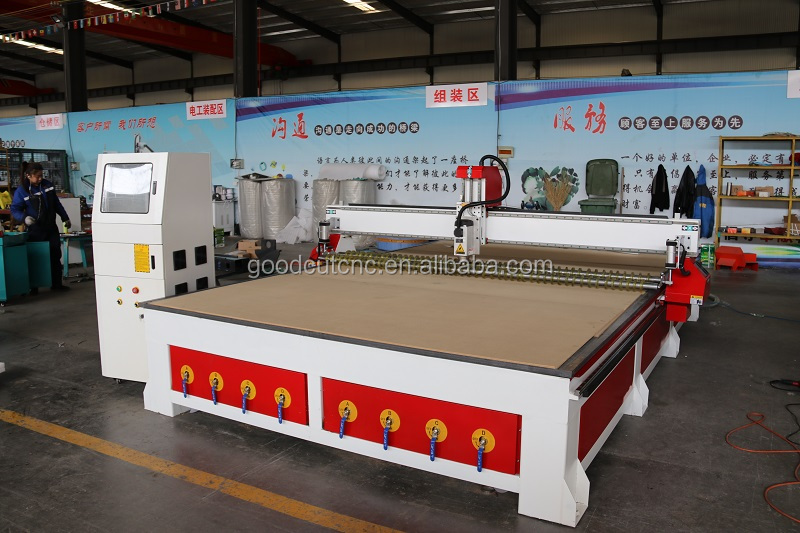

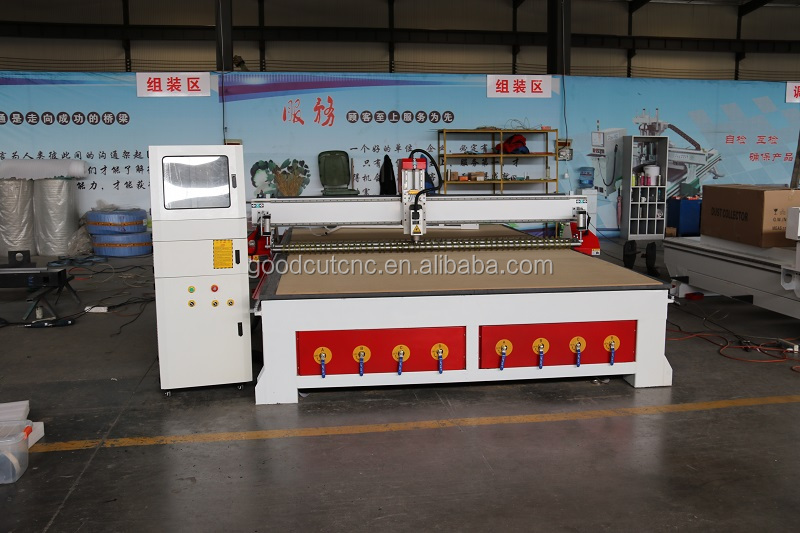

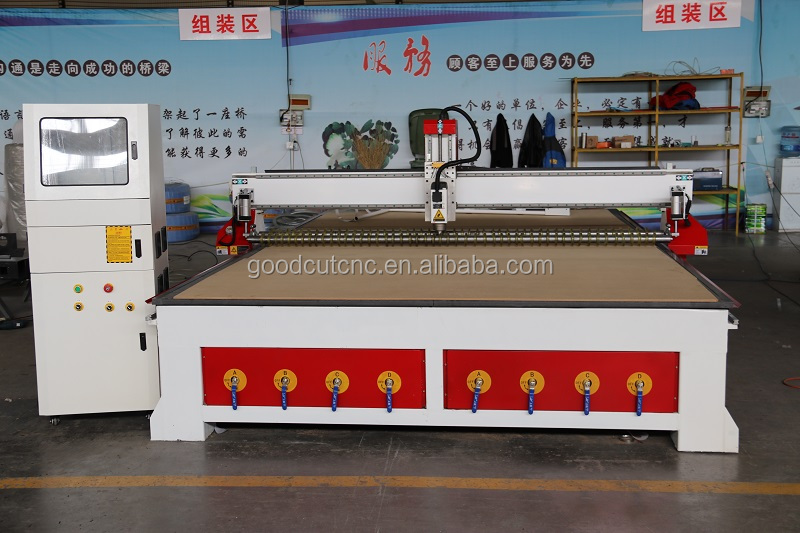

GC2030V Big size 2000*3000mm Working Size CNC Router Machine with Pinch Roller for Wood MDF Acryic

  • 2000*3000mm working size
  • With pinch roller
  • Vacuum absorbed table
  • Woodworking
  • Product description: 2000*3000mm big working size, other size for optional Vacuum absorbed table with vacuum pump With pinch roller, to fix the materials well.
  • INQUIRY   EMAIL

Big size 2000*3000mm Working Size CNC Router Machine with Pinch Roller for Wood MDF Acryic

Parameter:

Description
Parameter
X,Y,Z working area
2000*3000*200mm
X,Y Structure
Rack and pinion; Taiwan HIWIN guide rail 20mm
Z Structure
Ball screw 2510; Taiwan HINWIN guide rail 20mm
Motor
Stepper system 450B
Drive
Leadshine MA860H
Inverter
Fuling 5.5kw
Spindle
Air-cooling
Spindle power
4.5kw
Spindle speed
0-18000RPM
Lathe bed frame
Steel square tubes
Table surface
Vacuum table
Fixing method
By clamps
X,Y,Z repositioning accuracy
±0.03mm
X,Y,Z traveling accuracy
±0.03/300mm
Max working speed
20000mm/min
Max rapid travel speed
30000mm/min
Working voltage
220/380V/50/60Hz
Operating system
DSP system
Command language
G code
Computer interface
USB
Flash memory
128M(U Disk)
Collet
ER20
Resolution
less than 0.02mm
Software compatibility
Type3/Artcam/Artcut/Ucancam/JDpaint etc
Running environment
0~45 centigrade
Relative humidity
30%~75%


Product Features:

1.Square Tube lathe bed with more solid structure and strong stability because of low center of gravity.Whole machine is welded with seamless steel structure, the rigidity is good , not easy to be
deformed.The side board of gantry adopt steel structure.

2.High precision Germany linear square tracks, with ball sliders in two arrays and four rows, makes large load bearing and stable running.

3.High power spindle with good rigidity not only demonstrates superior performance in woodworking application, is also propitious to engrave and cut on copper, aluminum, iron and other metals.

4. With imported rack and gear transport system, largely improve the speed of the machine .

5. Imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.

6. Software compatibility, and compatible with Typ3/Artcam/Castmate / Wentai, and other CAD / CAM design software





Application:

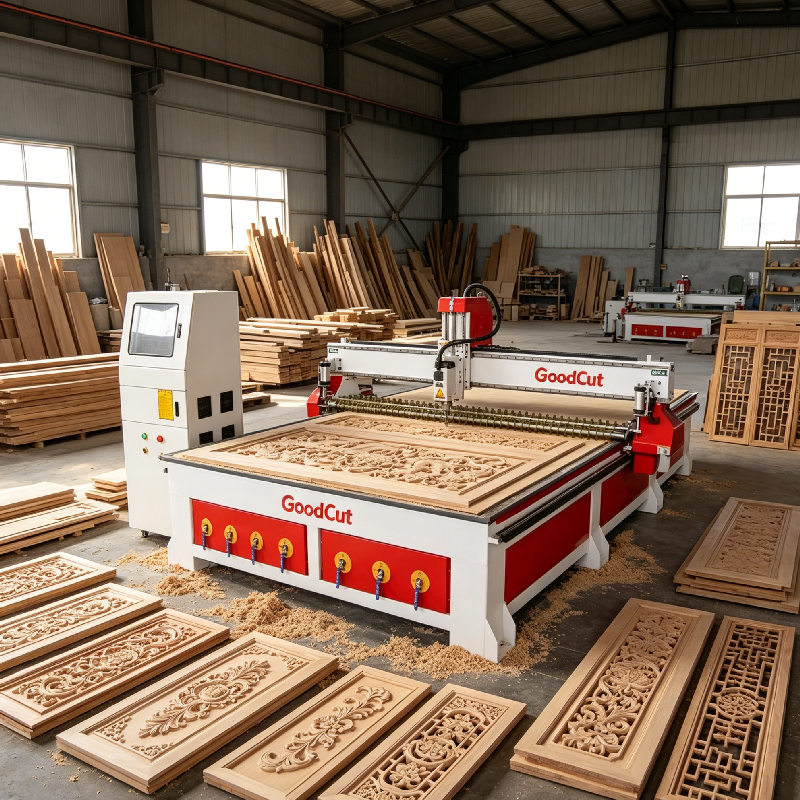

Applicable industry: Art and crafts industry,Furniture industry,Mould industry,Architecture model making advertising industry,Decoration industry,Semi-finished products processing of industrial equipment  accessories,Musical instrument industry,etc.

Application material: Wood,MDF,Solid wood,Acrylic,Bamboo,Plastic,Mahogany,Foam,etc.All of these models can be customized according to customer requirments.
