GC-8P Automatic Beveling Torch 8 Axis Metal CNC Plasma Tube Cutting Machine For Square And Circular Pipe

GC-8P Automatic Beveling Torch 8 Axis Metal CNC Plasma Tube Cutting Machine For Square And Circular Pipe

Big size 8 meter 10 meter length, 3 meter 4 meter width
63A/100A/120A/200A LGK Huayuan plasma source;
Flame cutting for option
Beijing Starfire control system;
Product description: plasma cutter machine, with THC, cutting plate and round tube, flame cutting is optional. Large size 4 meter by 10 meter
INQUIRY EMAIL

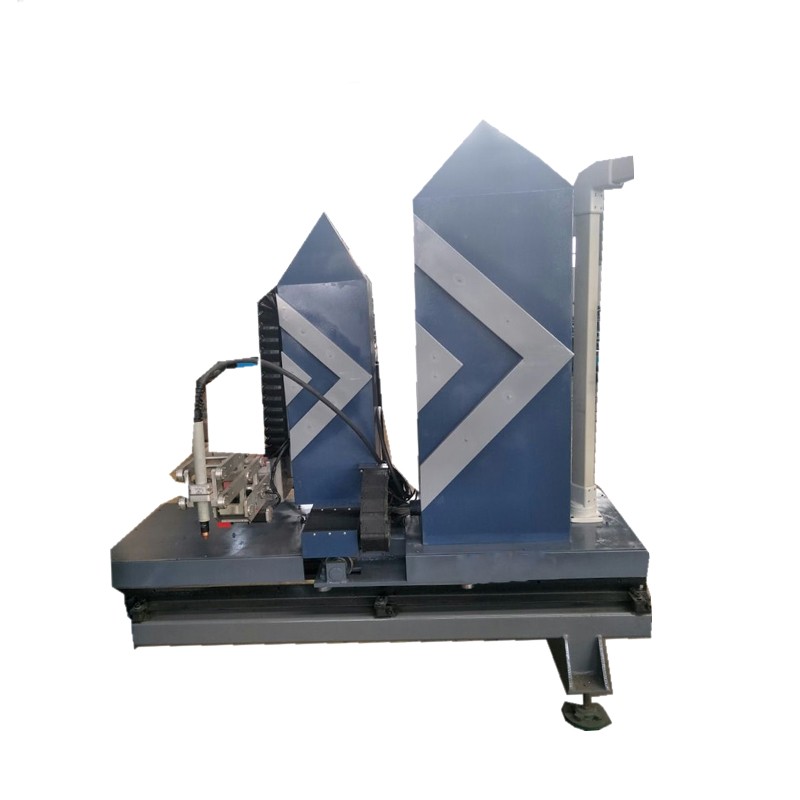

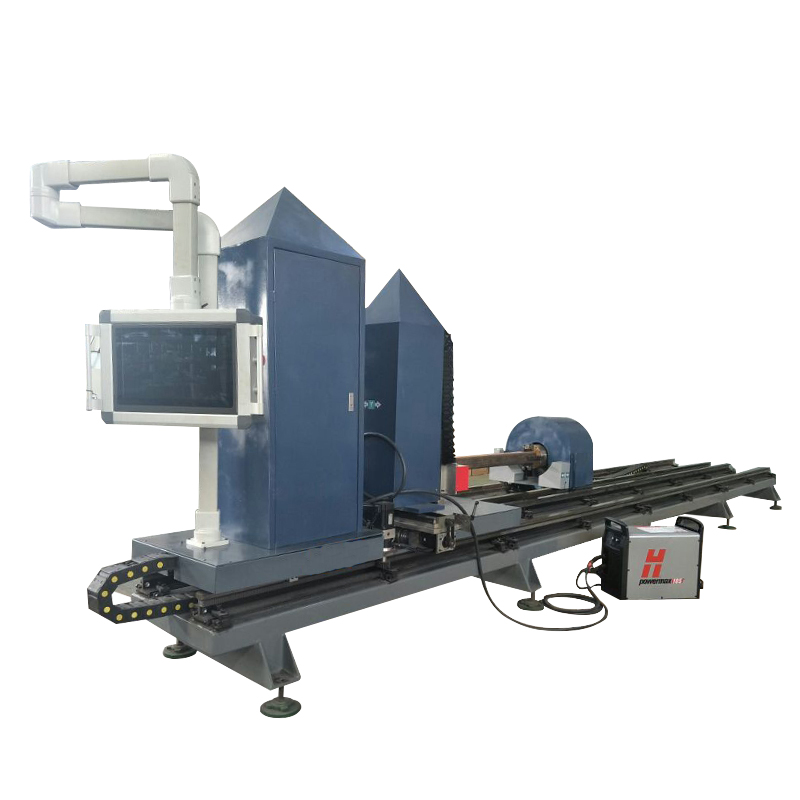

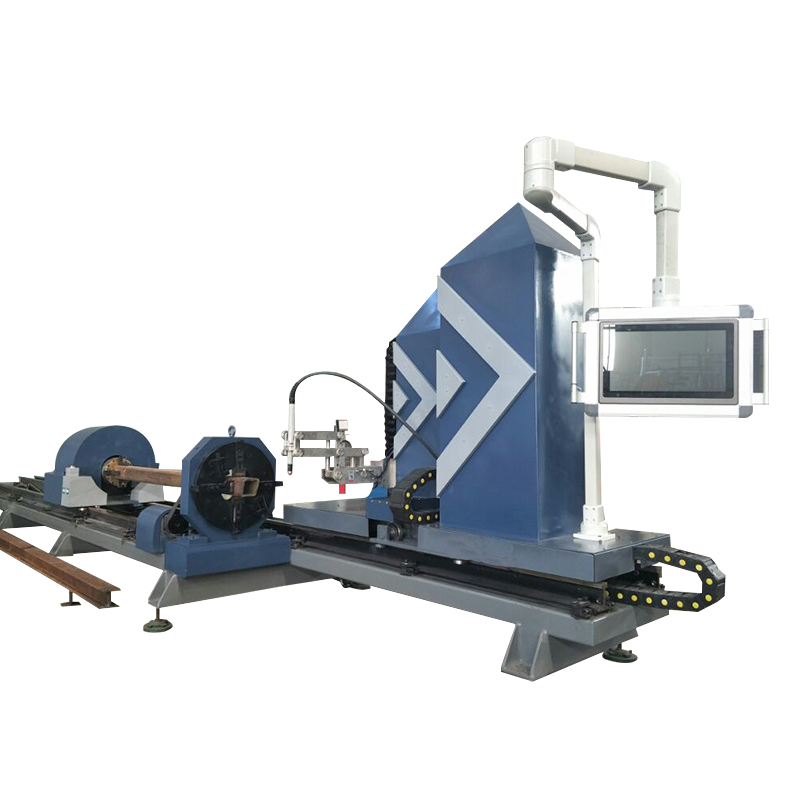

GC-8P Automatic beveling torch 8 axis metal cnc plasma tube cutting machine for Square and circular pipe
8 axis plasma (1).jpg

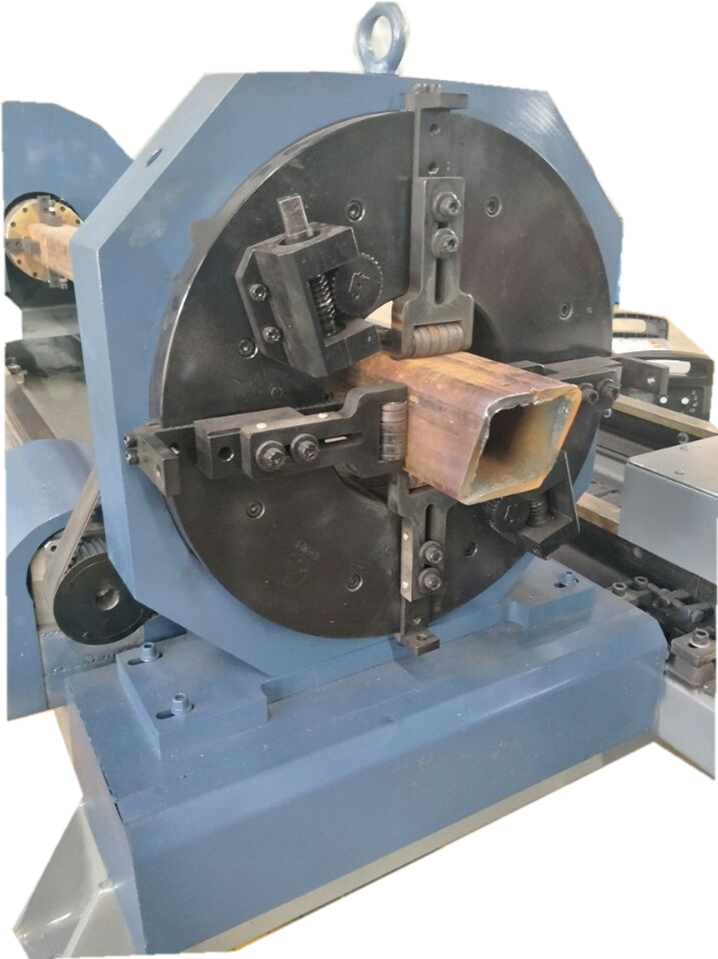

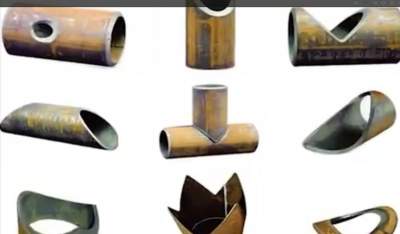

1.Cut shape :Round pipe , Square pipe , Rectangular pipe , H beam ,I beam , U channel , Angle channel ect
2.Cutting method :plasma /flame /plasma and flame ,it depend on the cutting thickness
3.Range :Round pipe 50-800mm
Square pipe/ rectangular pipe /H beam / I beam /U channel /Angle 40-400mm
Length :6m/9m/12m , it can be customized
4.Function :cutting and beveling
5.Cutting welding can be up to AWS .
8 axis plasma (2).jpg

Plasma Application of Automatic beveling torch 8 axis metal cnc plasma tube cutting machine for Square and circular pipe
1, The Frame series 8 axis CNC pipe profile cutting machine is in the form of eight axis linkage, which has high precision and excellent molding, and can greatly improve the cutting efficiency.
2, The configuration of AUTOCAD CNC system, cutting through the application of 3D space, can realize multiple, tapered, rectangular, oval tube and other special shaped pipe cutting process requirements, humanized design, simple operation, check by computer can visually understand the cutting process and precision.
3, Application: especially suitable for steel structure, shipbuilding, marine engineering, elevator industry, building curtain wall, bridge tower and construction machinery and other industries.
8 axis plasma (1).png

Model	8 axis pipe square tube CNC cutting machine
Square tube /Rectangular tube	Width 50-400mm ,Effective cutting 12m
Round pipe	Diameter 50-600mm ,Effective cutting 12m
Cutting method	Plasma+flame
Plasma power	Hypertherm 125A Plasma power
Plasma cutting thickness	1-23mm
Plasma bevel thickness	6-17mm
Flame cutting thickness	6-60mm
Flame bevel thickness	6-40mm
A axis Bevel angle	+-60 degree
B axis Bevel angle	+-55 degree
Control system	Kasry control system
Computer	Taiwan Advantech Industrial Computer
Driving motor	Japanese Panasonic Servo motor with reducer
Software	KASRY Pipe Nest software
Load	8t
Weight and size
Size	(Length widthheight) 1750022002100mm
Weight	7t
Shipping	40ft container
Working condition
Working pressure of compressed gas	Above 0.7mpa
Require gas flow of plasma	4500L/H
Working environment	Ventilation ,no concussion
The acceptable temperature around	-20℃ -50℃
Voltage	Machine :220/380V ,50/60HZ
Power wattage	5KW
Types of gas	Plasma :Air , Flame :Oxygen+Acetylene /propane

Features:
Plasma cutting machine has been widely used for outer frame processing of electro-mechanical products advertising signs ,decoration , garden iron art , vehicle manufacturing ,ship building , electric appliances metal plate material cutting and other industries.

Application:
Application materials : stainless steel , mild steel , brass , copper , aluminum alloy , metal sheet , spring steel , gold ,sliver etc.
Application industry : Sheet metal , Kitchenware , components , decorations industry.
