CNC Router

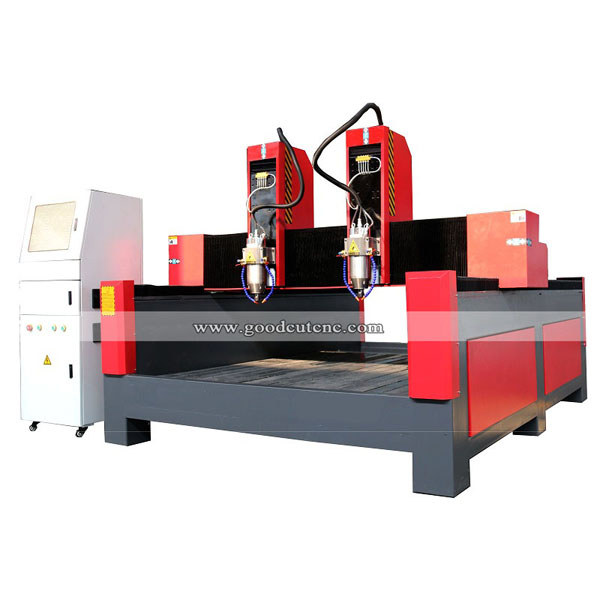

  • GC1625S-2H 1625 Stone CNC Router Machine with Double Heads for Engraving Granite Marble
GC1625S-2H 1625 Stone CNC Router Machine with Double Heads for Engraving Granite Marble

GC1625S-2H 1625 Stone CNC Router Machine with Double Heads for Engraving Granite Marble

  • Sunk type T-slot table with PVC table
  • Double heads
  • Heavy duty frame
  • 5.5kw HQD spindle
  • Product description: 1600*2500mm working size, other size can be customized. Double spindels. DSP/Mach 3/Weihong control system. Spray water cooling system
  • INQUIRY   EMAIL

GC1625S-2H Stone CNC Router Machine with Double Heads for Engraving Granite Marble

Detailed Images:






1. 5.5KW water cooling spindle with water spray cooling system

2. Advanced DSP control handle, control automatically processing multiple levels 3D. To carry out rapid, smooth 3D processing, carving or cutting. Offline operation can be realized.

3.The water proof and dust proof system for X Y Zaxis.

4. T type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.

5. The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it powerful.







Parameter:

Items
Parameters
Working area(mm)
1600*2500*300mm
Table Structure
1.5 mm stainless steel T-slot table
Transmission system
X,Y axis Gear Rack from Taiwan,z axis Ballscrew from Taiwan but with German technology
Lead rail system
Linear round guide rail
Spindle power
5.5 kw Water-cooling ,3.175/4/6/12.7mm
spindle speed
0-24000 rpm
Motor
stepper(Panasonic/Yaskawa optional)
Drive
YAKO 2811
Dust collector system
For your option
Inverter
7.5kw Fuling inverter
Software environmant
Windows 98/2000/XP
Control System
DSP A11
Compatible file formats
G code; *.u00 ; *.mmg ; *.plt .
Compatible CAD/CAM Softwares
Ucancam V8 / Type3 / Artcam /
Working Voltage
AC380V,3ph, 50Hz
Precision
0.005mm
Max speed
26.0m/min
Max engraving speed
18.0m/min
Max feeding height
200mm
Work-holding devices
by fixture
Interface type
USB
Warranty guarantee
One-year after-sale services



Main Features

1.T type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.

2. The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.

3. The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.

4. High-performance driven motor to ensure that the machines high speed and accuracy.

5. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

6. Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes

7. Easy to use DSP controller works with all industry standard CAD/CAM software

8. High grade Hiwin square rail

9. XY axis German helical rack and pinion
Z axis high precision TBI ball screw

10. 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes (Special sizes available upon request.)

11. 1 spindle, 2 spindles or 3 spindles available upon request.



Product Application

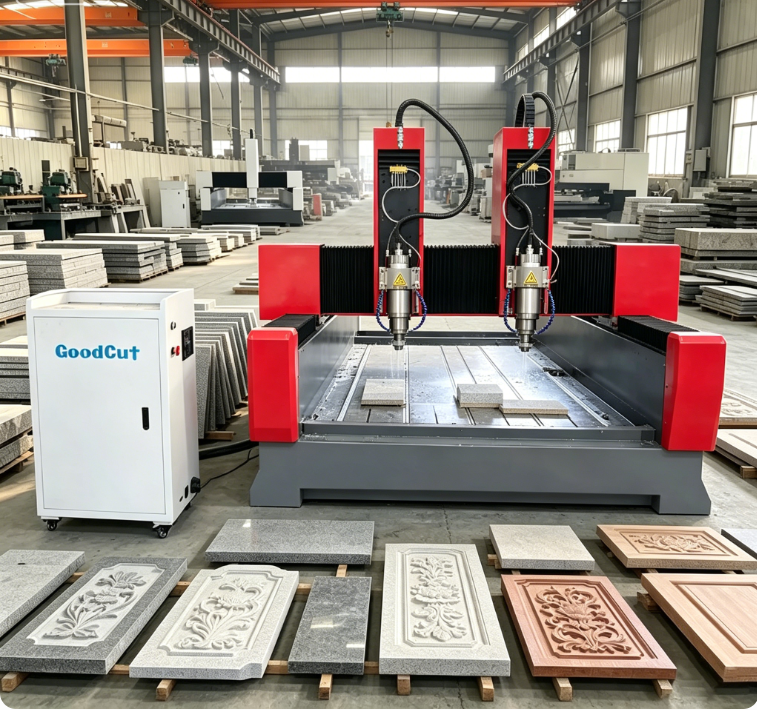

1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.

2. Such as granite stone can be layered engraving to 3mm.

3. Marble, bluestone can be engraving to 3mm on time.

4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
