CNC Router

  • GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade
  • GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade
  • GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade
  • GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade
  • GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade
  • GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade
GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade

GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Saw Blade

  • 5.5kw HQD water cooled spindle
  • T-slot table with PVC
  • DSP control system
  • Fuling brand Inverter
  • Product description: Stone cnc router with saw, high speed cutting Working area: 2500*1300mm Spindle: 5.5kw HQD water cooled spindle Control system: DSP/ Mach3 Weihong NCstudio can be option
  • INQUIRY   EMAIL

GC1325S-S High Speed Marble Cutting Carving Stone Cnc Router Machine With Blade



Stone cnc router with saw, high speed cutting


Features of High Speed Marble Cutting Carving Stone Cnc Router Machine With Blade


1. This stone cnc router machine designed with saw, high speed cutting . Machine body design with high strength and double driving motors of Y axis, which have more
reasonable design, fast processing speed, easy-operated maintenance and low fault rate.

2. Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.

3. Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.

4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.

5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.

6. Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.


Parameters of High Speed Marble Cutting Carving Stone Cnc Router Machine With Blade

1

Working area

2500*1300*300mm

2

Spindle

5.5KW HQD water cooling spindle

3

Machine structure

8mm thickness welded steel tube,cast iron vertical shafts and steel gantry

4

Spindle speed

0-24000rpm/min

5

Guide rail

Taiwan Hiwin linear square guide rail

6

Driving method

X,Y axis by helical gear rack,Z axis by TBI ball screw

7

Motors and drivers

Stepper motor450B, Leadshine drivers MA860H

8

Control system

 DSP/Ncstudio/Mach3

9

Inverter

Fuling inverter

10

Max.idling speed

25m/min

11

Max.working speed

12m/min

12

Machine structure

8mm thickness Heavy duty thicker welded steel tube

13

Working voltage

220-380V/50HZ

14

Control cabinet

Independent

15

Rotary device

yes

Parts images

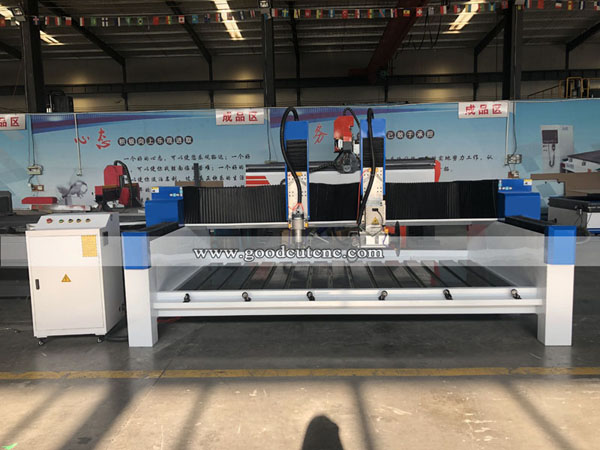

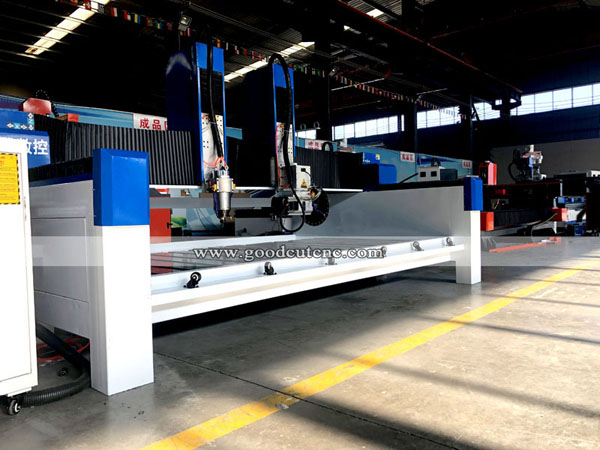

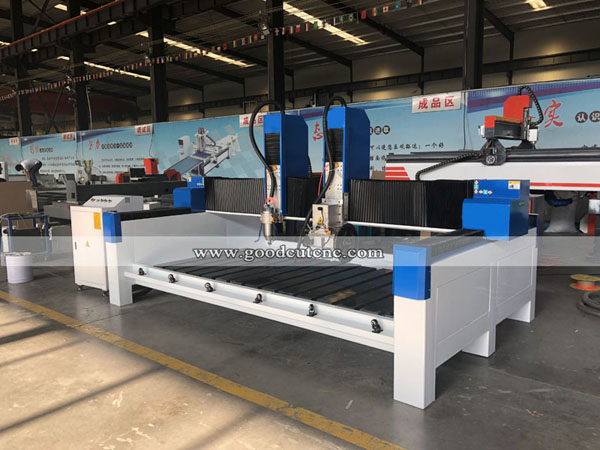

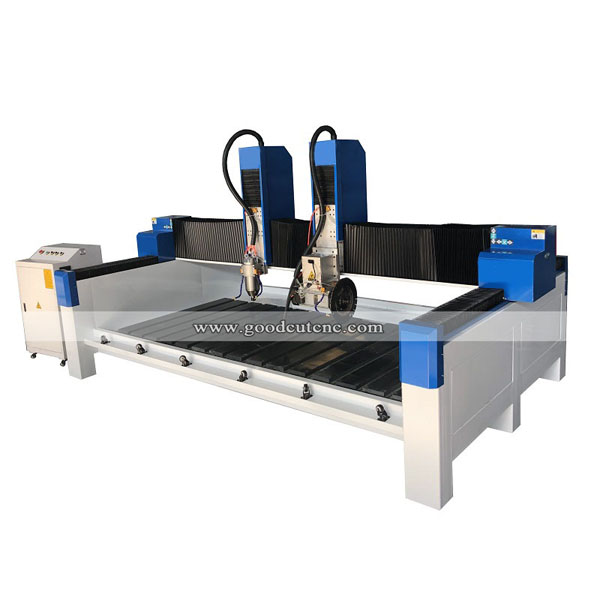

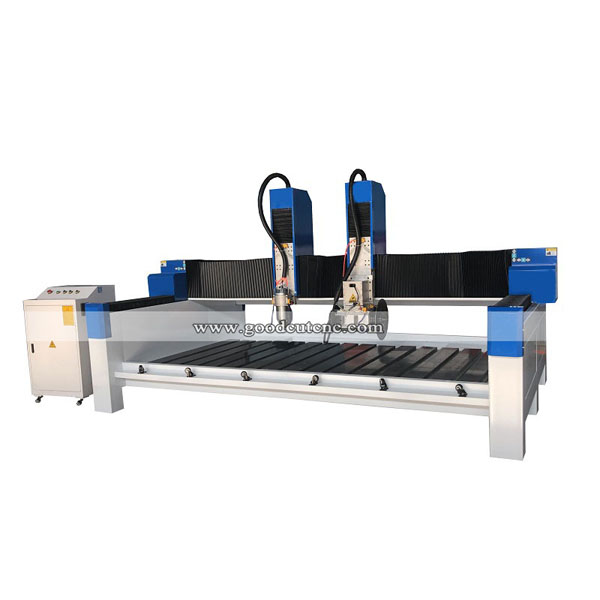

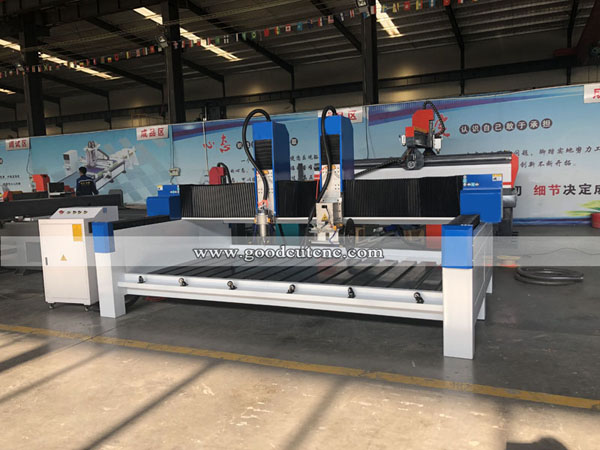

This stone cnc router machine designed with saw, high speed cutting



5.5kw HQD water cooled spindle



Dust protector and waterproof design ensure stable transmission.



Independent control cabinet



Heavy duty thicker and bigger welded steel tube frame--more stronger



Applications of High Speed Marble Cutting Carving Stone Cnc Router Machine With Blade


1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.

2. Such as granite stone can be layered engraving to 3mm.

3. Marble, bluestone can be engraving to 3mm on time.

4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
