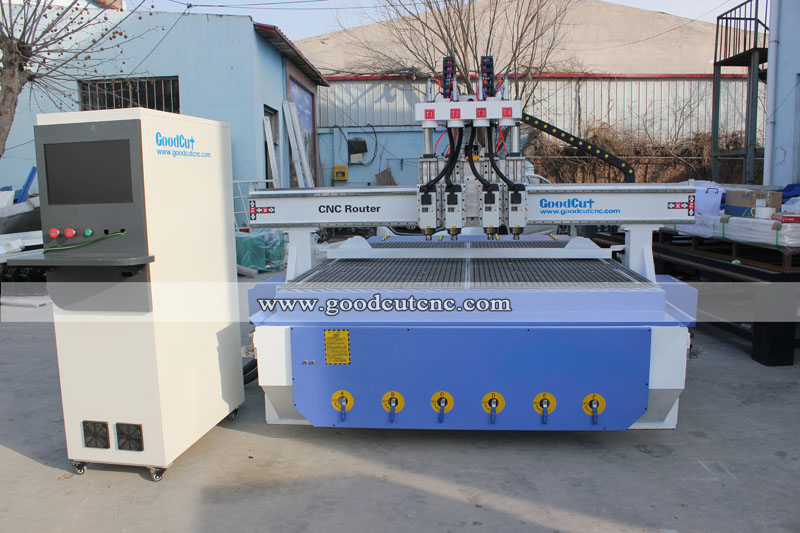

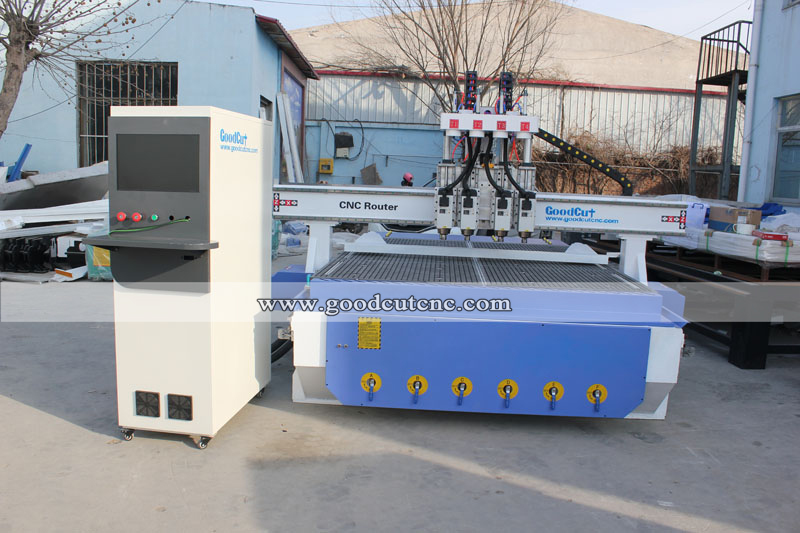

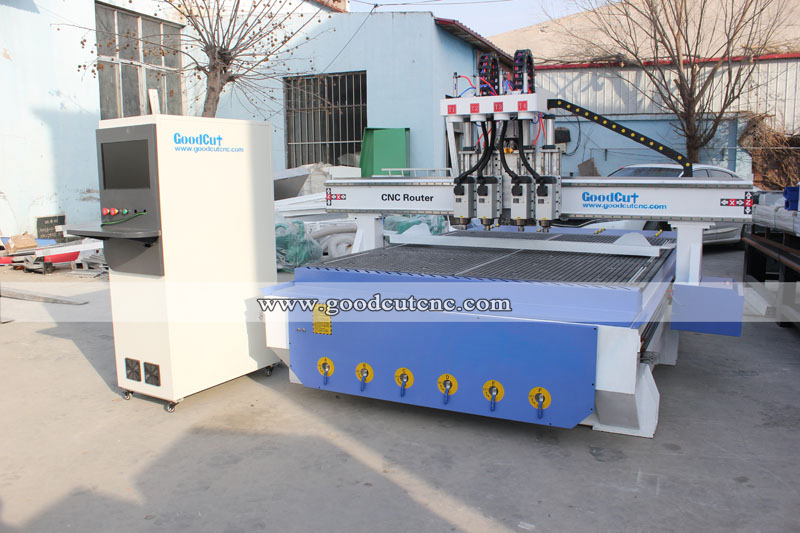

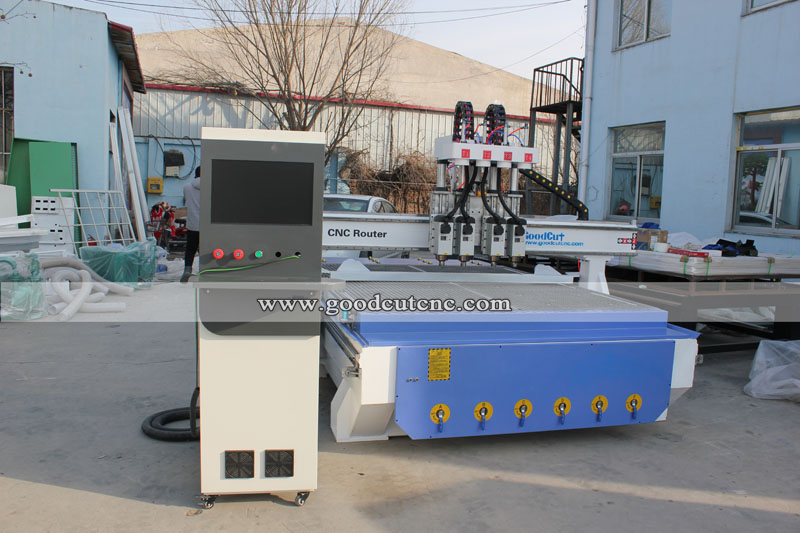

GC1325-P4 Multi Pneumatic Spindle Wood CNC Router for Cutting Engraving Drilling Furniture

  • Multi pneumatic spindle
  • Automatic tool change
  • Vacuum aborbed table
  • HQD 4.5kw/6kw air cooling spindle
  • Product description: Multi 2/3/4 pneumatic process spindles. Automatic tool change. Multi spindle has different function, can make different job
  • INQUIRY   EMAIL

GC1325-P4 Multi Pneumatic Spindle Wood CNC Router for Cutting Engraving Drilling Furniture

Parameter:

Description

Parameters

X,Y,Z Working Area

1300*2500*200mm

Table Surface

Vacuum with T-slot Table

Frame

Heavy duty frame, tempering processing

X, Y Structure

Taiwan HIWIN 25mm linear guide, helical rack

Z Structure

Taiwan HIWIN Rail Linear guide and TBI Ball Screw

Max. Power Consumption

(Without Spindle)2.5kw~3kw

Spindle Power

4.5kw air cooling spindles (optiona 6kw )

Spindle Speed

0-18000RPM

Drive Motors

Leadshine servo motor

Japanese YASKAWA servo motor

Reducer

Japanese Shimpo reducer

Working Voltage

AC380V/50-60Hz,3PH (Option: 220V/1phase)

Command Language

G Code

Auxiliary parts

Roller system

Operating System

LNC control system

Weihong controller/Syntec controller for optional

Vacuum table

7.5kw vacuum table

Inverter

7.5kw Fuling inverter

Computer Interface

USB

X,Y,Z repositioning Accuracy

±0.02mm

X,Y Resolution

±0.01mm

Software Compatibility

Type3/ QingdaoHaiXun, (Option: Artcam Software)

Lubrication system

Auto

Tool sensor

Auto

Dust collector

3kw double packages dust collector

Optional parts

9kw HQD ATC spindle,

Boring head with blade



Feature:

1. Function:A multifunctional model CNC machining center, suitable for routing,relief, drilling, cutting, edge chamfering, etc.

2. Construction:Whole machine table adopts high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

3. Spare parts: Features world top class mechanical and electronic components, e.g. German rack and pinion, Taiwan rail and ball screw, German reducer, French Shneider electrical components, which guarantee stable performance and high quality.

4. Precision: Excellent spare parts, accurate precision detection instrument, which make sure the machine with perfect location and working precision.

5. High-speed: Adopt reducer direct design, high torque, high-energy, two Y axis motors, runs smoothly with high efficiency.

6. Table: Patented Double Layers of Multi-point Vacuum Absorbable Working Table, Large Suction by Multi-slot. Instant Adsorption, Instant Release, Strongly



Detailed Parts:

1. LNC controller, with handle, easy to operate.


2. 4 pcs 6kw air cooling spindle, 4 dofferent process.


3. Leadshine 750w servo motor and driver


4. Fuling inverter


5. Positioning cylinder


6. Automatic oli lubrication


7. Wheels to auxiliary loading and unloading


Applictions:

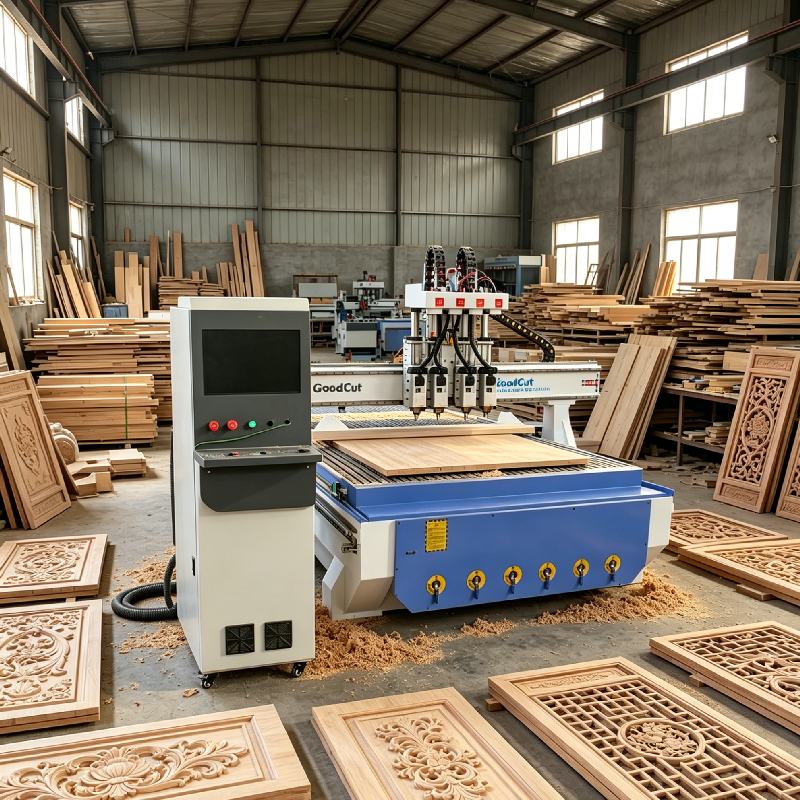

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.
