  • GoodCut Einscan HX Hybrid Blue Laser & LED Light Source  Handheld 3D Scanner
GoodCut Einscan HX Hybrid Blue Laser & LED Light Source  Handheld 3D Scanner

GoodCut Einscan HX Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

  • Scan Accuracy Up to 0.04mm
  • Scan Speed 1,200,000 points/s 20FPS
  • Hybrid Blue Laser & LED Light
  • Full Color
  • Product description: Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sour
  • INQUIRY   EMAIL

GoodCut Einscan HX Hybrid Blue Laser & LED Light Source  Handheld 3D Scanner


Einscan HX

Scan Mode

Rapid Scan

Laser Scan

Scan Accuracy

Up to 0.05mm

Up to 0.04mm

Volumetric Accuracy*

0.05+0.1mm/m

0.04+0.06mm/m

Scan Speed

1,200,000 points/s
20FPS

480,000 points/s

55FPS

Camera Frame Rate

55FPS

55FPS

Align Mode

Feature AlignmentMarkers AlignmentTexture AlignmentHybrid Alignment

Markers Alignment

Working Distance

470mm

470mm

Depth of Field

200mm-700mm

350mm-610mm

Max FOV

420mm*440mm

380mm*400mm

Point Distance

0.25mm-3mm

0.05mm-3mm

Light Source

Blue LED

7 Blue Laser Crosses

Safety

Eye-safe

Class IEye-safe

Built-in Color Camera

Yes

Texture Scan

Yes

No



Connection Standard

USB3.0

Output Formats

OBJ;STL;ASC;PLY;P3;3MF

Dimensions

108mmx110mmx237mm

Weight

710g

Operating Temperature Range

0-40℃

Operating Humidity Range

10-90%

Certifications

CEFCCROHSWEEEKC

Recommended Configuration

OSWin1064 bitGraphics cardNVIDIA GTX1080 and higherVideo memory≥4GProcessorI7-8700Memory≥32GB

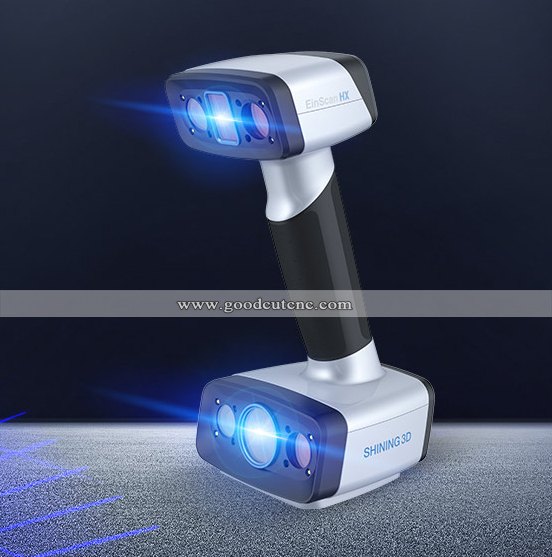

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

Hybrid Blue Laser & LED Light

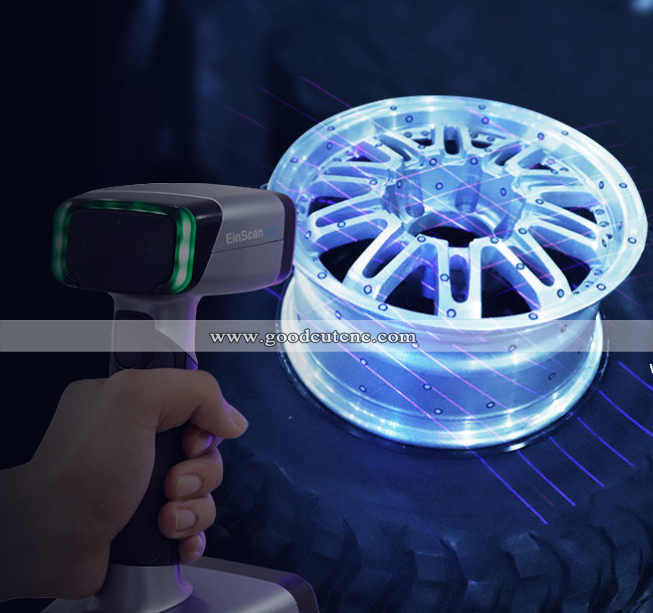

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Reliable Results

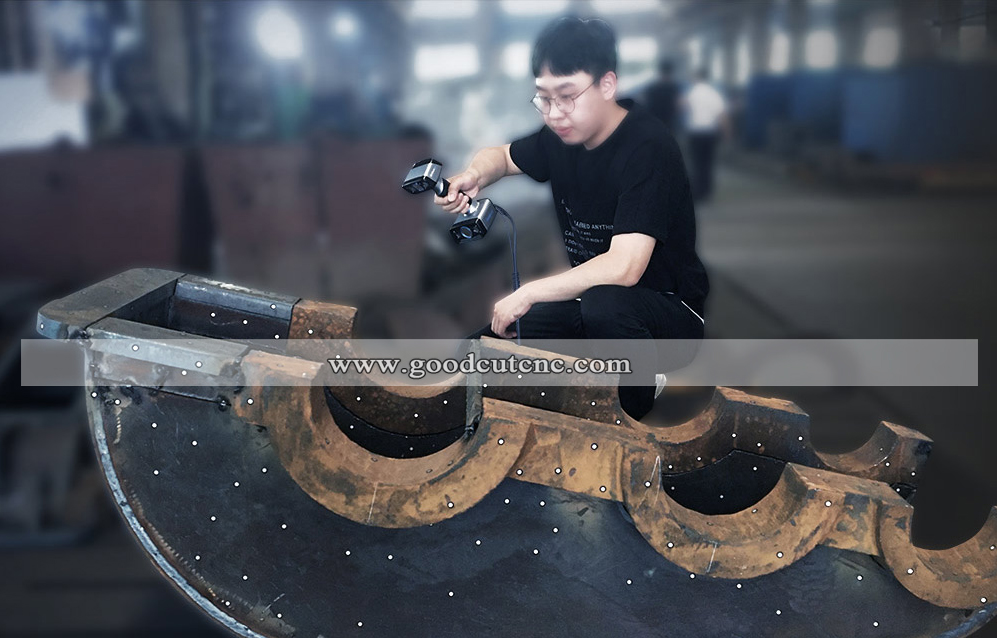

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.
Minimum point distance 0.05 mm
Accuracy up to 0.04 mm under Laser Scan


High Efficiency
Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.

Portable & Easy Operation
EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.

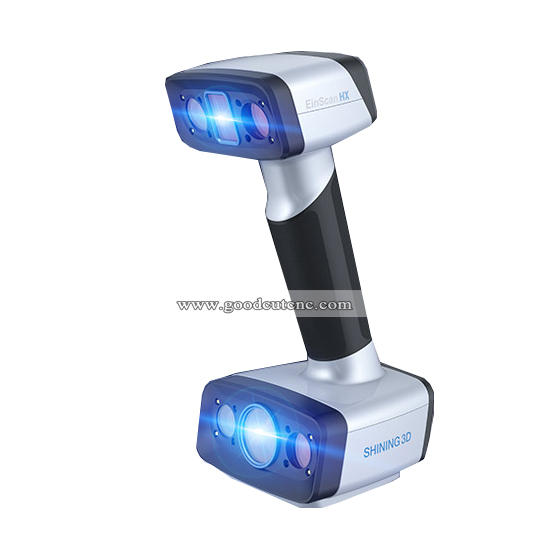

Ergonomic Design
Weight:710g



Full Color
With built-in color camera, it supports
full color texture capturing and tracking by texture.

EinScan HX Reverse Engineering Design Bundle
A hybrid light source 3D scanner with reverse engineering and CAD capabilities.
