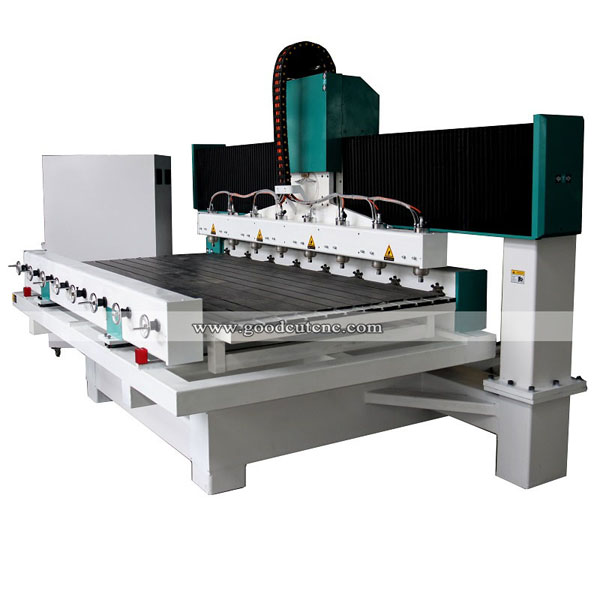

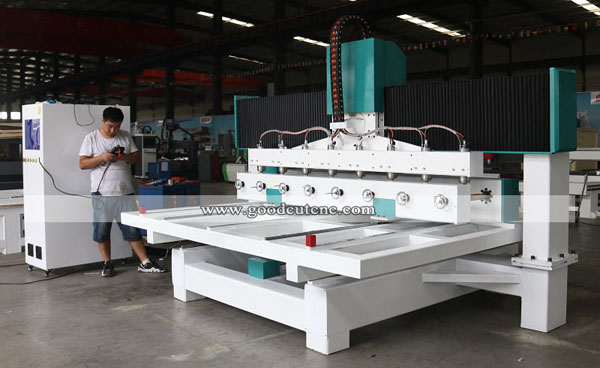

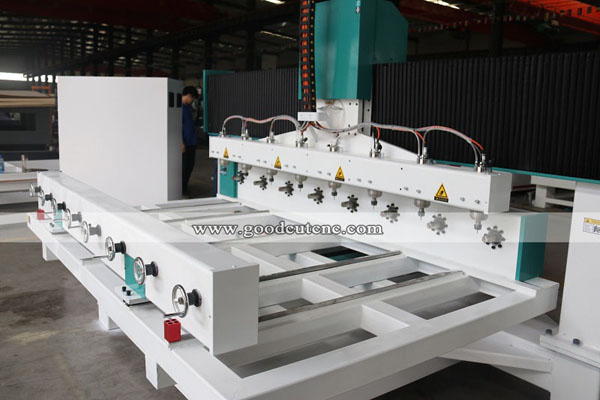

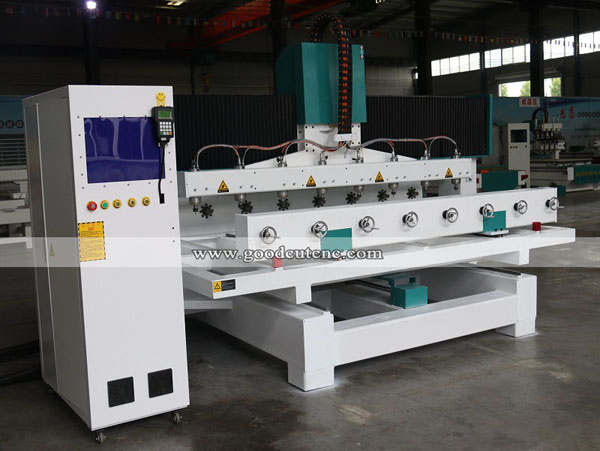

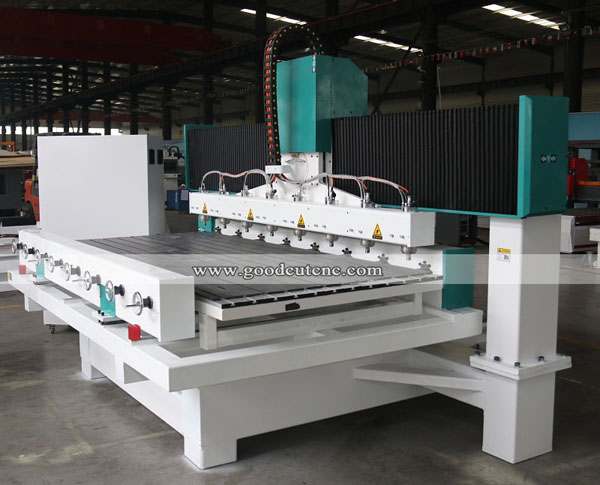

GC1530-8R Multi Heads 8 Spindle 8 Rotary Axis Cnc Router Machine For 3D Furniture Legs

  • Model: GC1325-R
  • Spindle: 3.2kw 4.5kw 5.5kw, 6kw HQD/HSD water/air cooled spindle
  • Motor and Driver: Leadshine/ Taiwan Delta/ Japan Yaskawa
  • Control system: DSP/ NC studio/ Mach3
  • Product description: This machine is widely used for buddha,table legs,etc engraving .The machine structure of strong, large cutting force, high speed,suitable for processing large quantities of material.
  • INQUIRY   EMAIL

Multi Heads 8 Spindle 8 Rotary Axis Cnc Router Machine With 3D Furniture Legs




1. Working length: 1200mm, Max diameter 250mm

2. Industrial Heavy Duty Cast steel Structure.

Solid gantry, well structure of lathe bed, guarantee the machine stability, stable and high speed, high accuracy.

3. High Efficient German Rack gear transmission; X,Y axis Rack and pinion, Z axis German Ball Screw

4. Taiwan Hiwin square guide rail

5. Servo motor and driver System, guarantee working precision, have no loose step situation

6. 8*2.2KW Inverter

7. 8*2.2kw water cooling spindle, can work at the same time , so higher efficiency

8. Table moving making the machine can work on both flat and rotary shapes

9. RichAuto 4th Axis A18 DSP handheld Controlling System with USB interface

10. Software:

Along the cnc drouter machine with carved software,advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Powermill, UCANCAM, Type3, Artcam,).


Machine model

GC1530-8R cnc milling machine 4 axis

XY working area

1200*250 mm

Z working area

300 mm

Table size

1600*3100 mm

Spindle

8*2.2KW water cooling spindle

Speed of spindle

0-24000 rpm/min

Max. speed

60 m/min

Max. working speed

30 m/min

Working delicacy

0.05 mm

Table

movable table

Command

G code*u00* mmg*plt

Surrounding for software

Windows98/2000/xp/win7

power

AC380 3 phases

Work mode

Servo motor

Structure

Steel structure, square orbit, ball screw

Control software

RichAuto 4 axis A18 DSP handheld





Application:

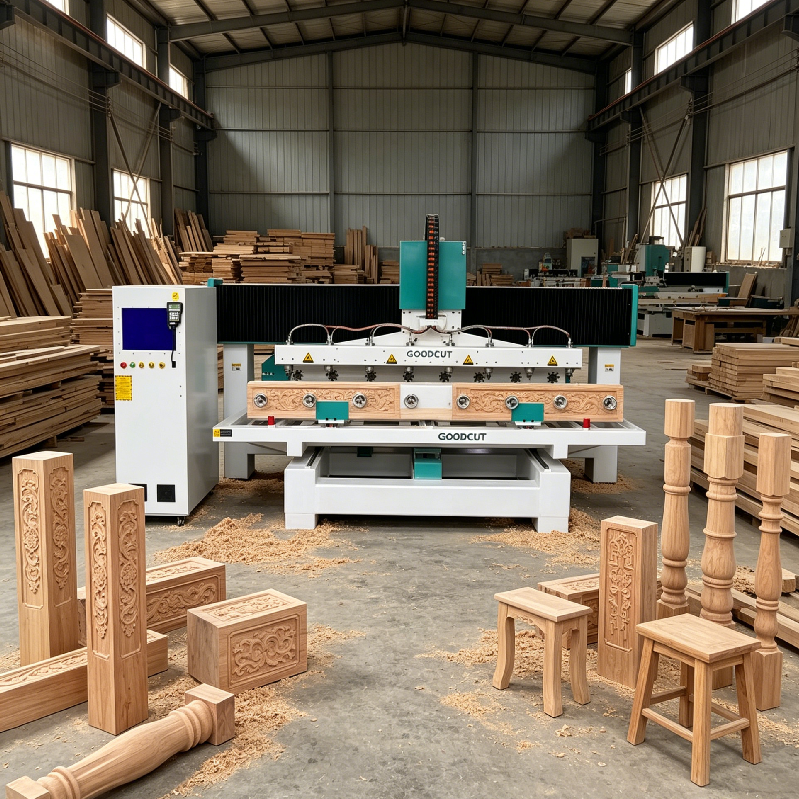

Besides working on flat materials, the machine is widely used in carving cubic and column work piece such as wooden table legs, the human body, figure of Buddha, the goddess of mercy, sculpture, handicrafts, stair handrail, cylinder Musical Instruments.
