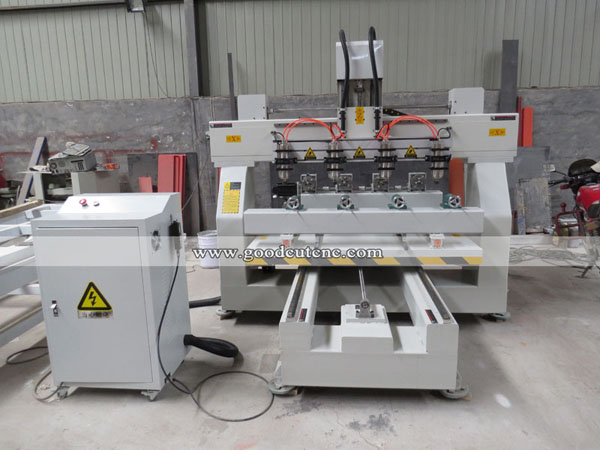

GC1225-4R 4 Axis Rotary 4 Heads Four Spindle Price Router CNC 3d for Chair Table Leg

GC1225-4R 4 Axis Rotary 4 Heads Four Spindle Price Router CNC 3d for Chair Table Leg

3 axis all ball screw transmission
table moving, gantry fixed
high precision
high speed 3d carving
Product description: This item is very suitable for furniture bulk production such as sofa legs,sofa head, sofa handrails, wood stripes, table legs, stair handrails. multi spindles can work at the same time, also can work
INQUIRY EMAIL

Performance Features
1. Working length up to 1200 mm , suitable for mostly material working need
2. Cast steel machine structure to make sure the machine working stability
3. 2.2KW water cooling spindle , guarantee the engraving power
4. 4 spindles can work at the same time with high working efficiency .
5. Adopt imported linear square guide,ensure higher positioning accuracy of cnc machinery rotary .
6. Handle controlling, not occupying computer resource, one computer can control several cnc machinery rotary.

Machine model	GC1225-4R
XY working area	1200*250 mm
Z working area	300 mm
Table size	1600*3100 mm
Spindle	4*2.2KW water cooling spindle
Speed of spindle	0-24000 rpm/min
Max. speed	60 m/min
Max. working speed	30 m/min
Working delicacy	0.05 mm
Table	movable table
Command	G codeu00 mmg*plt
Surrounding for software	Windows98/2000/xp/win7
power	AC380 3 phases
Work mode	Servo motor
Structure	Steel structure, square orbit, ball screw
Control software	RichAuto 4 axis A18 DSP
