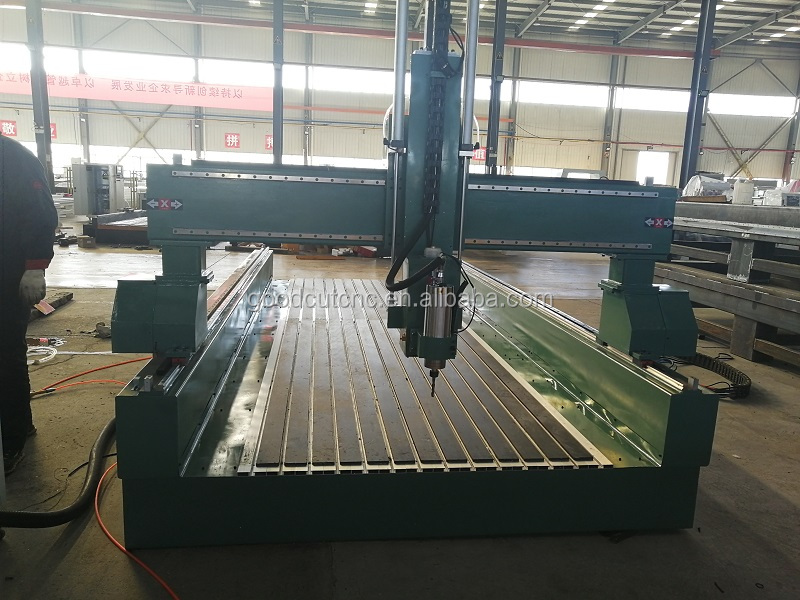

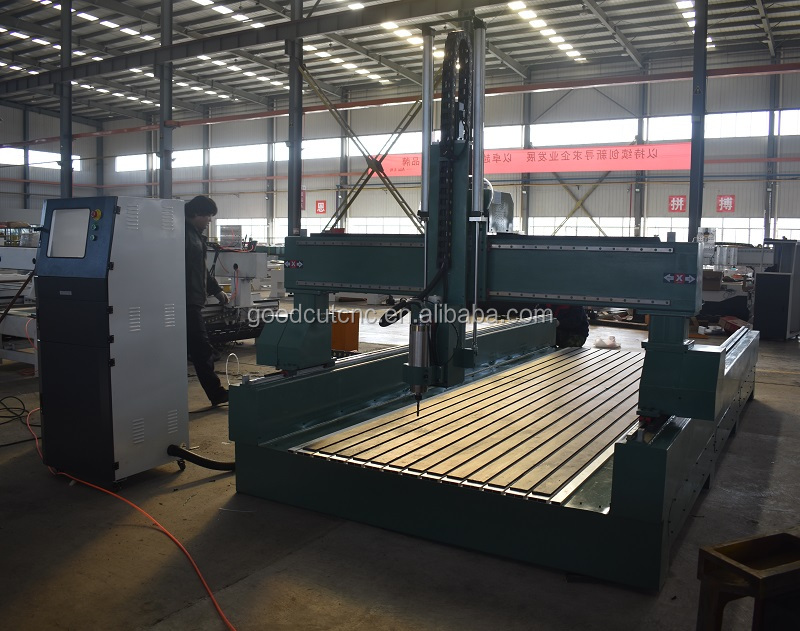

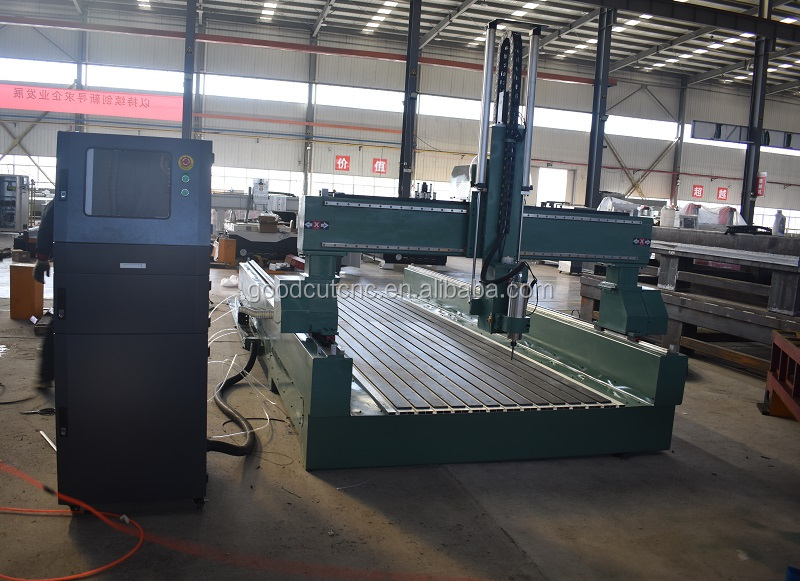

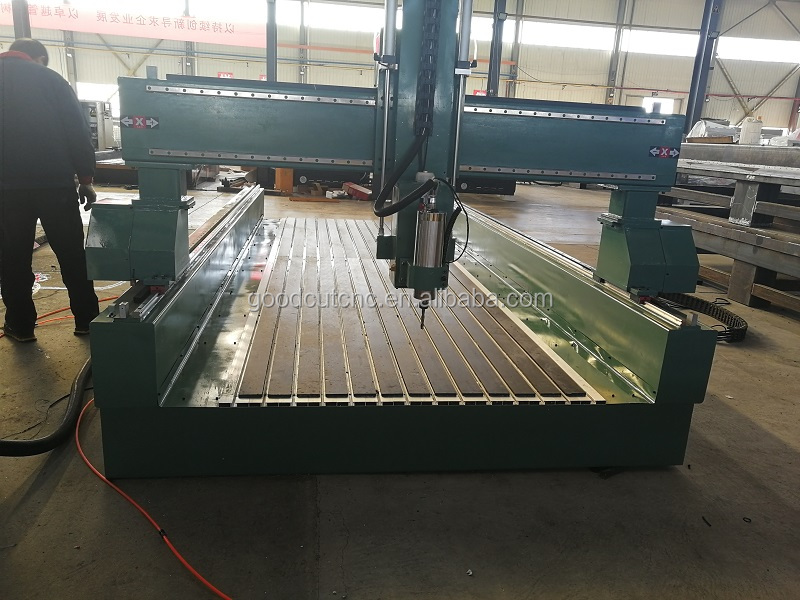

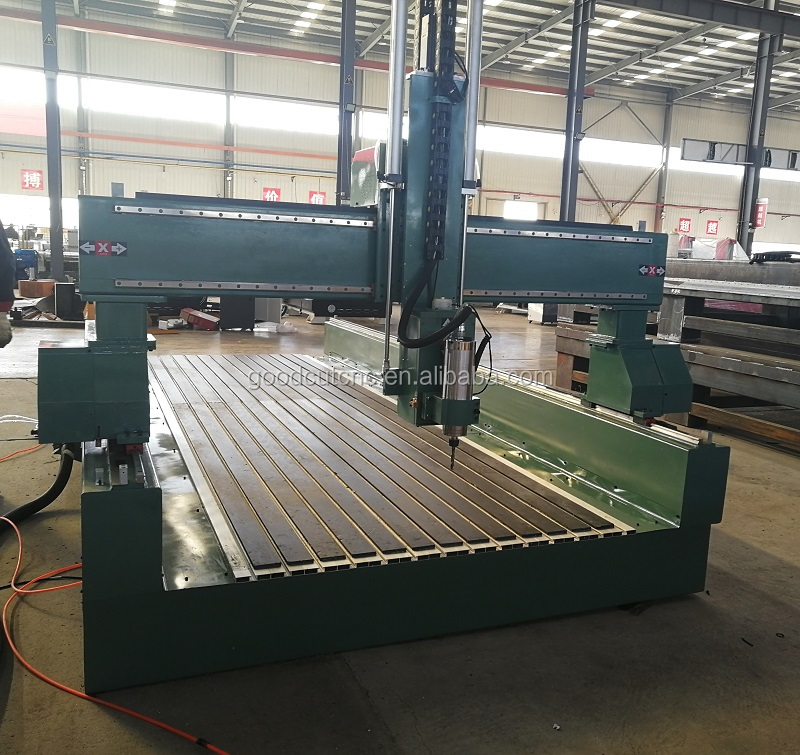

GoodCut 4 Axis 3d CNC Router Machine with Sawing Spindle for Engraving Foam

  • 4 axis swing spindle
  • Sunk type structure
  • High Z axis
  • Cervo motor and driver
  • Product description: Sunk type structure for high Z axis, more stable. 180 degree swing spindle for 3d engraving Mach 3 controller with handle Servo motor and driver
  • INQUIRY   EMAIL

GoodCut 4 Axis 3d CNC Router Machine with Sawing Spindle for Engraving Foam

Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x500 mm*±100°

2

Effective working area

1300x2500x500 mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

T-slot Table

6

Frame

Big Steel Tube Structure

7

Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

8

X,Z Structure

HIWIN #45  Linear guide

9

Max. Power Consumption

(Without Spindle) 5Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 4.5kw or 6kw or 9kw

13

Spindle Speed

0-18000RPM

14

Drive Motors

Japan 1.5KW YASKAWA servo

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System 21MA

18

Rotary device

Diameter300mm, length 2000mm

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER32 (20mm)

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

New type dust collection

1.5KW with two bags (equal the old type 4Kw )




Specification:

  • Effective working area :1300x2500x500mm or bigger, size is customized
  • Italy HSD brand air cooling spindle: 4.5kw, 6kw, 9kw
  • 4th axis can move ±100°
  • Taiwan DELTA inverter: 5.5kw or bigger
  • Japan YASKAWA servo driver 800w, 1.3kw 1.5KW
  • Taiwan SYNTEC control system 4 axis 21MA model
  • Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
  • Double Taiwan HIWIN #30 or 35 Linear guide for Y axis one side,total 4pcs #35 linear guide for Y axis.
  • X, Z axis Taiwan HIWIN #45 linear guide .
  • Taiwan TBI ball screw with high precision
  • Dust hood for axis,dust collect hood and pipe for dust collector
  • 2000mm floor with aluminum &PVC ,1300mm floor steel plate under angle
  • Rotary device:diameter 300mm, length 2000mm
  • New type dust collection with two bags
  • Heavy duty gantry and structure
  • Japan Shimpo reducer


Applicable materials:



Wood, EPS (Any kind of Foam) and non-metallic materials.

1. Mold industries:    sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship model,wooden model aviation and other wooden mould.

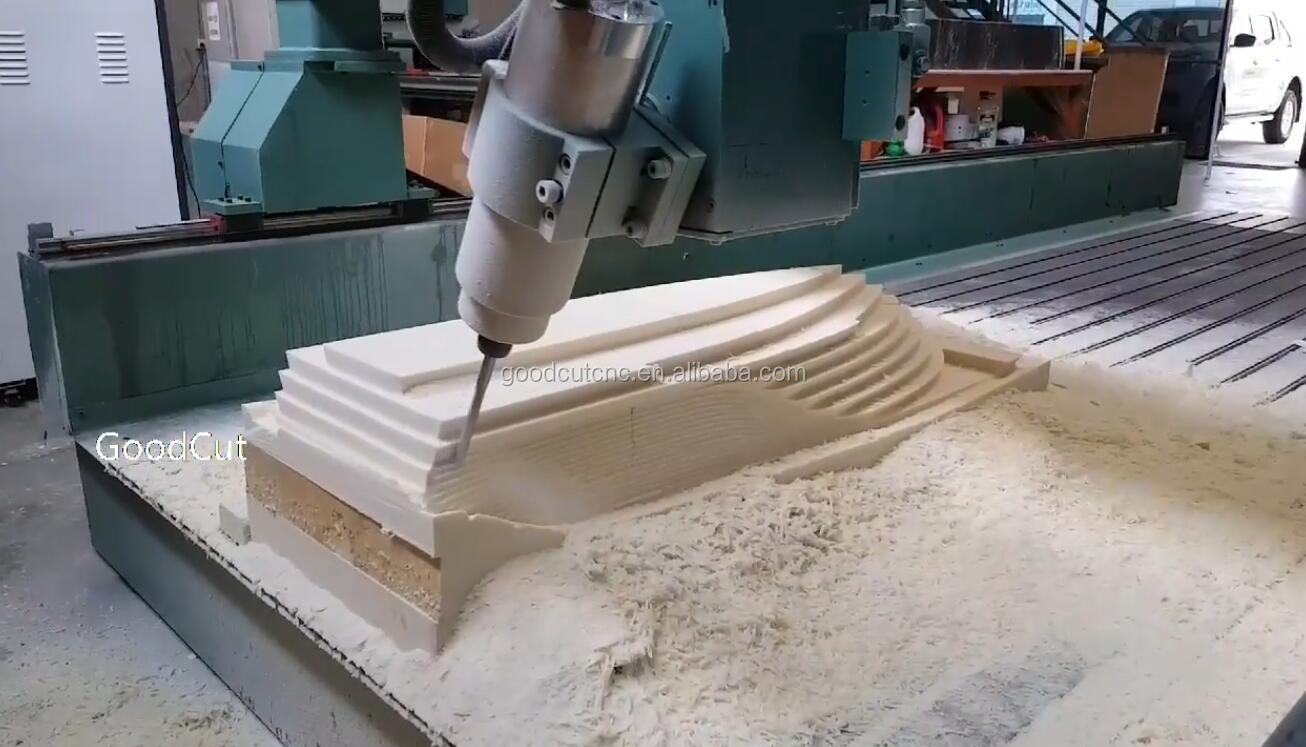

2.Foam industry: Can carve and cut on any kind of Foam (EPS) , do 2D and 3D dimension processing.

3. Three dimension: with 4 axises, Big diameter Rotary, can do any kind of 3D cylinder material and mould processing for advertisment industry , cloth and shoes industry
