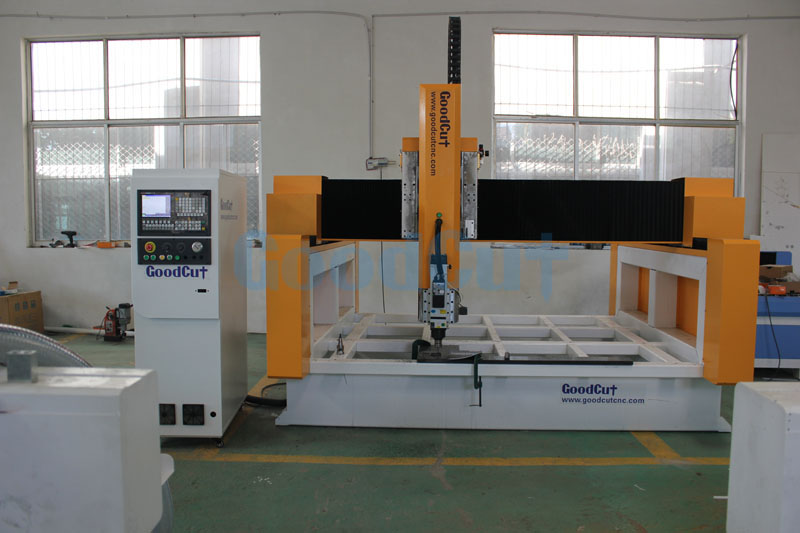

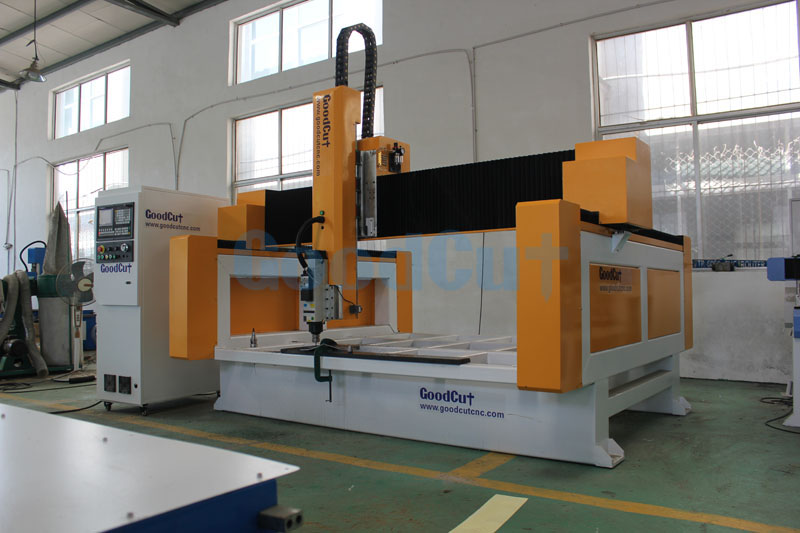

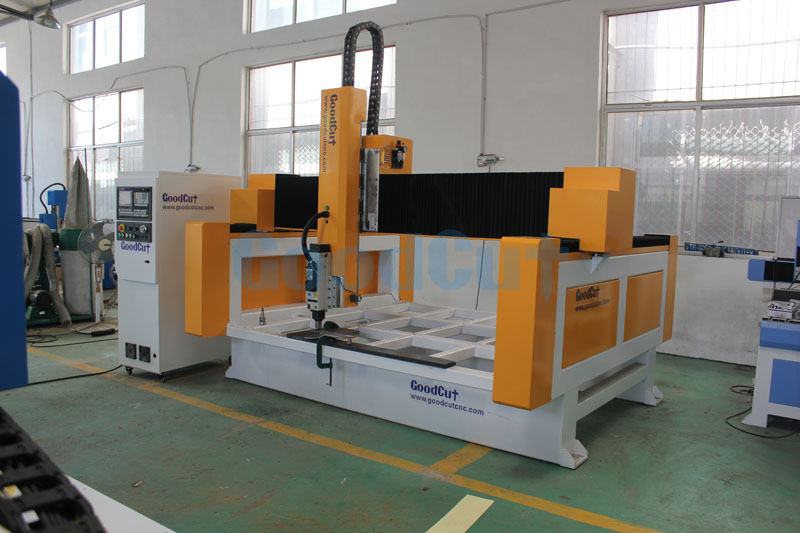

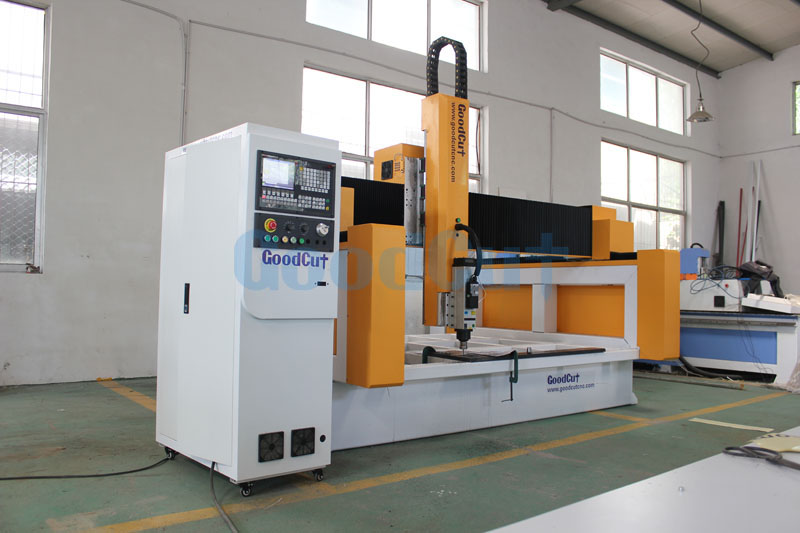

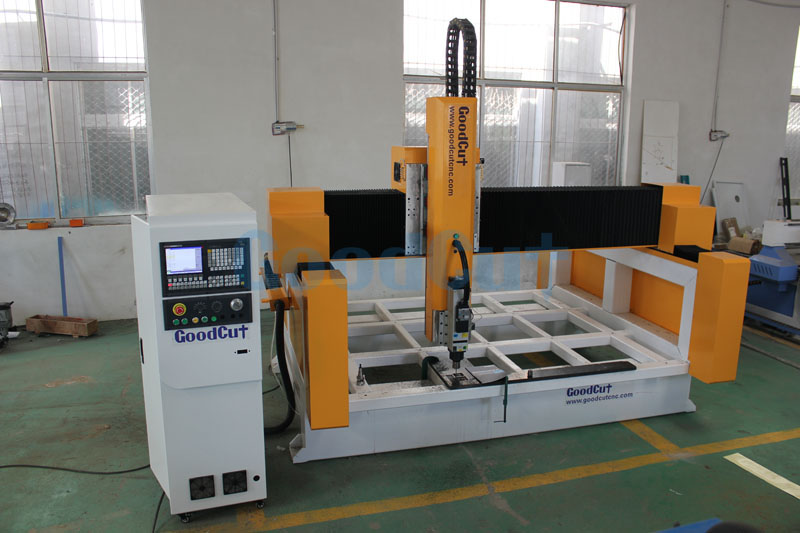

GC1325F 3 Axis 4 Axis 5 Axis EPS Wood Foam Mold Carving 3D CNC Router Engraving and Milling Machine

  • 1300*2500mm
  • 3 axis 4 axis 5 axis
  • Foam EPS Wood WPC Carving etc
  • Specs can be customized
  • Product description: 1300*2500mm 2000*3000mm 2000*4000mm working size, 3 axis 4 axis 5 axis,
  • INQUIRY   EMAIL

GC1325F 3 Axis 4 Axis 5 Axis EPS Wood Foam Mold Carving 3D CNC Router Engraving and Milling Machine


Features:

1. Lathe bed adopts strong welded steel tube to avoid distortion.

2. Spindle move 180 degree,you can make 2d 3d engraving on curved surface,arc-surface,bending surface,  larger dimension mould,statues,sculptures,cylinders...

3. 400mm-1000mm height Z axis to burden heavy and thick materials.

4. servo (stepper) motor and driver.

5. 4 axis control system.

6. Optional rotary device for cylinders,large statues,sculptures,complexity moulds processing.

7. Professional design and high quality machine parts provides this CNC machine with low break down rate.


Specifications:

Model
GC1325F
Working size

1300*2500*600mm

1500*3000*600mm

2000*3000*600mm

2000*3000*600mm

size can be customized

Structure
Whole steel welded
Control system
DSP/LNC/Syntec etc
Spindle
6kw/7.5Kw/9Kw etc
Spindle speed
0-18000rpm
Table Surface
T Slot Table
Driving system

Japan Yaskawa Servo System

Leadshine servo motor

Guide rail
Taiwan HIWIN
Inverter
Chinese Best/Fuling/ Delta
Z axis transmission
TBI Ball Screw Transmission
Collet
ER32/BT30/BT40
Rotary clamp
φ600X2500mm
Working Voltage
AC380 50HZ/60HZ 3 phase or AC220 50/60HZ single phase
Optional

Swing head with 180 degree

Rotary device

Package
Plywood
1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices


1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

Advantages:

1) Big steel tube structure, so the machine’s body is strong, reliable and durable. It is with large bearing capacity and long working life.

 2) Top-quality components, to make the machine hig-precision and high-efficiency. HSD spindle, Delta inverter, TBI ball screw,Yaskawa servo motors , Syntec control system and so on, which keep the machine in best condition even after working for many years.

 3) Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages. Stop Emergency Buttons , emergent shutdown during unexpected accidents and do no harm to human. Colorful machines’ appearances and high-quality paint make the machine beautiful.

 4) Easy and safe operation and low maintenance cost. To make you learn quickly how to operate safely the machine, free training in our factory will be offered. Less time and less money will be cost on the maintance because of the top quality of the machines.


1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices


Machine details:

#HQD ATC Air cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time.

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

#Original 850W YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.

All components adopt international famous brands.

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

#Controller

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

#Optional device

Rotary device: 360 angle rotate rotary device for cylinder materials

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

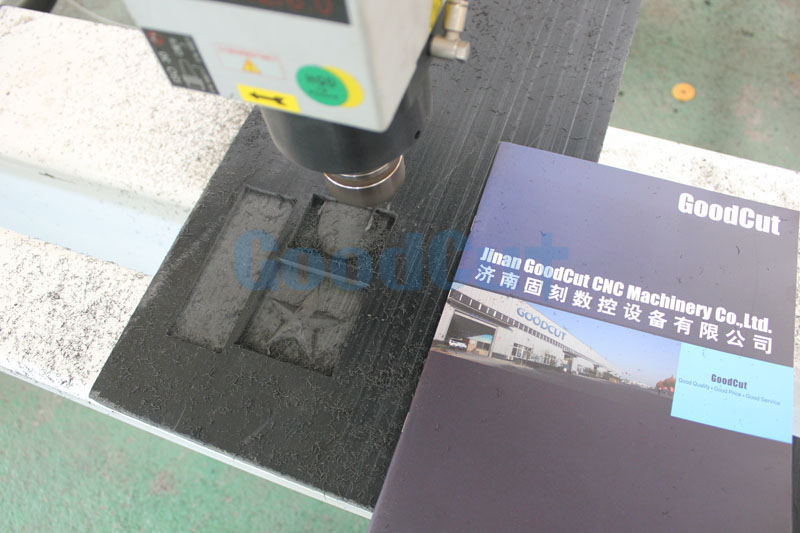

Applications:

wood, styrofoam (EPS), nonmetallic carbonation materials, density board, aluminum,copper,MDF, HDF, PVC, paraffin wax, gypsum,lamp,ceramic,etc.

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices

1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices1325 4 Axis EPS wood foam mold carving 3D cnc engraving and milling machine prices
