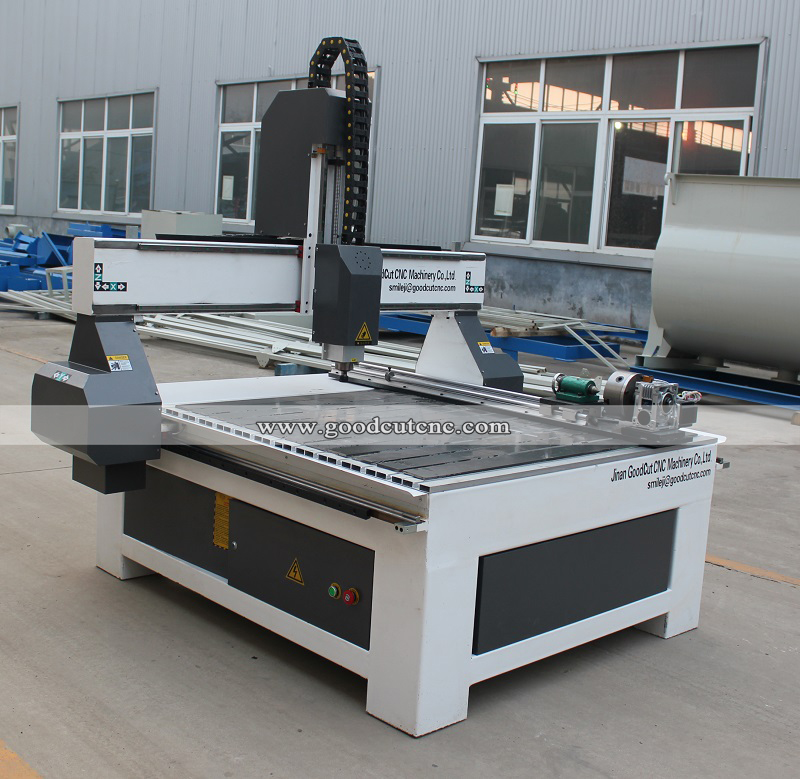

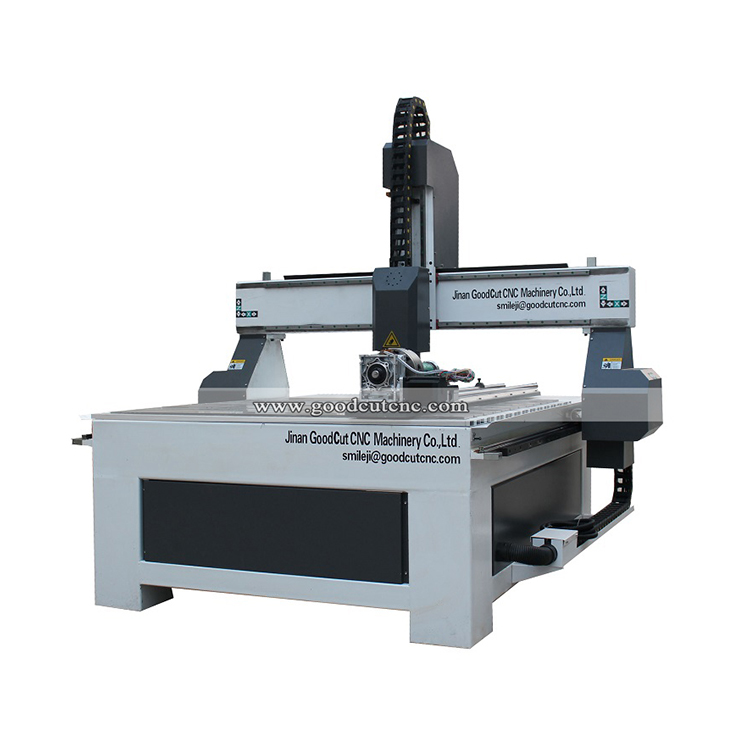

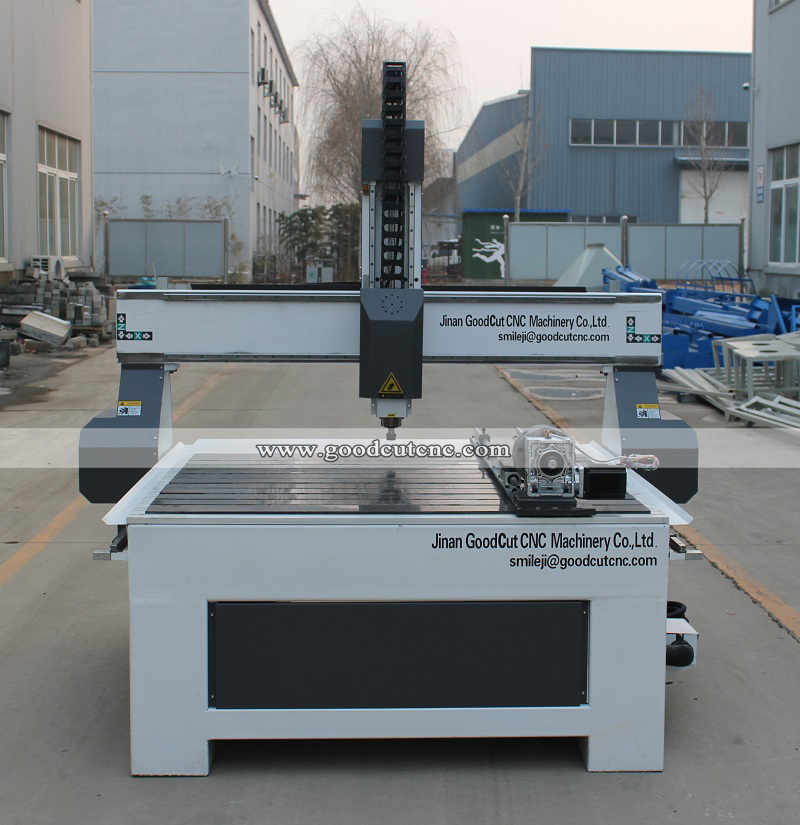

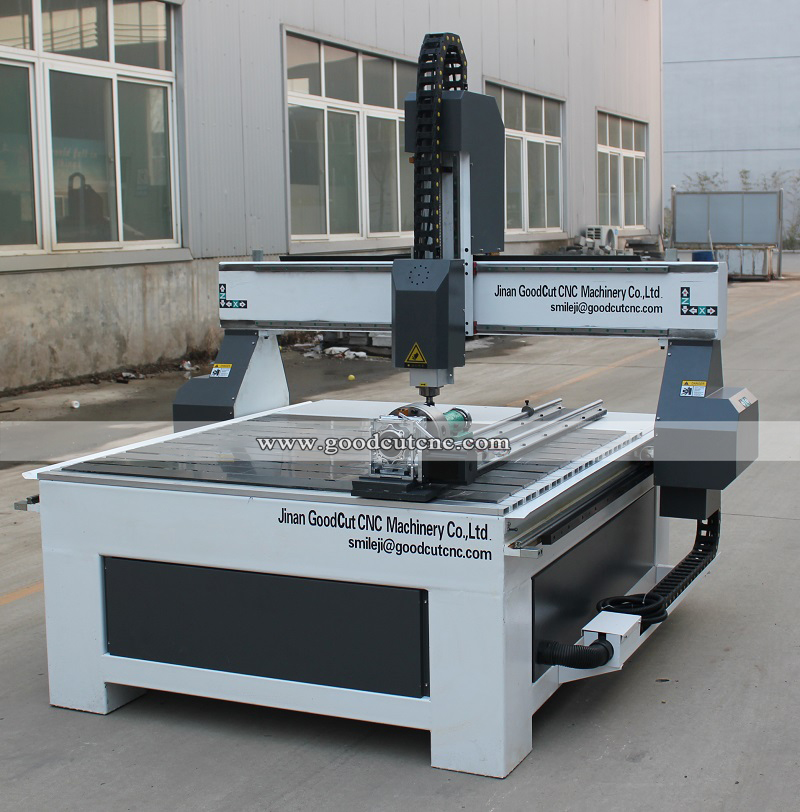

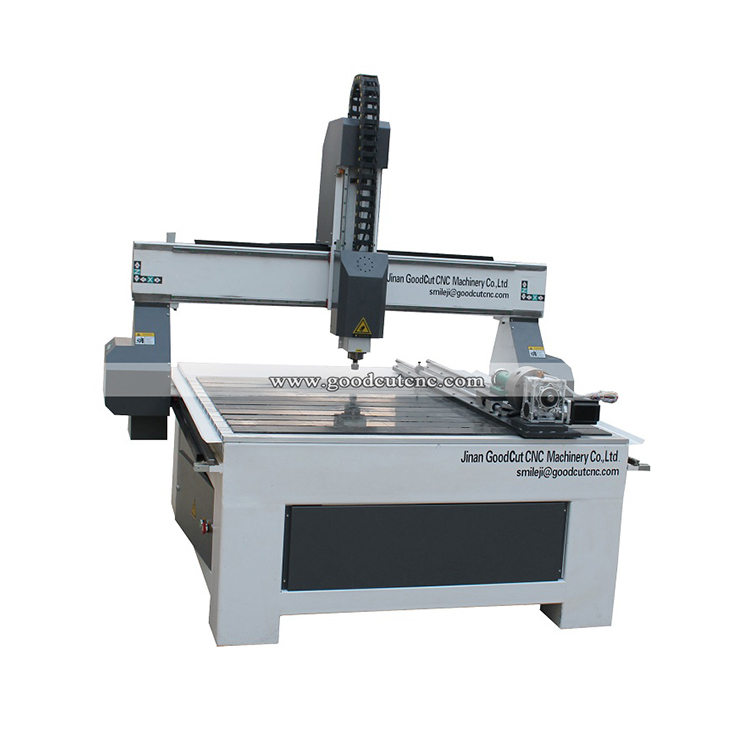

GoodCut 1212 4 Axis Wood Carving CNC Router with Rotary Device for MDF Acrylic

  • 1200*1200mm working size
  • 4 axis rotary device
  • wood mdf carving cutting
  • movable rotary on the table
  • Product description: 1200*1200mm small working size 4th axis rotary device on the table, is movable.
  • INQUIRY   EMAIL

GoodCut 1212 4 Axis Wood Carving CNC Router with Rotary Device for MDF Acrylic

Parameter:

Table size:

1200mm*1200mm

Resolution ration:

0.1mm

Spindle power:

3.2KW water cooling spindle(Other power for optional)

Working voltage:

AC380V or 200V /50Hz or 60HZ

Working precision:

About 0.1mm

Location precision:

About 0.1mm

Table structure

Aluminum working table with T slot

Transmission

Taiwan HIWIN square guide rail, TBI Ball screw

Motor and driver

Leadshine stepper motor and driver

Spindle rotating speed:

24000 revolution/min

Max speed of working:

25000mm/min

Feeding height

 200mm(option)

The diameter of rotary

150mm

The engraving instruction

G code

Controller

Weihong controller/DSP/Mach 3

Absorption power

5KW

Gross power

20KW

Power consumption:

2.8KV



Feature:

1. Welded frame, solidity and stable.

2. Adopt Hiwin square rail guides and imported TBI ball screw to ensure more stable
movement and high accuracy.
3. T-slot PVC table with Aluminum profile decorative appearance beautiful design.
4. Advanced water cooling brush-less spindle ,low noise ,long time mass processing.

5. NC studio controller/DSP/Mach 3 controller

6. Compatible with kinds of software such as TYPE3,Artcam,etc.





Detailed parts:

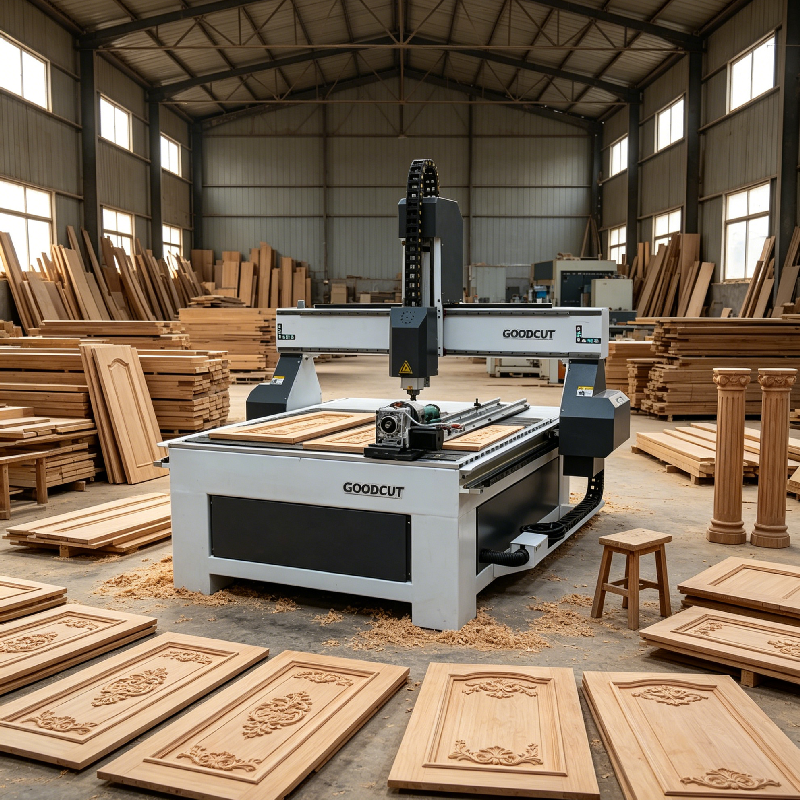

Application:

1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate
board, epoxy resin, ABS, PP, PE and other carbon mixed
4. Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
