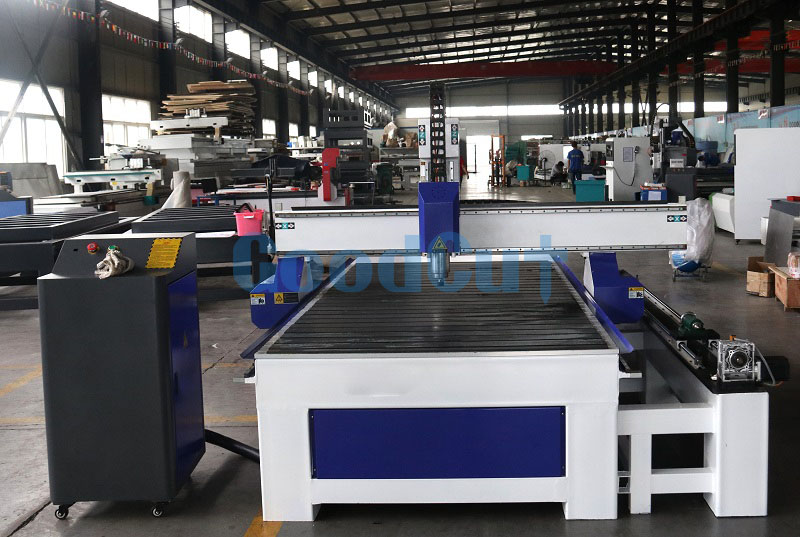

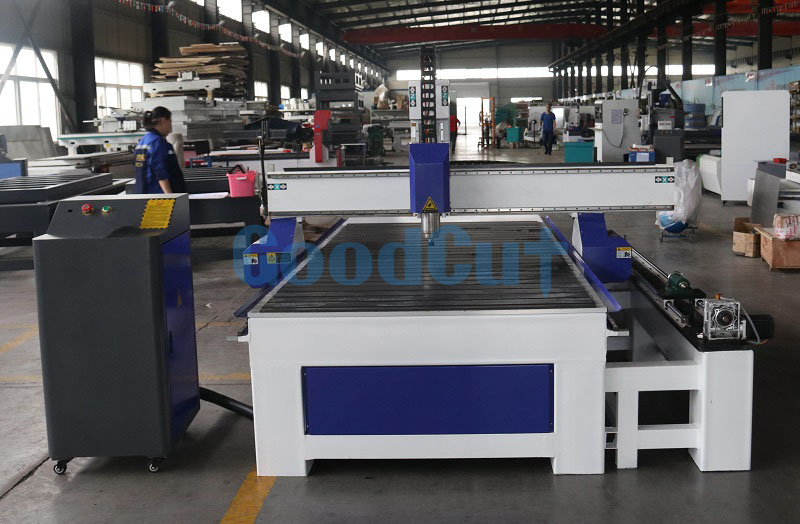

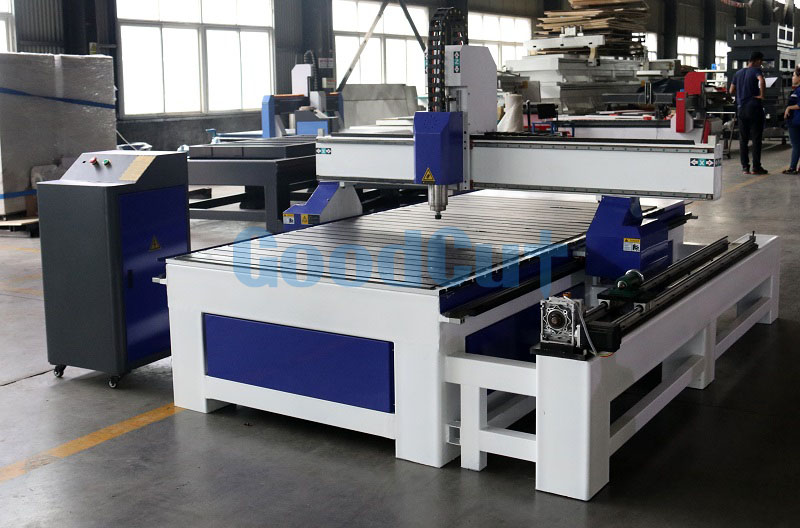

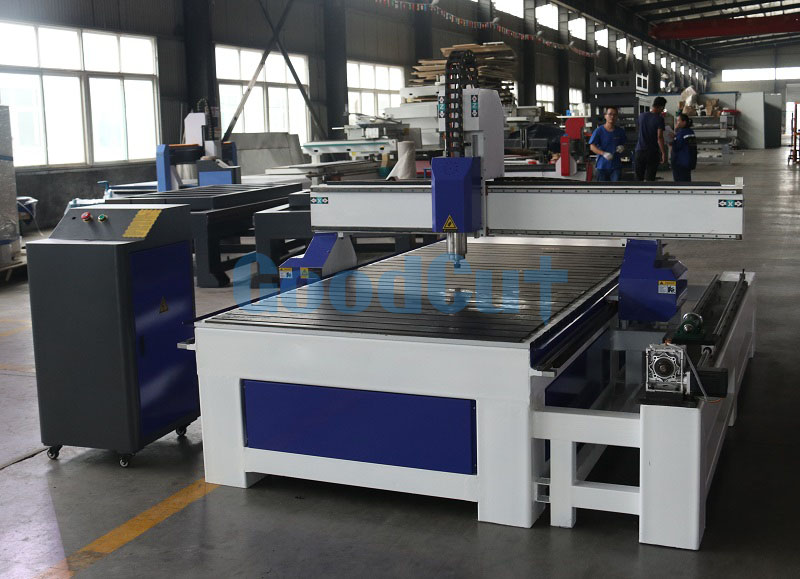

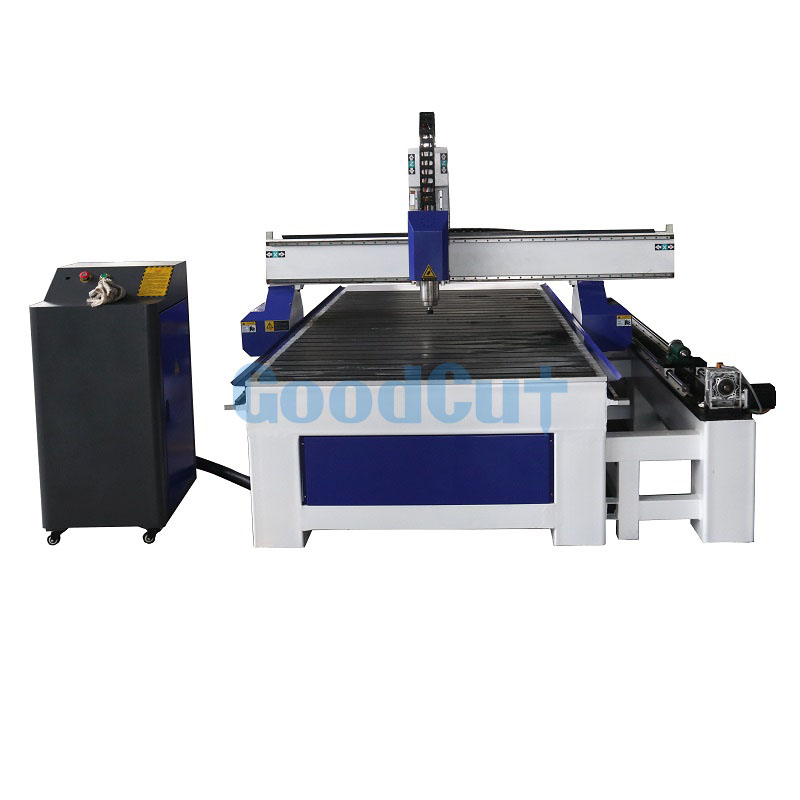

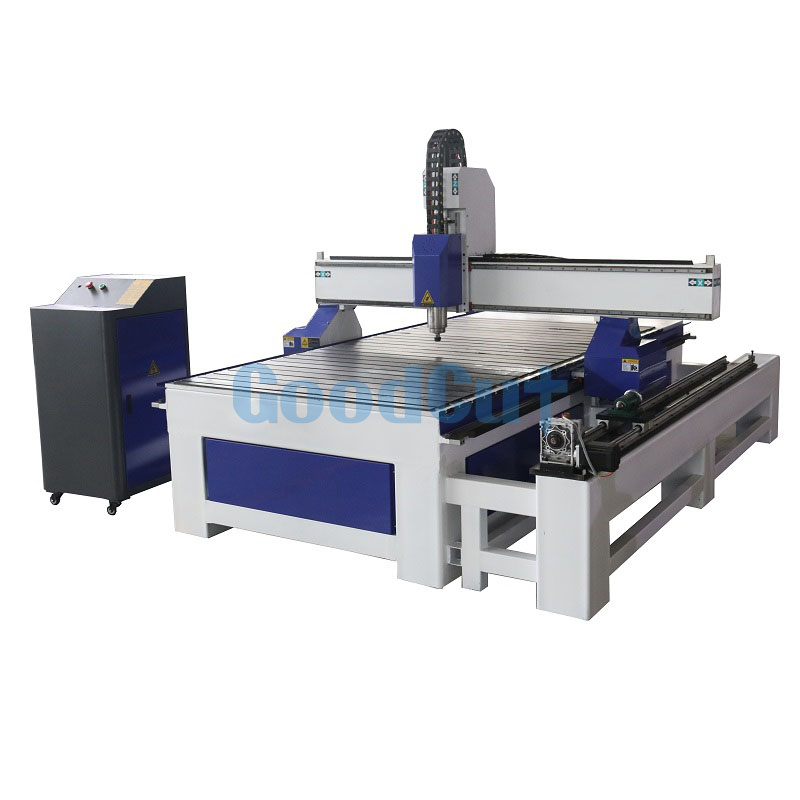

GC1325R 4 Axis CNC Router Machine with Side Rotary Attachment for Woodworking

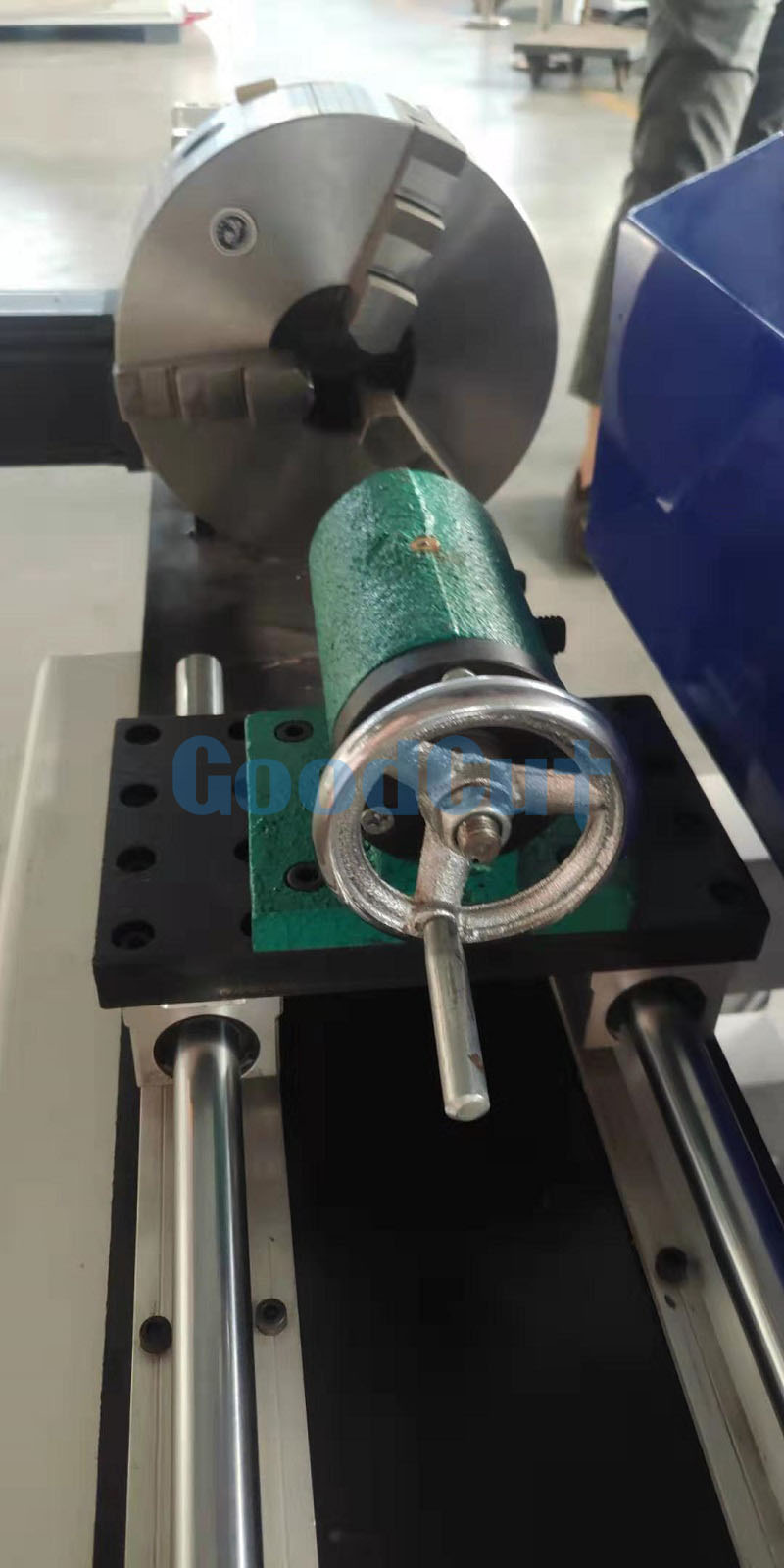

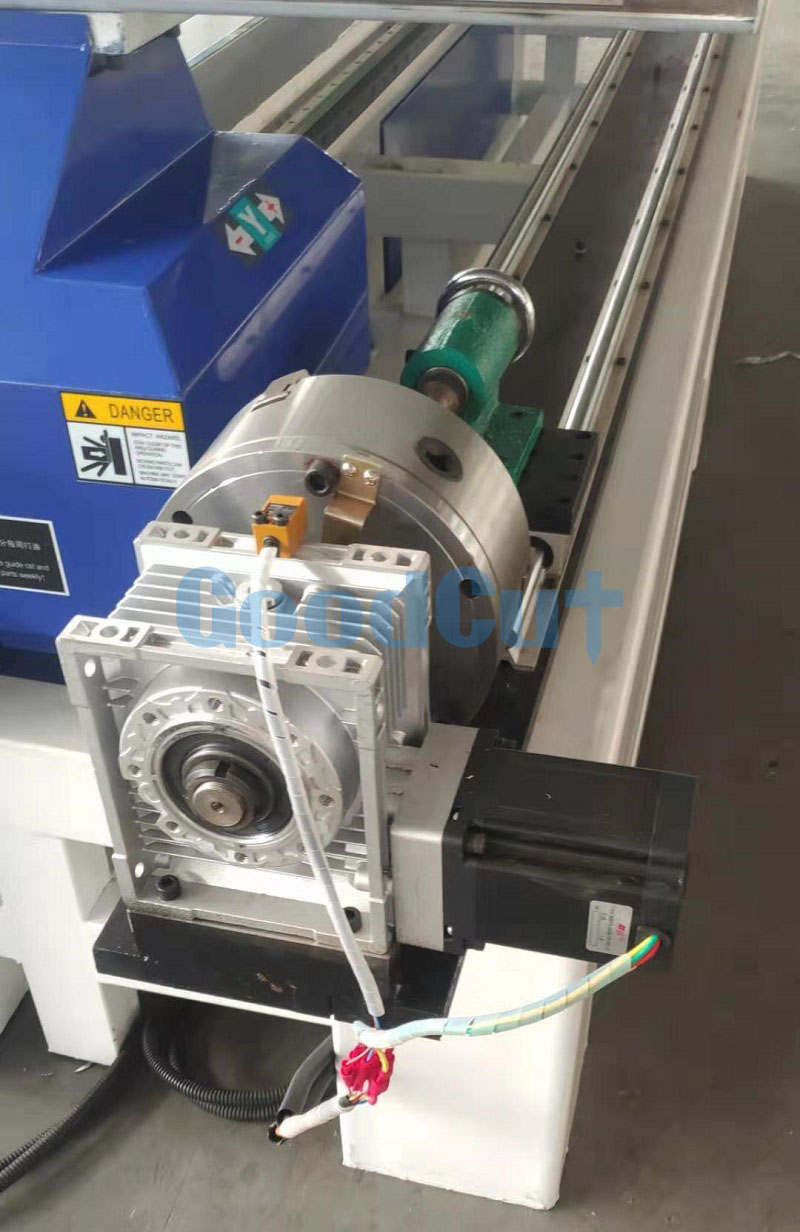

  • 4 axis rotary on the side
  • 1300*2500mm working size
  • Aluminum table
  • HQD 3.2kw/4.5kw spindle
  • Product description: Rotary attachment on the side, 150mm diameter 1300*2500*200mm working size Aluminum T slot with PVC
  • INQUIRY   EMAIL

GC1325R 4 Axis CNC Router Machine with Side Rotary Attachment for Woodworking

Parameter:

Machine Series No.
 GC1325R
Working Area
1300*2500*200mm
Spindle Power
Water Cooling 2.2kw 3.2KW  4.5KW  5.5KW
Spindle
Water  Cooled Spindle
Inverter
BEST /Fuling/DELTA inverter
Guide Rail
HIWIN Square Guide Rail
Control System
March 3 , NC -studio , DSP  Control System  Optional
Transmission System
Leadshine Stepper Motor&Driver  Standard
Working Table
Pvc or Vacuum Table
Motion Positioning Accuracy
±0.025mm
Repositioning Accuracy
≤0.025mm
Max. traveling Speed
22m/Min
Max. Working Speed
15m/Min
Spindle Speed
0-24000RMP
Power Supply
AC220V or 380V/50-60HZ
Command
G Code
Compatible Software
ARTCAM, UCANCAM ,Type3 , CAD or CAM Softwares
Packing Detail
Plywood Case (veneer wood case for export)


Feature:


1. Z axis feeding height 200mm

2. Square tube welded steel frame structure-8mm thickness

3. Aluminum T-slot table or Vacuum table + Vacuum pump for optional

4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw

5. X, Y, Z axis Taiwan square rails PMI

6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver

7. 3.2KW water cooling spindle and Best inverter, other spindles are optional

8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional

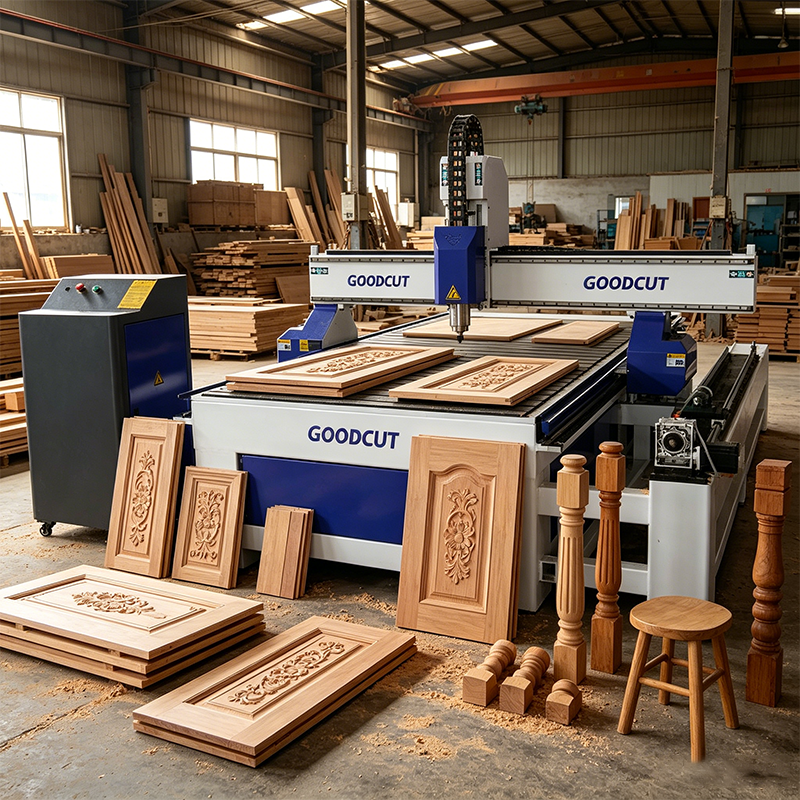

Application:


1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial

marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.
