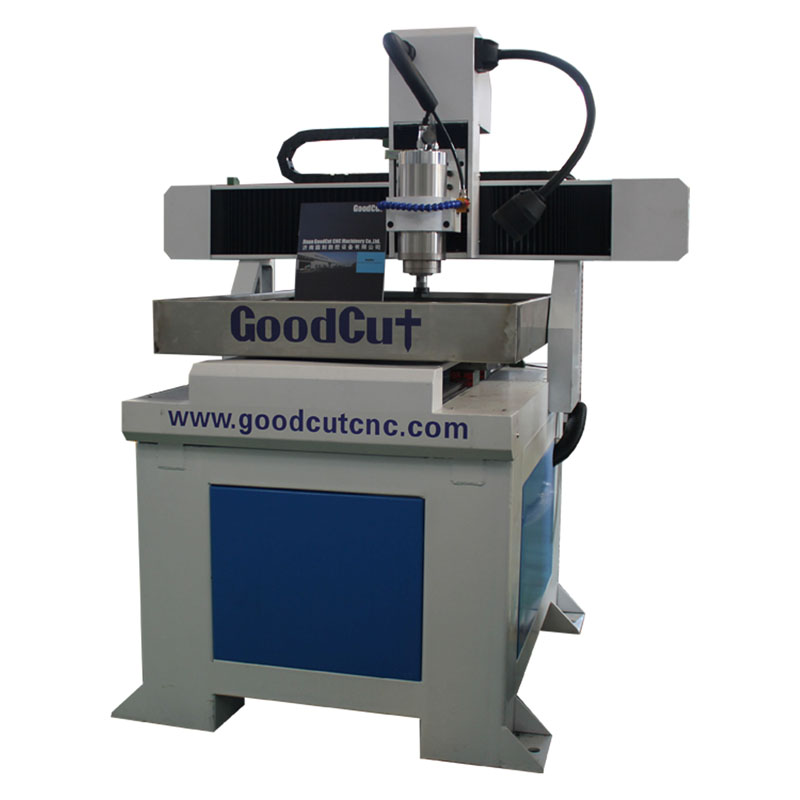

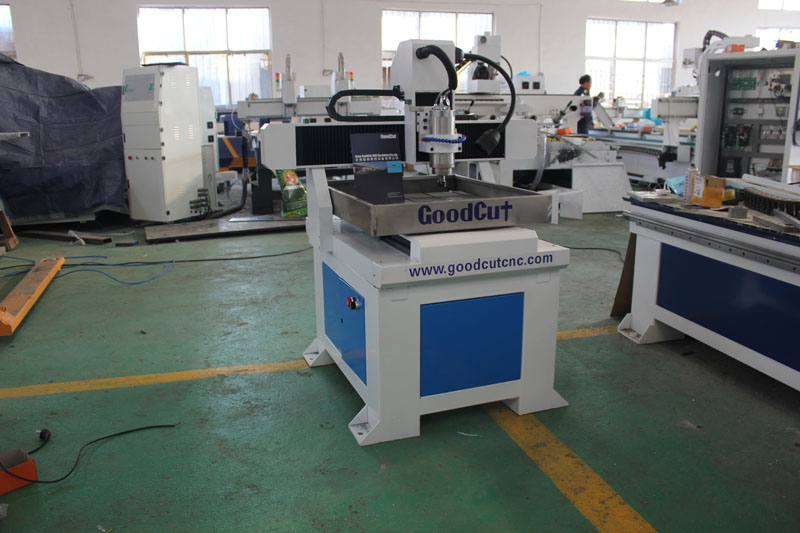

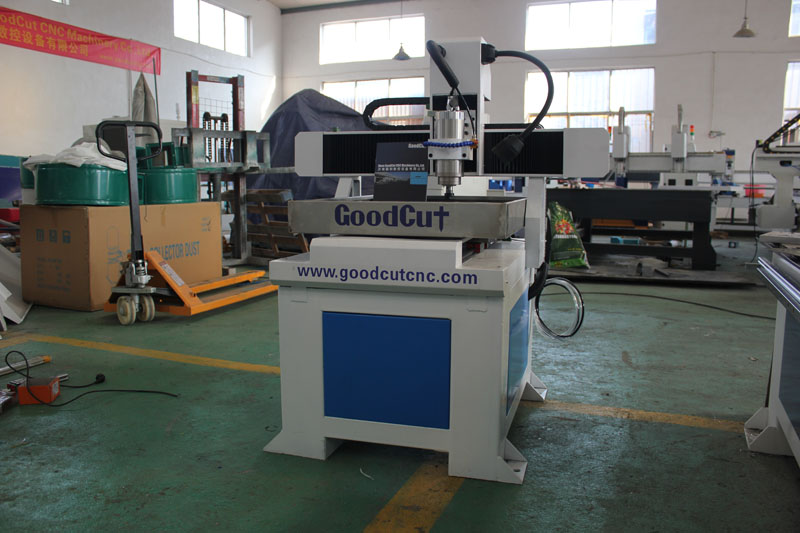

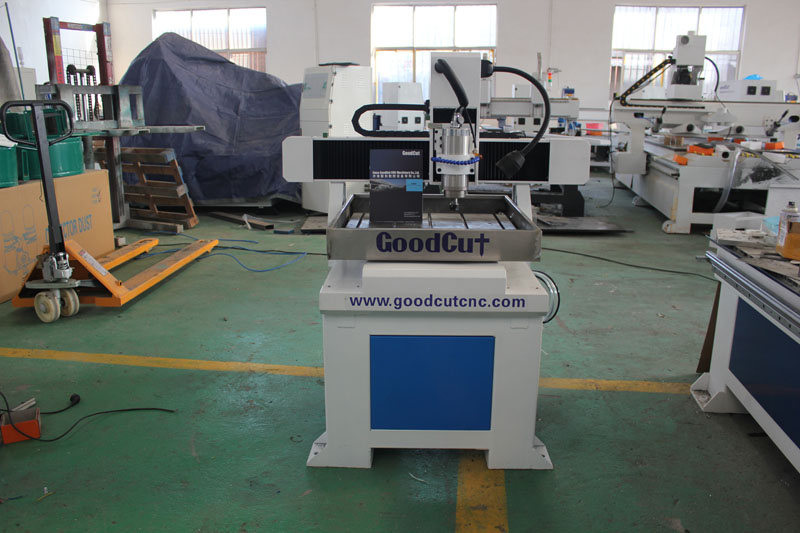

GC6060 High Precision Table Moving CNC Router with Water tank for Soft Metal Aluminum Copper

High pricision
Table moving
With water tank
For engraving soft metal materials
Product description: 600*900mm small working size Table moving with high precision With water tank for engraving soft metal aluminum copper
INQUIRY EMAIL

GC6060 High Precision Table Moving CNC Router with Water tank for Soft Metal Aluminum Copper

Parameter

Working area	600600150mm (can be customized)
Table	Aluminum profile T-slot working table with PVC protection
Spindle power	1.5kw water cooling,24000rpm(Option:HSD air cooling spindle)
Motor system	Stepper motor system(Option:servo motor)
Control system	DSP (Option:Mach3 /Ncstudio) with USB interface
Transmission	TBI ball screw from Taiwan
Rail way	HIWIN linear guide
Inverter	1.5kw Fuling inverter(Option:Delta inverter fromTaiwan)
Driver	Leadershine driver(top brand in China)
structure	Cast iron bed
Speed	Max travelling speed:6000mm/min Max working speed: 5000mm/min
Switch	Japanese OMRON Switch
Cable	Highly flexible towline;fire-resistant double-sheathed cable
Software	Type3,Artcam
Package	Plywood case
Working voltage	AC220V/1PH/50Hz (option:380V)

Feature:

1. The machine whole cast iron body, movable table, chassis stability high load bearing, used for a long time never deformation, ensure the accuracy of metal processing requirements

2. Special metal spindle optional spindle has permanently power, long life, big power, the machining accuracy increase of 20%

3. Adopt imported ball screw, occlusive close, effectively meet the precision requirement of and improve the metal processing

4. Taiwan HINWIN square rails,support moving table,improving precision greatly,senke sample tested minimum forming 0.5 MM!

5. T-slot table,suitable for all kinds of materials, clamp help fixed carving materials

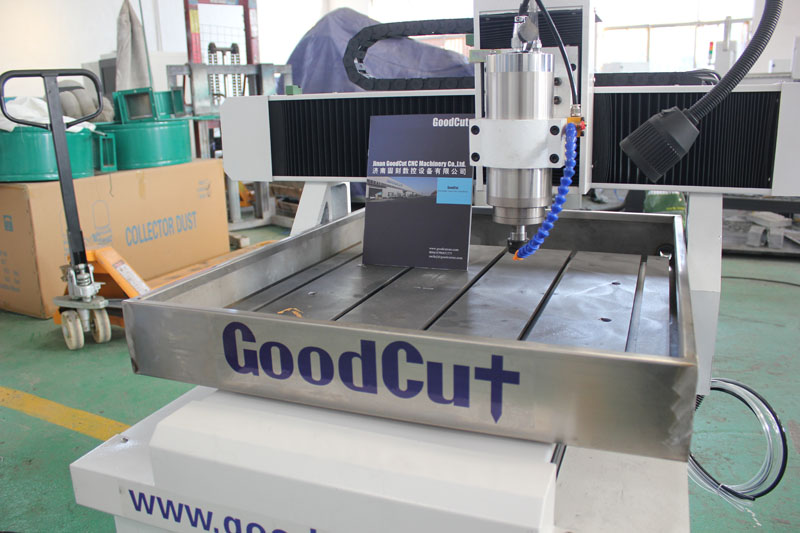

6. The machine with the sink, faucets and water pump matching accessories, can give the machine cooling in time, effective protection of the main shaft, the material, cutting tool

Application:

Applicable industries:

Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, scr
een and so on.Advertisement:engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.

Applicable materials:

Wood, aluminum board, plastic, density board, wave board, PVC, PCB, acrylic, crystal, light marble and other nonmetal materals and light metal materials
