CNC Router

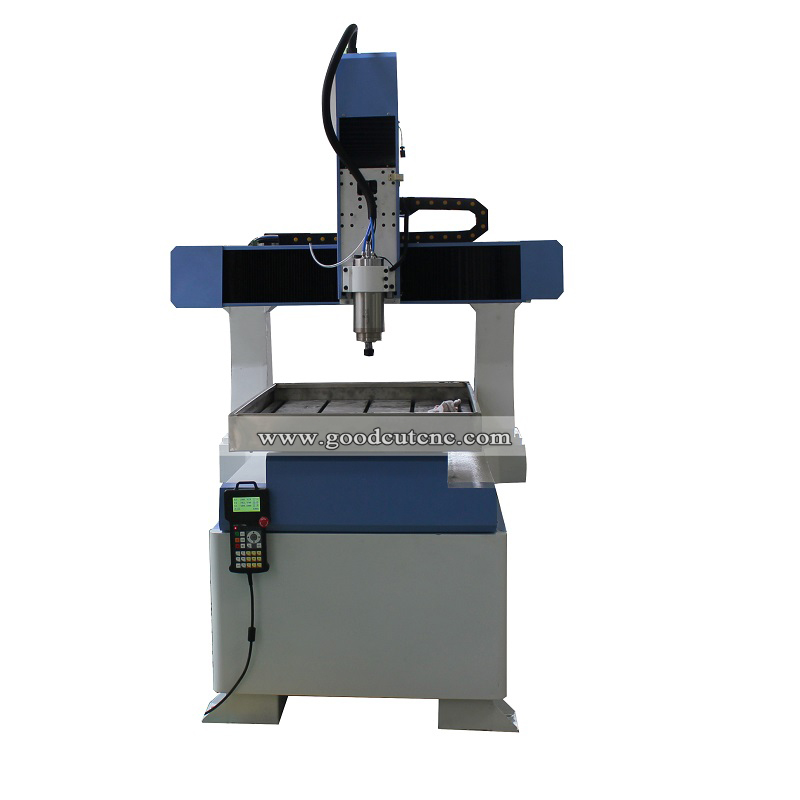

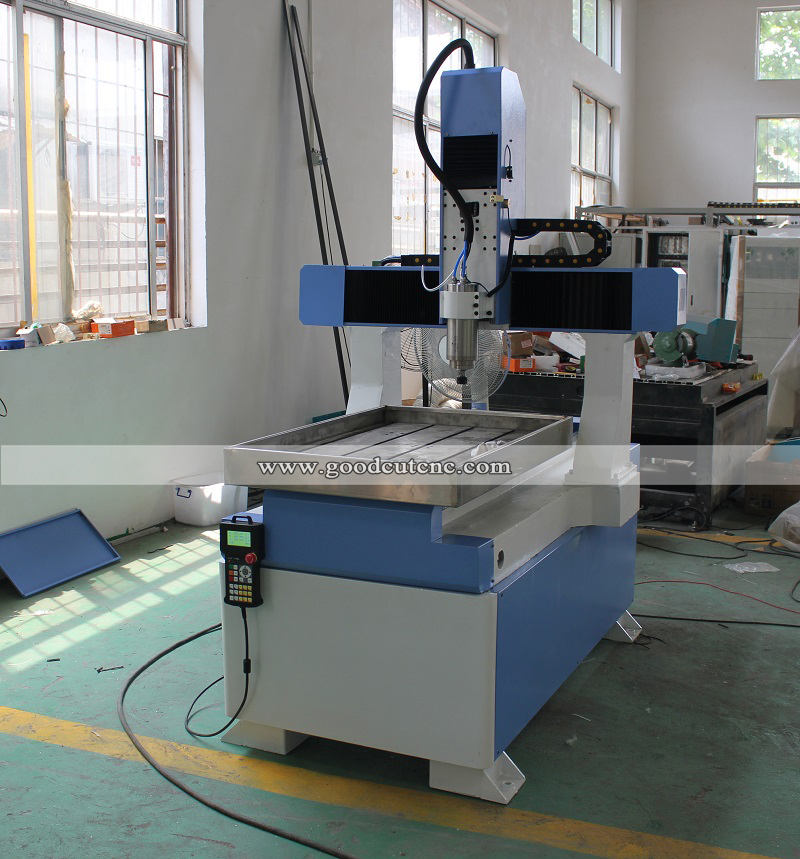

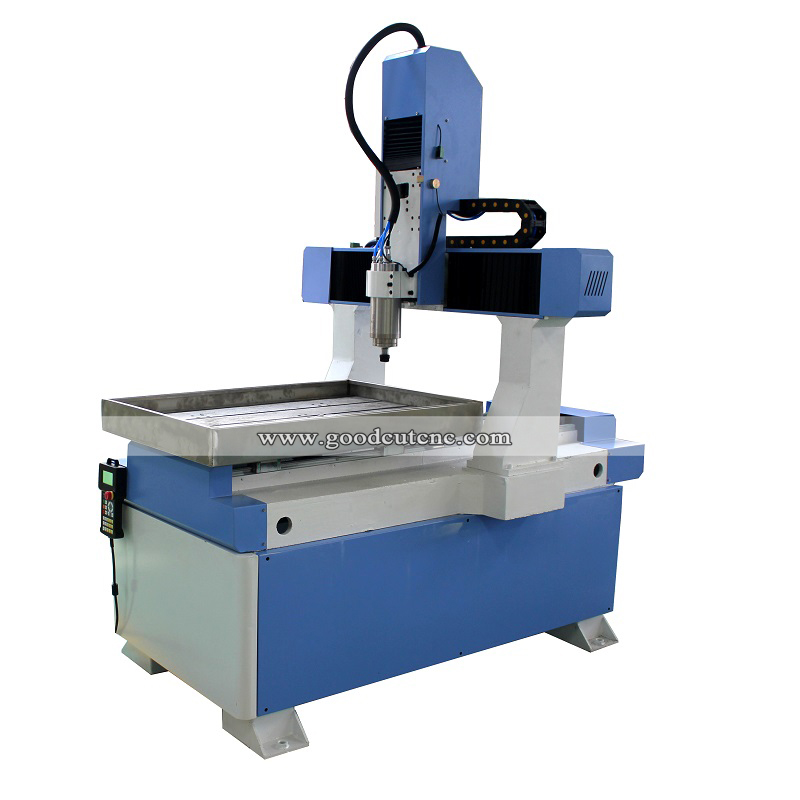

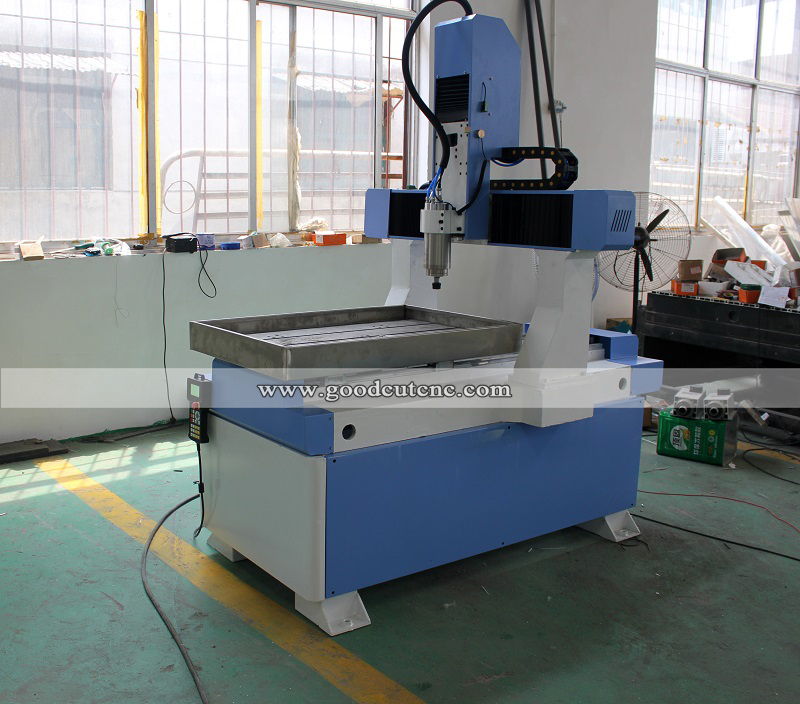

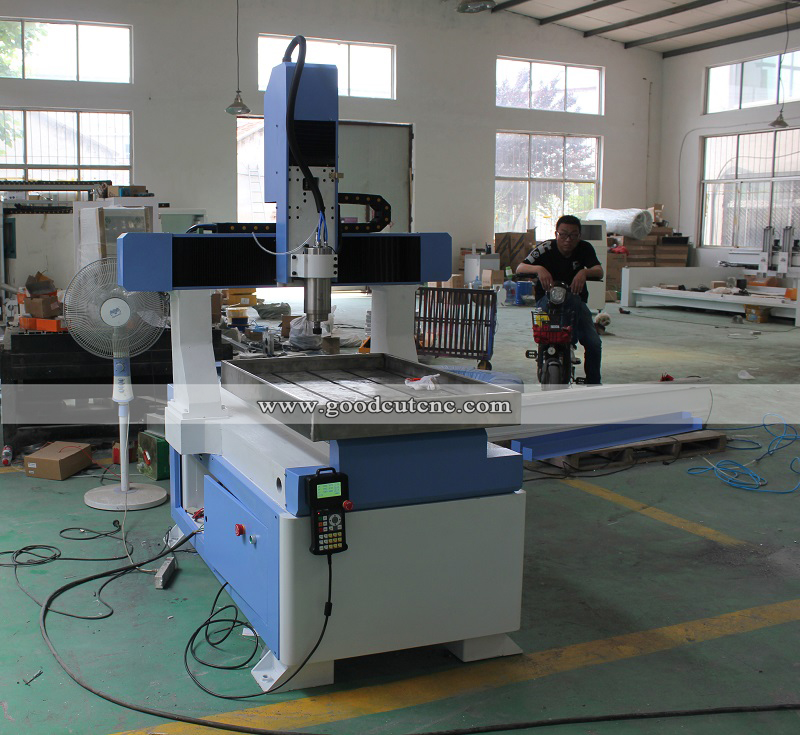

GC6090 Mini Movable Table CNC Router Machine with Cast Iron Bed for Aluminum Wood

600*900mm working size
Table moving
With water tank
Cast iron bed
Product description: Table moving type, high precision. Water tank and water cooling system, for soft metal material. Cast iron bed, more stable. 600*900mm small working size
INQUIRY EMAIL

6090 Mini Movable Table CNC Router Machine with Cast Iron Bed for Aluminum Wood

Parameter:

Model	GC-6090
Working size	300300/400400/600600/600900 *120mm
Rotary axis	As you need
Materials	Casr iron machine bed, cast aluminium gantry
Working table	Aircraft aluminium T slot
Moving type	Gantry moving
Transmission	Ball screw transmission for XYZ-axis
Driving mode	Stepper motor
Spindle motor	1.5kw water cooling spindle
Collet type	ER 11/20
Suitable tools diameter	120mm
Voltage	AC 220V,50Hz,single phase
Spindle speed	0-24000rpm/min
Empty traveling speed	0-8000mm/min
Engraving speed	0-6000mm/min
Machine accuracy	0.05mm
Resetting accuracy	0.05m
Diagonal error	0.5mm
Control system	Ncstudio
Carving instructions	G code U00mmg *plt HPGL
Design software	Artcam 2008
Running environment	0-45oc

Feature:

1.The whole machine adopts cast iron structure and can maintain high precision during long term usage

2.This mini desktop machine is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.

3. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision.

4. The machine with T-slot table, holding the materials with clamps, High precision, can work on wood, plastics, acrylic, even metal.

Application:

Wood furniture industry
Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand ,

plastic sheeting, PVC pipe, and other non-metallic mold.
