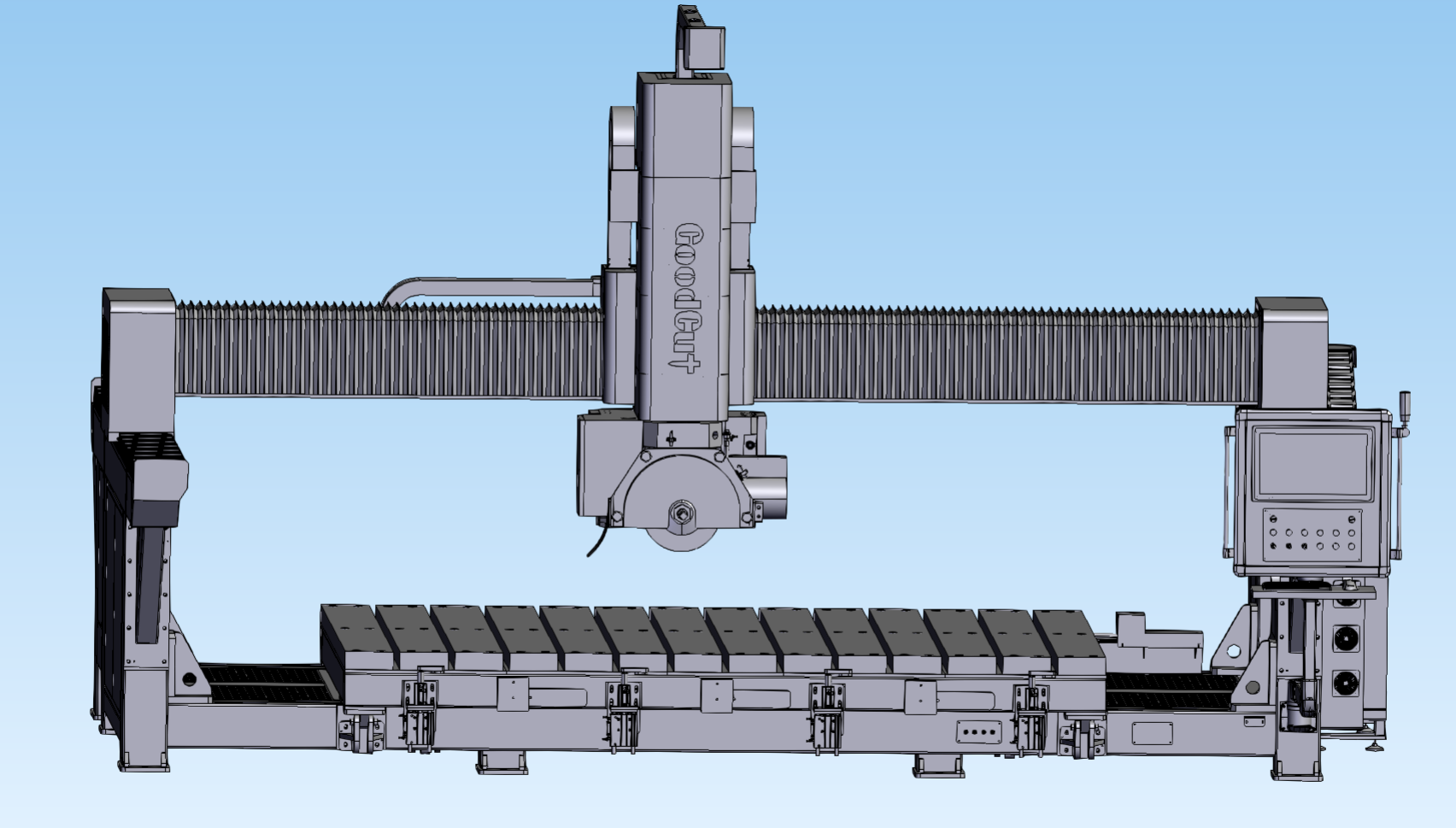

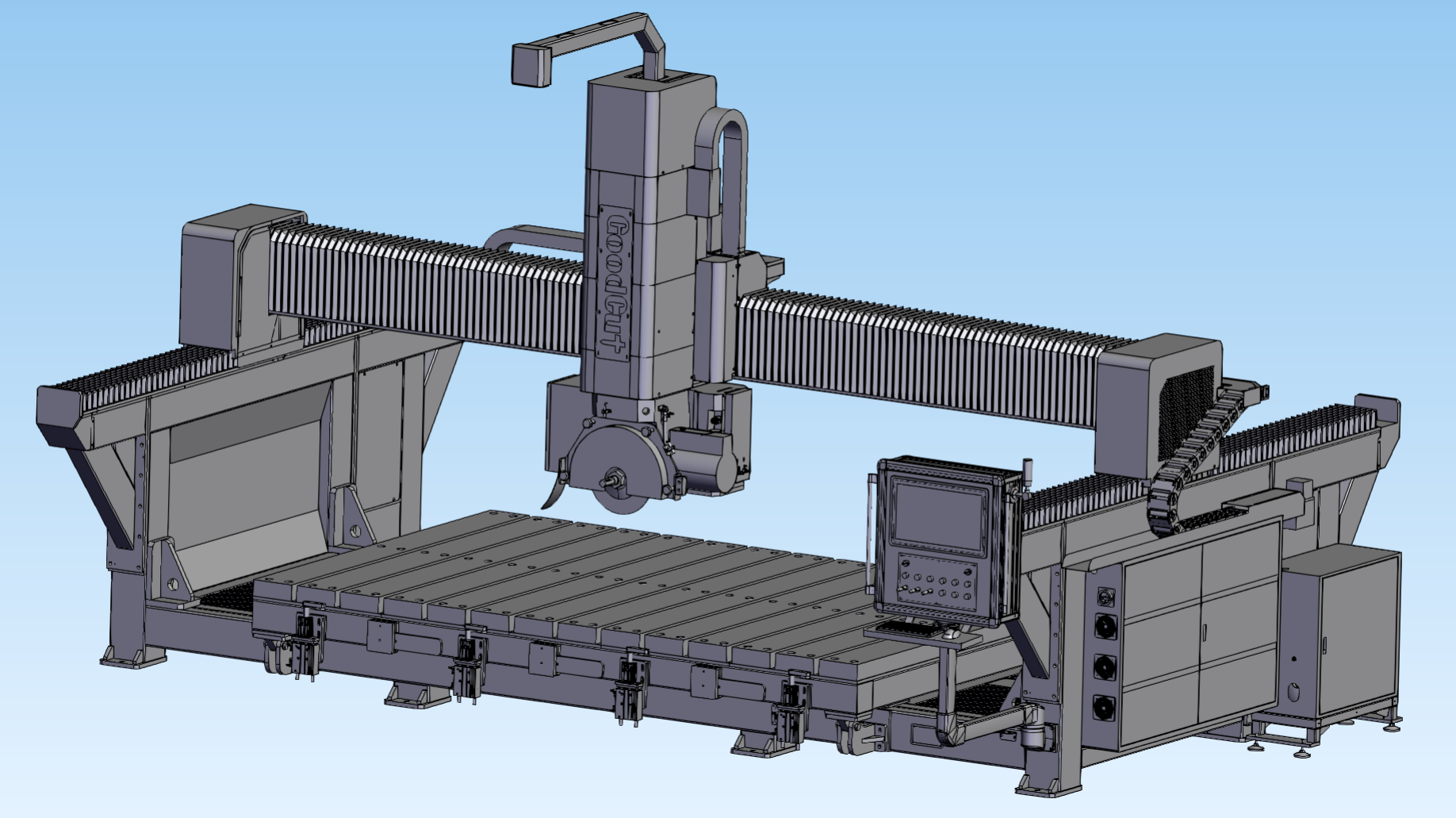

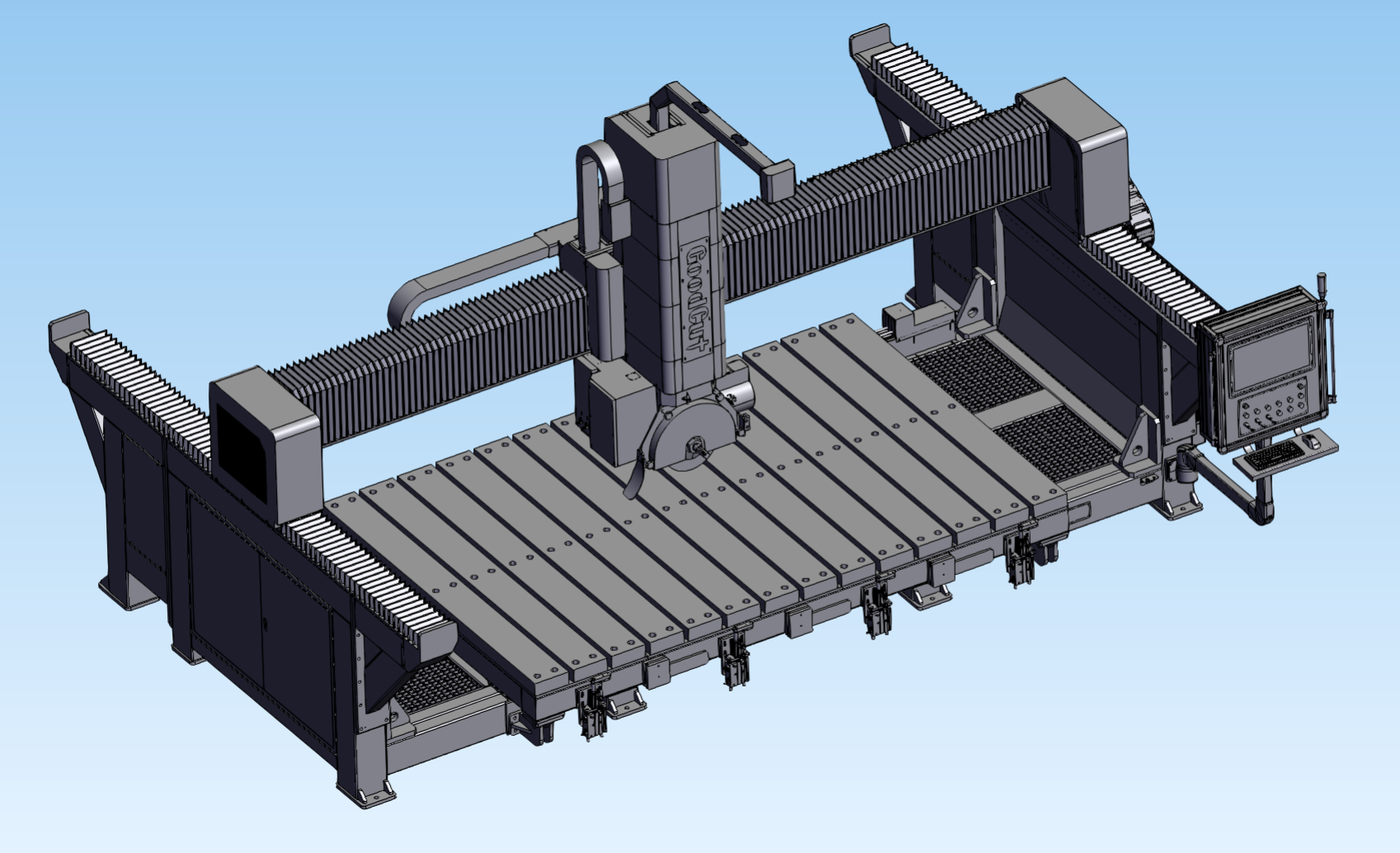

GC3422B 5+1 Axis CNC Bridge Saw Cutting Machine 5 Axis for Stone Marble, Granite, Ceramic, Tile, Slab, Kitchen Countertop, Sink, Cooktop

GC3220B
CNC bridge saw cutting machine 5 axis
3200*2000mm working size
Blade motor power 15kw
Product description: 3200*2000mm working size Blade motor power 15kw Spindle power 5.5kw XYZ + 360degree rotating head + tilt 45degree
INQUIRY EMAIL

Item	Description
Working Dimensions	X-axis travel: 3400mm Y-axis travel: 2200mm Z-axis travel: 400mm
Functions	Camera typesetting, vacuum suction cup (to hold and reposition material and prevent over-cutting), automatic height measurement (material thickness), flip plate loading, material pressing, 5+1 axis (for spindle milling)
Functions	Cutting (square, rhombus, circle, ellipse, 45° imitation shape cutting), chamfer cutting, pocketing, drilling, water groove cutting
Saw Blade Motor Power	SNT Shinite saw blade motor, 22kw, 6-pole
Saw Blade Size	500mm
+1 Axis Spindle Power	5.5kw spindle (for edge grinding, edge milling, grooving, etc.) 24000rpm
5 Axis	XYZ + 360° rotary head + 45° tilting
A-axis Travel	360° free rotation
Machine Frame	87° hydraulic tilting table (turnover platform for easy loading & unloading)
Control System	Weihong control system & Weihong motors CNC system, keyboard + mouse, remote control

Machine parts details
Automatic flip table The maximum can be turned over 85 degrees, convenient automatic loading and unloading	Multi processing functions Cutting (square , diamond, circle, oval, can cut 45degrees, profiling cut), grinding , edging, polishing, beveling cutting, dig a round, drilling hole, open sink.
