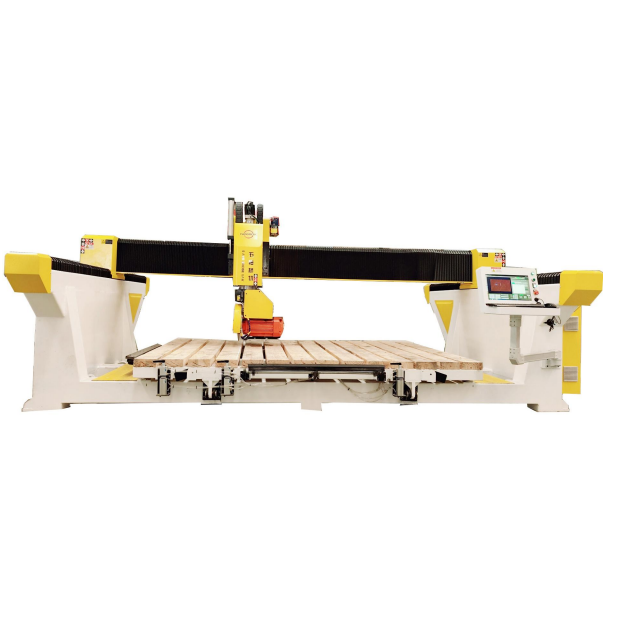

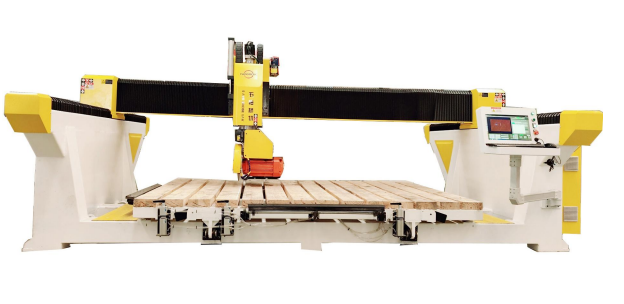

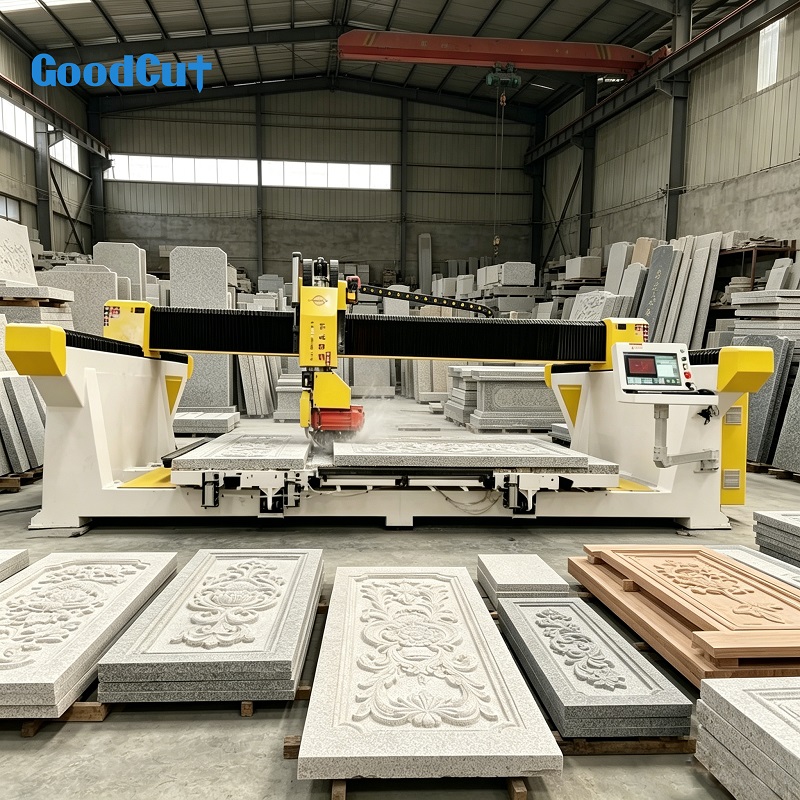

GC3220B CNC Bridge Saw Cutting Machine 5 Axis for Stone

GC3220B
CNC bridge saw cutting machine 5 axis
3200*2000mm working size
Blade motor power 15kw
Product description: 3200*2000mm working size Blade motor power 15kw Spindle power 5.5kw XYZ + 360degree rotating head + tilt 45degree
INQUIRY EMAIL

Technical parameters

3200*2000mm working size

Blade motor power 15kw

Spindle power 5.5kw

XYZ + 360degree rotating head + tilt 45degree

87degree hydraulic tilting table (for easy loading )

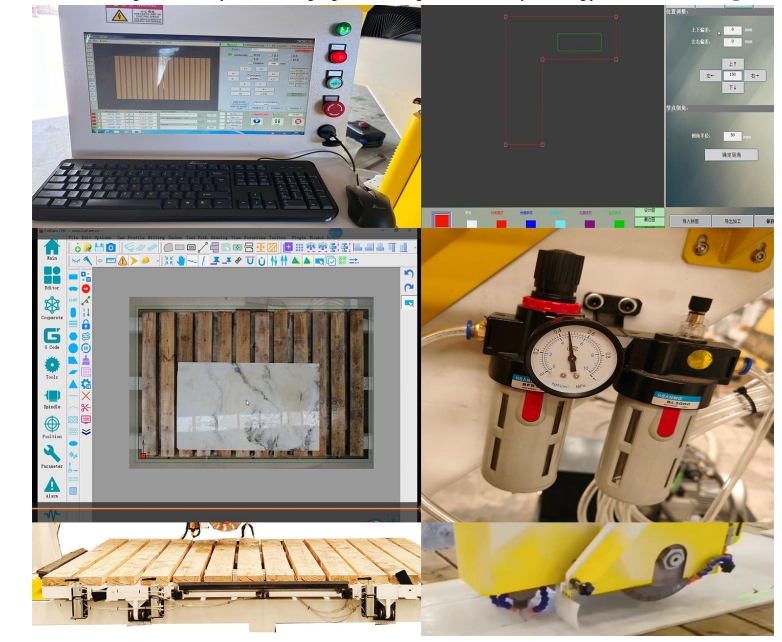

PLC + keyboard +mouse

Infrared cutting reference - position laser light

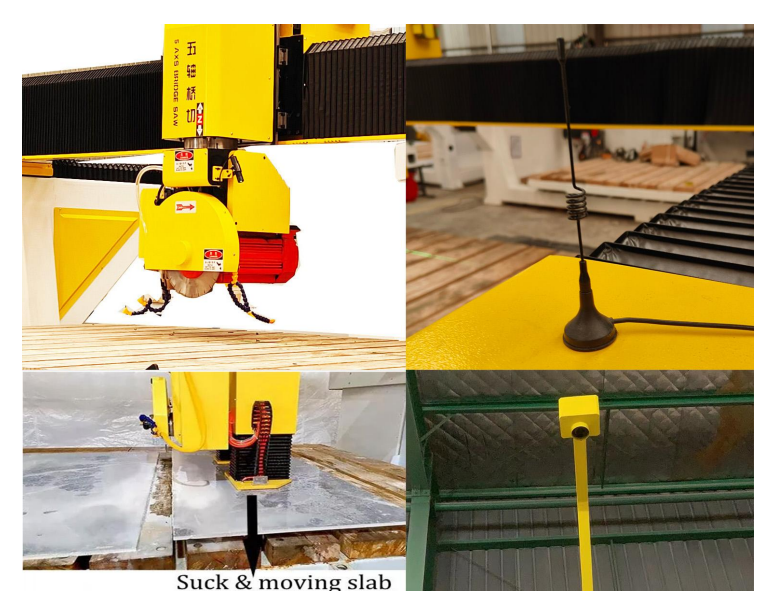

Remote control

Support DXF files, also can draw directly on the system

Automatic pneumatic press device included

Programming method 1 : manual programming

Programming method 2 : image input

Control method: CNC

Automatic pneumatic press device

Blade motor power 15kw

Working voltage 3phase 380v 50hz

Rpm 2980r/min

Blade size 350mm

X axis working stroke 3200mm

Y axis working stroke 2000mm

Z axis working stroke 260mm

A axis working stroke 360degree free rotation

5.5kw spindle ( edge polishing, milling , open sink,and so on) 24000rpm

Reversal table for easy loading

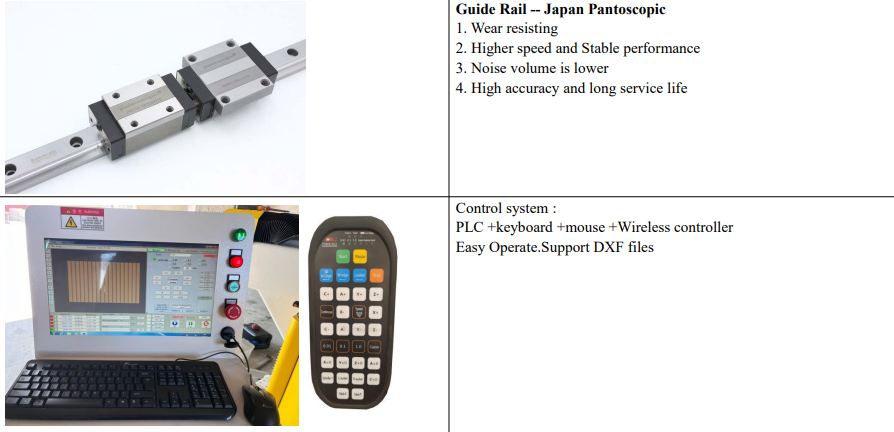

Control system PLC with keyboard and mouse

X/Y cutting speed 6000-8000mm/min

Z axis cutting speed 4000-5500mm/min

A cutting speed 0-8r/min

Cutting thickness 100mm

Processing precision 0.02mm

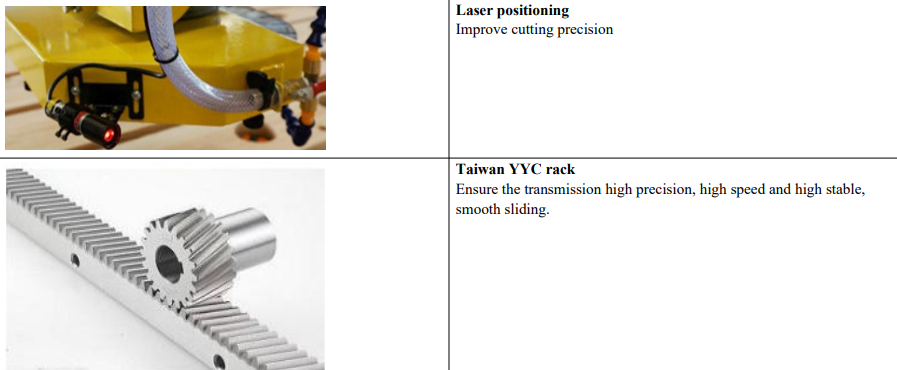

Red light positioning :including, infrared cutting reference

Working table size 3200*2000

Package size 5400*2200*2100mm

Weight 4500kg

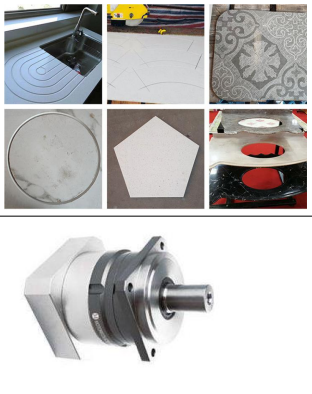

Function: cutting ( square , diamond, circle, oval , can cut 45 degrees profiling cut) , grinding , edging, polishing, beveling cutting , dig a round, drilling hole, open sink.

Machine parts details

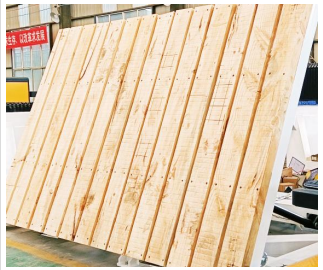

Automatic flip table The maximum can be turned over 85 degrees, convenient automatic loading and unloading	Multi processing functions Cutting (square , diamond, circle, oval, can cut 45degrees, profiling cut), grinding , edging, polishing, beveling cutting, dig a round, drilling hole, open sink.
