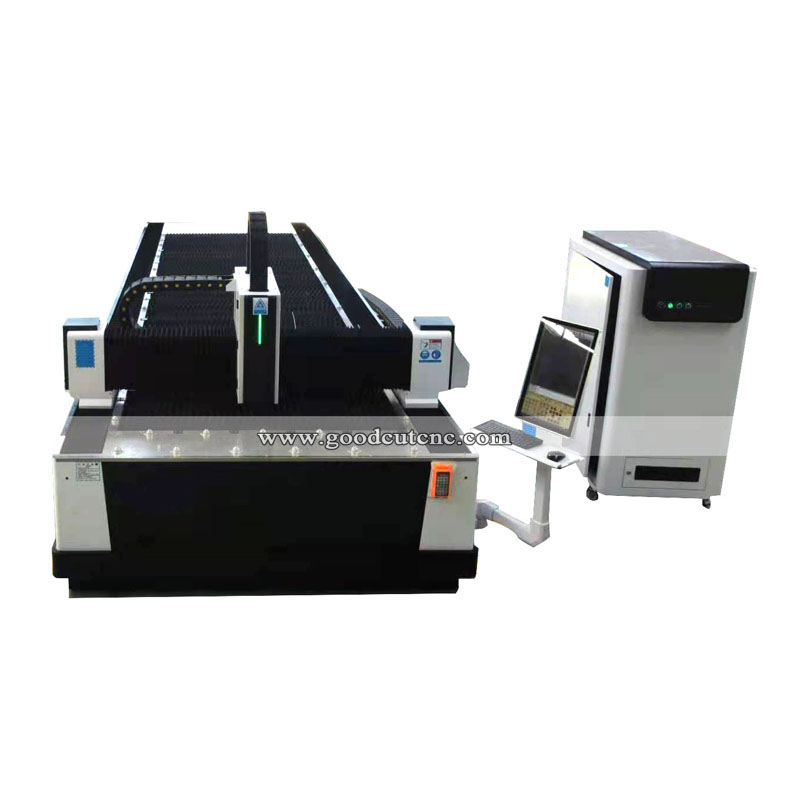

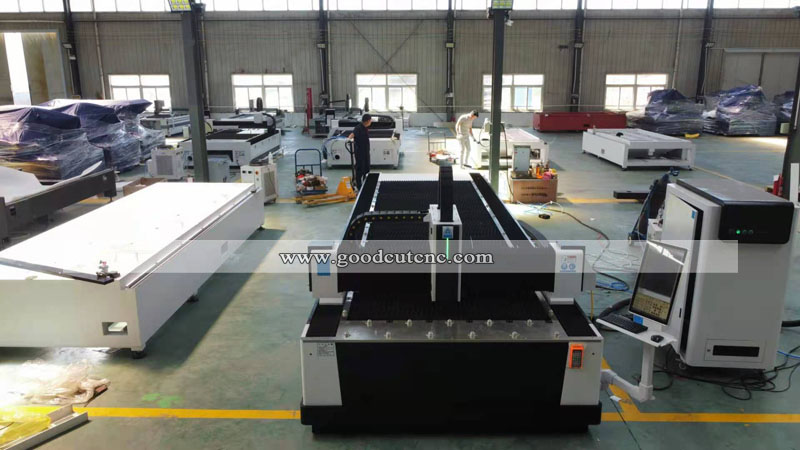

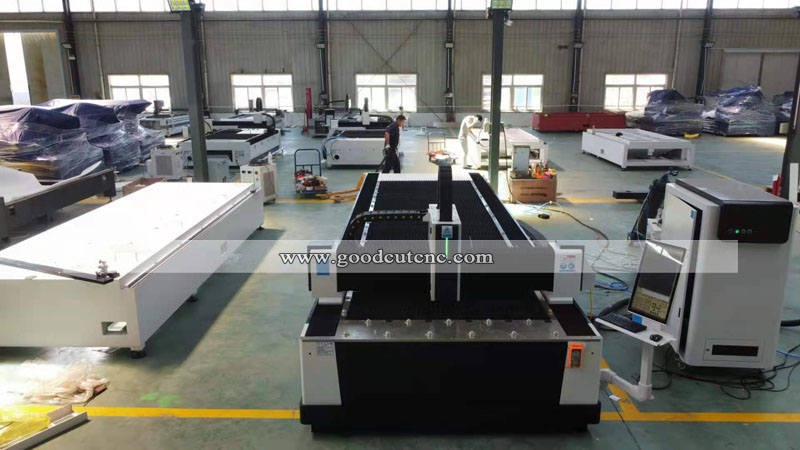

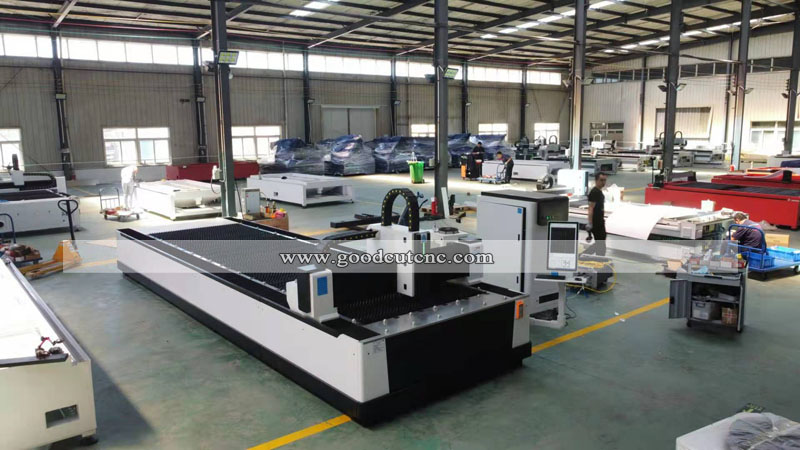

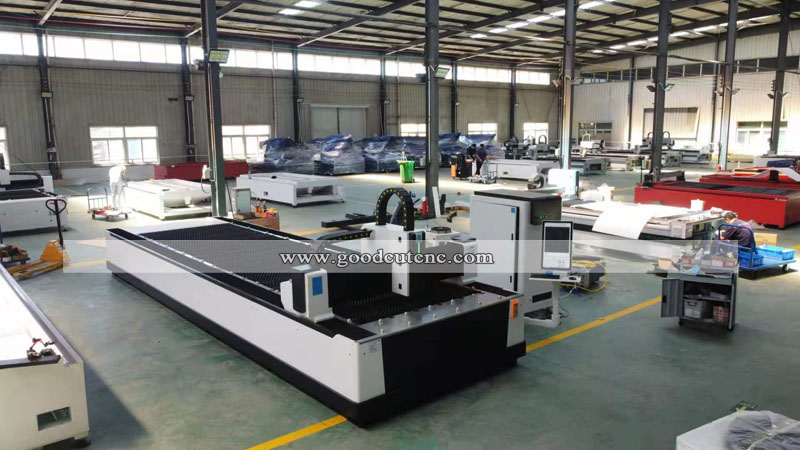

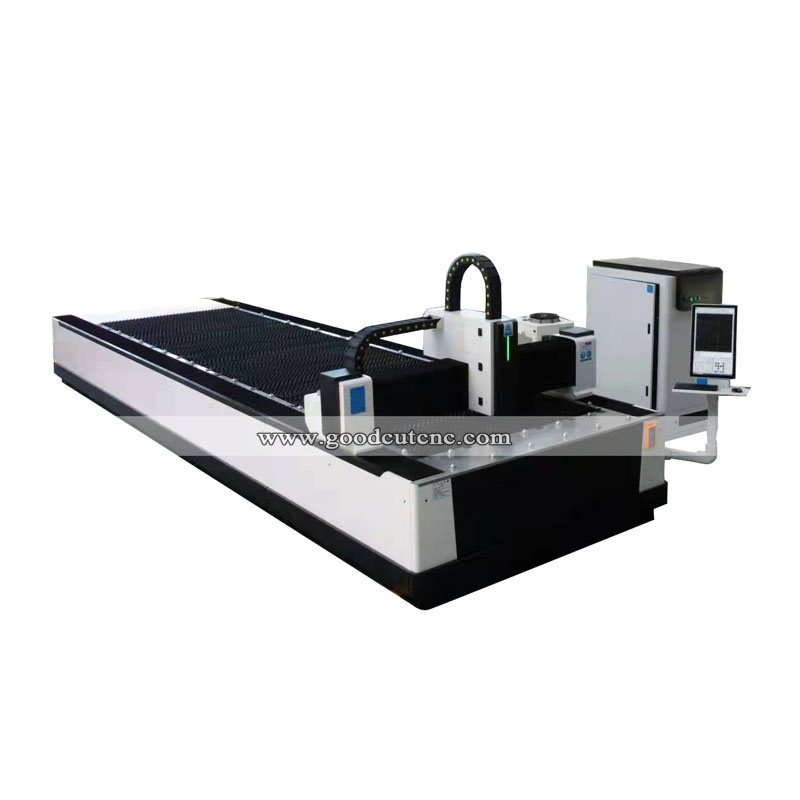

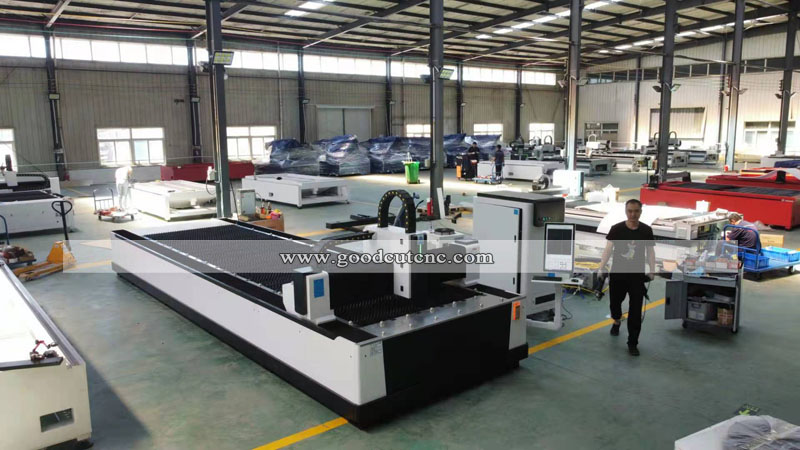

GC1560F GC2060F Big Size Fiber Laser Cutting Machine with Cypcut Controller for Cutting Carbon Stainless Steel

  • Big size
  • 1500*6000mm, 2000*6000mm
  • Cypcut controller
  • Raycus/MAX/IPG
  • Product description: 1500*6000mm and 2000*6000mm big size for optional Raycus/Max/IPG laser source Raytools laser head Cypcut controller
  • INQUIRY   EMAIL

GC1560F GC2060F Big Size Fiber Laser Cutting Machine with Cypcut Controller for Cutting Carbon Stainless Steel

Parameter:

Model GC1560F GC2060F
Laser Power 1000W/1500W/2000W/3000W
Laser Source Raycus or MAX or IPG Laser Fiber Laser Source
Laser Type Imported Fiber Laser or Top Brand China Fiber Laser
Laser Technology Germany Technology
XYZ Working area 1500*6000*150mm 2000*6000*150mm
Max. Cutting Thickness (CS) 1mm - 15mm
Max. Cutting Speed 5-15 Meters / Min (up to materials)
Max. Location speed 60m/min
Laser wavelength 1070nm
Minimum line width ≤0.1mm
Location precision ≤±0.05mm
Re-location precision ±0.02mm
Max. moving speed 100m/min
Supporting Format PLT, DXF, BMP, AI
Power demand 380V/50Hz
Cooling Way Water Cooling
Worktable max. load 1000KGS
Transmission Method Ball Screw Transmission
Table-driven system Japanese Imported  Servo Motor & Driving System
Focus Method Following and Automatic Adjust Focus
Control software Perfect Laser Professional Laser Cutting Software
 Key word  Fiber Laser Cutting Machine


Feature:


1. Machine Structure
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing,

2. Japan THK Linear Rail and Block
The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break. The usage lifespan and the product quality definitely can be ensured.

3. France Schneider Servo System
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.

4. CYPCUT Control System
The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus
cutting head.

5. S & A Chiller
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.

6. Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

7. Japan Shimpo Servo Reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.

8. WSX Fiber Laser Cutting Head
Our fiber laser machine install the WSX NO:1 manual focus cutting head, The machine also can optional the NC30 automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

9. Oil Lubrication System

This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.



Application:


Fiber cutting head (Metal Material):
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Fiber cutting head (Metal Industries):
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
