Fiber Laser Cutting Machine

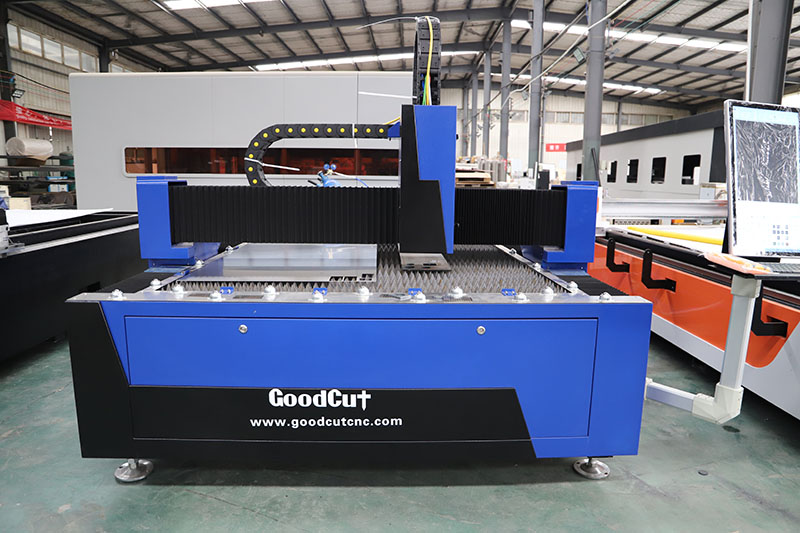

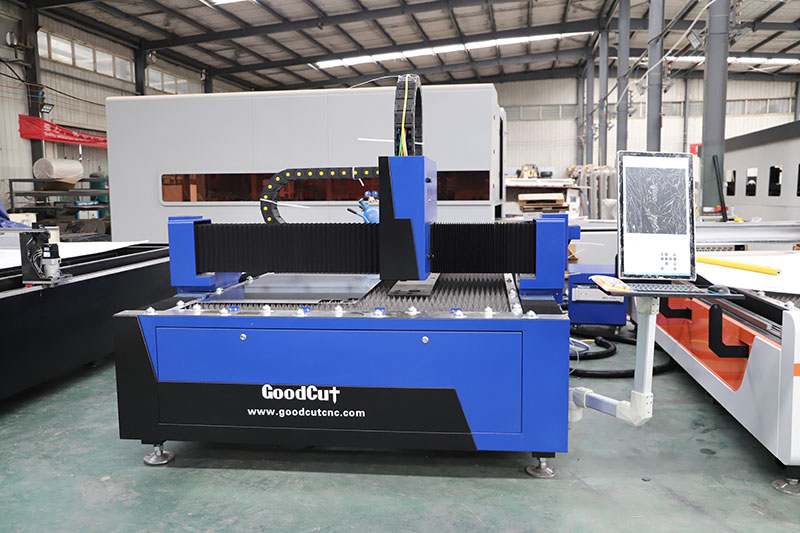

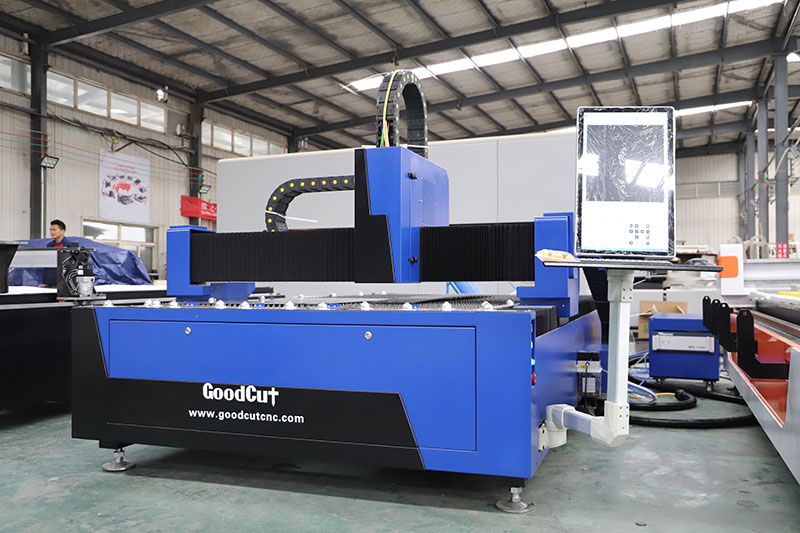

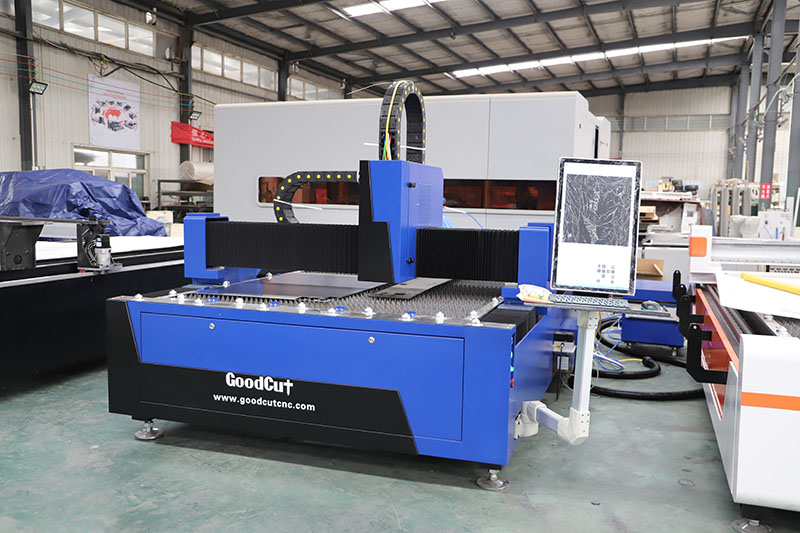

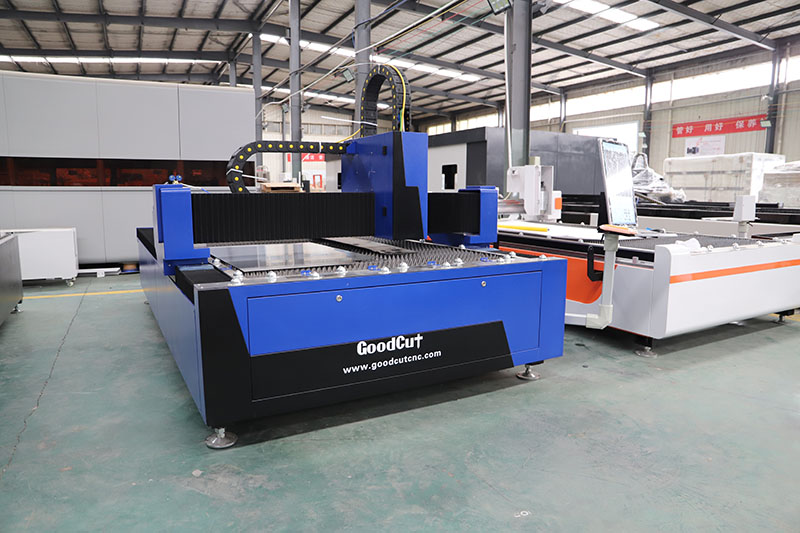

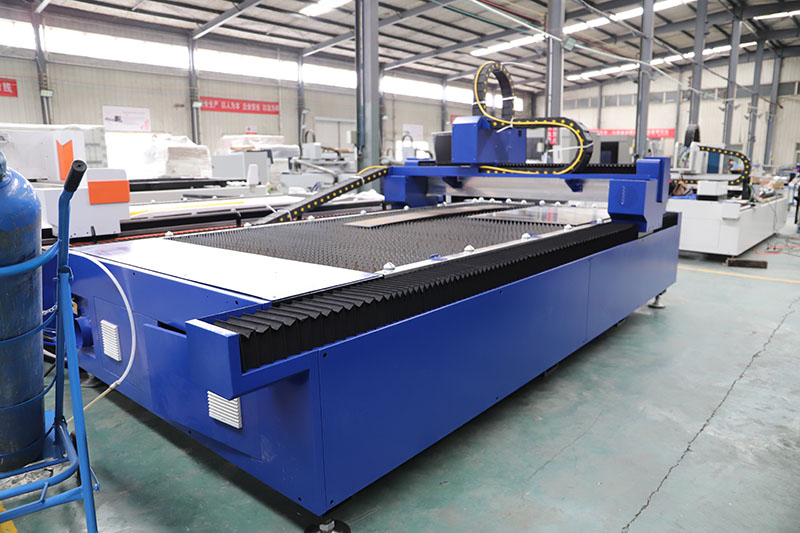

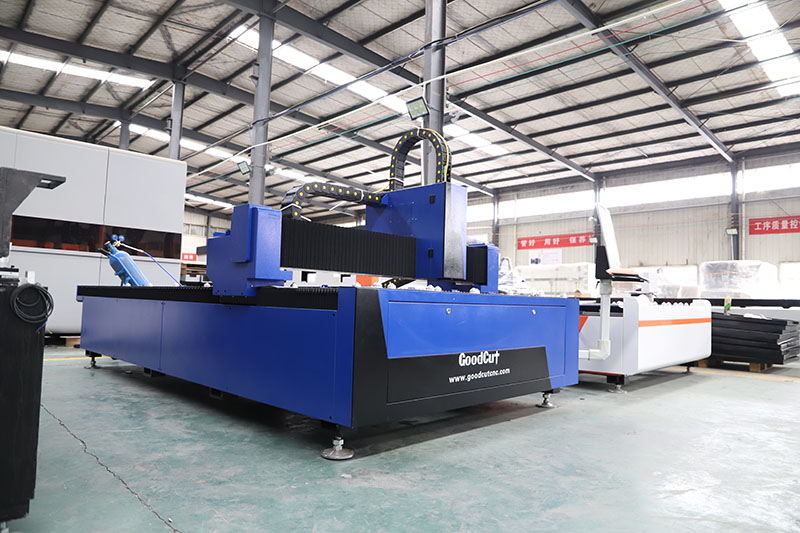

GC1530F High Quality Fiber Laser Cutting Machine with New Design

1500*3000mm
Raycus Max IPG Laser source
Raytools laser head
CypCut controller
Product description: 1500*3000mm fiber laser plate cutter 1000w-8000w laser source for optional Japan Yaskawa/Fuji servo motor driver Optional: exchange table, protective cover
INQUIRY EMAIL

Parameter:

Working area	1500*3000mm, size can be customized
Laser power	1000W / 1500W/ 2000W / 3000w / 4000w / 6000w / 8000w etc
Laser source	Raycus / IPG / MAX
Controller	Cypcut controller
Motor driver	Japan Yaskawa / Fuji servo motor driver
Repeated positioning accuracy	0.03mm
Max moving speed	80m/min
Max acceleration	1.0G
Transmission	Rack and gear, double drive on Y axis
Power consumption	<10kw
Voltage	380V, 50HZ/60HZ, 3 phase

Feature:

1. Machine Structure
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing,

2. YYC Linear Rail and Block
The machine adopts the best quality linear and block rail. We have the feedback from our client that its block even can use over 10 years and can't break. The usage lifespan and the product quality definitely can be ensured.

3. France Schneider Servo System
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.

4. CYPCUT Control System
The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus
cutting head.

5. S & A Chiller
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.

6. Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

7. Japan Shimpo Servo Reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.

8. Raytools Fiber Laser Cutting Head
Our fiber laser machine install the Raytools manual focus cutting head, The machine also can optional automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

9. Oil Lubrication System
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

Samples:
